Yes. On the Magic Chef 8241RV gas cooktop, you can replace a surface burner igniter if it is not sparking, sparking weakly, or clicking without lighting. The job is straightforward once power and gas are safely shut off and the burner area is accessible.

Before you start (safety and prep)

• Turn off power to the cooktop at the breaker (spark ignition is electrical).
• Shut off the gas supply valve.
• Let the cooktop cool completely.
• Protect the countertop with a towel or cardboard.
• Take a quick photo of wire routing and connector positions.

Basic replacement steps (surface burner igniter)

1. Remove the grate and burner cap/head for the affected burner.
2. Lift the burner base as needed to access the igniter mounting point.
3. Disconnect the igniter wire connector (pull on the connector, not the wire).
4. Remove the mounting screw(s), then remove the old igniter.
5. Install the new igniter and tighten the mounting screw(s) firmly.
6. Route the wire so it stays away from the burner flame path and sharp edges.
7. Reassemble the burner parts and grate.
8. Restore gas and power, then test ignition.

Positioning tips (to get reliable sparking)

• Keep the electrode tip aligned with the burner’s lighting ports so the spark can jump to the burner.
• Make sure the ceramic insulator is not cracked and sits solidly in its bracket.
• Keep wires pushed down and away from hot surfaces.

Common symptoms and what they usually mean

Symptom	Most common cause	What to check next
No clicking on any burner	No power or failed spark module	Check power, then consider spark module 12001596
One burner will not spark	Bad igniter or bad switch	Try range surface burner igniter 74004053, then inspect the switch
Constant clicking	Moisture, dirty electrode, or switch stuck	Dry/clean burner area; check switch wiring

Why it matters

A weak or mispositioned igniter can cause delayed ignition, uneven lighting, or repeated clicking. Replacing the igniter and routing the wire correctly restores fast, consistent burner lighting and helps prevent nuisance sparking.

Last updated: February 2026

On the Magic Chef 8241RV gas cooktop, the igniter is mounted at each surface burner, right next to the burner head where the gas lights. You’ll see a small ceramic post with a metal tip positioned so it can spark to the burner; it connects to wiring underneath the cooktop.

What you should look for on the cooktop

• Remove the grate and burner cap so you can see the burner head clearly.
• Find the white (or off-white) ceramic insulator with a small metal electrode tip.
• The electrode tip sits close to the burner ports, usually a few millimeters away.

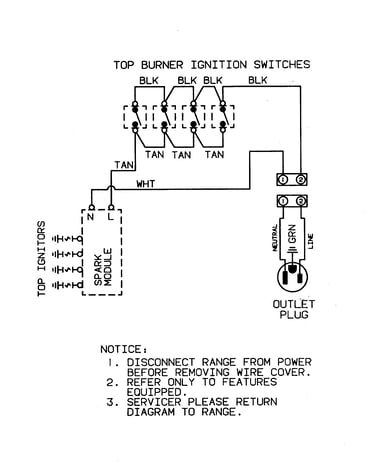

• A wire runs from the igniter down through the burner area to the spark module.
• If the igniter is cracked, loose, or heavily sooted, it can cause weak or no sparking.

Accessing the igniter safely (typical steps)

1. Turn all knobs to OFF and let the cooktop cool.
2. Shut off the gas supply valve.
3. Unplug the cooktop (or switch off the circuit) before touching wiring.
4. Lift off grates, caps, and burner heads as applicable.
5. If you need to replace it, access is usually from the top (burner area) and the wire routes below the cooktop.

Common symptoms and what they point to

Symptom	Most common cause	What to check first
No clicking/sparking on any burner	Spark module or power issue	Power supply, then spark module 12001596
One burner will not spark	Bad igniter or dirty electrode	Clean and inspect, then range surface burner igniter 74004053
Constant clicking	Moisture or stuck switch	Dry burner area; check burner switch wiring

Why it matters

The igniter’s position and condition directly affect ignition reliability. A dirty or misaligned electrode can delay lighting, while a cracked ceramic insulator can short the spark to ground instead of jumping to the burner.

Last updated: February 2026

If your Magic Chef 8241RV gas cooktop is not igniting, the most common causes are moisture or debris at the burner ports, a weak or failed ignition circuit (spark module or igniter), or a gas supply issue such as an incorrect regulator setting. Start with cleaning and drying, then check for spark and gas flow.

Quick checks we recommend first

• Confirm the burner cap is seated correctly and the burner head is aligned.
• Dry the burner area completely if you recently cleaned the cooktop.
• Clean clogged burner ports with a soft brush or wooden toothpick (do not enlarge ports).
• Listen for clicking and look for spark at the electrode when you turn the knob.
• Try a different burner to see if the problem is isolated or affects all burners.
• If you smell gas but get no ignition, stop and ventilate the area before continuing.

What the symptoms usually mean

What you notice	Most likely cause	What to check next
No clicking on any burner	Failed spark module or no power to ignition	Inspect/replace spark module 12001596
Clicking but no spark at one burner	Bad igniter/electrode or wiring issue	Inspect/replace range surface burner igniter 74004053
Spark present but no flame	Gas not reaching burner (clog or supply)	Clean ports; check regulator and orifice
Flame lights with a match but not with spark	Weak spark or poor grounding	Check igniter tip, wiring, mounting

Parts that commonly fix ignition problems on model 8241RV

• Range surface burner igniter 74004053 if one burner will not spark or sparks inconsistently.
• Spark module 12001596 if none of the burners spark (no clicking or no output).
• Pressure regulator W11170853 if burners have poor gas flow or inconsistent ignition across burners.

Why it matters

A burner that will not ignite is often a simple cleaning or drying issue, but repeated failed ignition can allow unburned gas to accumulate. Restoring reliable spark and proper gas flow helps the cooktop light quickly and burn evenly.

Last updated: February 2026
