Kenmore 9114338680 electric modular counter unit Parts

Here are the diagrams and repair parts for Kenmore 9114338680 electric modular counter unit, as well as links to manuals and error code tables, if available.

Kenmore 9114338680 electric modular counter unit
By Schematic
By Part

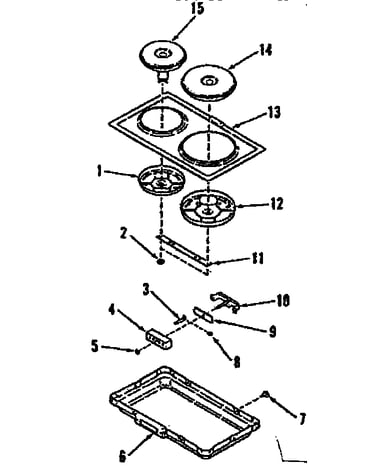

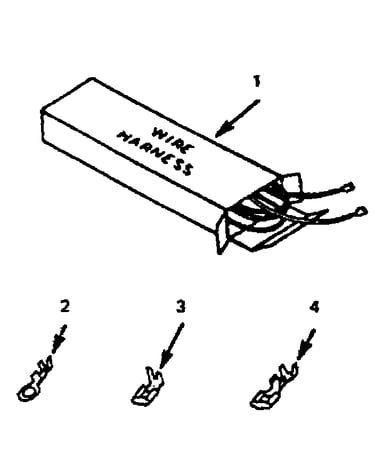

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 9114338680 Cooktops

  • Range Coil Surface Element, 8-in for Kenmore 9114338680 - Part WB30X253

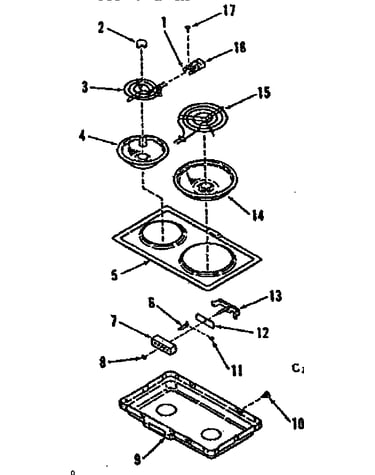

    Optional electric coil module kit 4998520 & 4998620 diagram

    8 In Tp Unit

    Part #325503

    Replaced by #WB30X253

    Info Icon
    Manufacturer substitution
    This part replaces 325503. Substitute parts can look different from the original.
    In Stock
    $71.33
    8% OFF Phone Price : $77.33Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Kenmore 9114338680 - Part WB1X1293

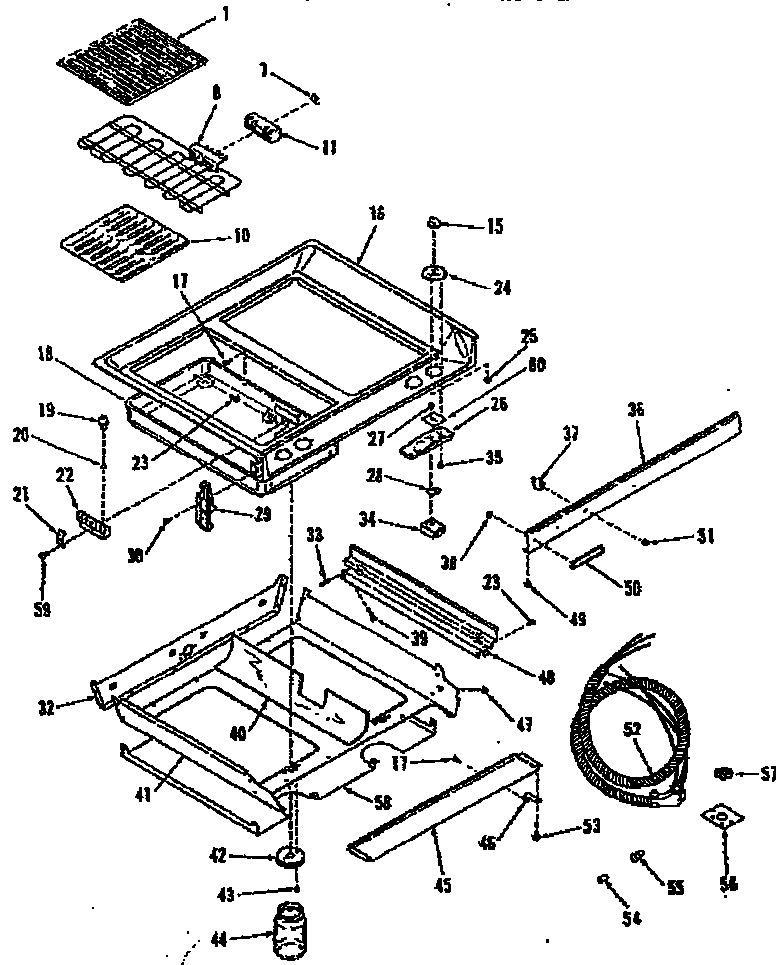

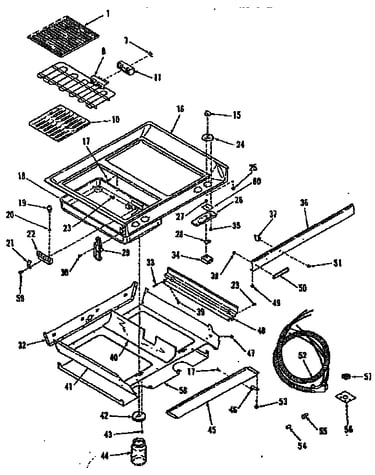

    Main top section diagram

    Screw

    Part #105771

    Replaced by #WB1X1293

    Info Icon
    Manufacturer substitution
    This part replaces 105771. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.86
    9% OFF Phone Price : $10.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 6-in for Kenmore 9114338680 - Part WB30X254

    Optional electric coil module kit 4998520 & 4998620 diagram

    6 In Tp Unit

    Part #325507

    Replaced by #WB30X254

    Info Icon
    Manufacturer substitution
    This part replaces 325507. Substitute parts can look different from the original.
    In Stock
    $58.37
    9% OFF Phone Price : $64.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Kenmore 9114338680 - Part WB1X1130

    Main top section diagram

    Screw

    Part #311484

    Replaced by #WB1X1130

    Info Icon
    Manufacturer substitution
    This part replaces 311484. Substitute parts can look different from the original.
    In Stock
    $9.86
    9% OFF Phone Price : $10.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Kenmore 9114338680 - Part WB1M1

    Main top section diagram

    Screw

    Part #327320

    Replaced by #WB1M1

    Info Icon
    Manufacturer substitution
    This part replaces 327320. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Receptacle Support for Kenmore 9114338680 - Part WB17X211

    Optional electric coil module kit 4998520 & 4998620 diagram

    Bracket

    Part #318872

    Replaced by #WB17X211

    Info Icon
    Manufacturer substitution
    This part replaces 318872. Substitute parts can look different from the original.
    In Stock
    $11.84
    14% OFF Phone Price : $13.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Conduit Harness for Kenmore 9114338680 - Part 333726

    Main top section diagram

    Conduit Harness

    Part #333726
    In Stock
    $109.67
    Minus Item
    Qty
    Plus Item
  • Scw 8abx. for Kenmore 9114338680 - Part WB1X1425

    Optional electric coil module kit 4998520 & 4998620 diagram

    Screw

    Part #299632

    Replaced by #WB1X1425

    Info Icon
    Manufacturer substitution
    This part replaces 299632. Substitute parts can look different from the original.
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Palnut for Kenmore 9114338680 - Part WB1K5129

    Main top section diagram

    Pal Nut

    Part #78593

    Replaced by #WB1K5129

    Info Icon
    Manufacturer substitution
    This part replaces 78593. Substitute parts can look different from the original.
    In Stock
    $28.48
    Minus Item
    Qty
    Plus Item
  • Scw 8abx. for Kenmore 9114338680 - Part WB1X1425

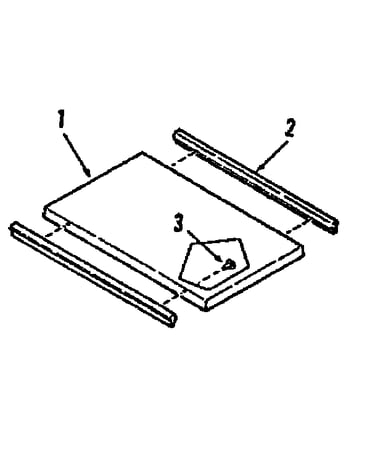

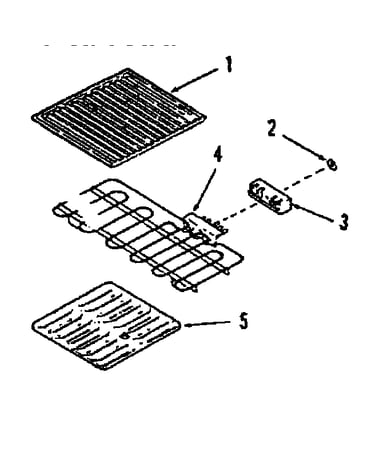

    Optional griddle/grill cover module kit 4998510 diagram

    Screw

    Part #330244

    Replaced by #WB1X1425

    Info Icon
    Manufacturer substitution
    This part replaces 330244. Substitute parts can look different from the original.
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
