Model # 58074085400 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58074085400 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Room Air Conditioner Air Filter 5230A20041A
#3-A

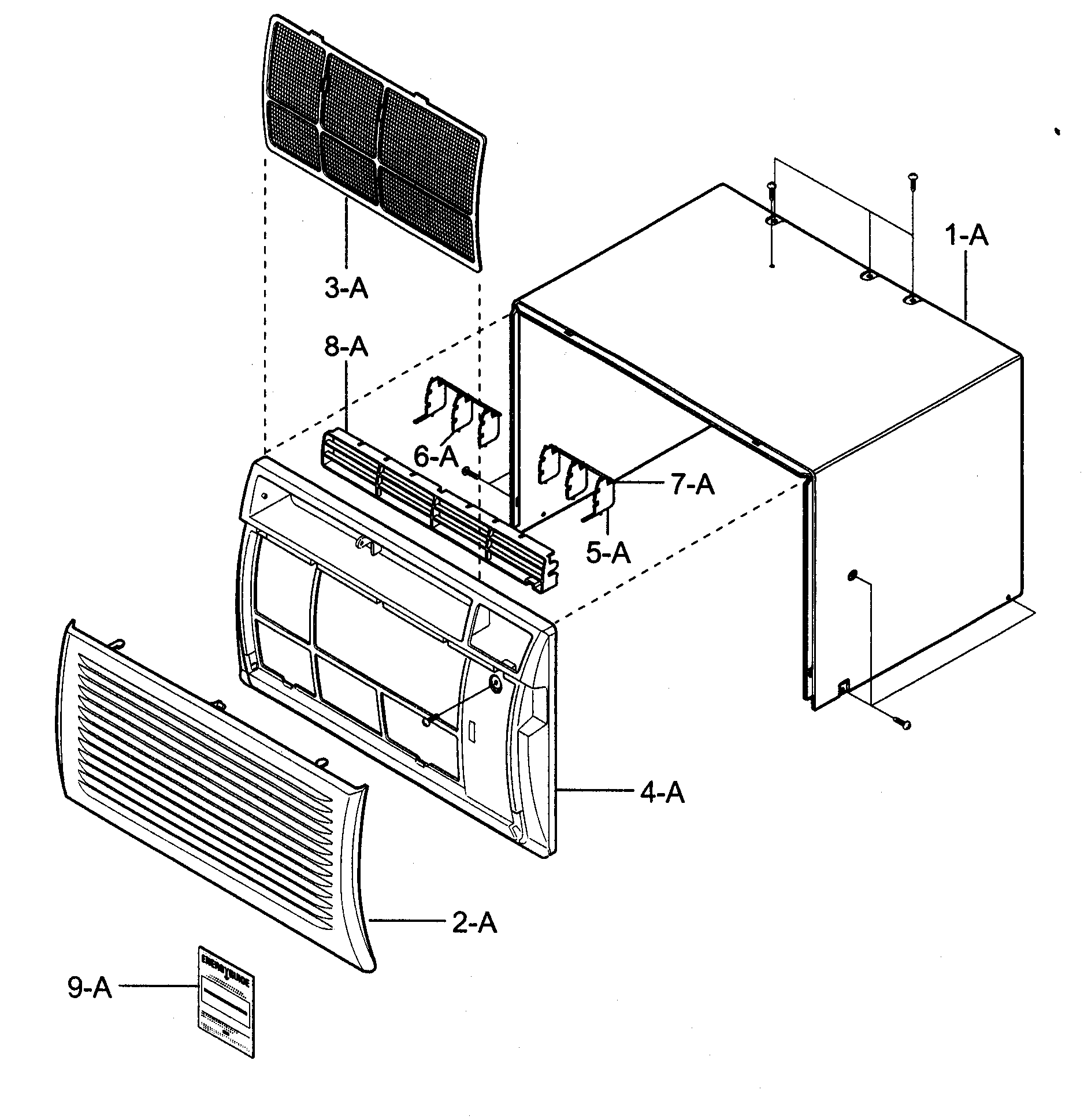

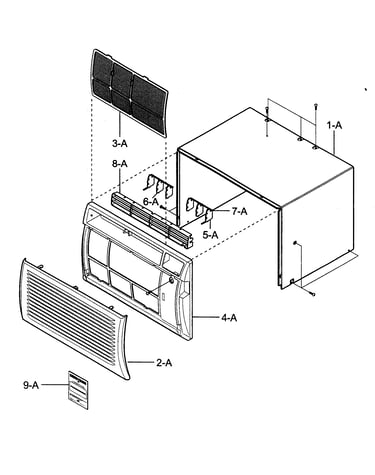

Cabinet/front grille assy diagram

Room air conditioner air filter

Part #5230A20041A

Replaced by #5230A20041D

?
Manufacturer substitution
This part replaces 5230A20041A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.36 |
15% OFF Phone Price : $13.36
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#2-C

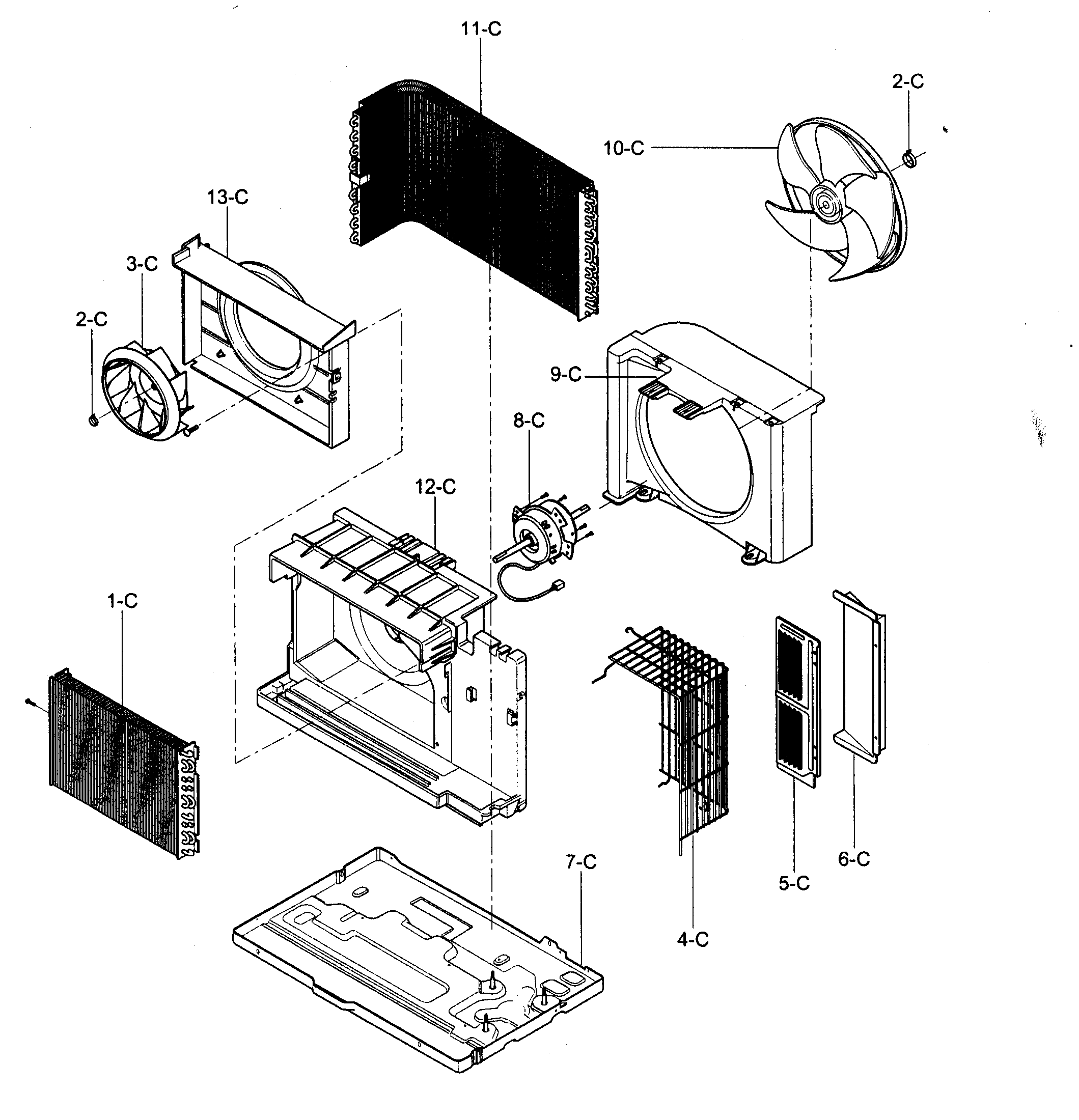

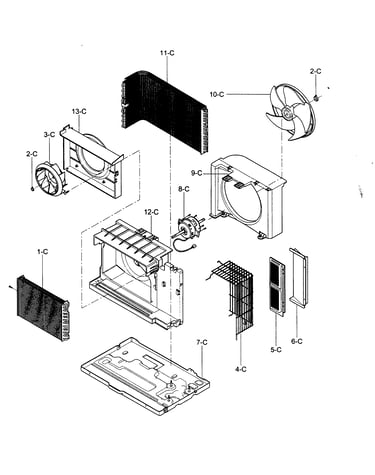

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Remote Control 6711A20056T
#NI

Cabinet/front grille assy diagram

Remote control

Part #6711A20056T

Replaced by #AKB73795706

?
Manufacturer substitution
This part replaces 6711A20056T. Substitute parts can look different from the original.
$31.05 |
14% OFF Phone Price : $36.05
In Stock
Thermistor 6323A20004E
#9-B

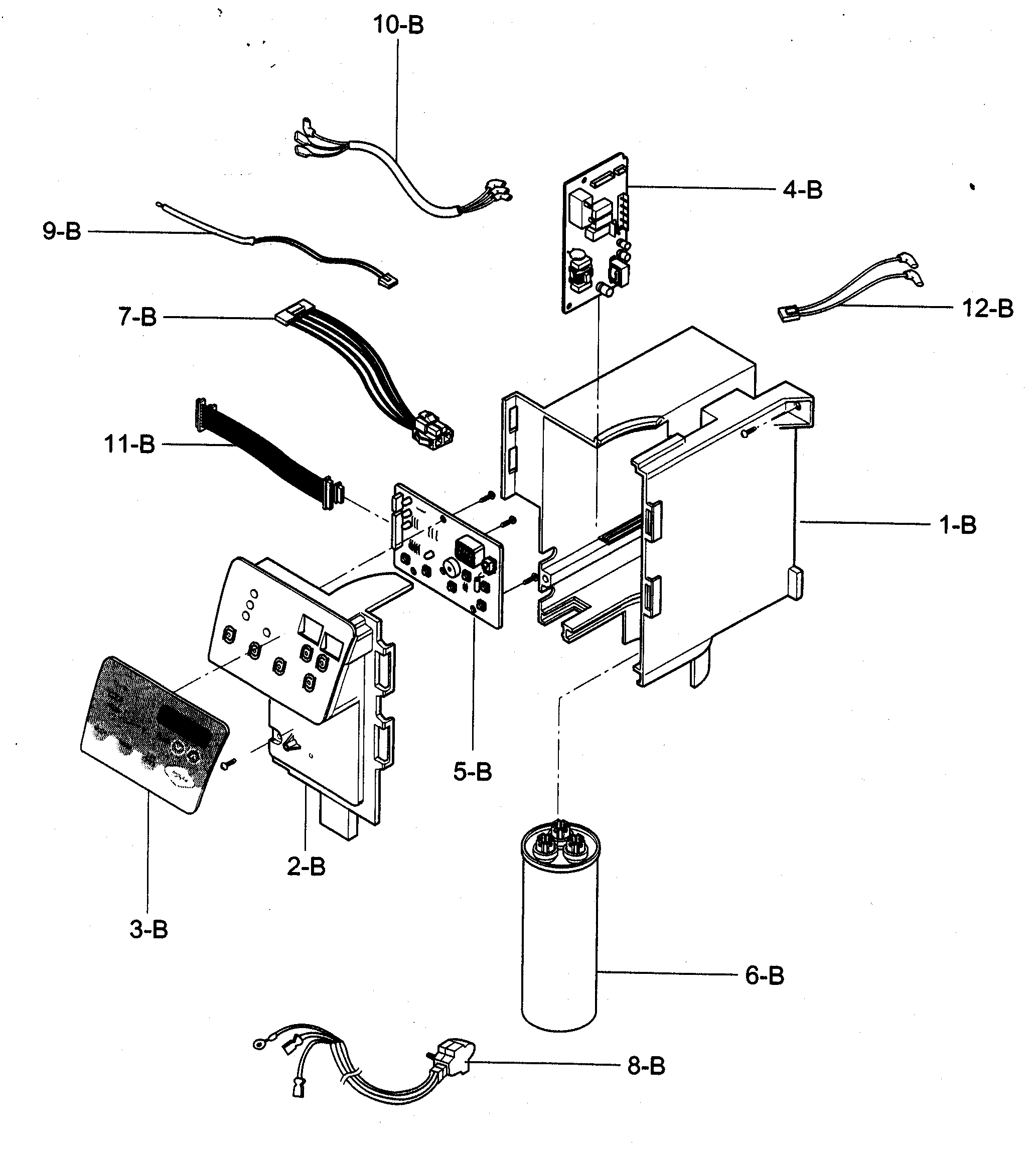

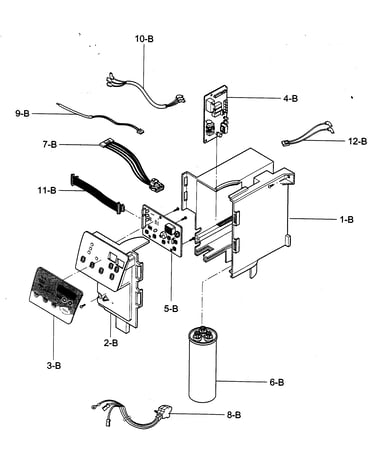

Control box assy diagram

Thermistor

Part #6323A20004E

Replaced by #EBG61106846

?
Manufacturer substitution
This part replaces 6323A20004E. Substitute parts can look different from the original.
This item is not returnable
$10.60
In Stock
Condenser Tube 5211A20560J
#11-D

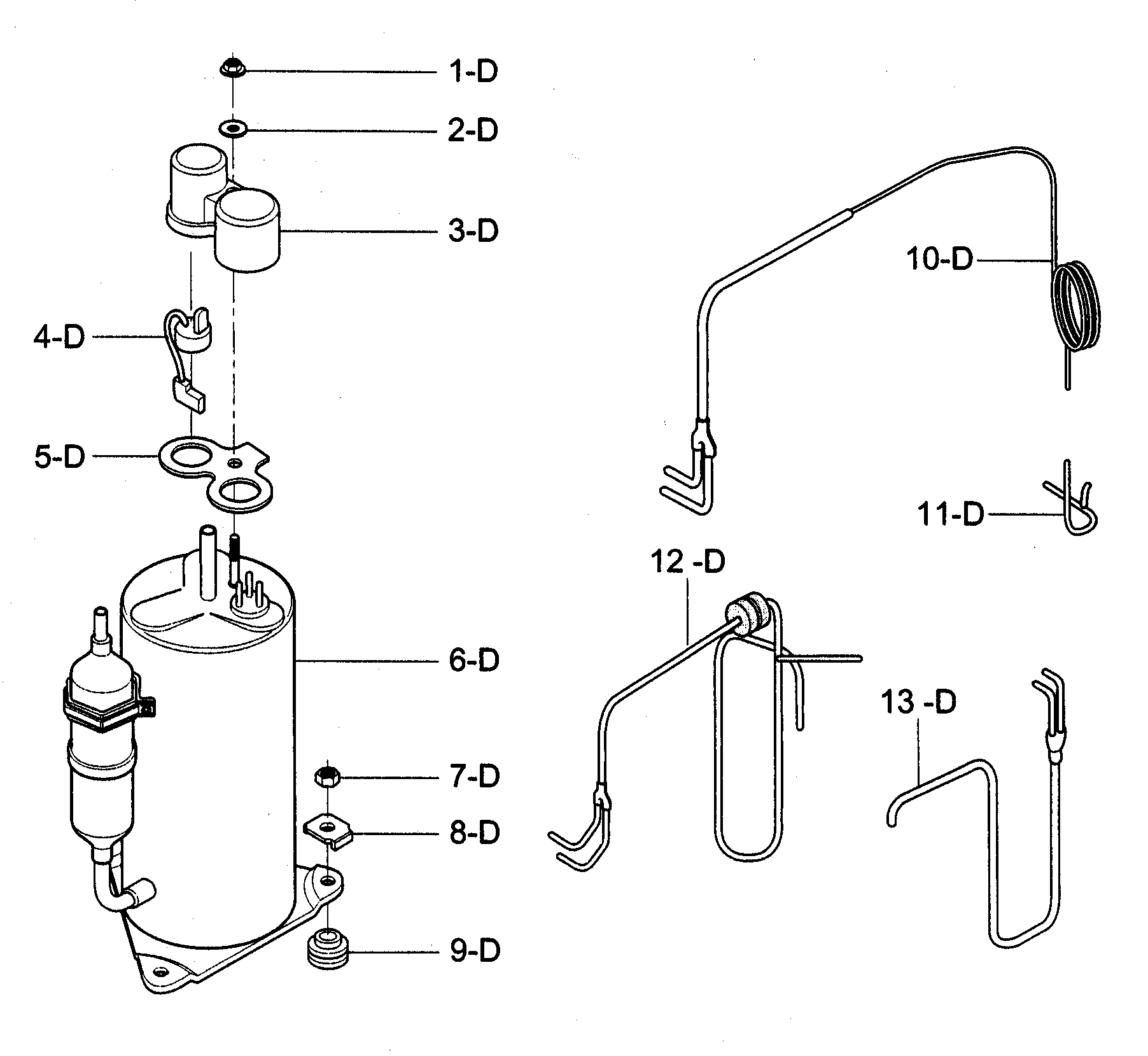

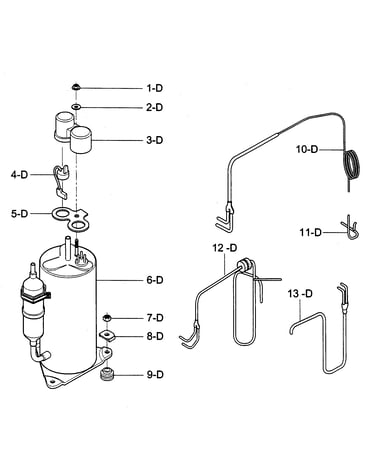

Compressor parts diagram

Condenser tube

Part #5211A20560J

$18.83
In Stock
Connector 6631A30012E
#7-B

Control box assy diagram

Connector

Part #6631A30012E

$18.83
In Stock
Hex Nut 1NHA0801206
#7-D

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Room Air Conditioner Electronic Control Wiring Harness 6631A30003A
#12-B

Control box assy diagram

Room air conditioner electronic control wiring harness

Part #6631A30003A

This item is not returnable
$7.00
In Stock
Screw 4001AR4160A
#6-E

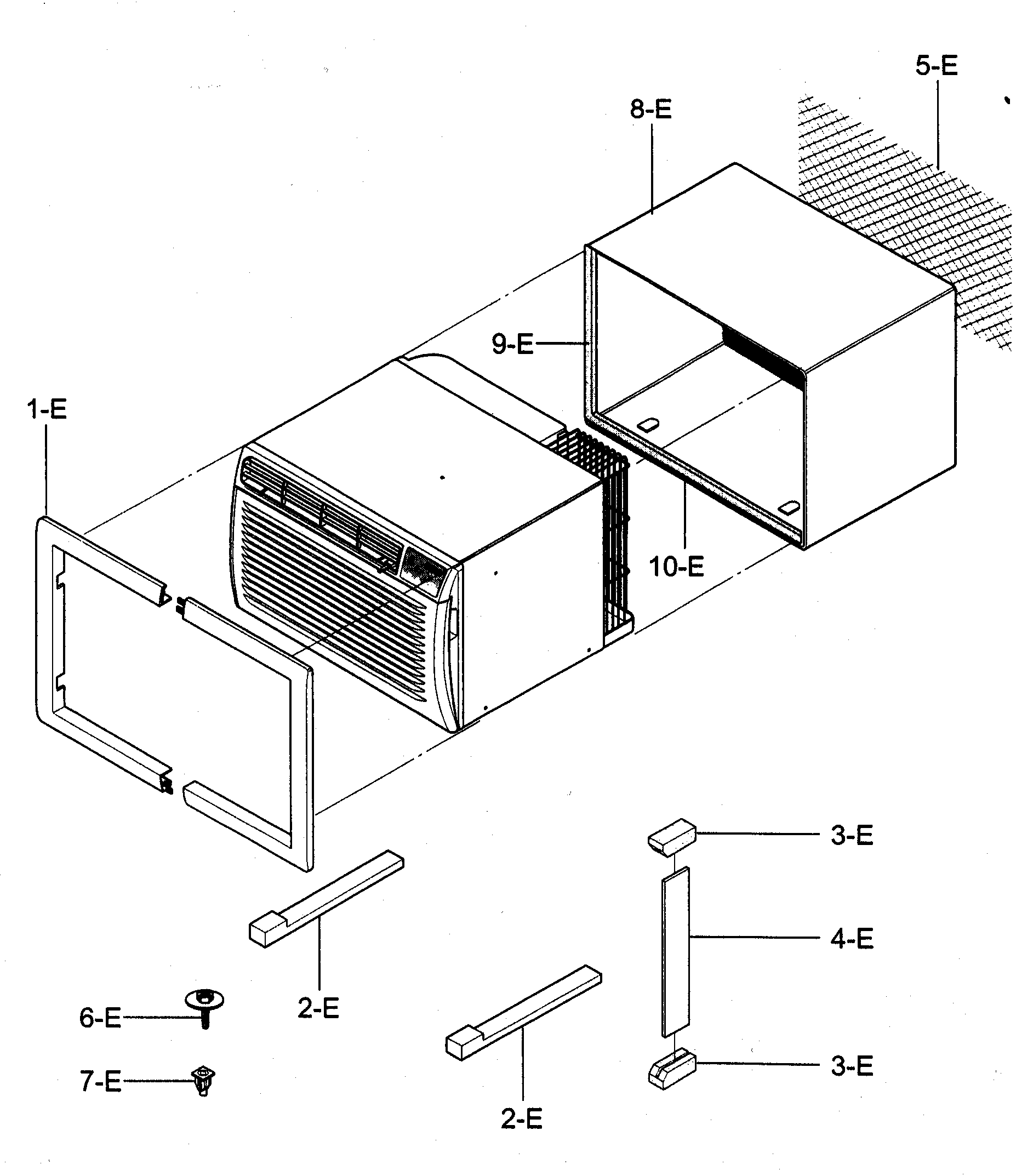

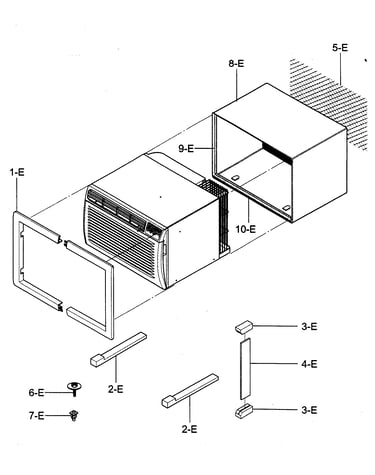

Installation kit assy diagram

Screw

Part #4001AR4160A

This item is not returnable
$4.51
In Stock
Room Air Conditioner Compressor Overload Protector 6750U-L005A
#4-D

Compressor parts diagram

Room air conditioner compressor overload protector

Part #6750U-L005A

This item is not returnable
$14.64 |
12% OFF Phone Price : $16.64
In Stock
