Panasonic
Countertop Microwave

Model # NN-H765BF Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NN-H765BF microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Switch J61424T00AP
#27

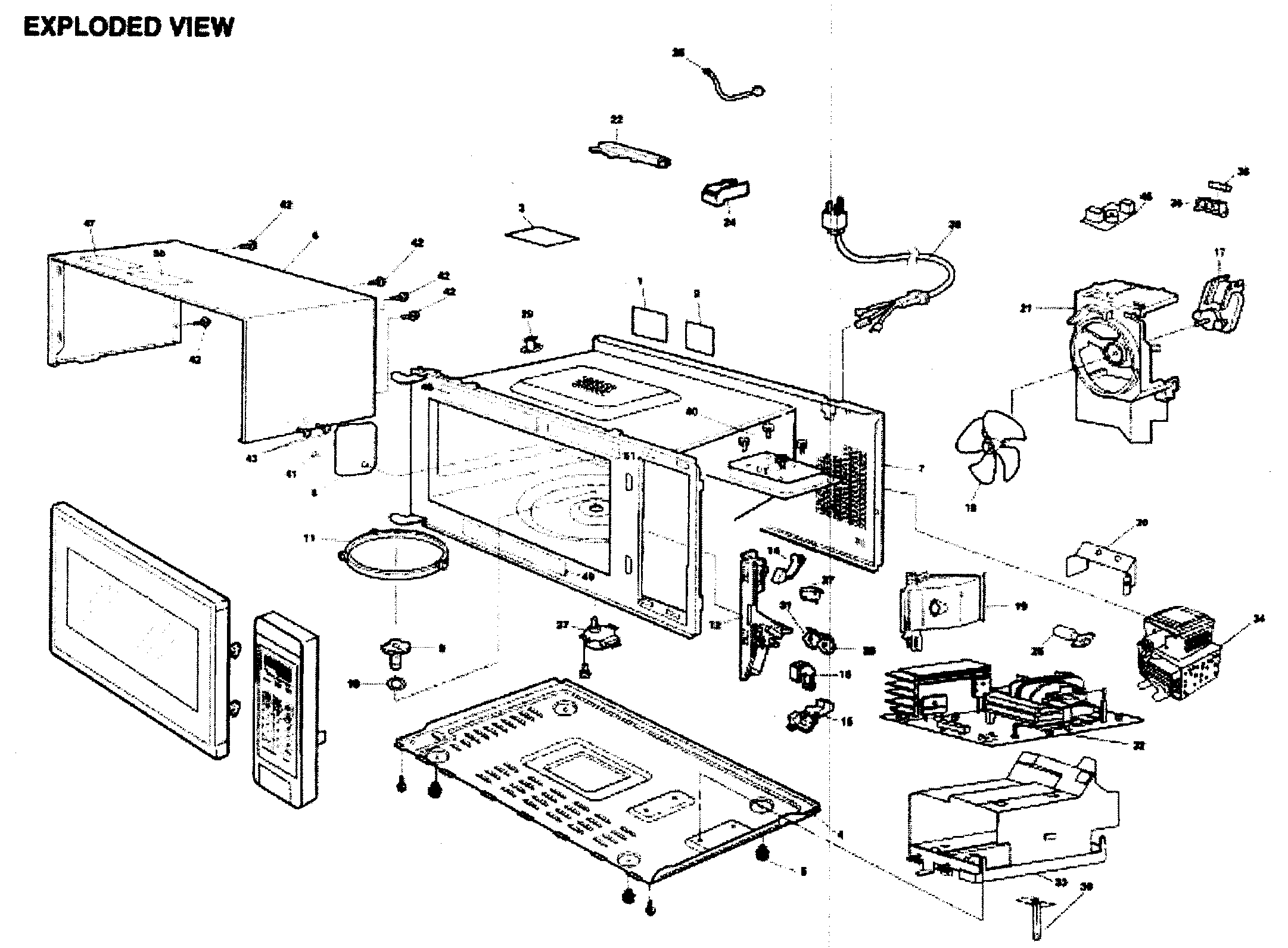

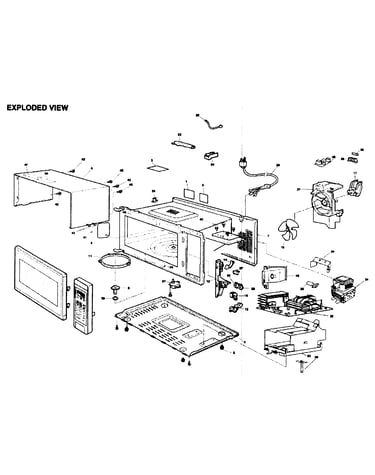

Cabinet assy diagram

Switch

Part #J61424T00AP

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces J61424T00AP. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Switch J61414T00AP
#28

Cabinet assy diagram

Switch

Part #J61414T00AP

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces J61414T00AP. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Lamp F612E4W00AP
#26

Cabinet assy diagram

Lamp

Part #F612E4W00AP

Replaced by #F612E5Y30AP

?
Manufacturer substitution
This part replaces F612E4W00AP. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
Back Order
Panasonic Hook Lever F31374650AP
#15

Cabinet assy diagram

Panasonic hook lever

Part #F31374650AP

This item is not returnable
$7.38
In Stock
Panasonic Button F80375K00AP
#E88

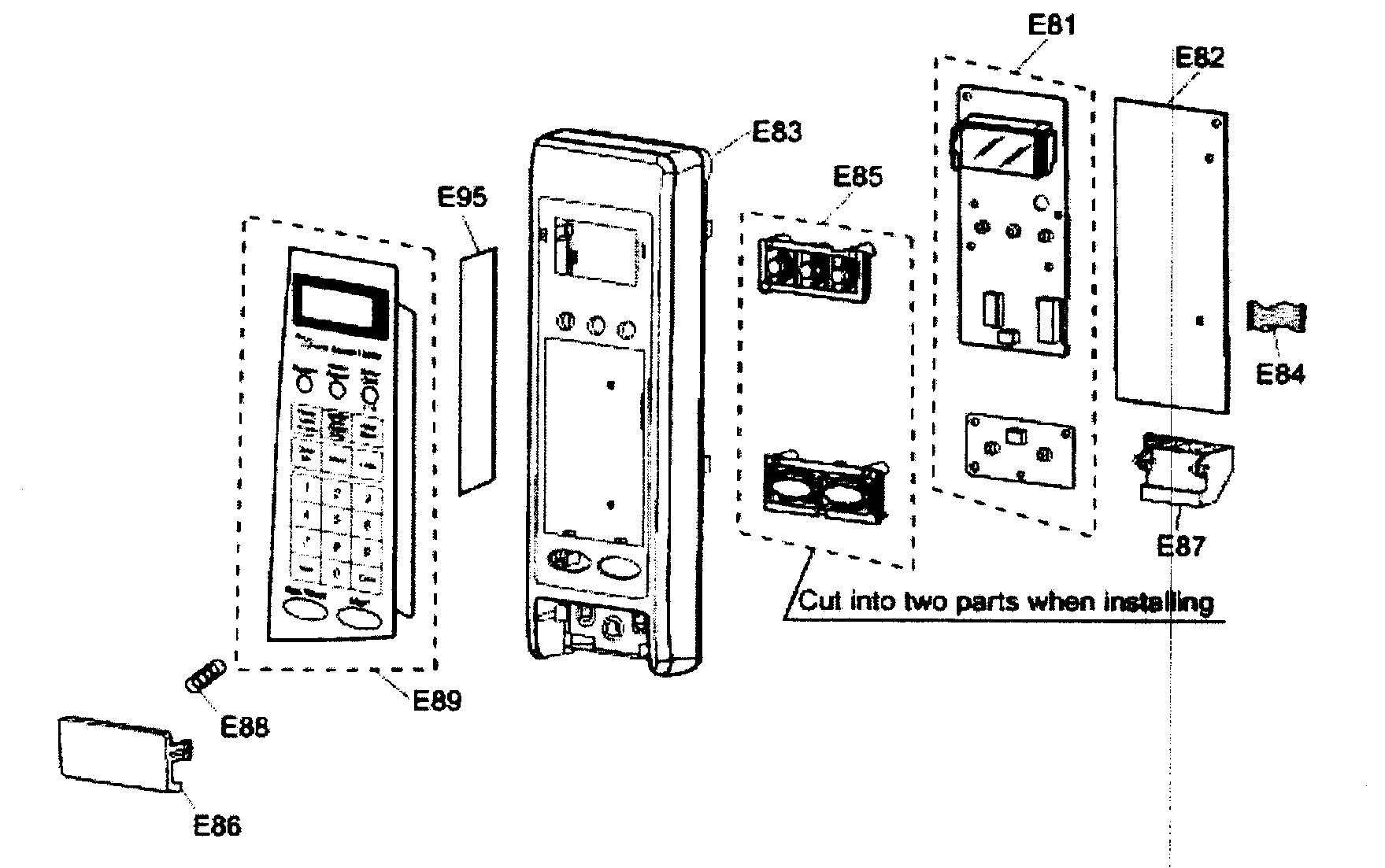

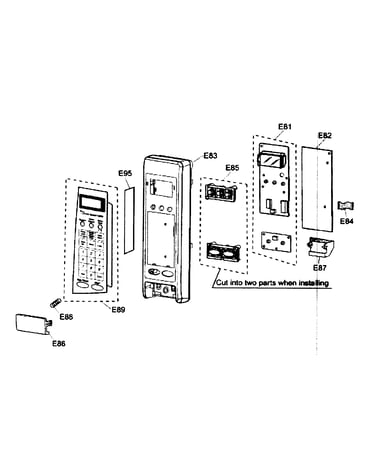

Controller diagram

Panasonic button

Part #F80375K00AP

This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Panasonic Door Lever F82564W00AP
#E87

Controller diagram

Panasonic door lever

Part #F82564W00AP

This item is not returnable
$7.95
In Stock
Door Key F30215G10XN
#D4

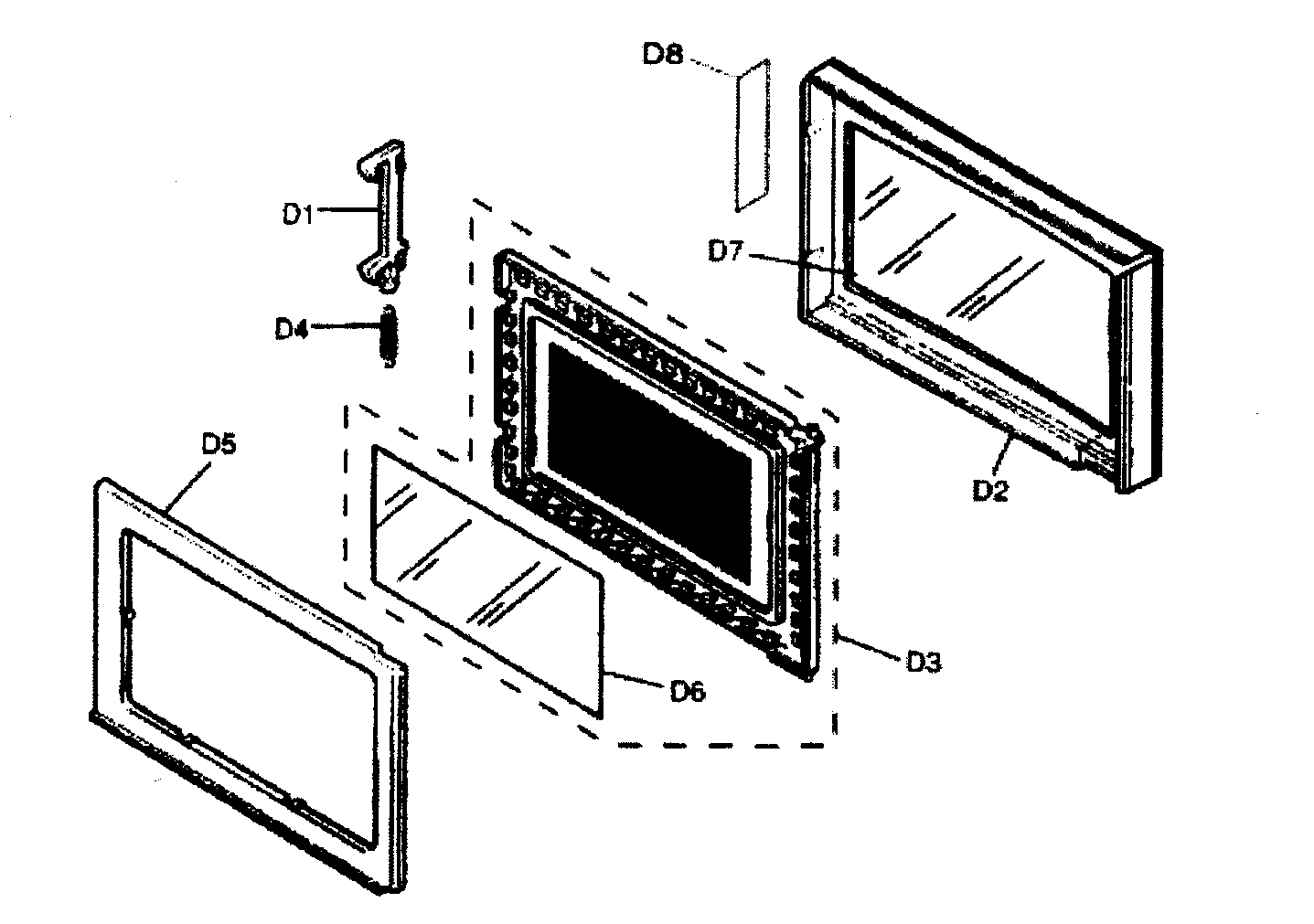

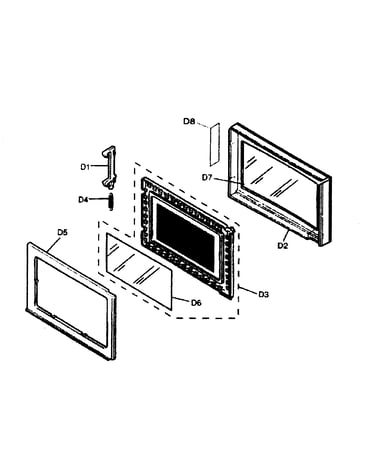

Door diagram

Door key

Part #F30215G10XN

Replaced by #F30216P40AG

?
Manufacturer substitution
This part replaces F30215G10XN. Substitute parts can look different from the original.
This item is not returnable
$11.29 |
15% OFF Phone Price : $13.29
In Stock
Switch J61784T00AP
#31

Cabinet assy diagram

Switch

Part #J61784T00AP

Replaced by #F61785U30XN

?
Manufacturer substitution
This part replaces J61784T00AP. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Panasonic Hook Lever F3136-1200
#14

Cabinet assy diagram

Panasonic hook lever

Part #F3136-1200

This item is not returnable
$10.26
In Stock
Panasonic Mem.switch F630Y7C50BAP
#E89

Controller diagram

Panasonic mem.switch

Part #F630Y7C50BAP

$31.99
In Stock
