MTD 11A-414E765 gas lawn mower Parts
Here are the diagrams and repair parts for MTD 11A-414E765 gas lawn mower, as well as links to manuals and error code tables, if available.
Owner’s manual
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 11A-414E765 Walk-Behind Mowers

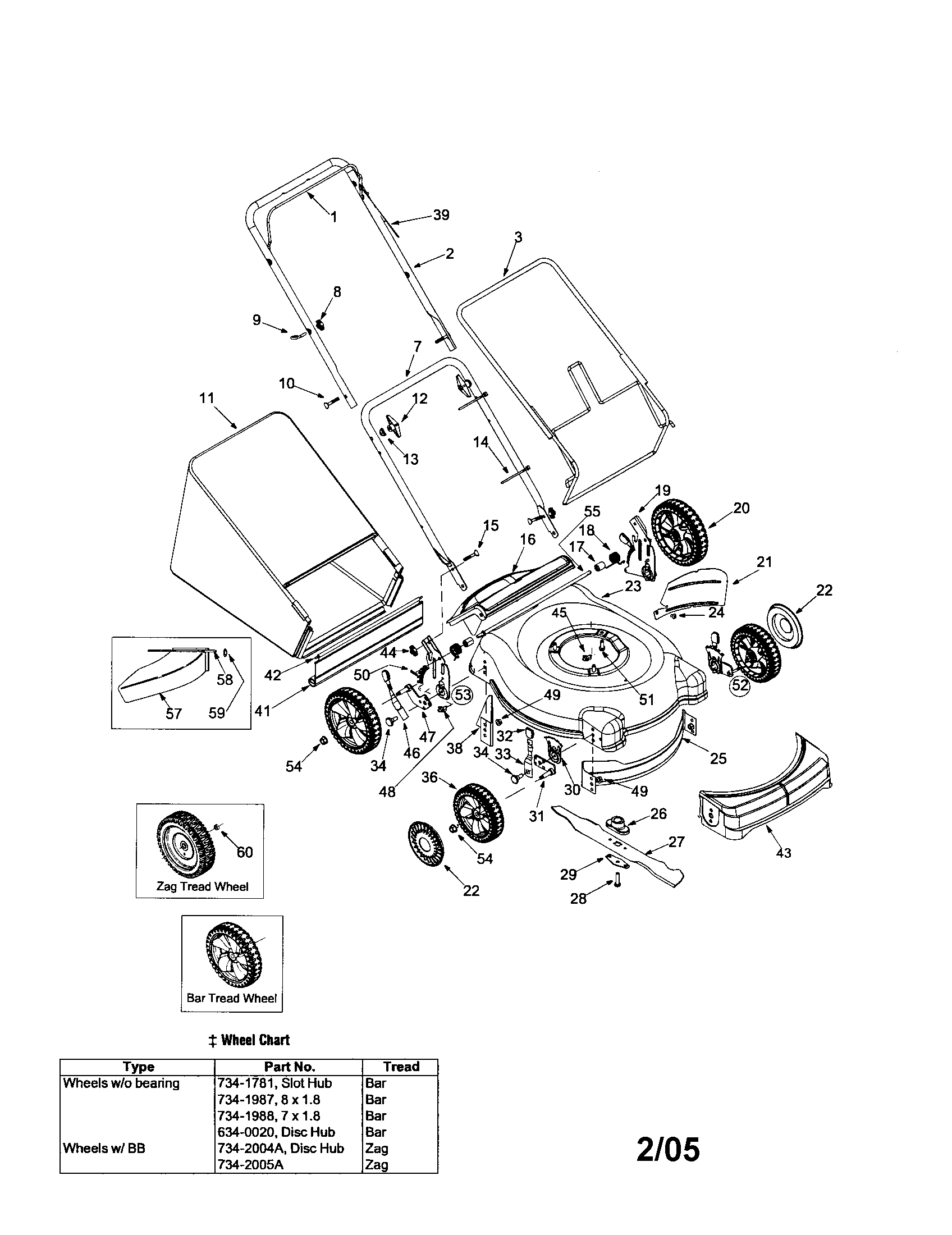

Handle/bag/deck/wheels diagram
Spacer
Part #750-0535Replaced by #950-0535
Manufacturer substitutionThis part replaces 750-0535. Substitute parts can look different from the original.This item is not returnableIn Stock$8.20
Qty
Lawn Mower Lever
Part #732-0404Replaced by #94832
Manufacturer substitutionThis part replaces 732-0404. Substitute parts can look different from the original.This item is not returnableIn Stock$20.1723% OFF Phone Price : $26.17

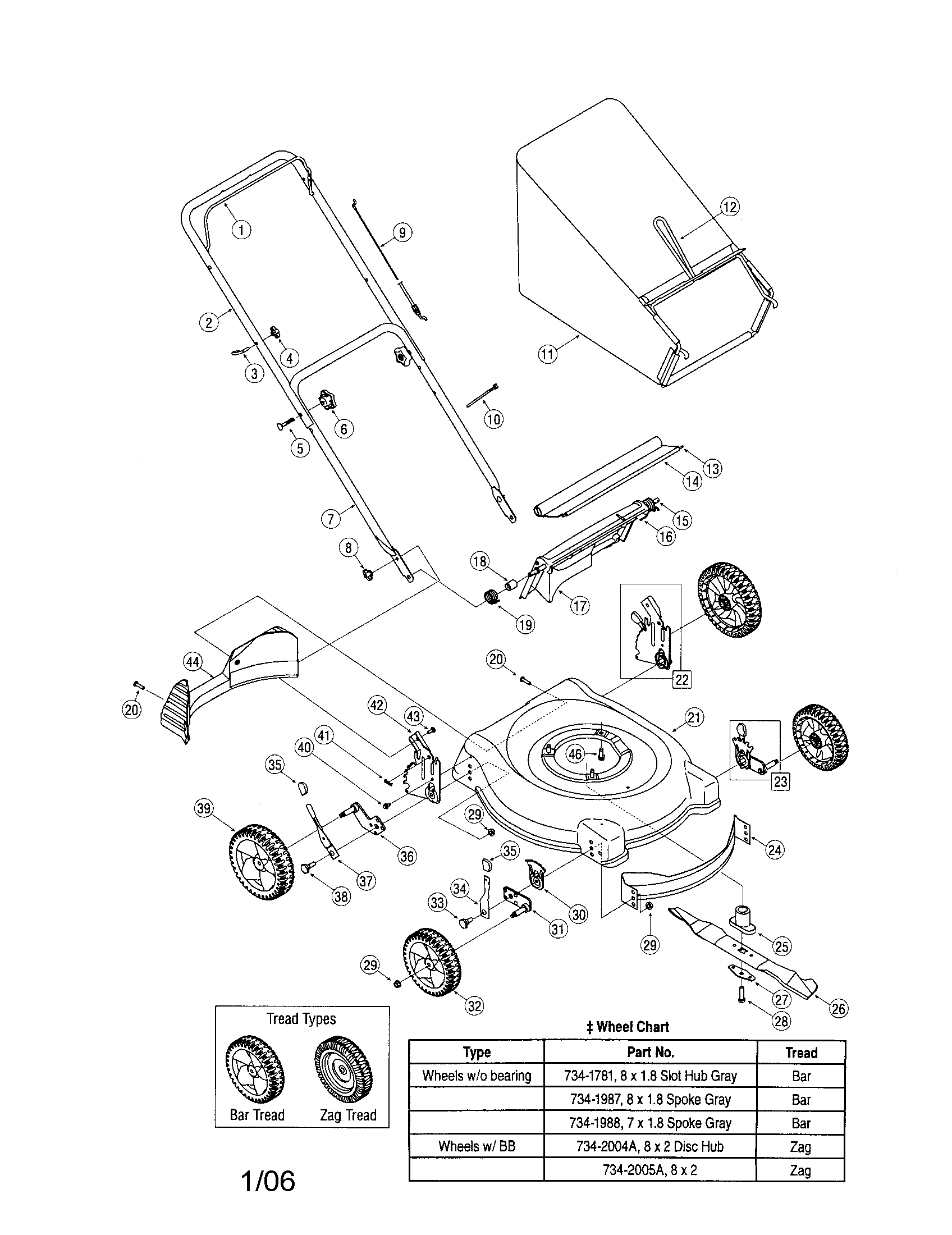

QtyRotary mower diagram
Ht Adj Asm
Part #687-02099AReplaced by #987-02099C

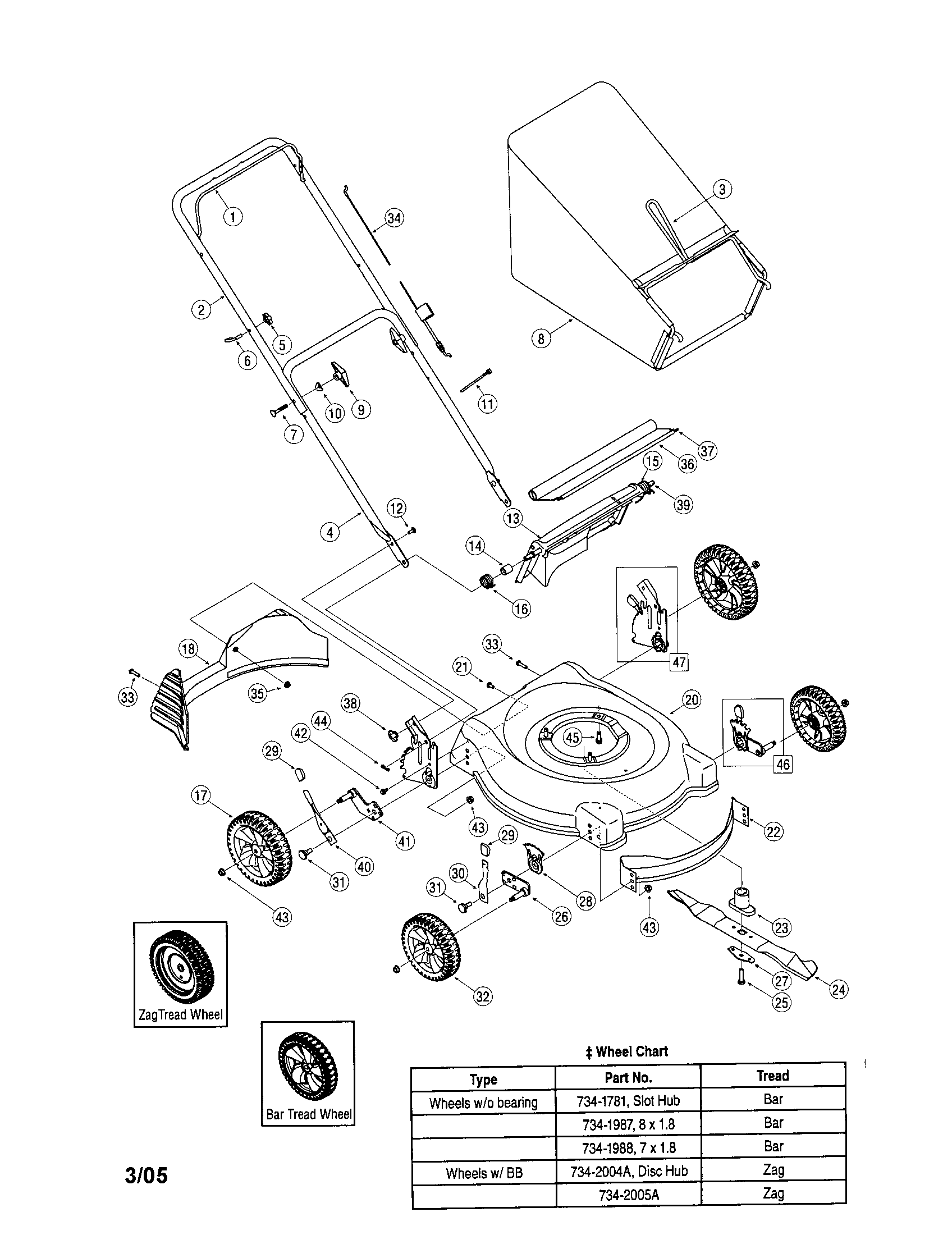

Manufacturer substitutionThis part replaces 687-02099A. Substitute parts can look different from the original.In Stock$31.0843% OFF Was : $54.91QtyRotary mower diagram
Arm Assembly
Part #687-02077AReplaced by #987-02077A
Manufacturer substitutionThis part replaces 687-02077A. Substitute parts can look different from the original.In Stock$28.1818% OFF Phone Price : $34.18QtyHandle/bag/deck/wheels diagram
Pivot Bar-rh
Part #787-01132Replaced by #987-02071A
Manufacturer substitutionThis part replaces 787-01132. Substitute parts can look different from the original.In Stock$29.93QtyHandle/bag/deck/wheels diagram
Plate
Part #15261AReplaced by #787-01290A
Manufacturer substitutionThis part replaces 15261A. Substitute parts can look different from the original.In Stock$22.17QtyRh Ht Adj
Part #687-02100Replaced by #987-02100C
Manufacturer substitutionThis part replaces 687-02100. Substitute parts can look different from the original.In Stock$54.91QtyNut
Part #712-0431Replaced by #912-0431
Manufacturer substitutionThis part replaces 712-0431. Substitute parts can look different from the original.This item is not returnableIn Stock$8.9410% OFF Phone Price : $9.94QtyControl Cable
Part #746-0554Replaced by #946-0554
Manufacturer substitutionThis part replaces 746-0554. Substitute parts can look different from the original.This item is not returnableIn Stock$50.22QtyTorsion Spring
Part #732-04089Replaced by #732-04089A
Manufacturer substitutionThis part replaces 732-04089. Substitute parts can look different from the original.In Stock$35.92Qty
