Weed Eater 96116000301 rotary lawn mower Parts

For your Weed Eater walk-behind mower, the model number is the ID you use to match the correct parts list and diagrams. On model 96116000301, it’s typically printed on a product label (often on the rear of the deck, near the engine area, or around the handle mounting points). Use that exact number when ordering parts from this model page or searching on Sears PartsDirect.

Where to look on a walk-behind mower

Check these common label locations (wipe off grass and oil first):

• Rear of the mower deck (back flap area)
• Top of the deck near the engine mounting bolts
• Side of the deck near the discharge chute opening
• Handle bracket area (where the handle bolts to the deck)
• Under the deck lip near a wheel bracket (use a flashlight)

What to write down (and why)

Record the full model number exactly as shown, plus any other ID info on the tag.

• Model number (example: 96116000301)
• Product number or item number (if listed)
• Serial number (helps confirm production run)
• Engine model/type/code (useful for engine-specific parts)

Why it matters

Walk-behind mowers often share similar decks and handles across multiple versions. The correct model number keeps you from ordering a blade, cable, or hardware that looks right but does not fit.

Quick fit-check examples for this model

If your label confirms 96116000301, these are examples of parts you can match to diagrams and replace with confidence:

Common need	What you match on the mower	Example part on this page
Poor cut, vibration	Blade length and center mount style	Lawn mower blade 532406713
Blade won’t tighten correctly	Adapter condition and keying	Lawn mower blade adapter 581547901
Handle hardware missing	Bolt size and thread	Handle bolt 532191574

Tips before ordering parts

• Compare the label model number to the listing: 96116000301

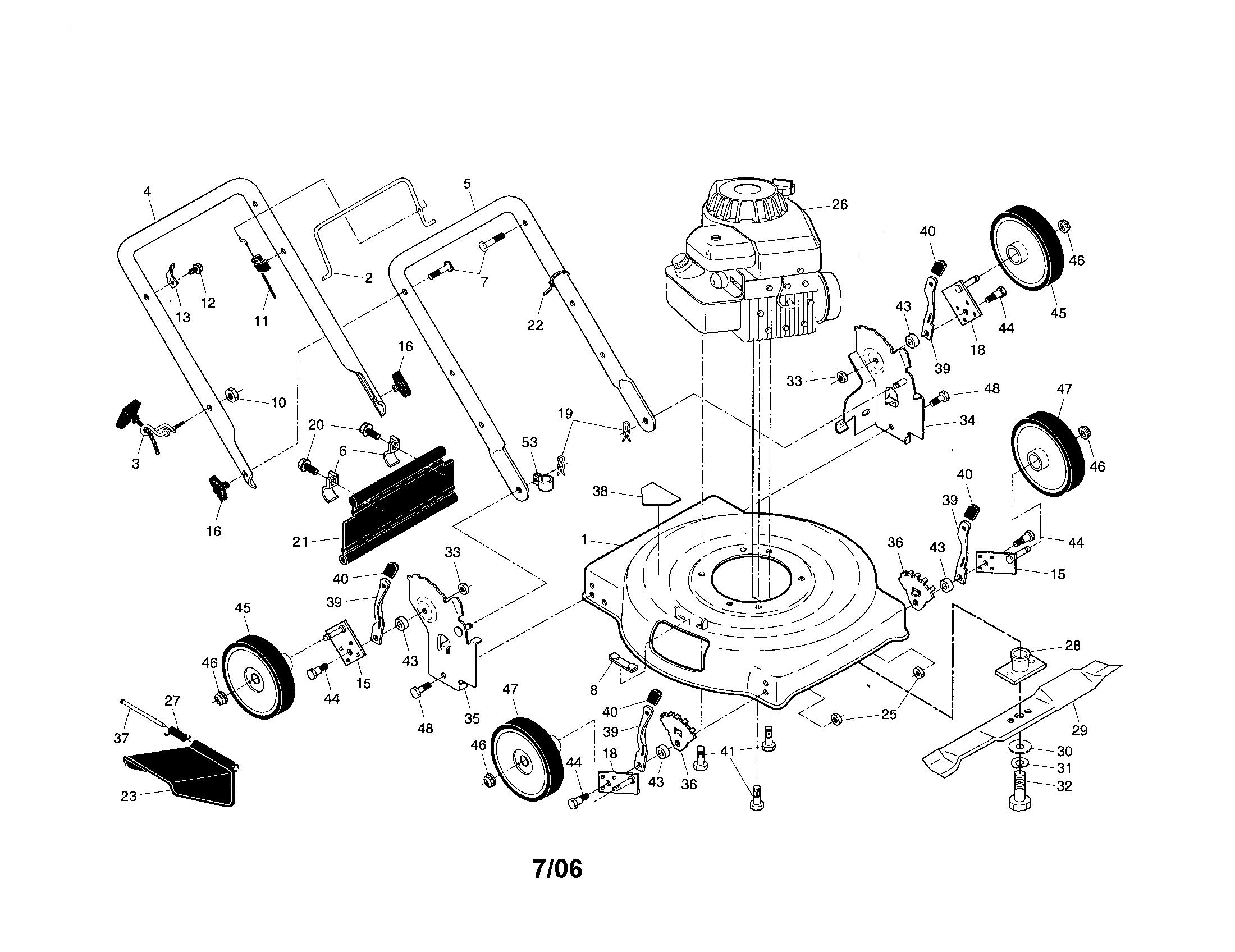

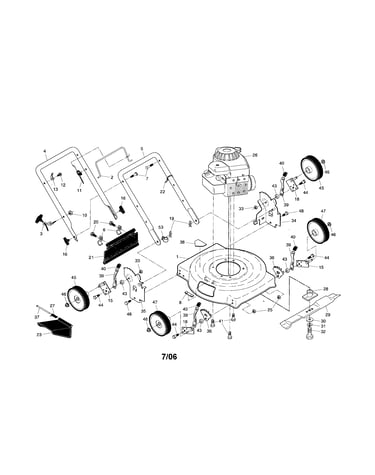

• Use the parts diagram callouts to confirm shape and mounting holes
• Replace worn blade hardware at the same time (nut, washer) if it’s rounded or stripped

Last updated: February 2026

For the Weed Eater model 96116000301 gas walk-behind mower, most small-engine spark plugs run best with a gap around 0.020 to 0.030 inches. We set the gap with a wire-style feeler gauge and adjust carefully so the engine starts easily and runs smoothly.

Recommended gap range (and what to use)

Use a round wire gauge (not a wedge coin gauge) for the most accurate setting.

• Typical small-engine gap: 0.020 to 0.030 in
• Common “sweet spot” many techs use: 0.030 in
• Tool: wire feeler gauge (or spark plug gap gauge)
• Adjust by bending only the ground electrode (never the center electrode)
• Recheck the gap after any adjustment

Quick steps to gap a spark plug

1. Remove the plug wire and take out the spark plug.
2. Slide the correct wire gauge between the center and ground electrodes.
3. If the gauge will not fit, open the gap slightly; if it is loose, close the gap slightly.
4. Recheck until the gauge has a light, even drag.

What happens if the gap is wrong?

A small gap or large gap can both cause misfires, hard starting, and rough running.

Gap condition	Common symptom	What to do
Too small	Starts but runs weak, can foul plug	Open gap slightly
Too large	Hard starting, misfire under load	Close gap slightly
In range	Smooth start and steady power	Install and run

Why it matters

Spark plug gap controls how easily the ignition spark jumps the electrodes. On a walk-behind mower engine, the correct gap helps the ignition system fire consistently, especially during cold starts and when cutting thick grass.

Parts that often get checked during tune-ups

If you are already servicing the mower, these common hardware items are available for your model:

• Lawn mower blade 532406713 (inspect for damage and balance)
• Lawn mower blade adapter 581547901 (check for wear that can cause vibration)
• Lock nut 532409149 (replace if threads are worn or it will not hold torque)

You can order replacement parts for Weed Eater 96116000301 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A Weed Eater lawn mower is a gas-powered, walk-behind rotary mower that uses a spinning metal blade under a deck to cut grass. For model 96116000301, it is a standard push mower style machine (not a string trimmer) designed for mowing lawns and light yard cleanup.

Weed Eater mower vs. Weed Eater trimmer

The name “Weed Eater” is used on different outdoor power tools, so it helps to separate the two:

• Walk-behind mower (this model 96116000301): Cuts grass with a 22-inch class rotary blade under a deck.
• String trimmer (often called a Weed eater): Cuts with nylon line at the end of a spinning head.
• Mower is for: Lawns, larger areas, consistent cutting height.
• Trimmer is for: Edges, fence lines, tight spots, weeds around obstacles.

What parts typically define a walk-behind rotary mower?

On a mower like the Weed Eater 96116000301, these parts do most of the cutting and control work:

• Blade: The cutting edge that spins under the deck (example: lawn mower blade 532406713).
• Blade adapter: Connects the blade to the engine crankshaft (example: lawn mower blade adapter 581547901).
• Zone control cable: Safety control that stops the engine/blade when released (example: lawn mower engine zone control cable 582991501).
• Wheel and wheel bracket: Sets cutting height and supports the deck (example: wheel.8x1.75 532427026, wheel bracket 532407494).
• Fasteners: Lock nuts, bolts, clips, and washers that keep assemblies tight (example: lock nut 532409149).

Quick identification guide

If your tool has...	It is usually a...	Typical use
A flat deck with 4 wheels and a blade underneath	Walk-behind rotary mower	Mowing the lawn
A long shaft with a spinning head and nylon line	String trimmer	Trimming and edging

Why it matters

Correctly identifying whether you have a mower or a trimmer helps you order the right replacement parts (blade, blade adapter, wheels, cables) and avoid mismatched items.

To order parts for Weed Eater model 96116000301, use the parts list for this model or search by model number on Sears PartsDirect.
