Electrolux E23CS78HPS0 refrigerator Parts
Here are the diagrams and repair parts for Electrolux E23CS78HPS0 refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

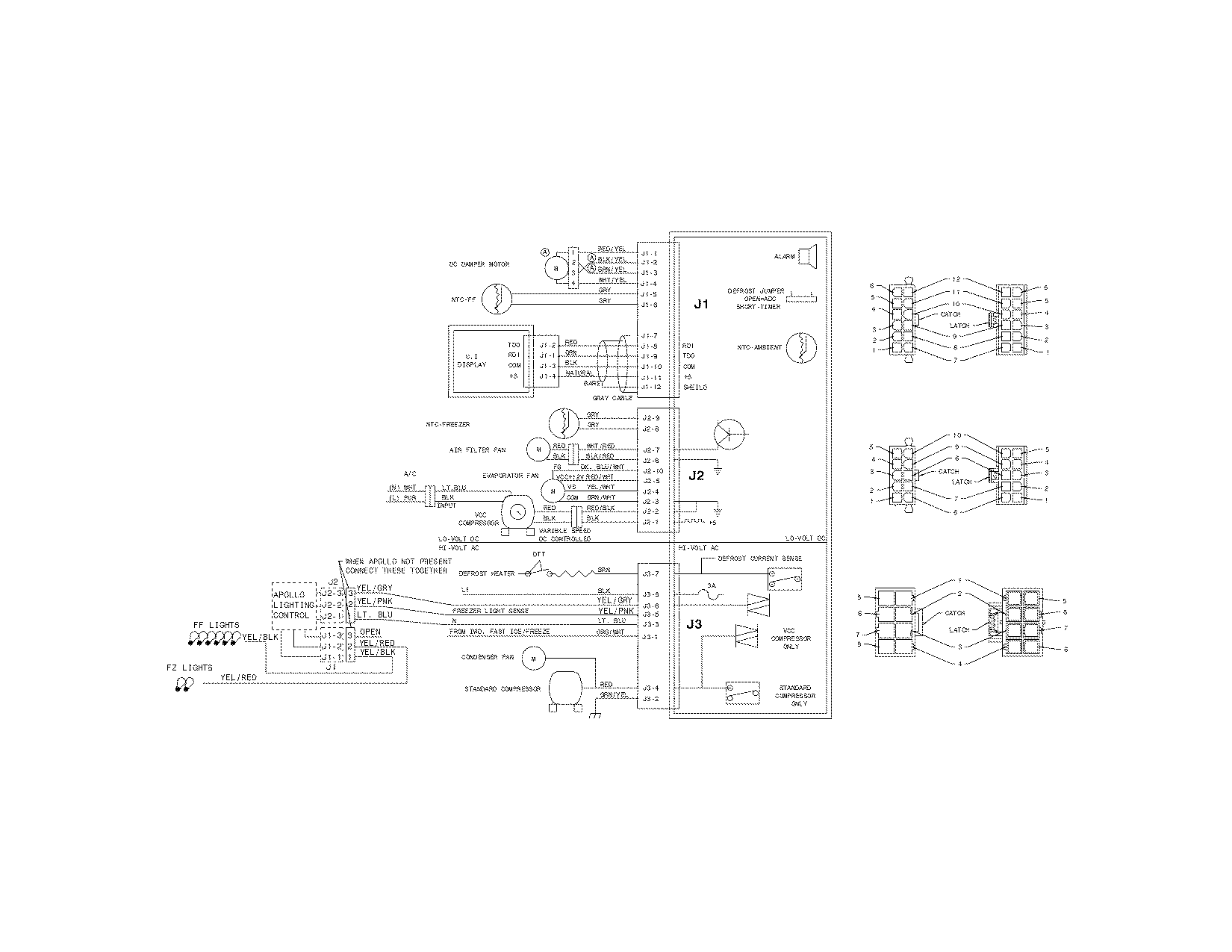

Error CodesBy Schematic
By Part

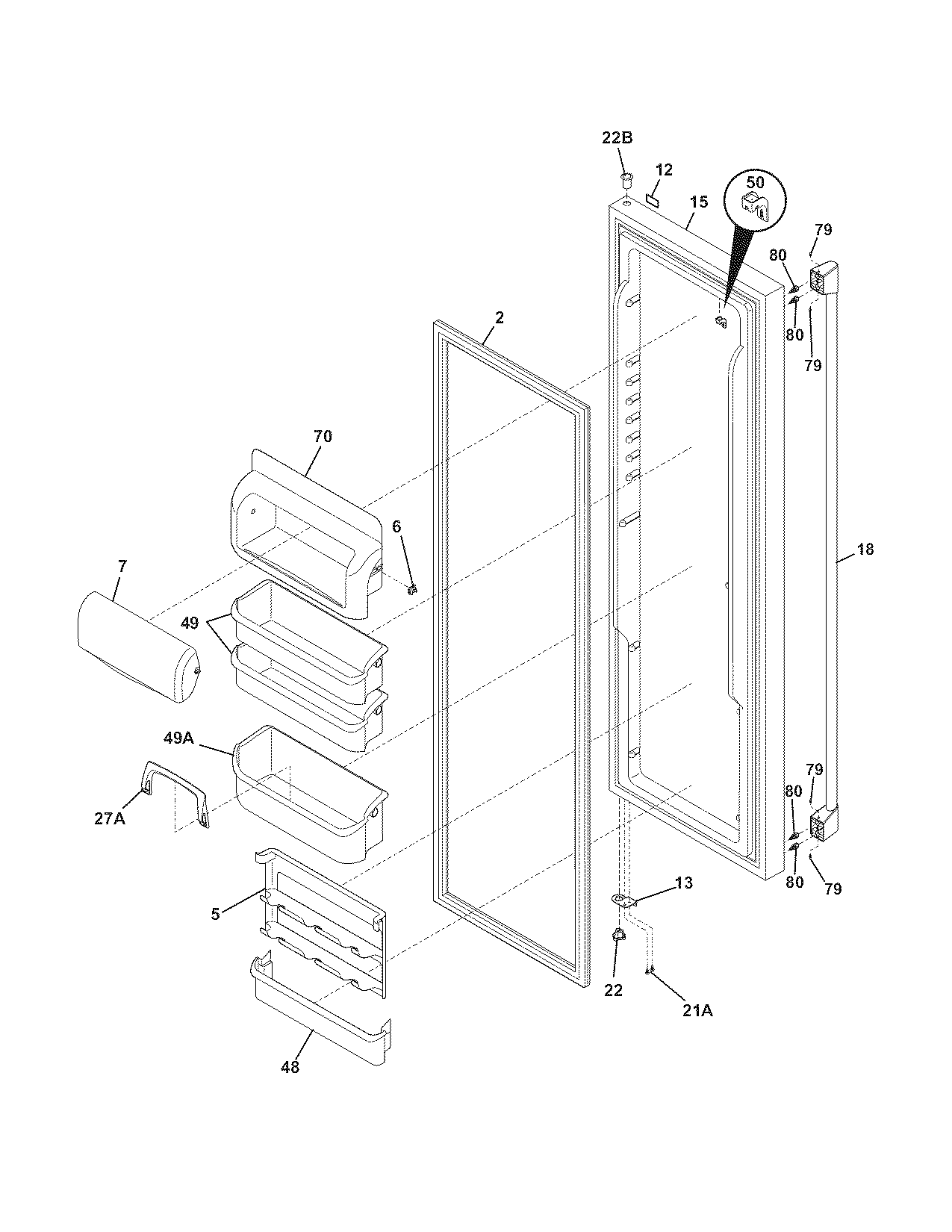

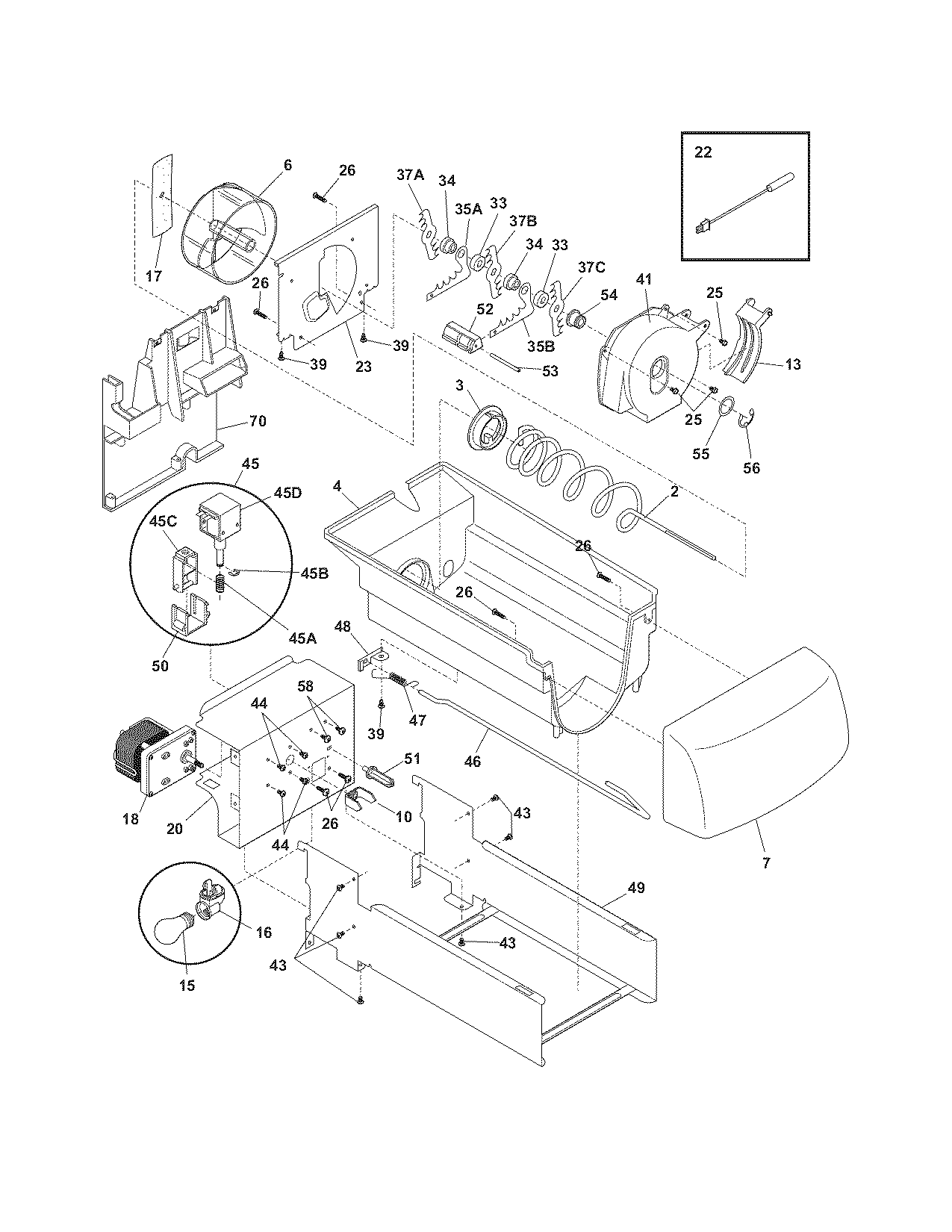

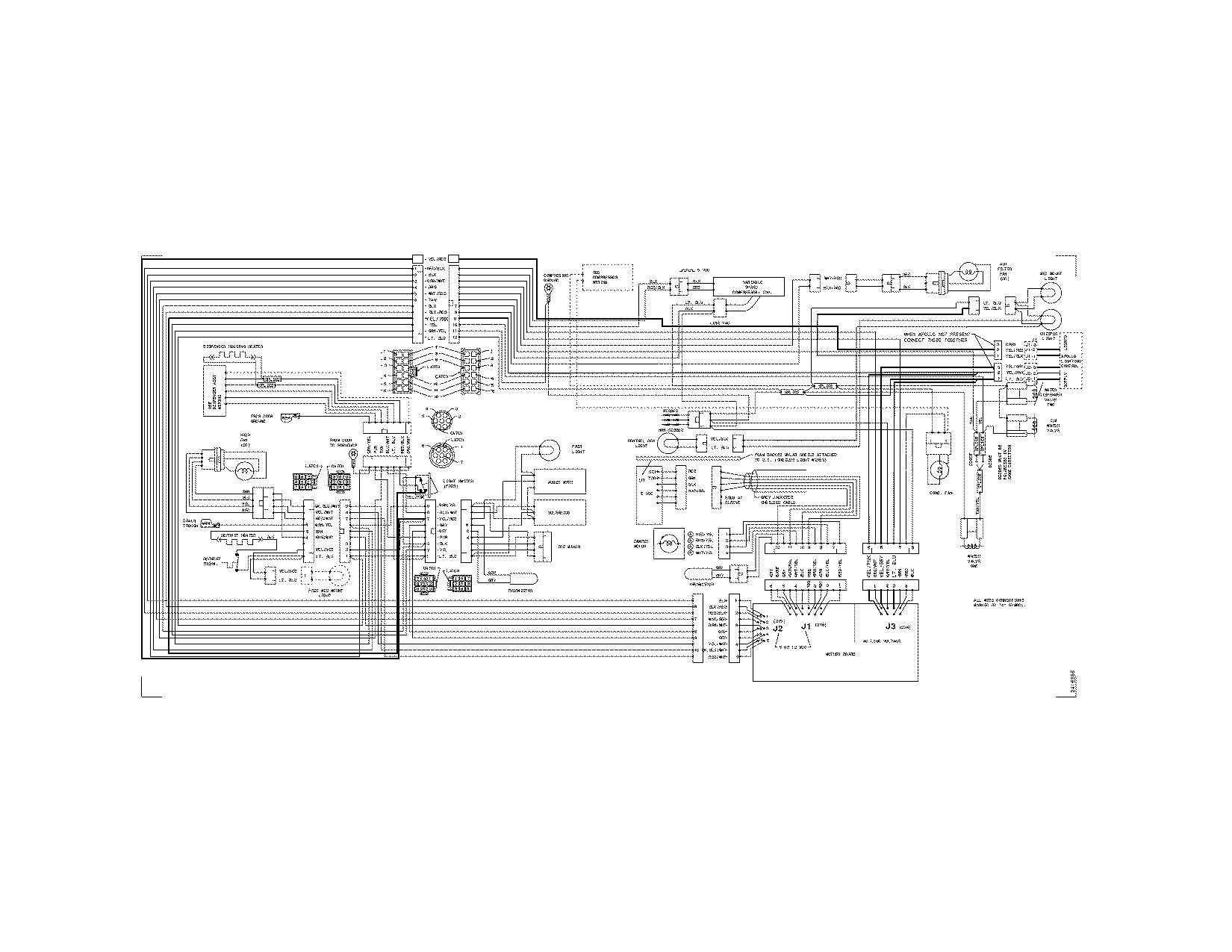

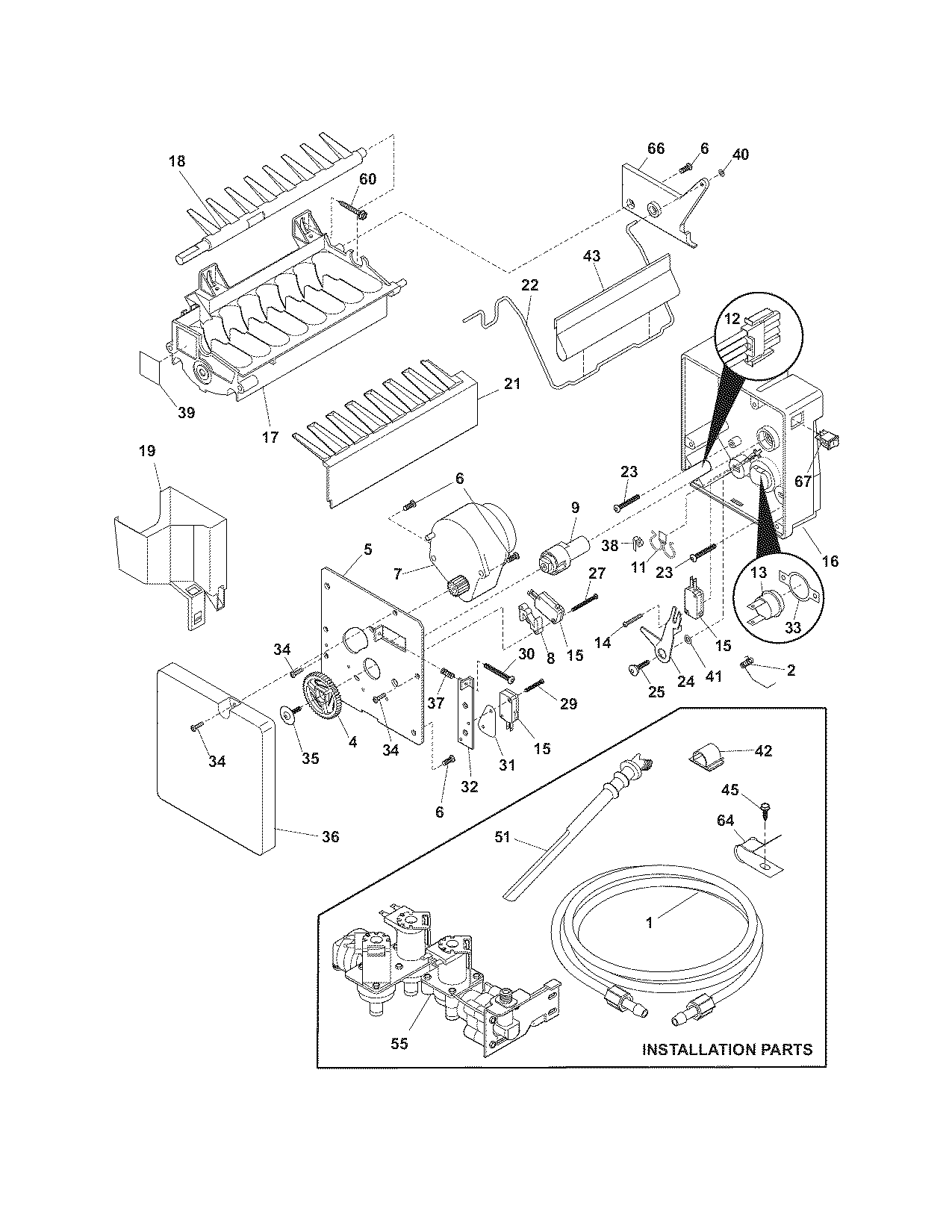

SELECT DIAGRAM
Browse Parts for E23CS78HPS0 Refrigerators

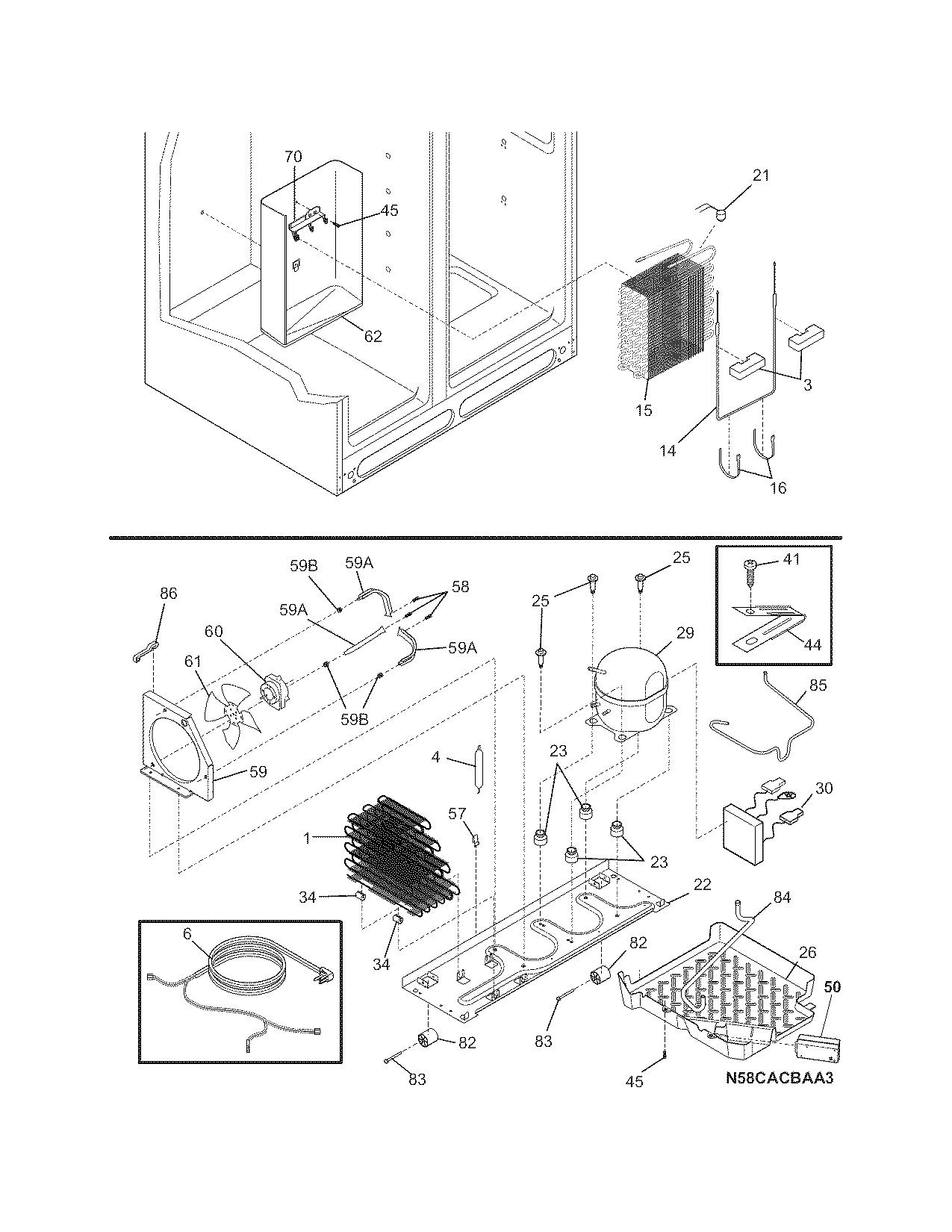

System diagram
Screw
Part #7240433203Replaced by #241953902
Manufacturer substitutionThis part replaces 7240433203. Substitute parts can look different from the original.This item is not returnableIn Stock$21.8822% OFF Phone Price : $27.88
Qty

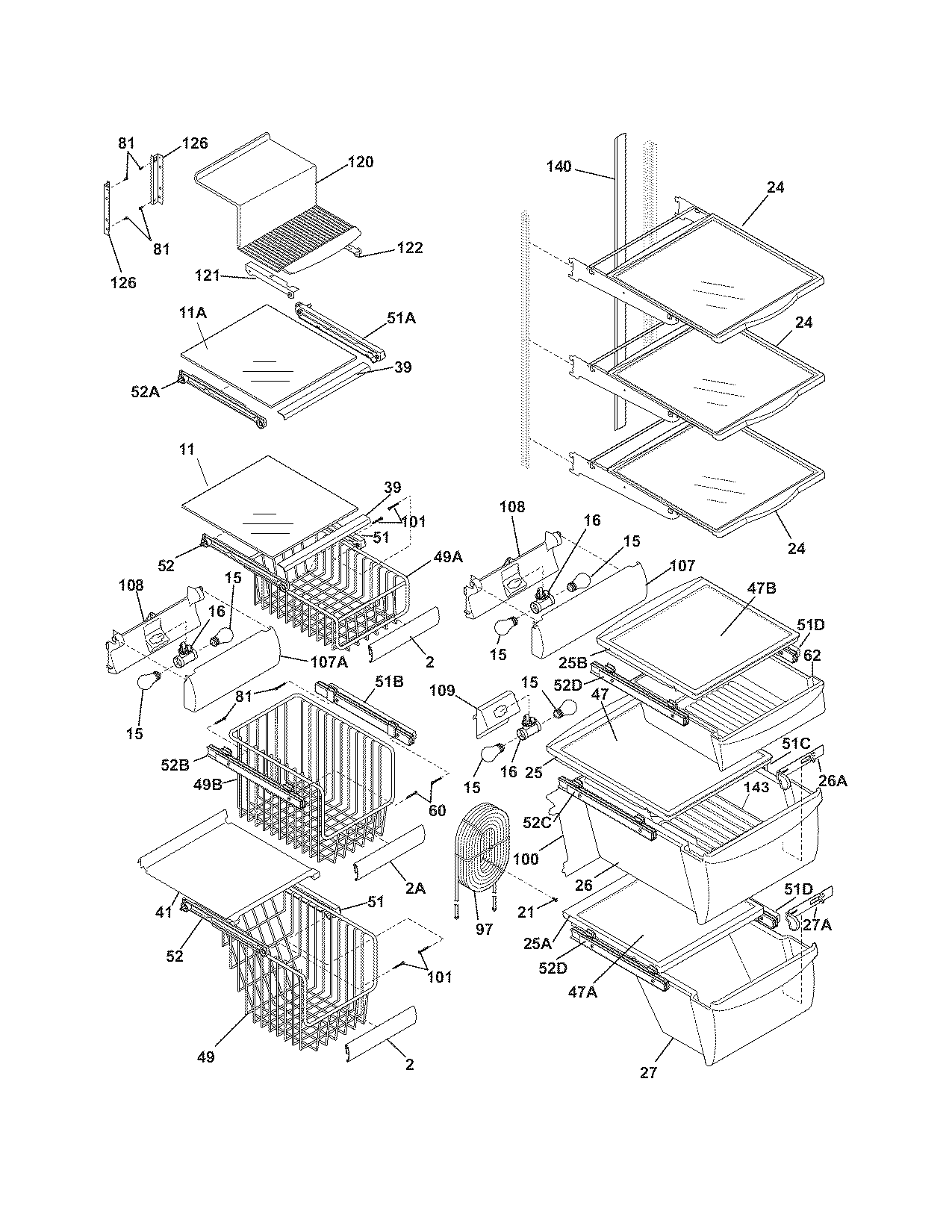

Shelves diagram
Refrigerator Hanger Basket
Part #7241514601Replaced by #241514601

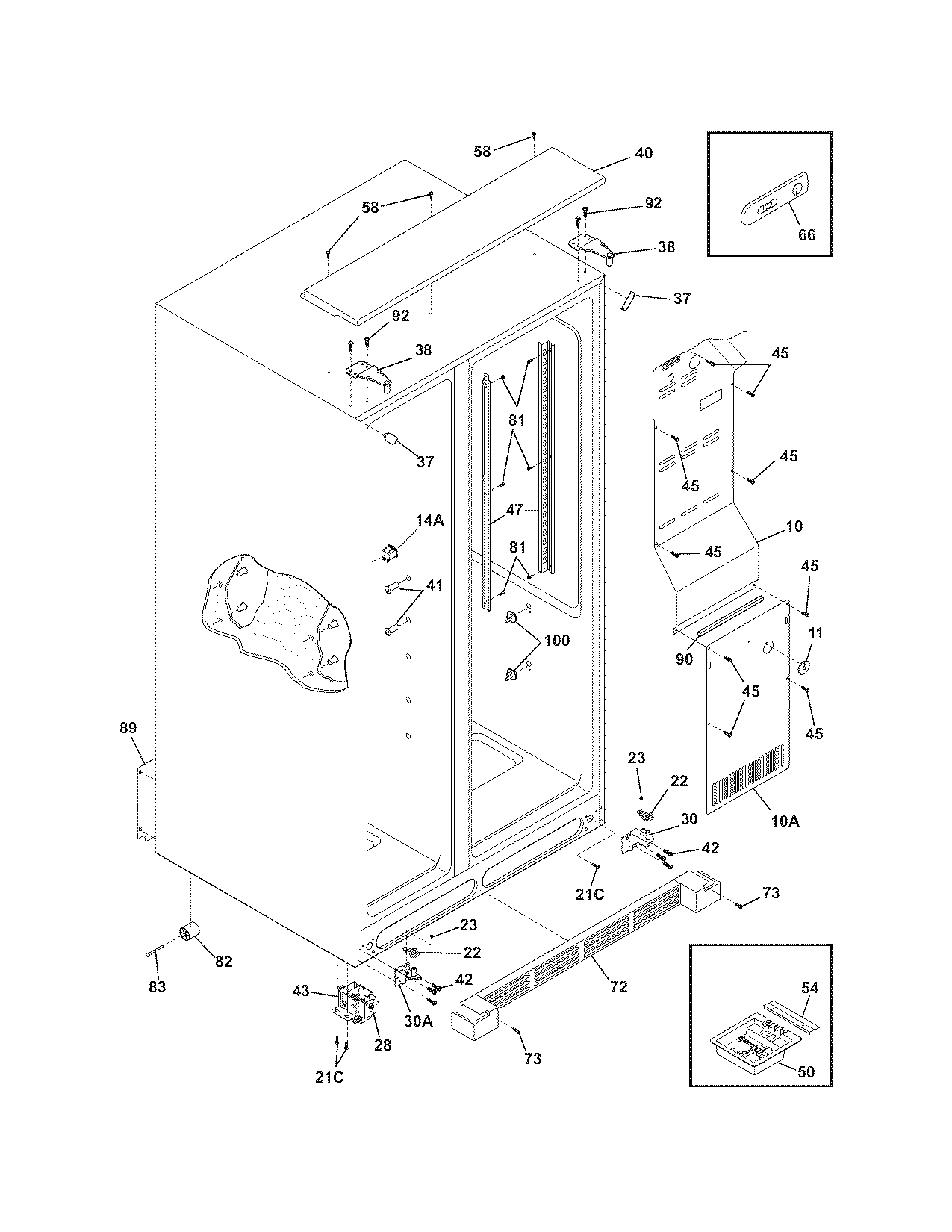

Manufacturer substitutionThis part replaces 7241514601. Substitute parts can look different from the original.In Stock$68.608% OFF Phone Price : $74.60QtyCabinet diagram
Bracket-uppe
Part #7240327207Replaced by #240327207

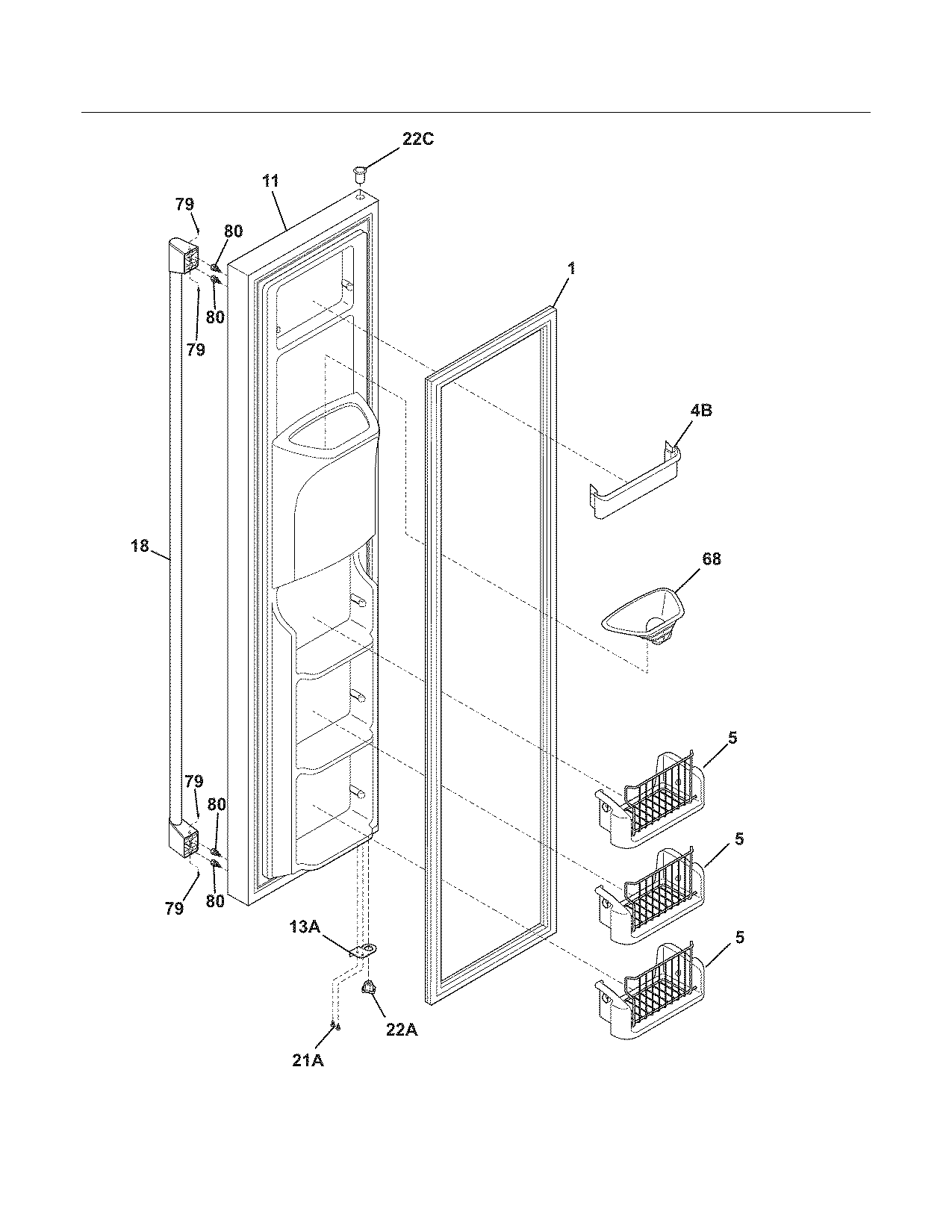

Manufacturer substitutionThis part replaces 7240327207. Substitute parts can look different from the original.In Stock$52.1110% OFF Phone Price : $58.11QtyFreezer door diagram
Door Stop,bl
Part #7240581906Replaced by #240581906

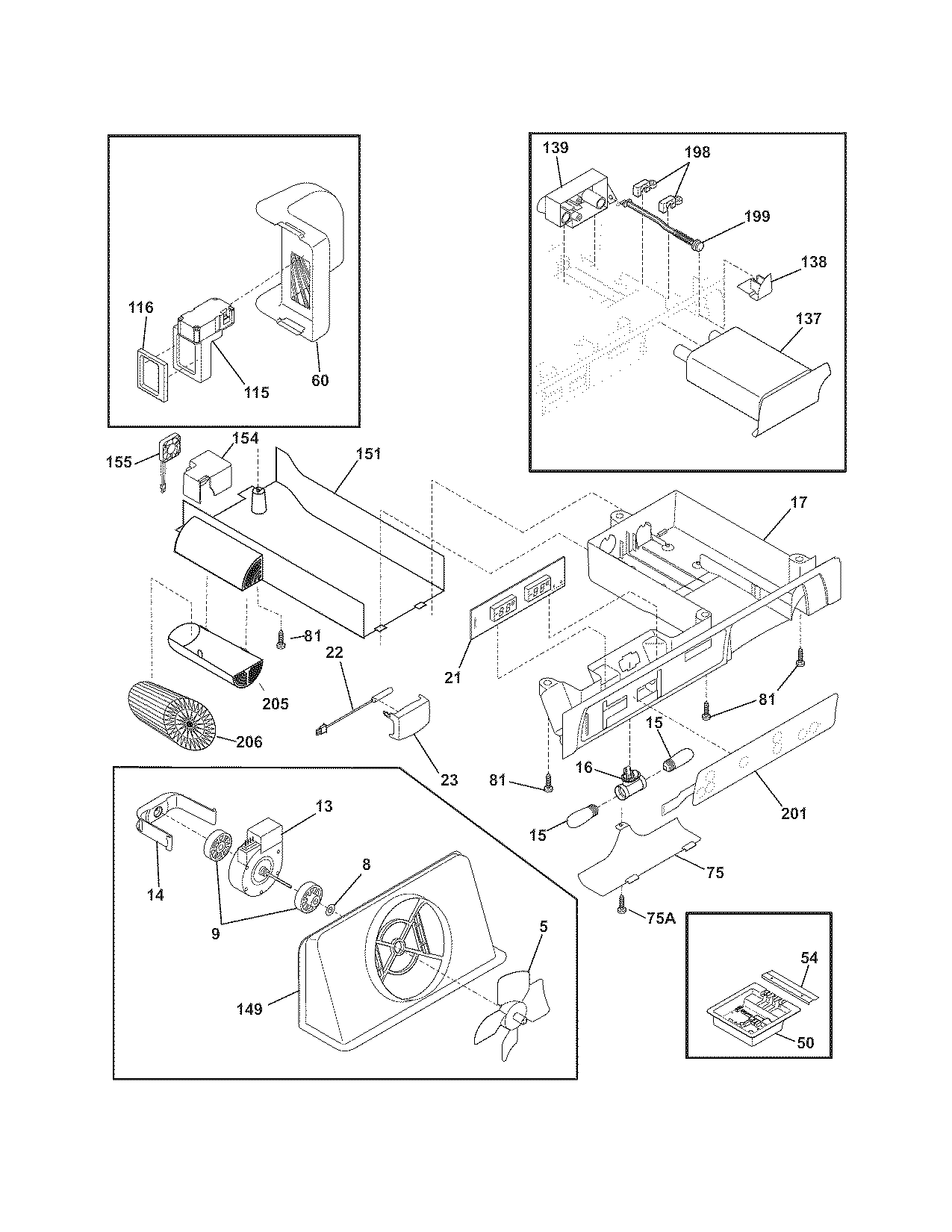

Manufacturer substitutionThis part replaces 7240581906. Substitute parts can look different from the original.In Stock$69.818% OFF Phone Price : $75.81QtyControls diagram
Refrigerator Bushing
Part #7241518301Replaced by #241518301
Manufacturer substitutionThis part replaces 7241518301. Substitute parts can look different from the original.In Stock$120.62QtyShelves diagram
Refrigerator Air Control
Part #7240362201Replaced by #240362201
Manufacturer substitutionThis part replaces 7240362201. Substitute parts can look different from the original.In Stock$45.7427% OFF Was : $62.30QtySystem diagram
Refrigerator Connector Tube
Part #7241856901Replaced by #241856901
Manufacturer substitutionThis part replaces 7241856901. Substitute parts can look different from the original.In Stock$110.37QtyCabinet diagram
Roller
Part #7240335005Replaced by #5304499445

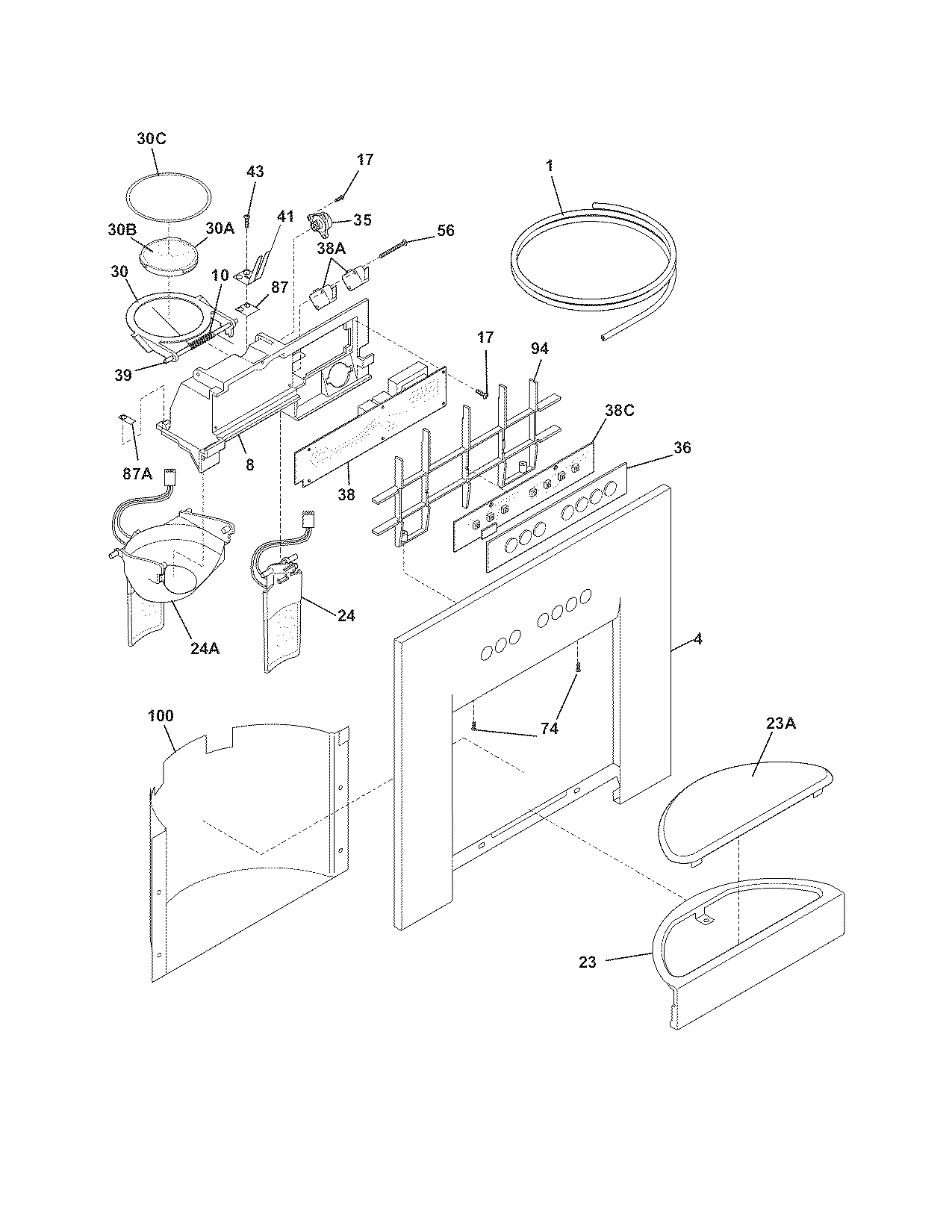

Manufacturer substitutionThis part replaces 7240335005. Substitute parts can look different from the original.In Stock$31.1016% OFF Phone Price : $37.10QtyIce & water dispenser diagram
Actuator,lig
Part #7241685704Replaced by #241685704
Manufacturer substitutionThis part replaces 7241685704. Substitute parts can look different from the original.In Stock$124.109% OFF Phone Price : $136.10QtyRefrigerator Receptacle
Part #7241622802Replaced by #241622802
Manufacturer substitutionThis part replaces 7241622802. Substitute parts can look different from the original.In Stock$34.5935% OFF Was : $53.43Qty
