Frigidaire
Countertop Microwave

Model #FMV145KS1 Official Frigidaire microwave

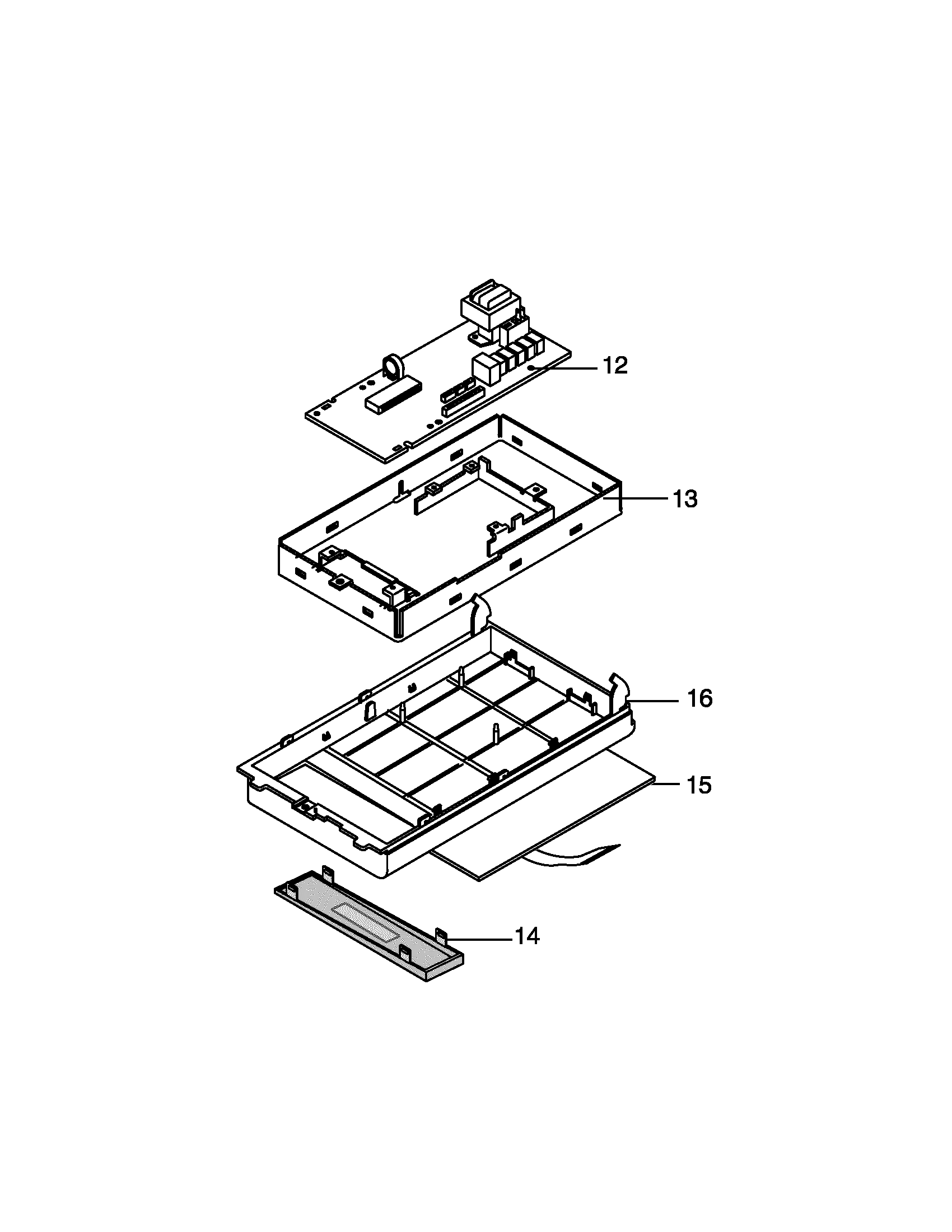

Here are the diagrams and repair parts for Frigidaire FMV145KS1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 111 parts

Holder#46A

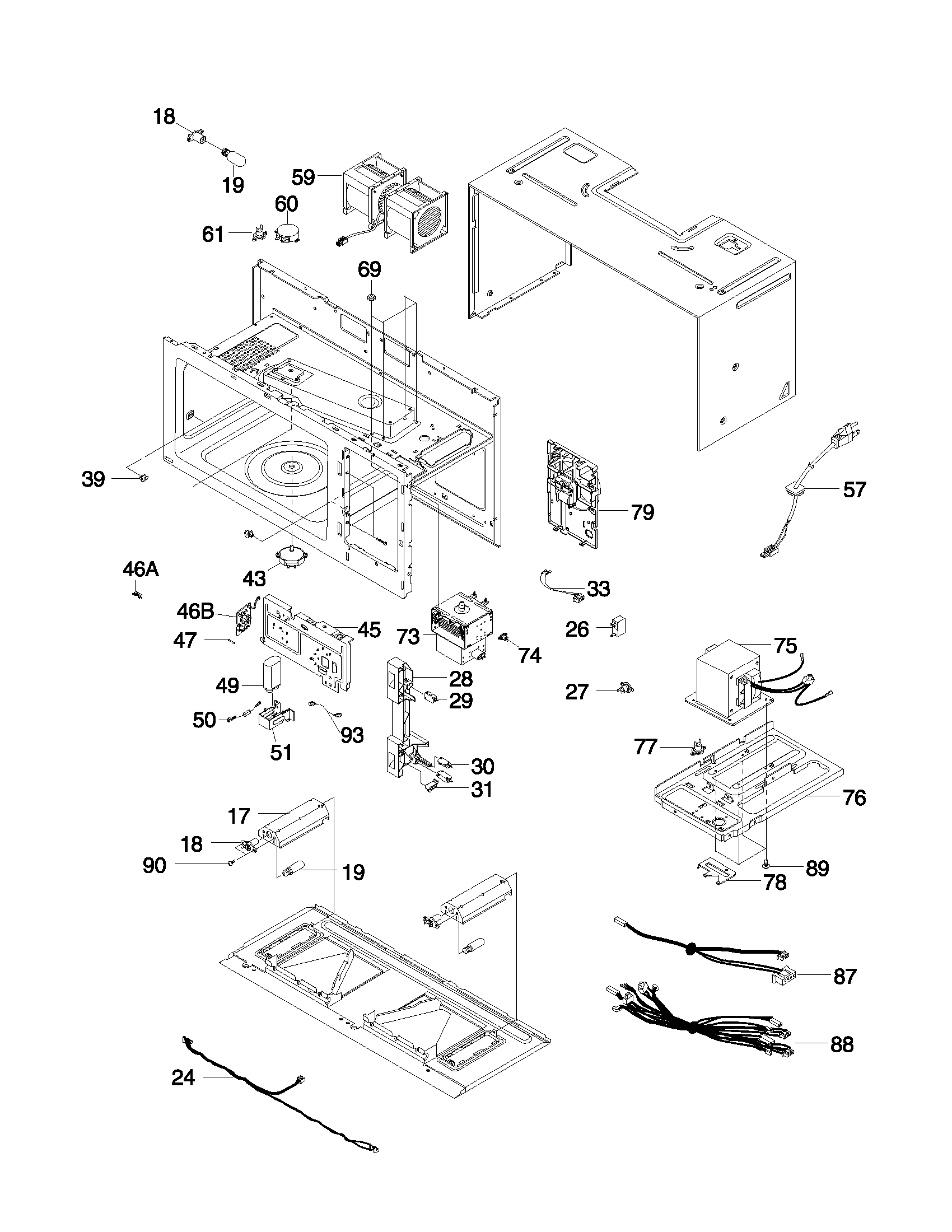

Functional parts Diagram

Holder

Part #5304423382
In Stock
$23.34
Out Wrapper#58

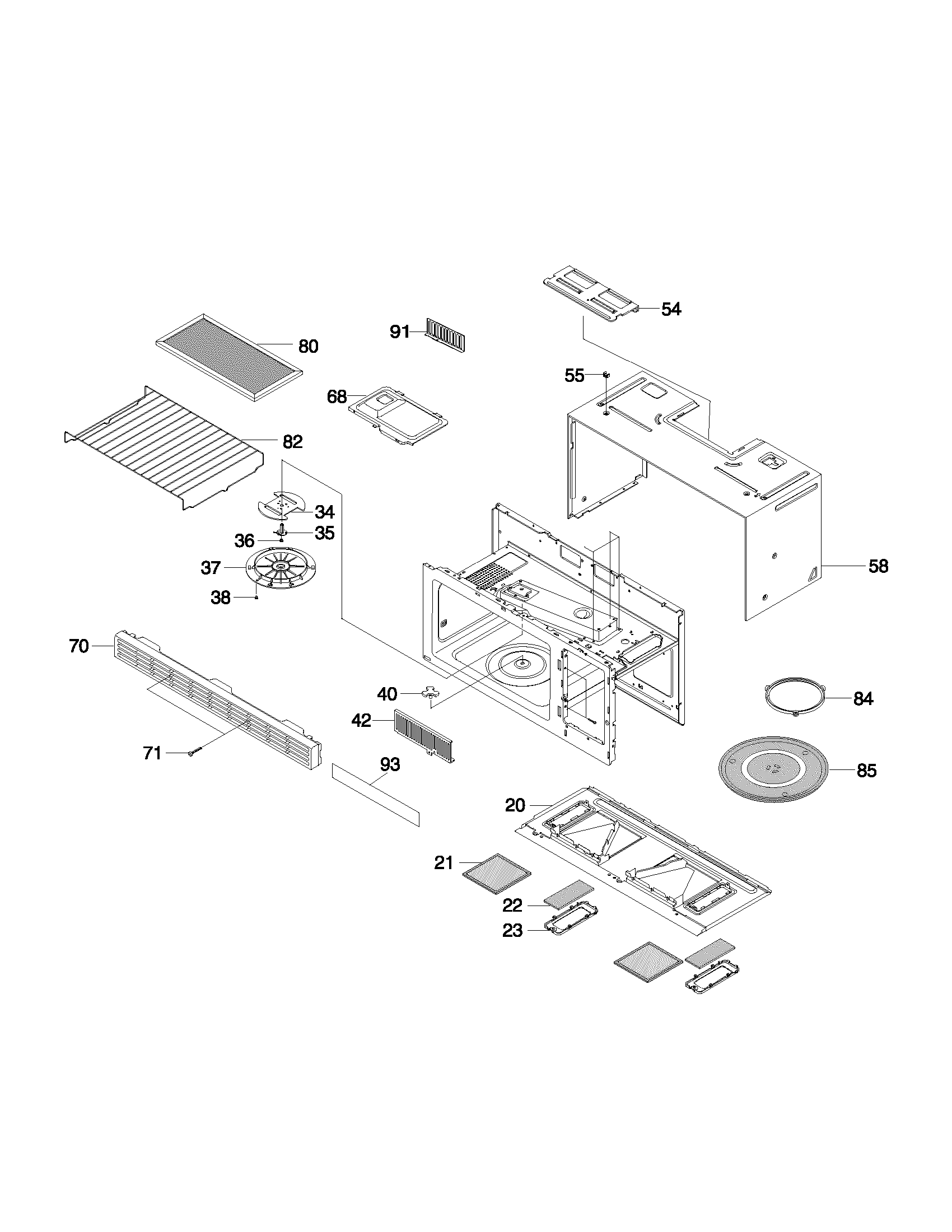

Body Diagram

Out wrapper

Part #5304408975
In Stock
$129.72
Microwave Base Plate (Black)#20

Body Diagram

In Stock
$128.96
Magnet Screw#69

Functional parts Diagram

Magnet screw

Part #5304408962
In Stock
$26.41
Out Dr Frme#4

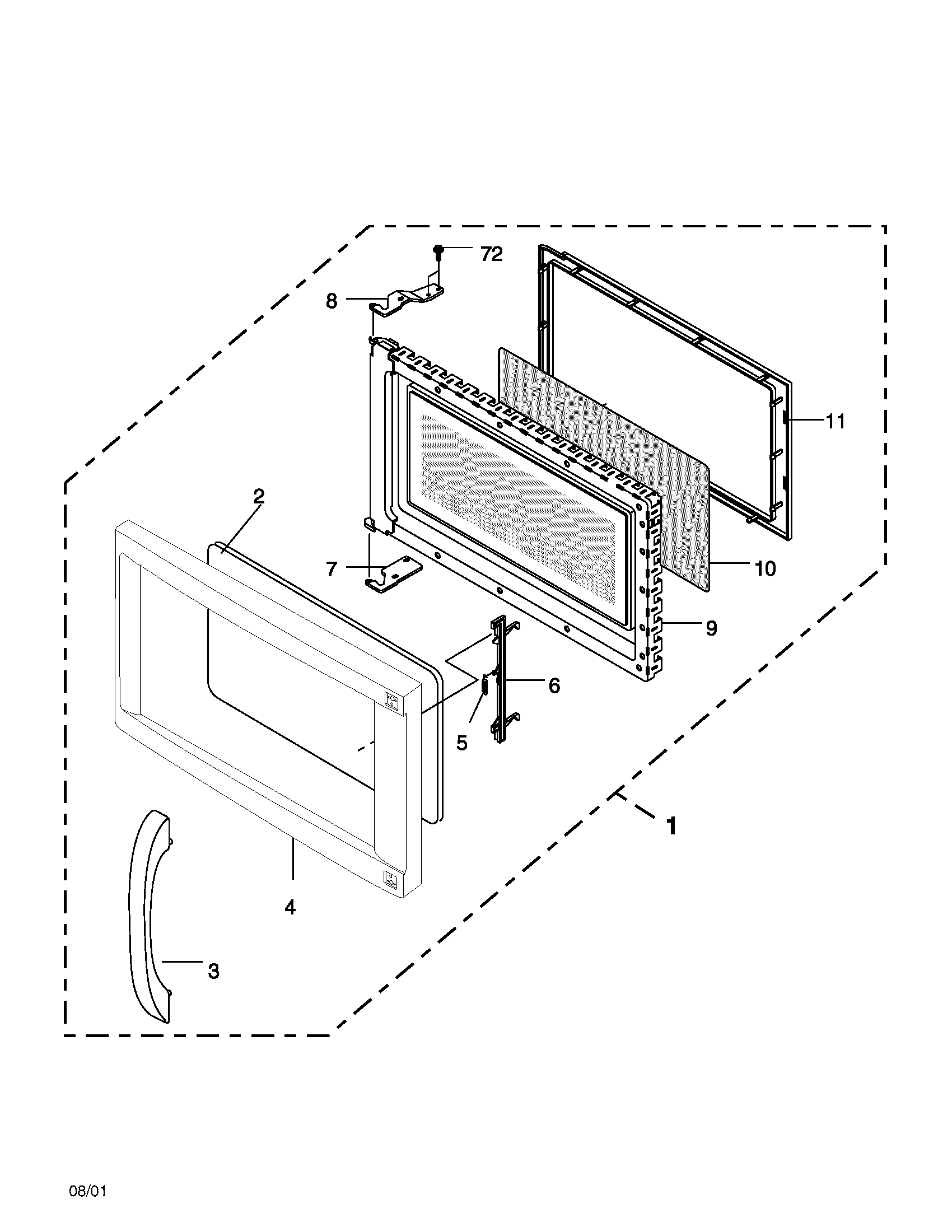

Door Diagram

Out dr frme

Part #5304423509
In Stock
$137.36
Door#9

Door Diagram

Door

Part #5304423511
In Stock
$117.76
Out Wrapper#58

Body Diagram

Out wrapper

Part #5304423528
In Stock
$131.98
Harness-wi#24

Functional parts Diagram

Harness-wi

Part #5304423520
In Stock
$90.05
Power Bracket#56

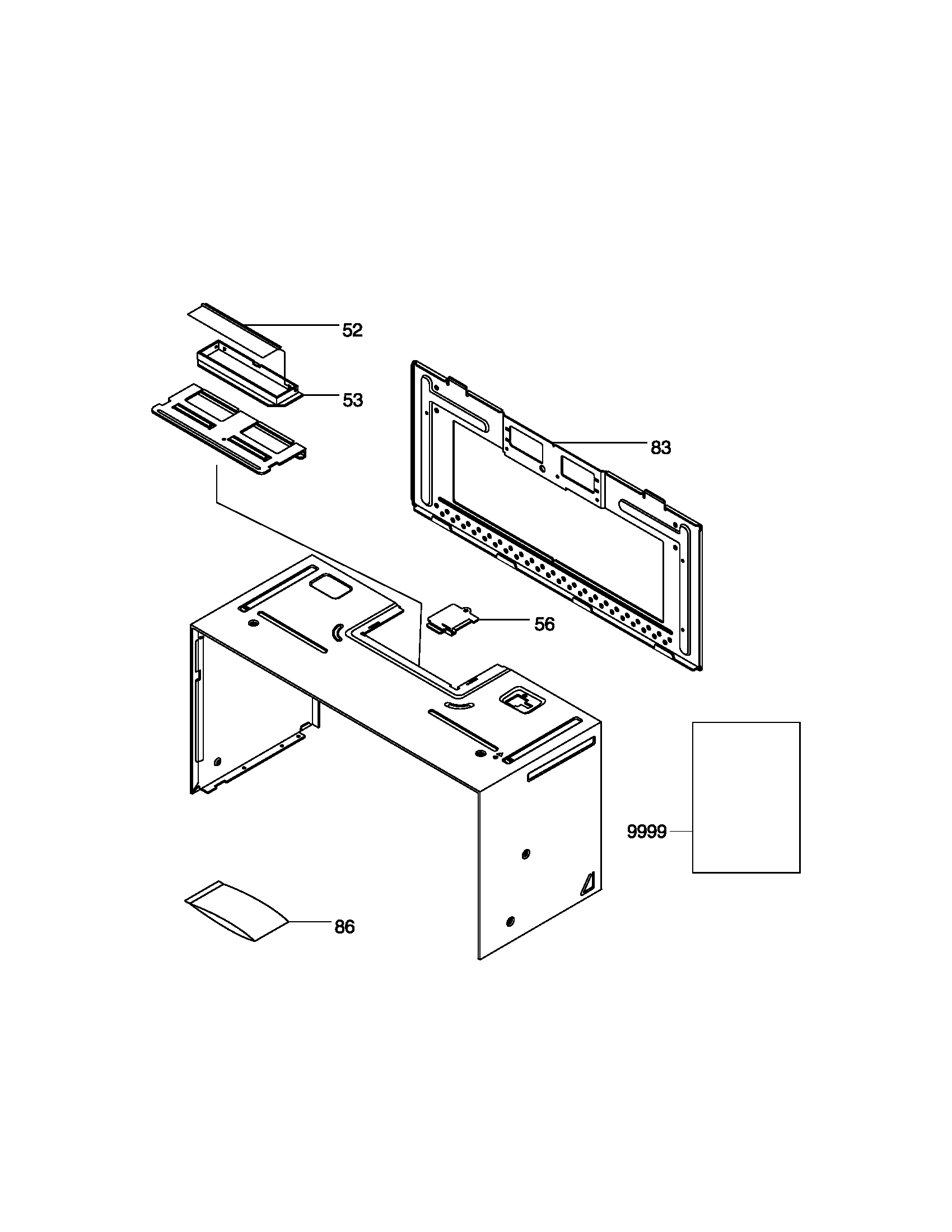

Installation Diagram

Power bracket

Part #5304408997
In Stock
$10.99
Bracket-cook#23

Body Diagram

Bracket-cook

Part #5304408973
In Stock
$84.98
