KitchenAid KIRD862XSS2 30" & 36" retractable downdraft vent system Parts
Here are the diagrams and repair parts for KitchenAid KIRD862XSS2 30" & 36" retractable downdraft vent system, as well as links to manuals and error code tables, if available.

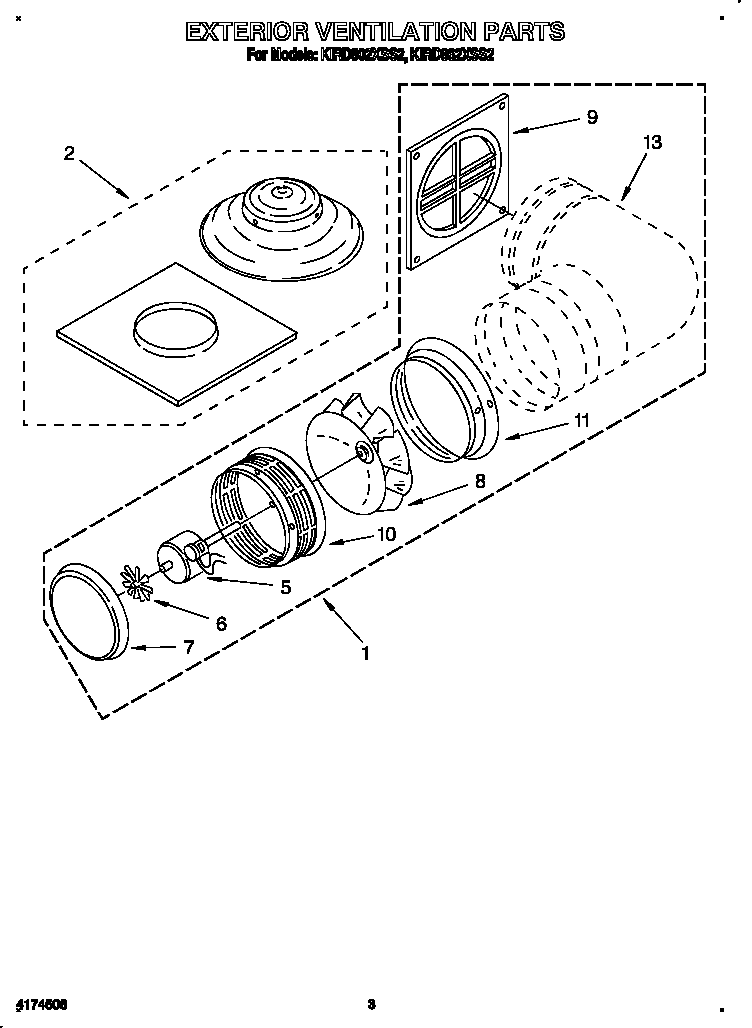

By Schematic
SELECT DIAGRAM
Browse Parts forKIRD862XSS2 30" & 36" Retractable Downdraft Vent System

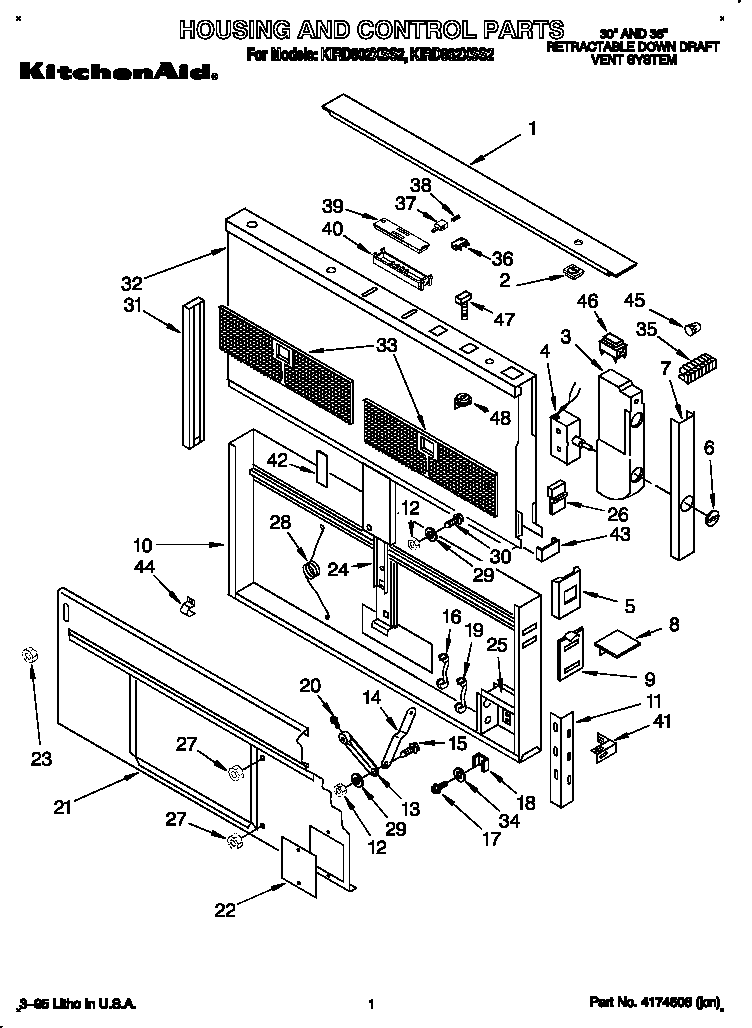

Housing and control diagram
Washer
Part #4360158Replaced by #98007193
Manufacturer substitutionThis part replaces 4360158. Substitute parts can look different from the original.This item is not returnableIn Stock$36.01
Qty

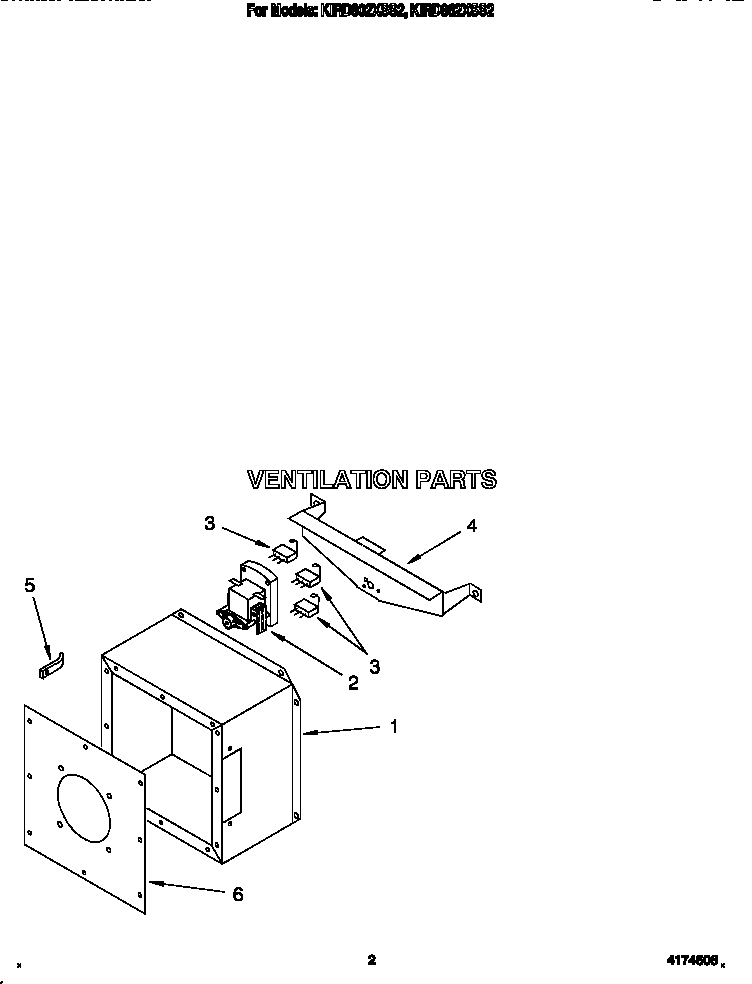

Ventilation diagram
Switch
Part #4360035Replaced by #WPW10240604
Manufacturer substitutionThis part replaces 4360035. Substitute parts can look different from the original.In Stock$59.1740% OFF Was : $98.61
QtyHousing and control diagram
Nut
Part #4360156Replaced by #WP776338
Manufacturer substitutionThis part replaces 4360156. Substitute parts can look different from the original.In Stock$42.74QtyHousing and control diagram
Control Cover
Part #4360130
The manufacturer no longer makes this part, and there's no substitute part
Ventilation diagram
Capacitor Bracket
Part #4360059
The manufacturer no longer makes this part, and there's no substitute part
Housing and control diagram
Wing Nut
Part #4360164
The manufacturer no longer makes this part, and there's no substitute part
Housing and control diagram
Relief Stirrer
Part #4360062
The manufacturer no longer makes this part, and there's no substitute part
Housing and control diagram
Screw
Part #4360145
The manufacturer no longer makes this part, and there's no substitute part
Housing and control diagram
Control Panel
Part #4360138
The manufacturer no longer makes this part, and there's no substitute part
Housing and control diagram
Guide
Part #4360173
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your downdraft ventilation systems
Choose a symptom to see related downdraft vent repairs.
Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor...
Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel...
Main causes: problems with the vent limit switches, up/down activation switch failure...
Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure...
Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure...
Most common repair guides to help fix your downdraft ventilation systems
These step-by-step repair guides will help you safely fix what’s broken on your downdraft vent.
How to replace a downdraft vent blower motor
The blower motor spins the fan blade that removes smoke and steam from the cooktop area. Replace the blower motor if it ...
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent up/down switch
The up/down switch starts the gear motor to raise and lower the air vent. Replace the up/down switch if defective....
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent gear motor
The gear motor raises and lowers the air vent when you push the activating switch. Replace the gear motor if defective....
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your downdraft ventilation systems
Use the advice and tips in these articles to get the most out of your downdraft vent.
Get answers to frequently asked questions about Sears and Sears PartsDirect....
The most commonly asked questions about downdraft vents are answered by our experts....
See what to check if you are having a problem with a retractable downdraft vent....
