Model # KC50XCRG0R030 Official Whirlpool powermate vacuum attachment

Here are the diagrams and repair parts for Official Whirlpool KC50XCRG0R030 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Vacuum Powermate Swivel KS4153196
#15

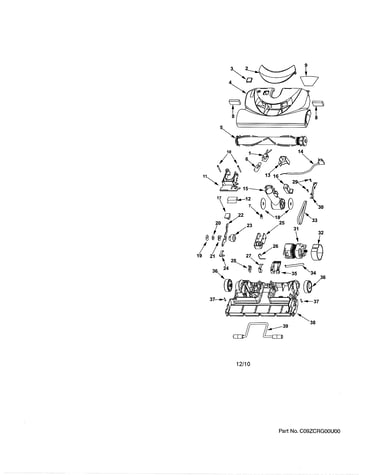

Power-mate diagram

Vacuum powermate swivel

Part #KS4153196

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Swivel Seal KS742019
#18

Power-mate diagram

Vacuum powermate swivel seal

Part #KS742019

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Switch Button 8195147
#16

Power-mate diagram

Vacuum power switch button

Part #8195147

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foam Filter 4370713
#8

Power-mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Head Power Cord KC64EAWBZV06
#14

Power-mate diagram

Vacuum power head power cord

Part #KC64EAWBZV06

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 8192535
#5

Power-mate diagram

Vacuum beater bar

Part #8192535

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt KC28SBZTZ000
#33

Power-mate diagram

Vacuum beater bar belt

Part #KC28SBZTZ000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Motor KC90FCBJZ000
#31

Power-mate diagram

Vacuum powermate motor

Part #KC90FCBJZ000

The manufacturer no longer makes this part, and there's no substitute part

Axle (silver) 744029
#39

Power-mate diagram

Axle (silver)

Part #744029

The manufacturer no longer makes this part, and there's no substitute part
