Model # 37LG60-UGAUSQLVM Official LG 37" lcd television

Here are the diagrams and repair parts for Official LG 37LG60-UGAUSQLVM 37" lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Television Power Cord EAD36401701
#NI

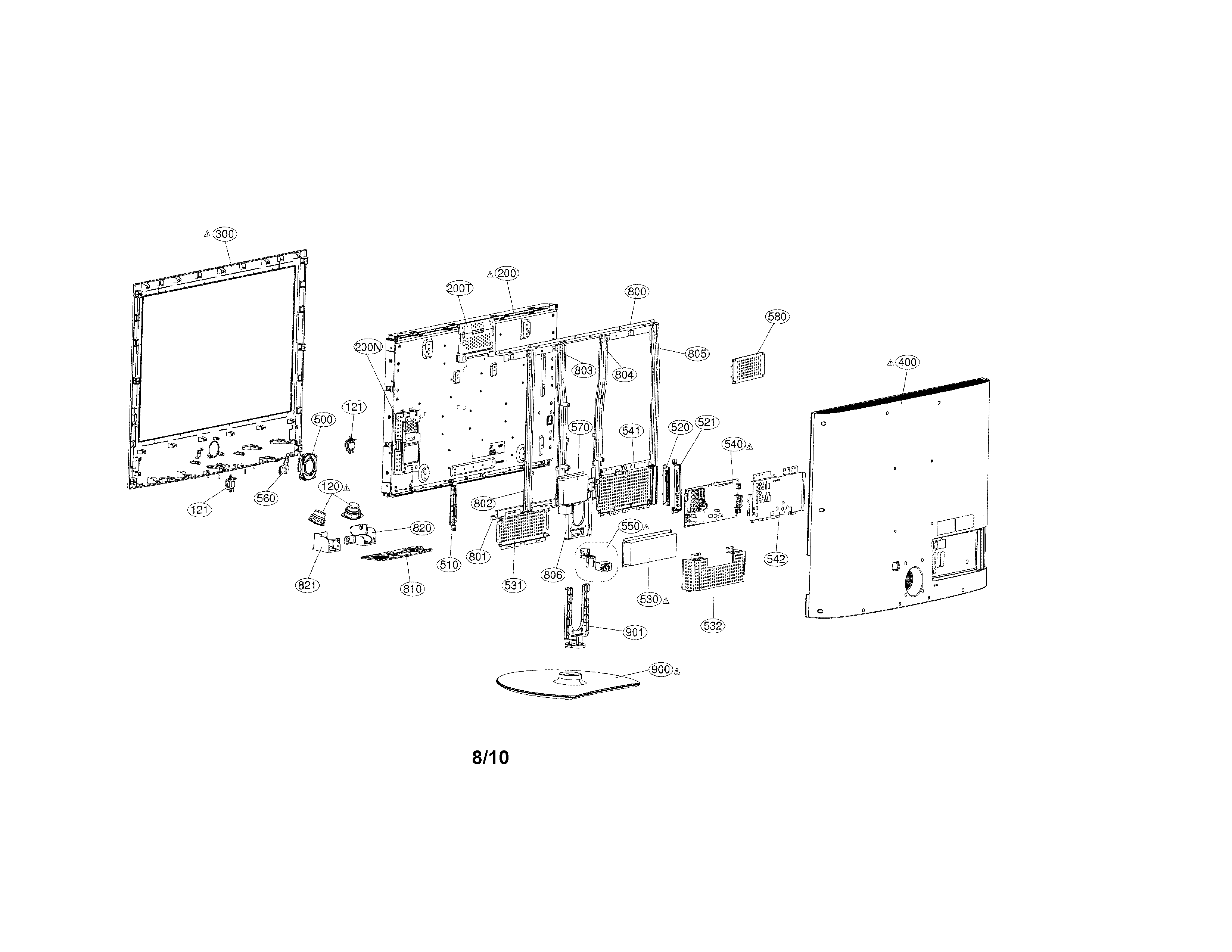

Tv lcd 37 diagram

Television power cord

Part #EAD36401701

In Stock
Smps, Acdc EAY41971702
#530

Tv lcd 37 diagram

Smps, acdc

Part #EAY41971702

In Stock
Woofer Speaker EAB41418001
#120

Tv lcd 37 diagram

Woofer speaker

Part #EAB41418001

In Stock
Switched-mode Power Supply Board EAY41971602
#570

Tv lcd 37 diagram

Switched-mode power supply board

Part #EAY41971602

In Stock
Television Remote Control MKJ40653801
#NI

Tv lcd 37 diagram

Television remote control

Part #MKJ40653801

In Stock
Inverter Assembly EAY56798301
#200N

Tv lcd 37 diagram

Inverter assembly

Part #EAY56798301

In Stock
Supporter MJH40913802
#901

Tv lcd 37 diagram

Supporter

Part #MJH40913802

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly,front EBR42598704
#500

Tv lcd 37 diagram

Pcb assembly,front

Part #EBR42598704

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly ABA36376418
#521

Tv lcd 37 diagram

Bracket assembly

Part #ABA36376418

The manufacturer no longer makes this part, and there's no substitute part

Shield Plate MGJ41039107
#541

Tv lcd 37 diagram

Shield plate

Part #MGJ41039107

The manufacturer no longer makes this part, and there's no substitute part
