Craftsman
Gas Walk-Behind Mower

Model # 842243290 Official Craftsman power mower

Here are the diagrams and repair parts for Official Craftsman 842243290 power mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 283 parts  |

Blade Adapter 23245
#7

Pulley assembly diagram

Blade adapter

Part #23245

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 23263
#76

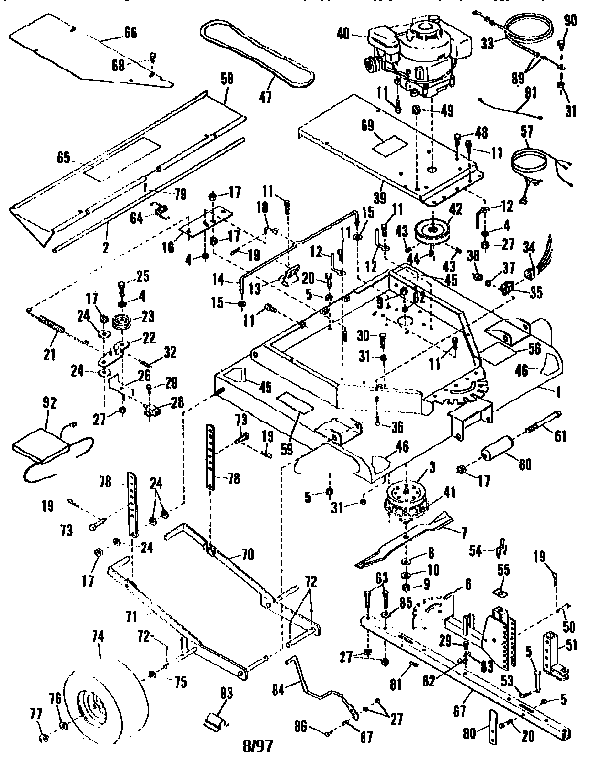

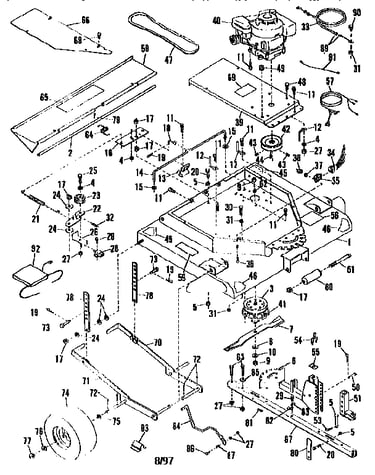

Main frame diagram

Flat washer

Part #23263

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 3430
#19

Main frame diagram

Cotter pin

Part #3430

The manufacturer no longer makes this part, and there's no substitute part

Nut 4119
#31

Main frame diagram

Nut

Part #4119

The manufacturer no longer makes this part, and there's no substitute part

Screw,3/8-1 23193
#11

Main frame diagram

Screw,3/8-1

Part #23193

The manufacturer no longer makes this part, and there's no substitute part

Mower 12138
#60

Main frame diagram

Mower

Part #12138

The manufacturer no longer makes this part, and there's no substitute part

Pulley 15015
#23

Main frame diagram

Pulley

Part #15015

The manufacturer no longer makes this part, and there's no substitute part

Clevis Pin 23638
#73

Main frame diagram

Clevis pin

Part #23638

The manufacturer no longer makes this part, and there's no substitute part

Bearing Spacer 23244
#5

Pulley assembly diagram

Bearing spacer

Part #23244

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 23242
#6

Pulley assembly diagram

Housing assembly

Part #23242

The manufacturer no longer makes this part, and there's no substitute part
