Hoover
Upright Vacuum

Model #U4107 Official Hoover upright vacuum

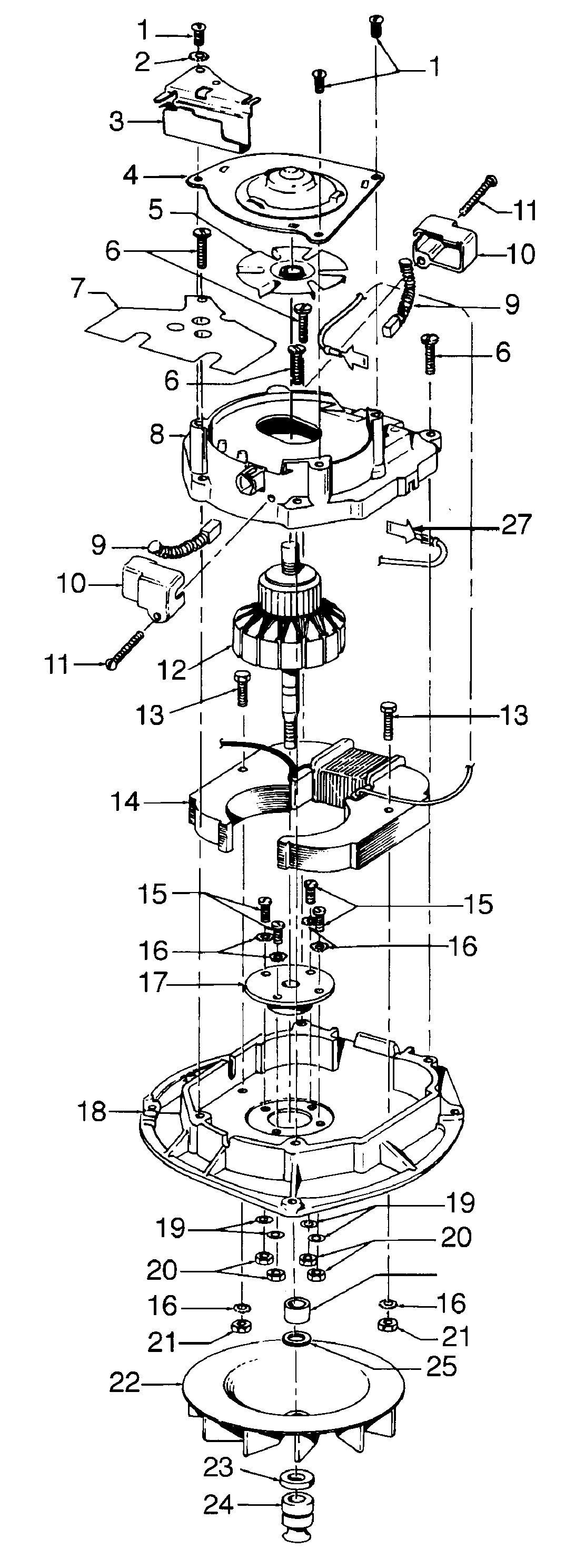

Here are the diagrams and repair parts for Hoover U4107 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 132 parts

Spring#42

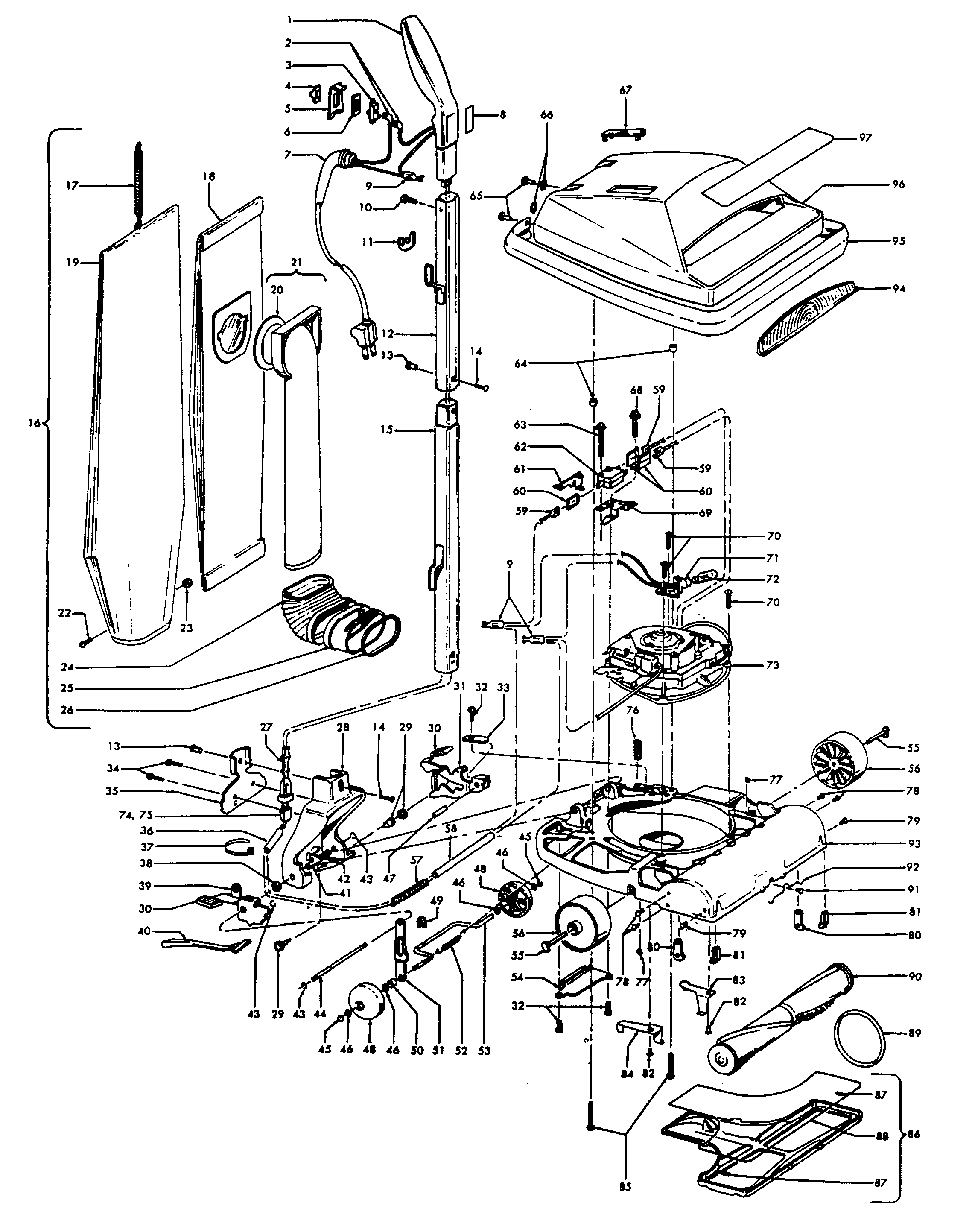

Agitator, handle, mainbody, outerbag Diagram

Spring

Part #048409FW

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush#4A

Cleaningtools Diagram

Vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool#11A

Cleaningtools Diagram

Crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate#86A

Agitator, handle, mainbody, outerbag Diagram

Bottom plate

Part #42246038

The manufacturer no longer makes this part, and there's no substitute part

Washer 12 Pk#46

Agitator, handle, mainbody, outerbag Diagram

Washer 12 pk

Part #21312772

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Plate#86

Agitator, handle, mainbody, outerbag Diagram

Vacuum plate

Part #42246008

The manufacturer no longer makes this part, and there's no substitute part

Support Washer#80

Agitator, handle, mainbody, outerbag Diagram

Support washer

Part #21312781

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring#45

Agitator, handle, mainbody, outerbag Diagram

Lock ring

Part #017207AZ

The manufacturer no longer makes this part, and there's no substitute part

Split Ring#7A

Cleaningtools Diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Retaining Flange#54

Agitator, handle, mainbody, outerbag Diagram

Retaining flange

Part #35434040

The manufacturer no longer makes this part, and there's no substitute part
