Kenmore
Range Hood

Model # 2335338911 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335338911 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

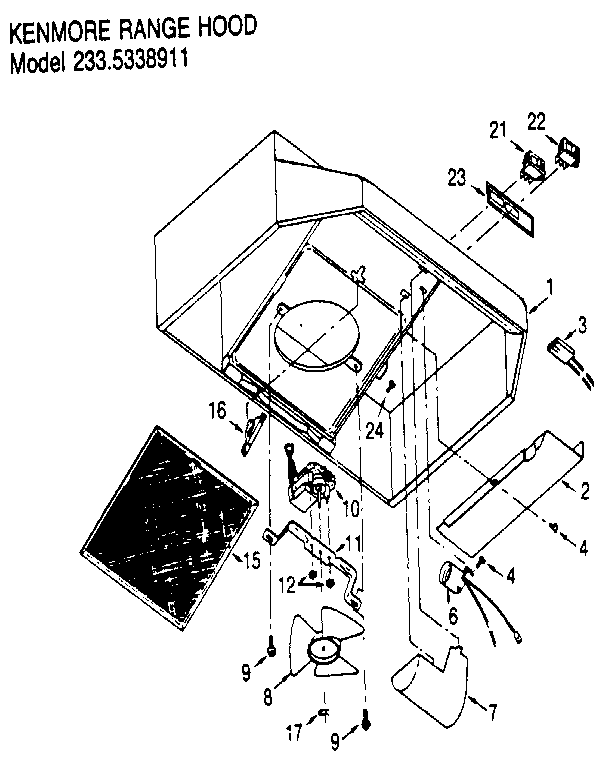

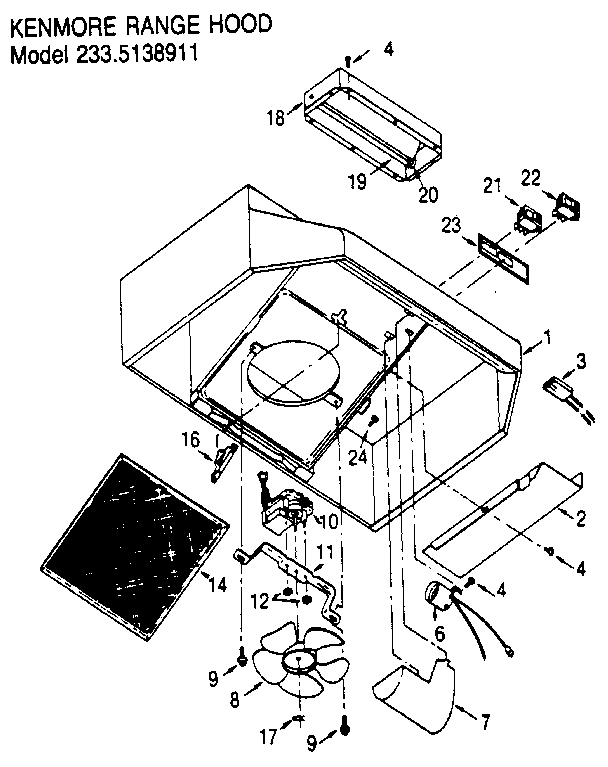

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Range Hood Vent Damper 97005544

#18

All parts diagram

Range hood vent damper

Part #97005544

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Wiring Cover 98006621

#2

All parts diagram

Range hood wiring cover

Part #98006621

Replaced by #S98006621

?
Manufacturer substitution
This part replaces 98006621. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Switch Wht 99030248

#21A

All parts diagram

Switch wht

Part #99030248

Replaced by #97016971

?
Manufacturer substitution
This part replaces 99030248. Substitute parts can look different from the original.
This item is not returnable
$25.71
In Stock
Range Hood Vent Damper Cover 98005221

#19

All parts diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
Switch Wht 99030247

#22A

All parts diagram

Switch wht

Part #99030247

Replaced by #97016971

?
Manufacturer substitution
This part replaces 99030247. Substitute parts can look different from the original.
This item is not returnable
$25.71
In Stock
Range Hood Fan Blade 99020176

#8A

All parts diagram

Range hood fan blade

Part #99020176

Replaced by #S99020176

?
Manufacturer substitution
This part replaces 99020176. Substitute parts can look different from the original.
$11.50
In Stock
Range Hood Blower Motor Wire Harness 97005678

#3

All parts diagram

Range hood blower motor wire harness

Part #97005678

Replaced by #S97005678

?
Manufacturer substitution
This part replaces 97005678. Substitute parts can look different from the original.
This item is not returnable
$5.63
In Stock
Range Hood Fan Motor Lock Nut 99260428

#12

All parts diagram

Range hood fan motor lock nut

Part #99260428

Replaced by #S99260428

?
Manufacturer substitution
This part replaces 99260428. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Range Hood Grounding Screw (green) 99150471

#24

All parts diagram

Range hood grounding screw (green)

Part #99150471

Replaced by #S99150471

?
Manufacturer substitution
This part replaces 99150471. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Range Hood Fan Motor Bracket 98005568

#11

All parts diagram

Range hood fan motor bracket

Part #98005568

Replaced by #S98005568

?
Manufacturer substitution
This part replaces 98005568. Substitute parts can look different from the original.
This item is not returnable
$3.39
In Stock
