Model # 3XACM07DD0 Official Whirlpool through-the-wall air conditioner

Here are the diagrams and repair parts for Official Whirlpool 3XACM07DD0 through-the-wall air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

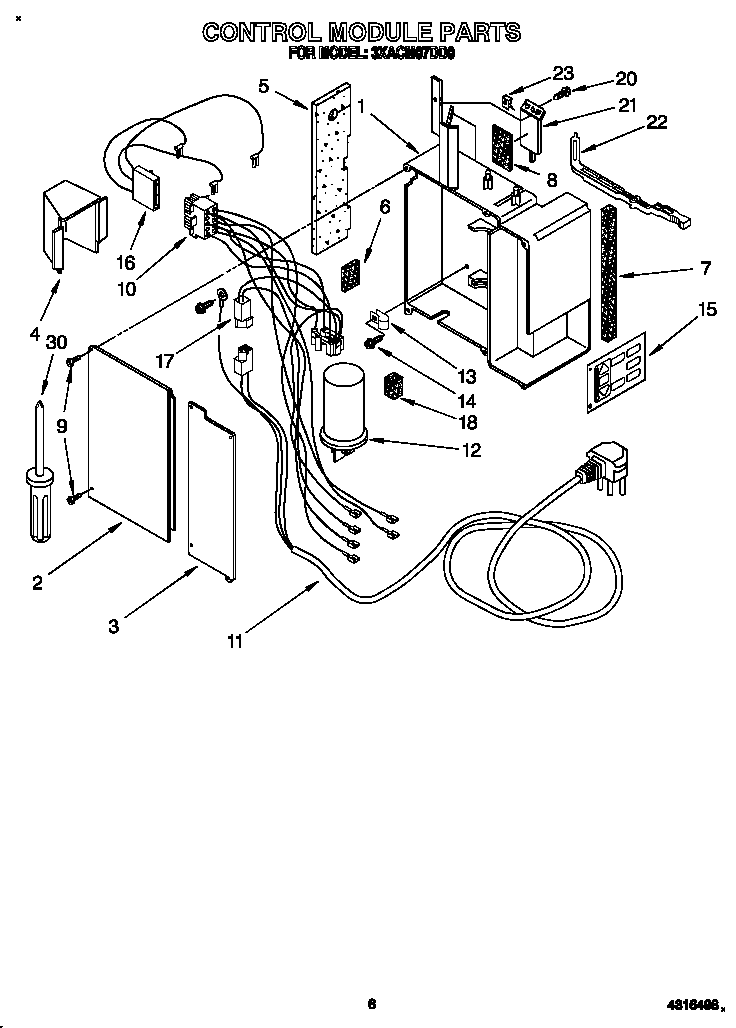

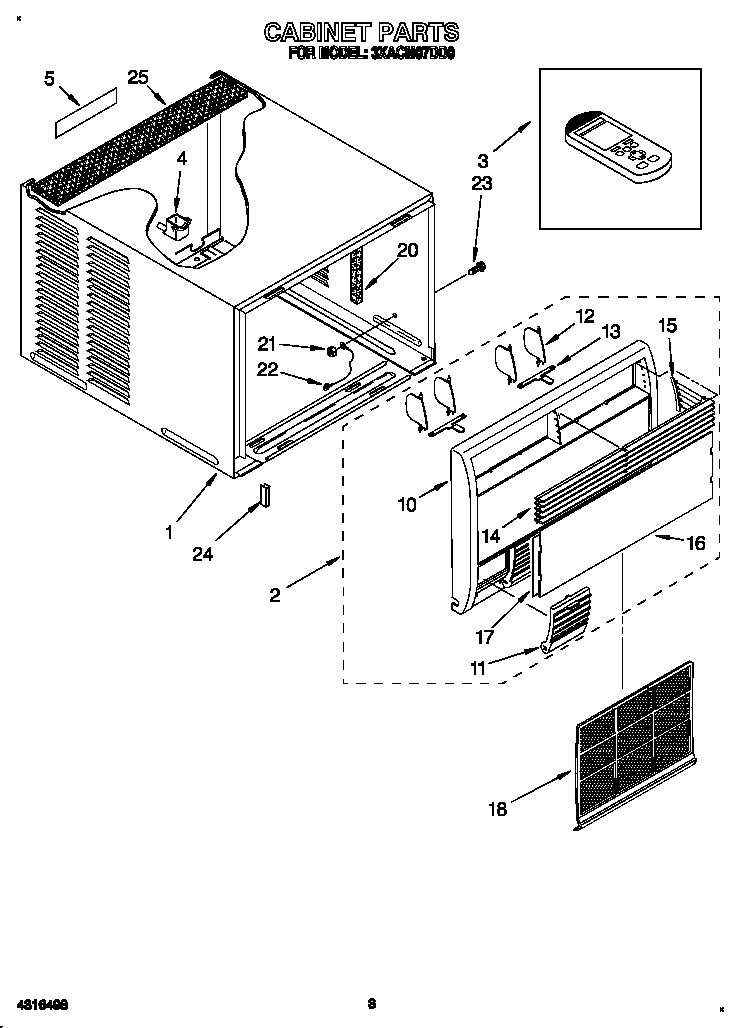

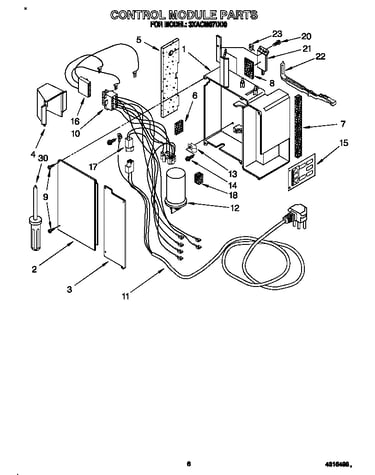

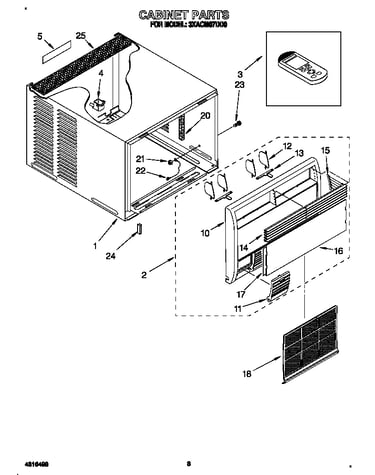

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Valve Kit 978030
#6G

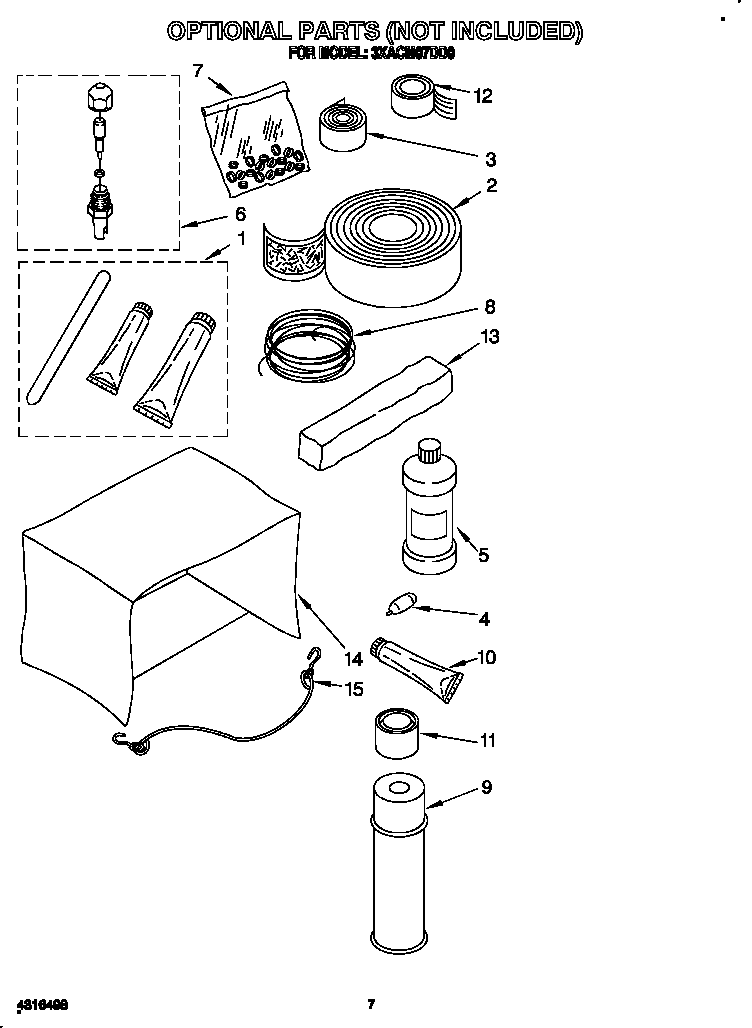

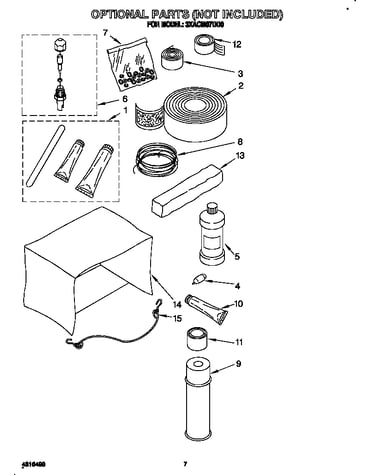

Optional diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
BEST SELLER
$40.49 |
33% OFF MSRP : $60.00
In Stock
Cement 279368
#10

Optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
36% OFF MSRP : $67.00
In Stock
Valve Kit 978025
#6B

Optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
44% OFF MSRP : $53.00
In Stock
Valve Kit 978026
#6C

Optional diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
13% OFF Phone Price : $39.19
In Stock
Refrigerant Access Valve, 5/8-in 978029
#6F

Optional diagram

Refrigerant access valve, 5/8-in

Part #978029

Replaced by #978029

?
Manufacturer substitution
This part replaces 978029. Substitute parts can look different from the original.
$41.18
In Stock
Anticipator 1164141
#40

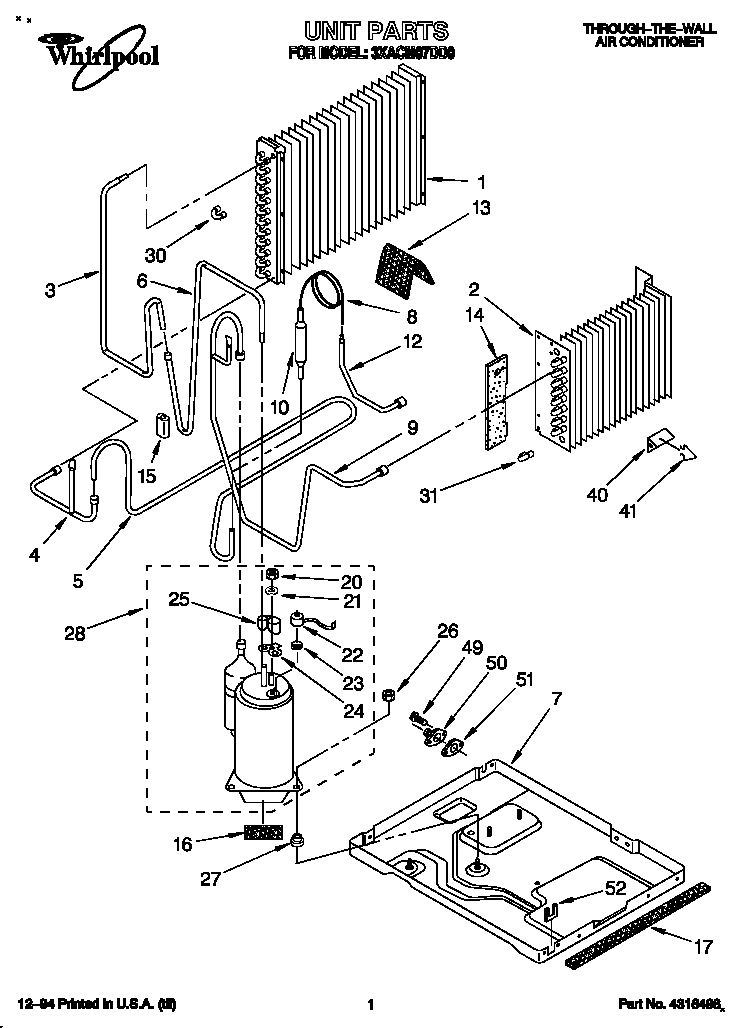

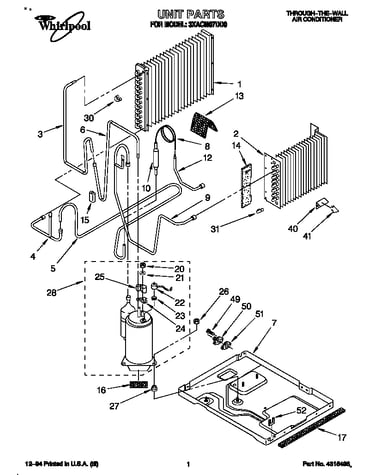

Unit diagram

Anticipator

Part #1164141

This item is not returnable
$3.29
In Stock
Room Air Conditioner Outdoor Cover 484184
#14D

Optional diagram

Room air conditioner outdoor cover

Part #484184

$54.49 |
8% OFF Phone Price : $59.49
In Stock
Seal Strip 1180700
#22

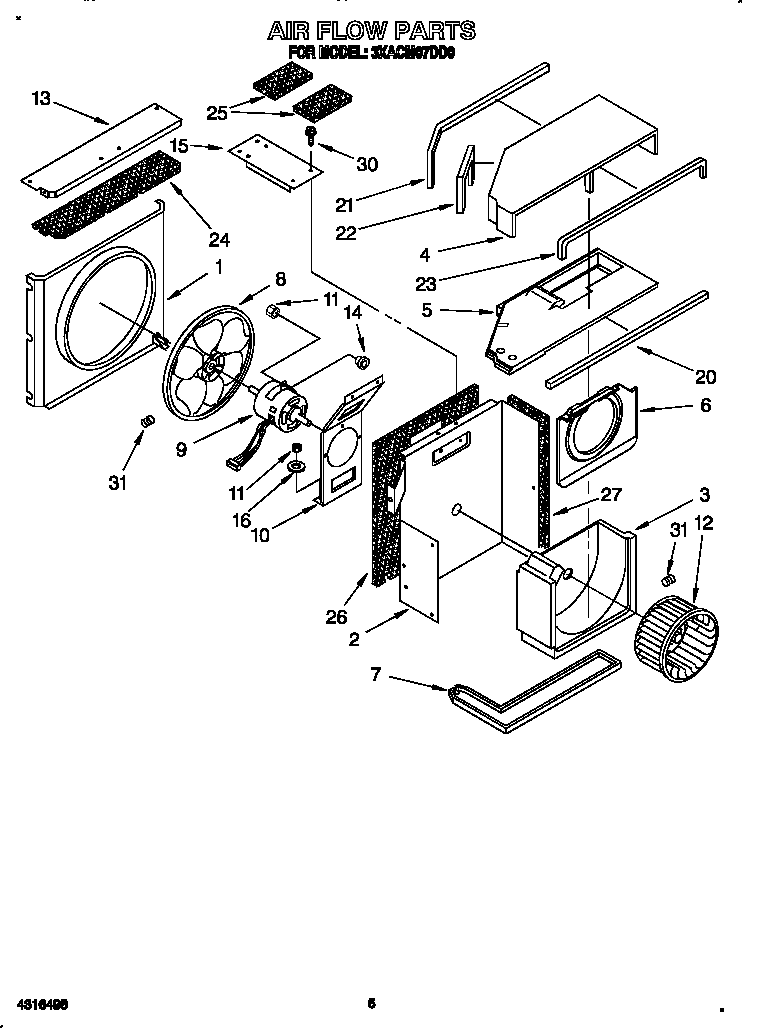

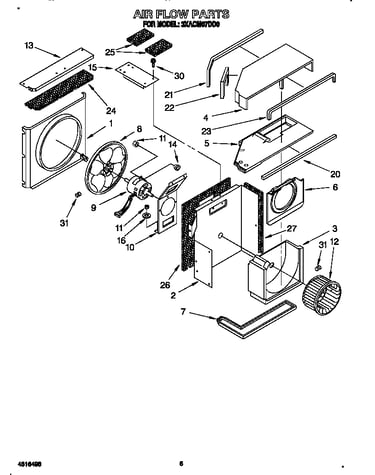

Air flow diagram

Seal strip

Part #1180700

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180700. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Lock Nut 950035
#24

Unit diagram

Lock nut

Part #950035

Replaced by #WP950035

?
Manufacturer substitution
This part replaces 950035. Substitute parts can look different from the original.
$29.89
In Stock
Tape 479502
#3

Optional diagram

Tape

Part #479502

Replaced by #W11238399

?
Manufacturer substitution
This part replaces 479502. Substitute parts can look different from the original.
$55.36
In Stock
