Model # 72180809400 Official Kenmore Elite microwave

Here are the diagrams and repair parts for Official Kenmore Elite 72180809400 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

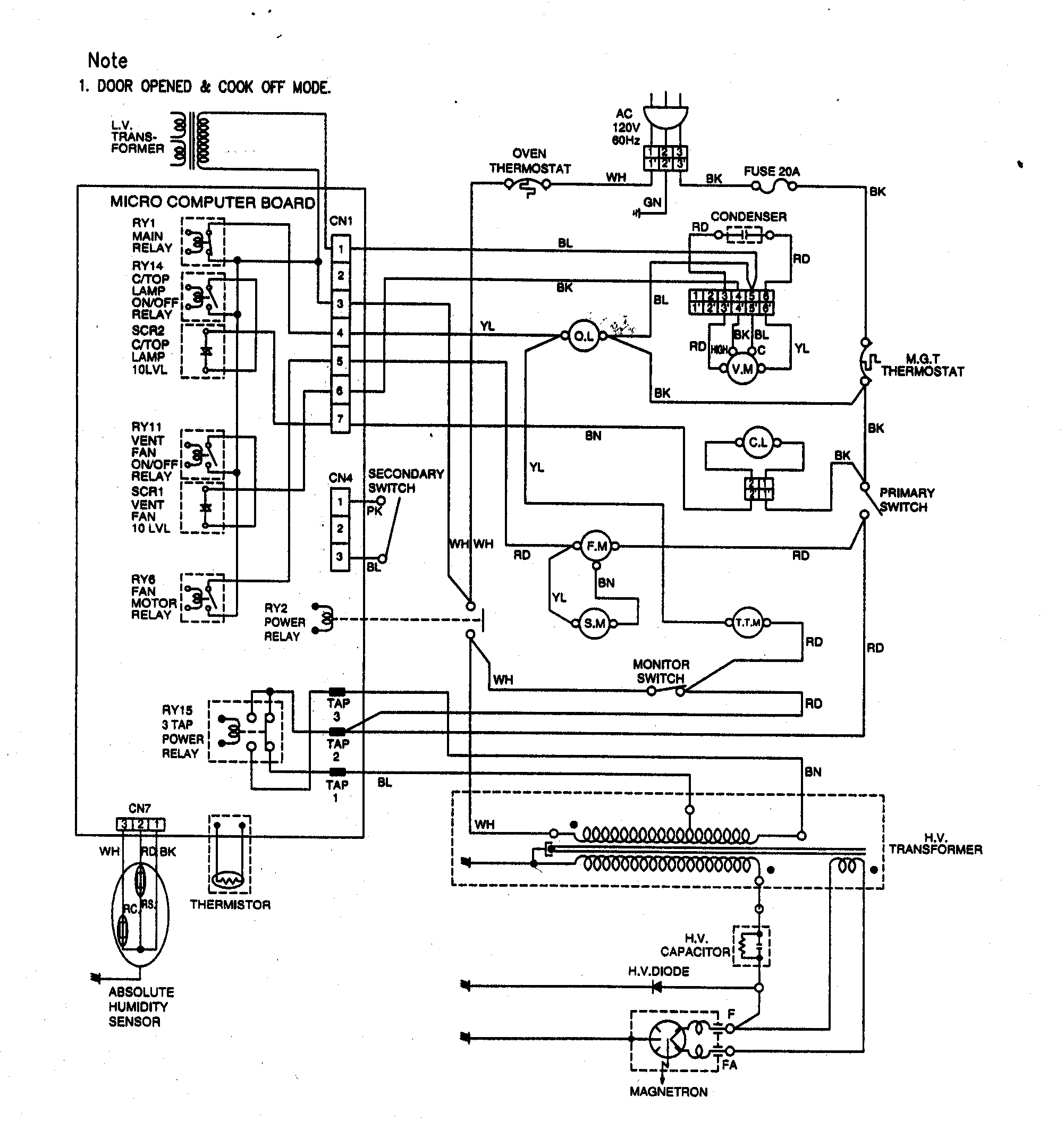

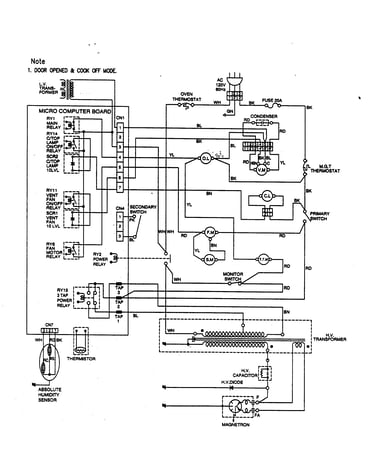

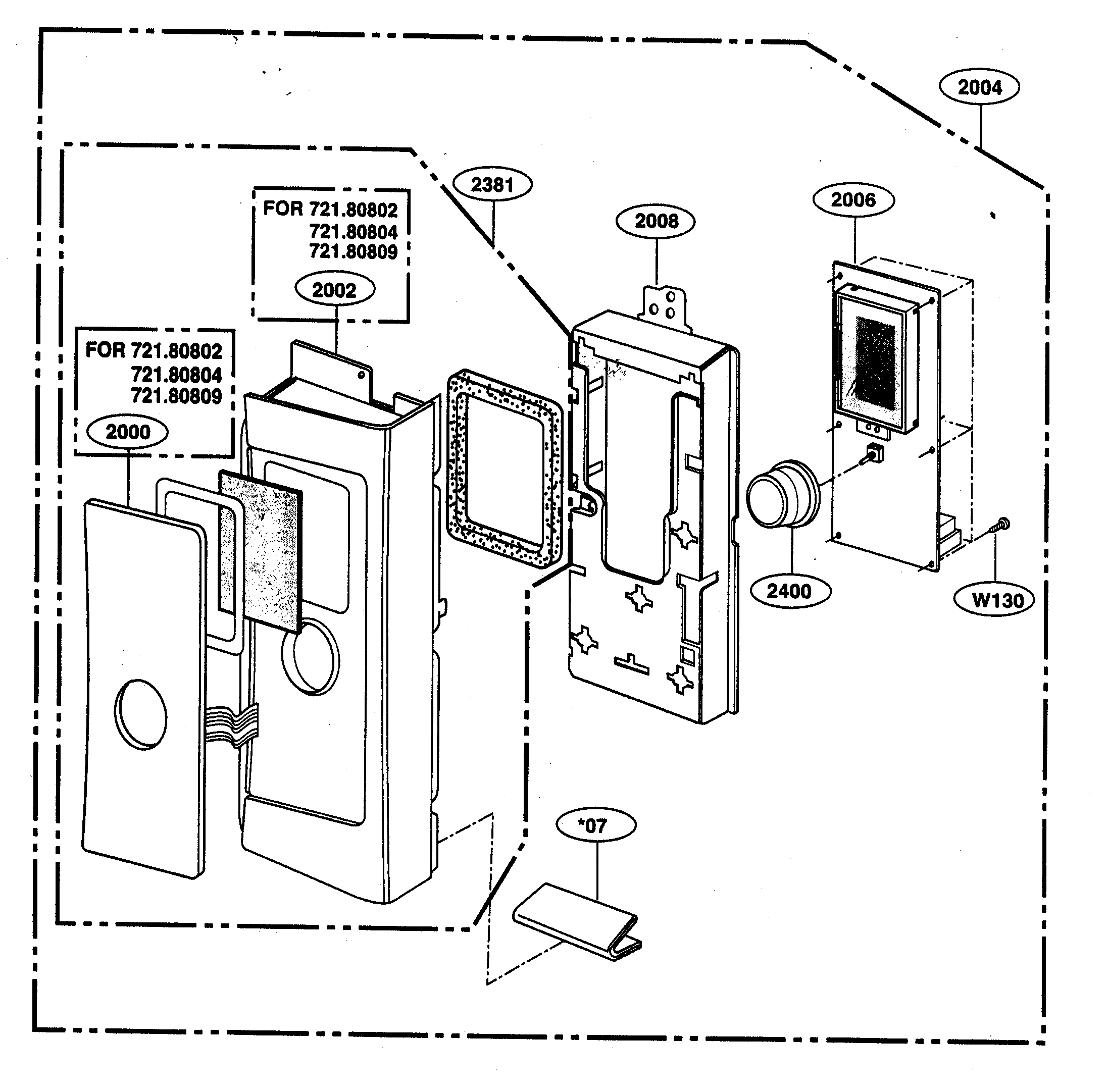

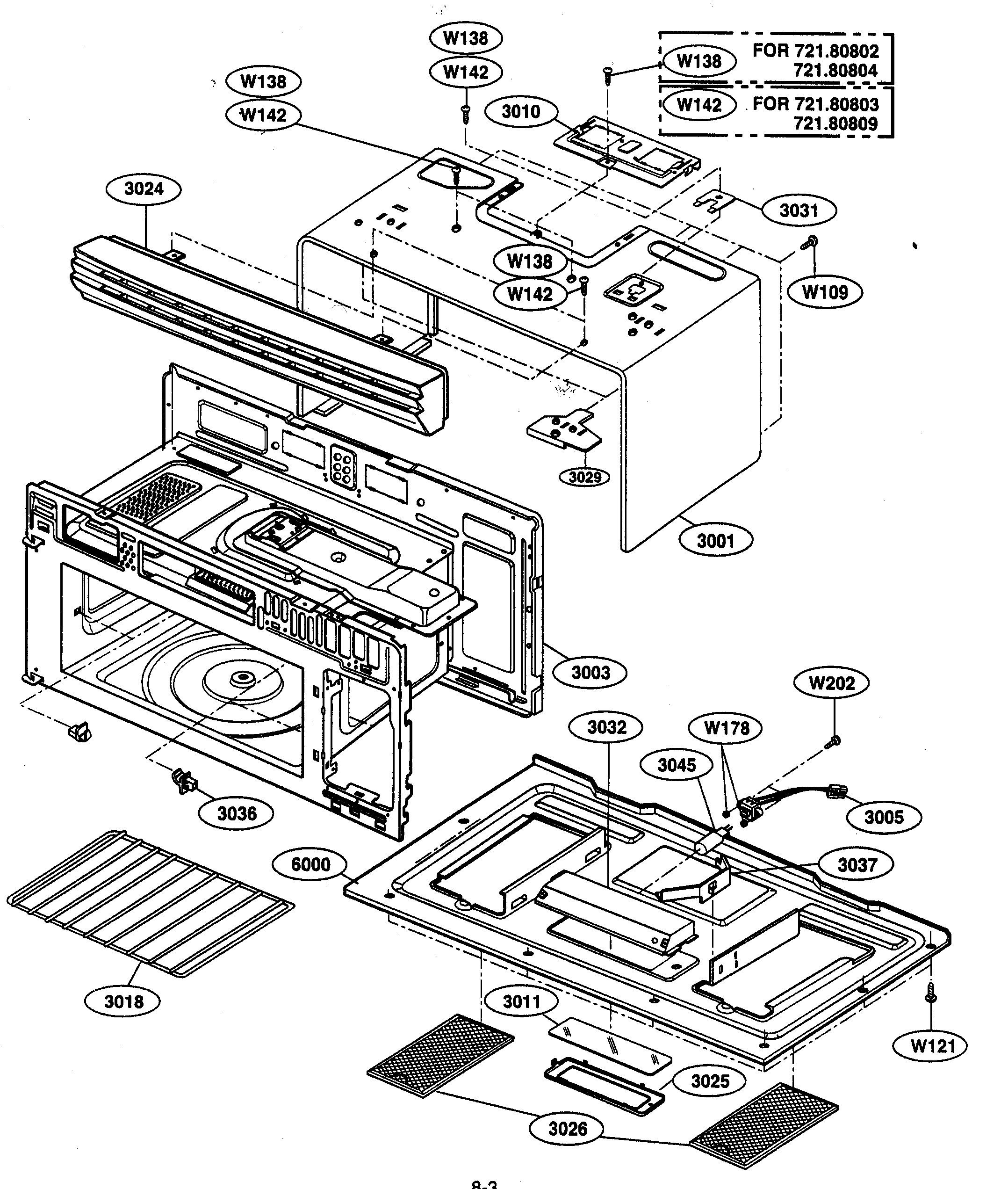

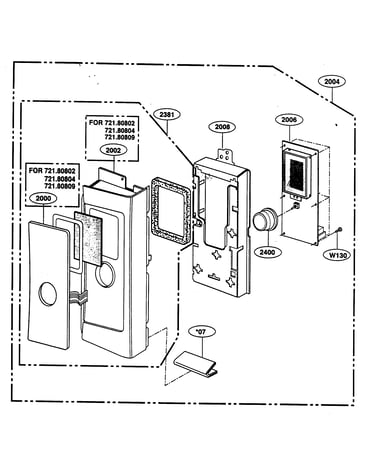

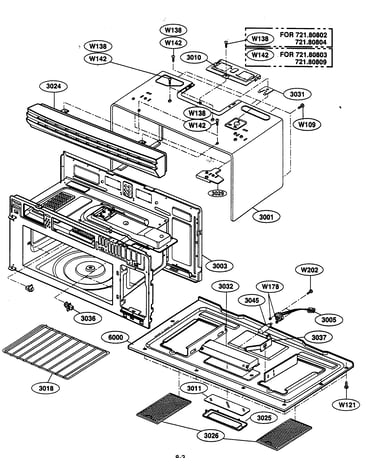

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Microwave Charcoal Filter 5230W1A003A
#5037

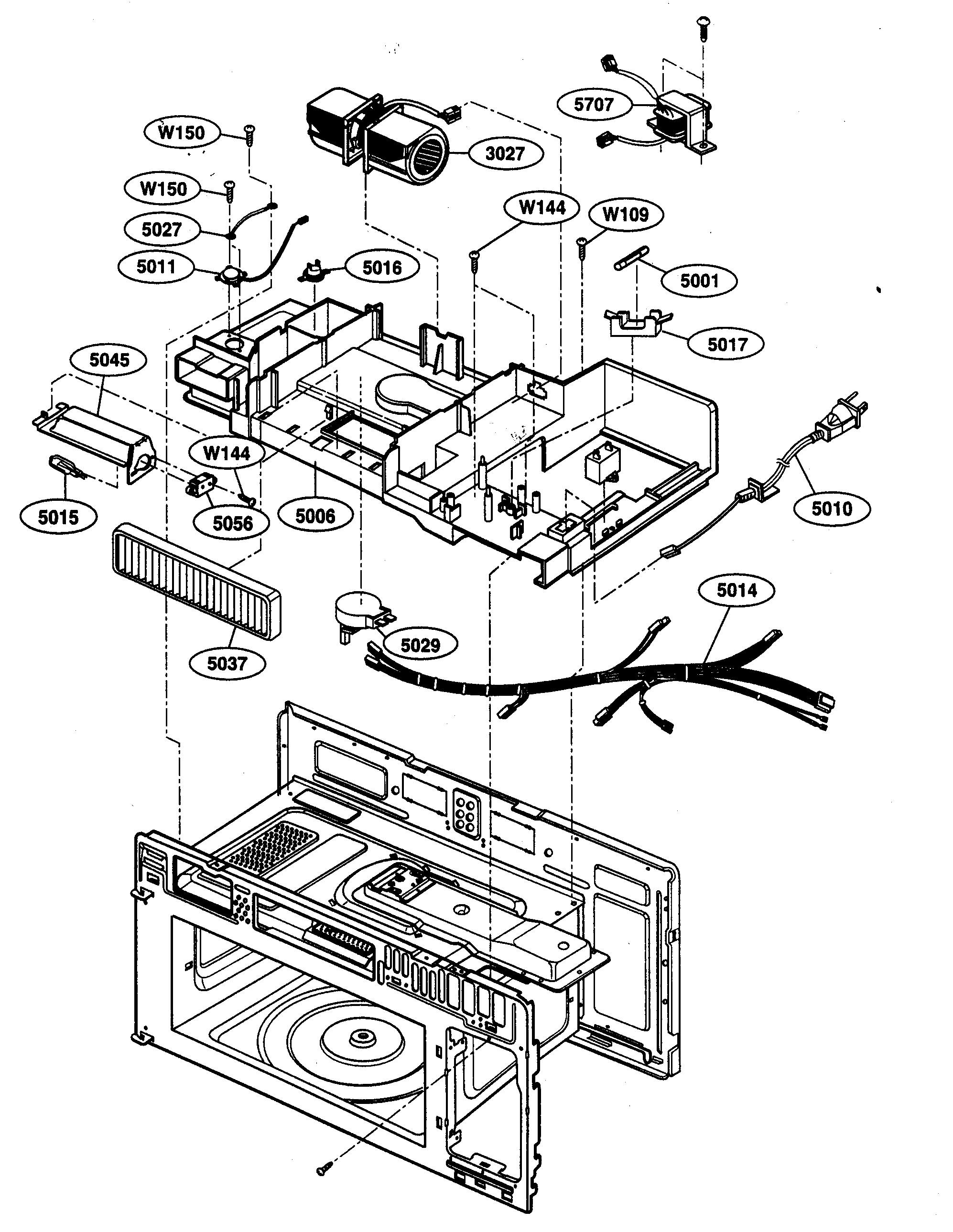

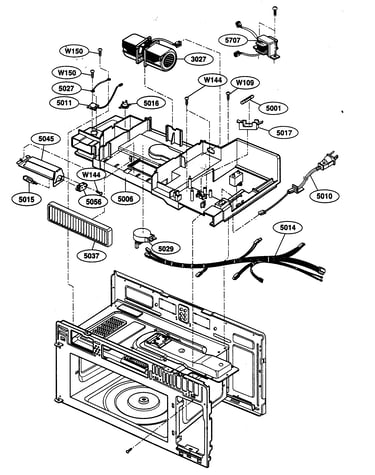

Interior parts 2 diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19 |
15% OFF Phone Price : $33.19
In Stock
Microwave Magnetron 6324W1A001E
#5009

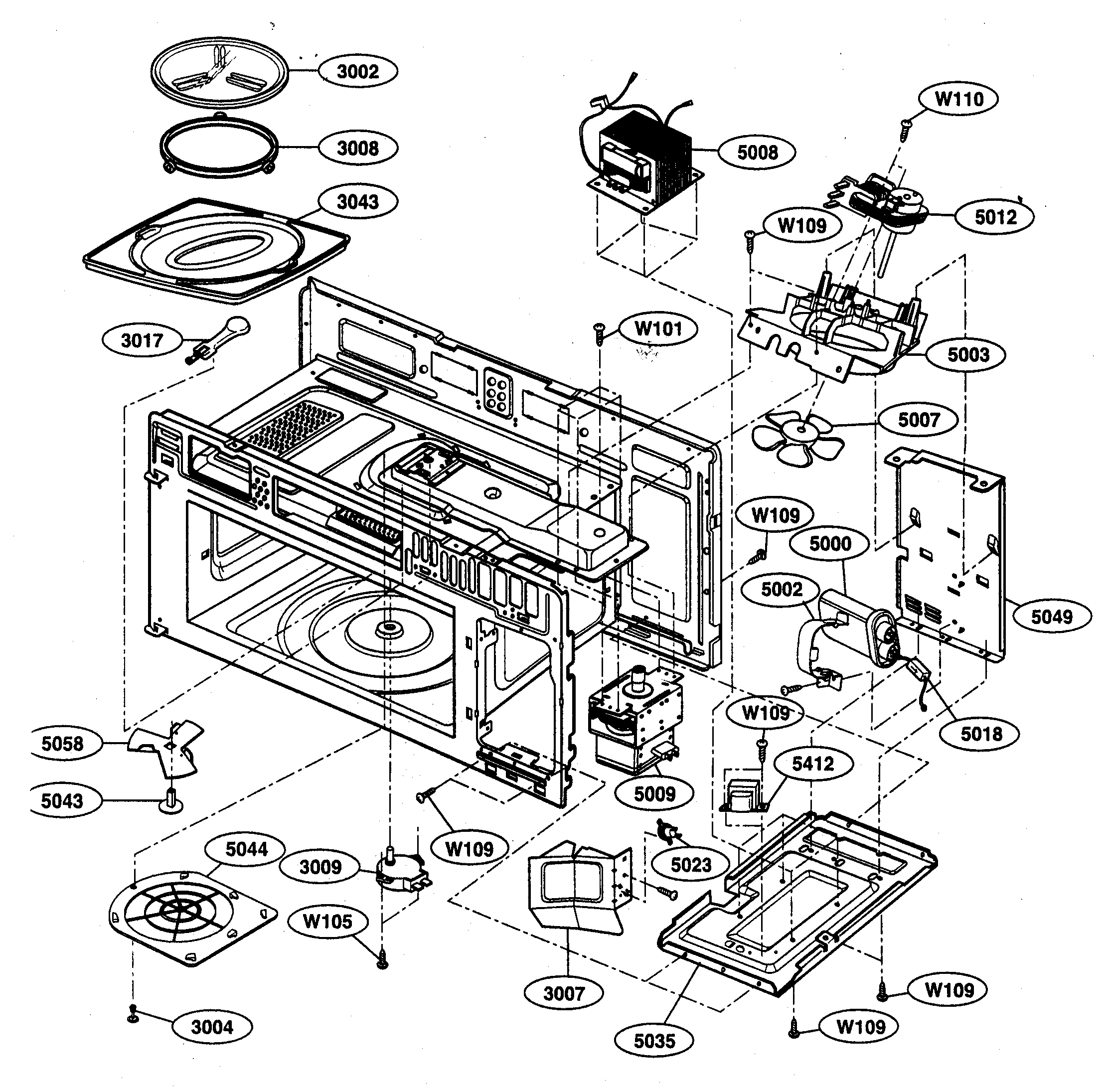

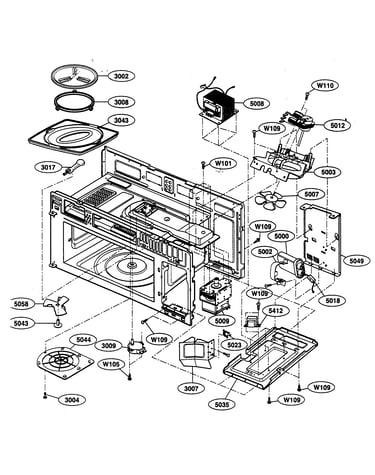

Interior parts 1 diagram

Microwave magnetron

Part #6324W1A001E

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001E. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave High-voltage Diode 6021W3B001M
#5018

Interior parts 1 diagram

Microwave high-voltage diode

Part #6021W3B001M

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001M. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h) 0CZZW1H004C
#5000

Interior parts 1 diagram

Microwave high-voltage capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h)

Part #0CZZW1H004C

BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
Microwave Light Bulb 6912A40002A
Microwave light bulb

Part #6912A40002A

Replaced by #6912A40002E

?
Manufacturer substitution
This part replaces 6912A40002A. Substitute parts can look different from the original.
BEST SELLER
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly 3501W1A016M
#4001

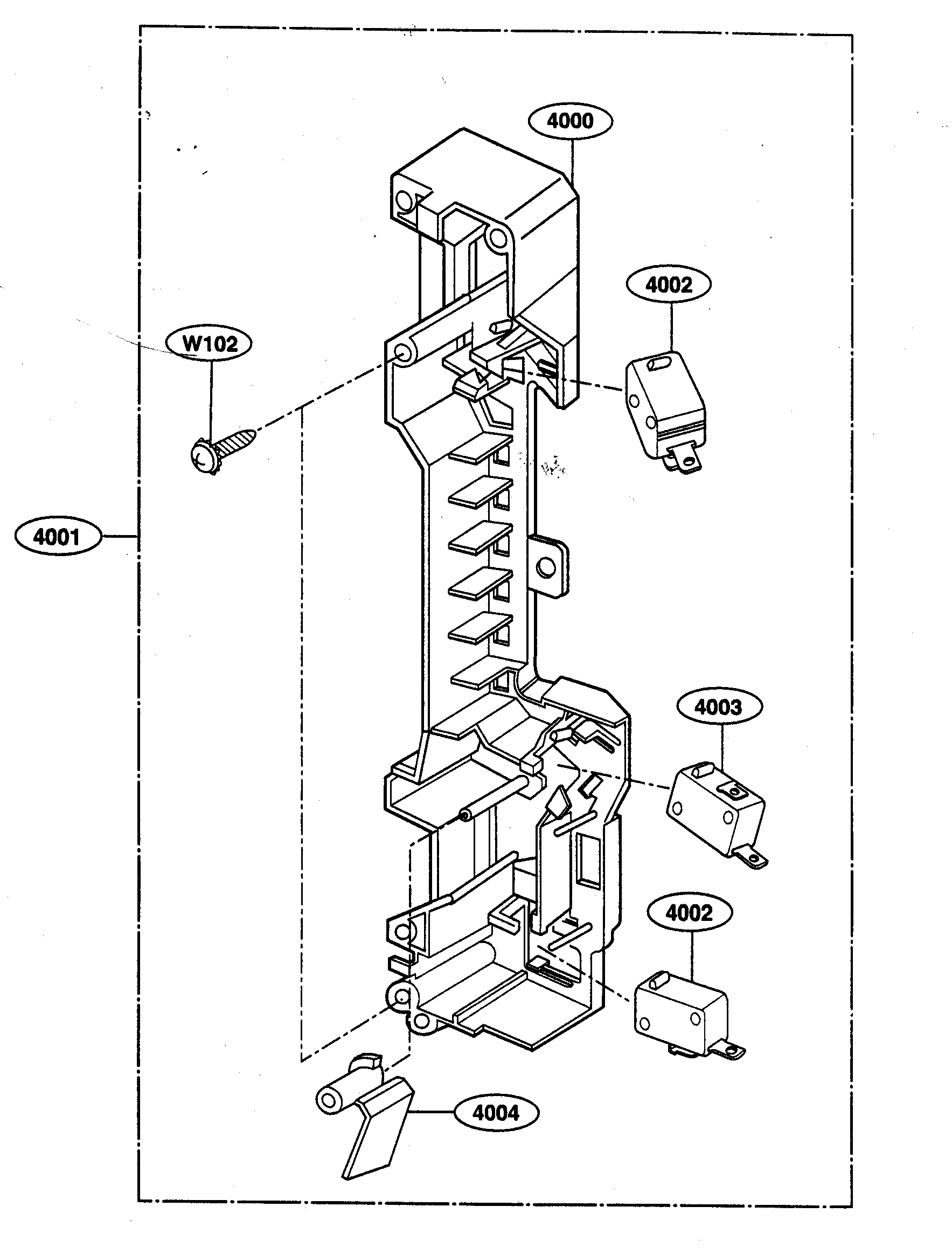

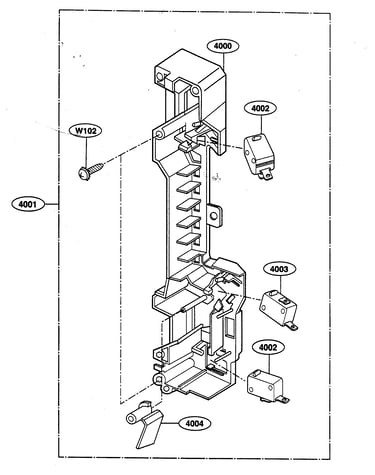

Latch board parts diagram

Microwave door latch housing and interlock switch assembly

Part #3501W1A016M

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Spring 4970WRA001G
#1007

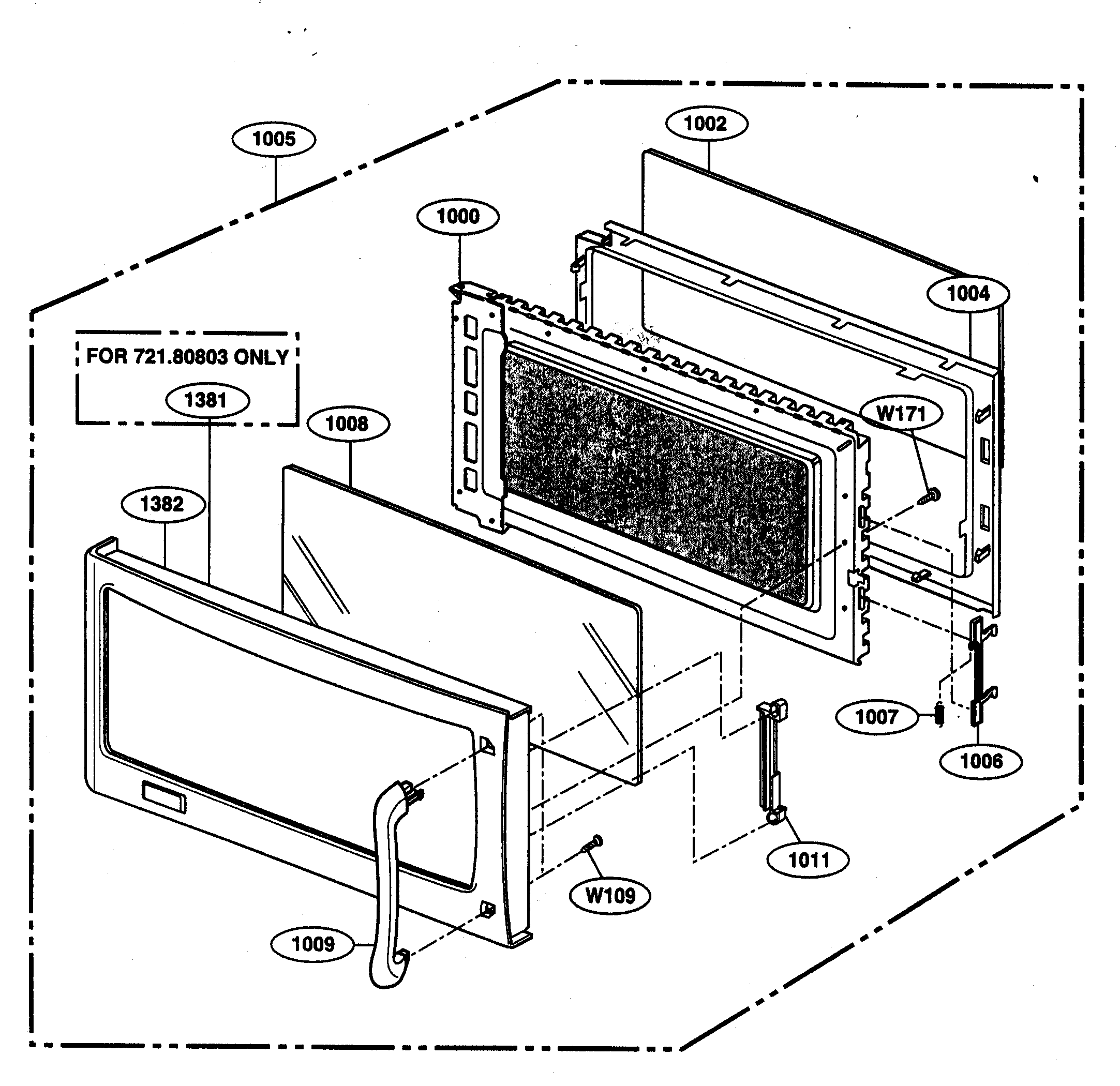

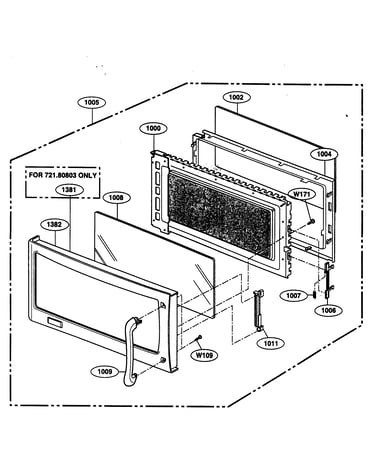

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

Interior parts 1 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

BEST SELLER
This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Microwave Turntable Motor 6549W1S018C
#3009

Interior parts 1 diagram

Microwave turntable motor

Part #6549W1S018C

$64.31
In Stock
Installation Kit 2B72771G
#6009

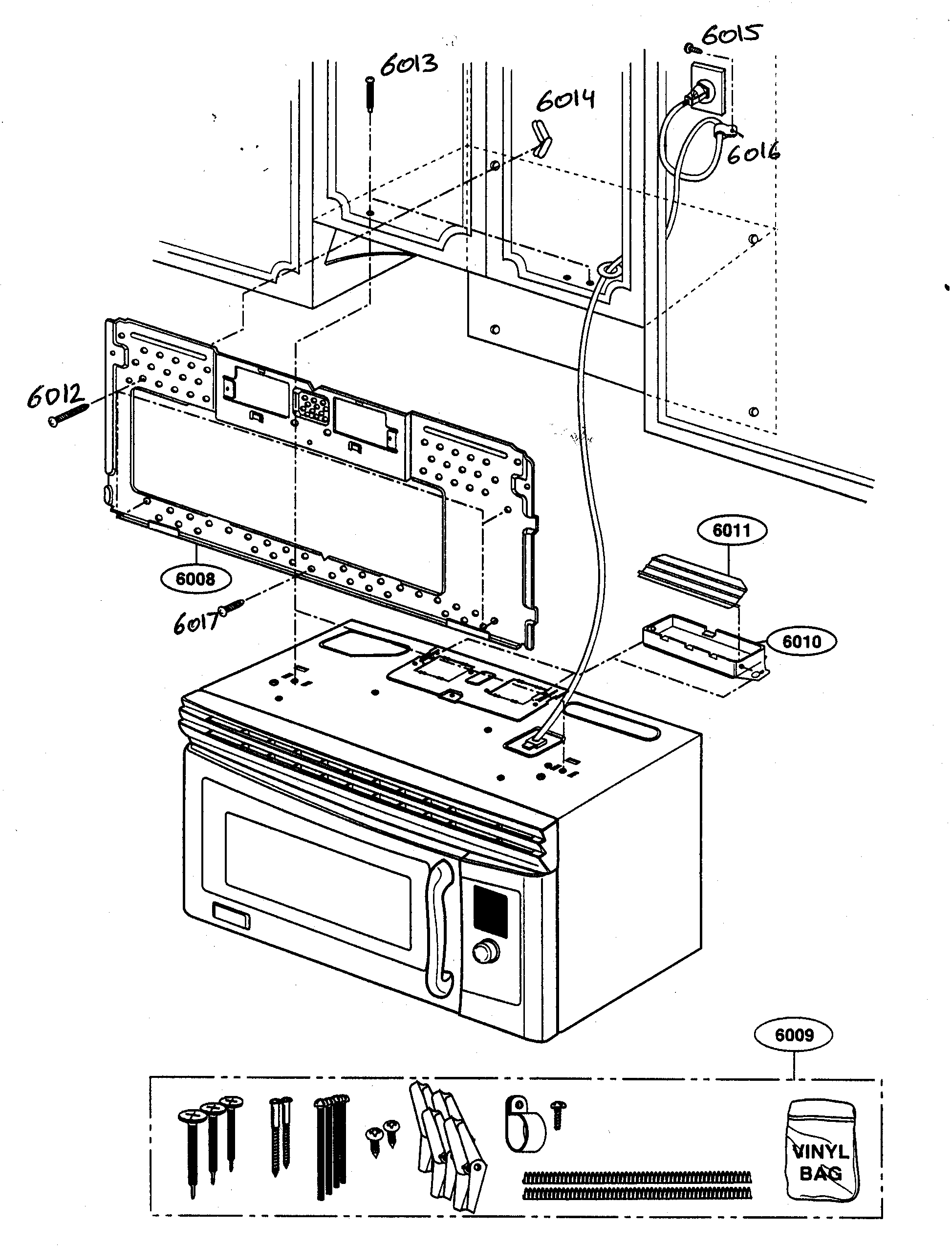

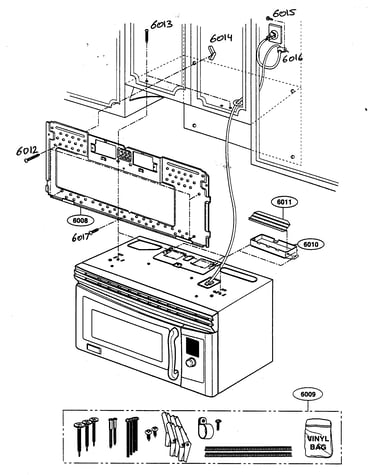

Installation parts diagram

Installation kit

Part #2B72771G

Replaced by #3861W1A043C

?
Manufacturer substitution
This part replaces 2B72771G. Substitute parts can look different from the original.
This item is not returnable
$23.98 |
17% OFF Phone Price : $28.98
In Stock
