Whirlpool WHE383311 30" electric range cooktop Parts
Here are the diagrams and repair parts for Whirlpool WHE383311 30" electric range cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for WHE383311 Ranges

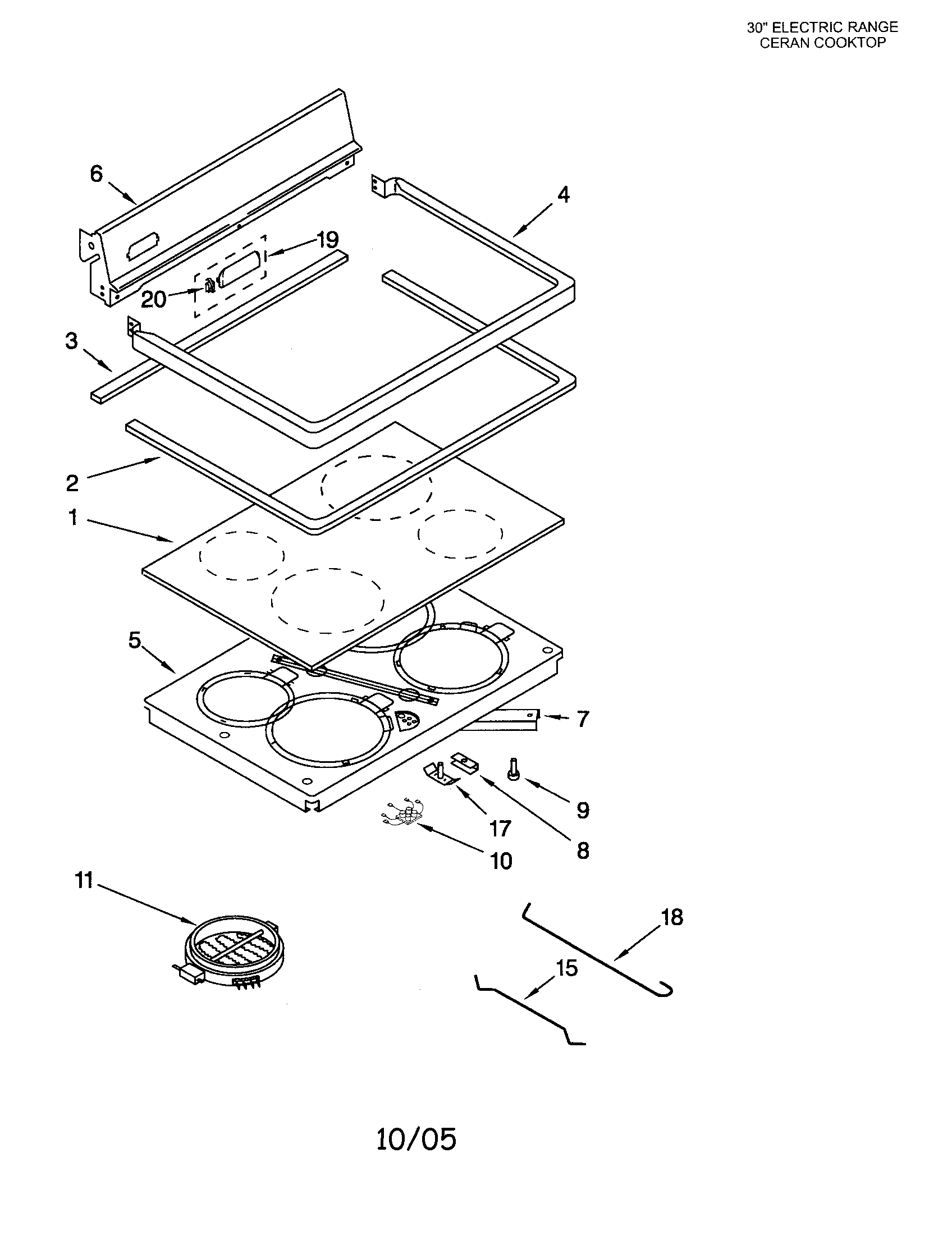

Cooktop diagram
Cooktop Gasket
Part #9780939Replaced by #WP9780939
Manufacturer substitutionThis part replaces 9780939. Substitute parts can look different from the original.In Stock$94.99
Qty

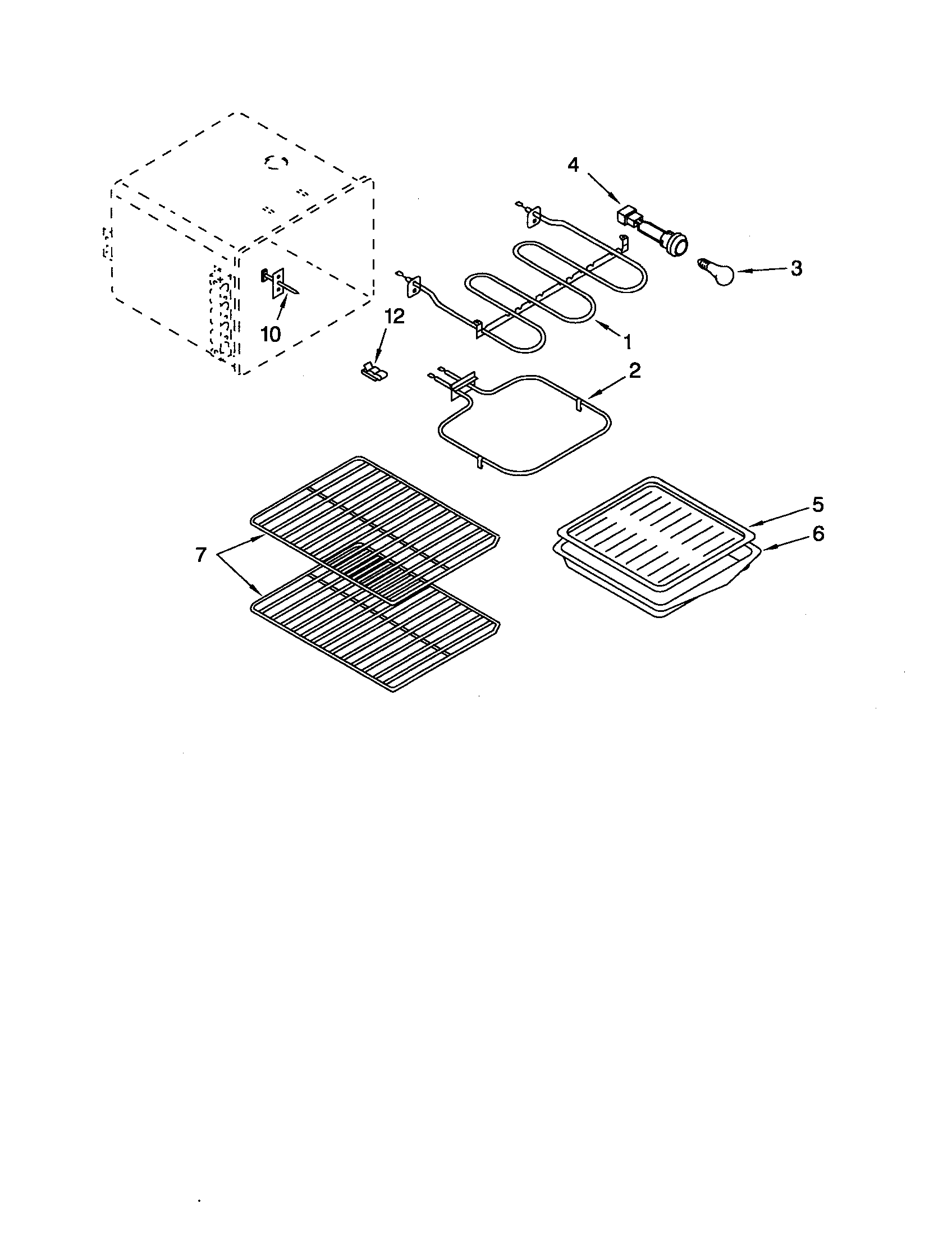

Oven diagram
Clip Bulb
Part #313382Replaced by #98005642
Manufacturer substitutionThis part replaces 313382. Substitute parts can look different from the original.In Stock$70.85QtyControl panel diagram

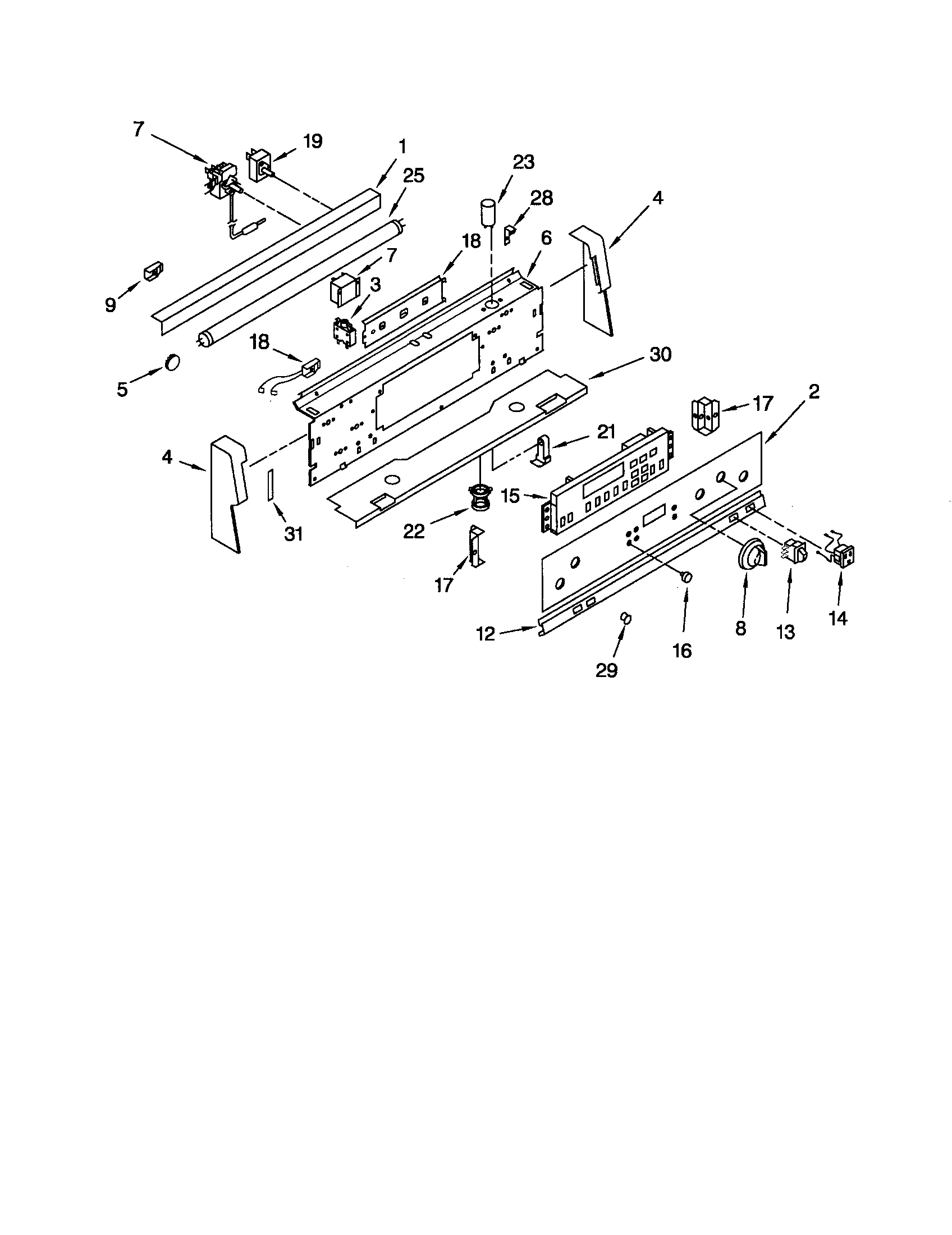

Range Infinite Switch
Part #9750646Replaced by #WP9750646
Manufacturer substitutionThis part replaces 9750646. Substitute parts can look different from the original.In Stock$98.6111% OFF Phone Price : $110.61
QtyControl panel diagram
Range Burner Control Knob
Part #9752405FWReplaced by #WP9752405FW
Manufacturer substitutionThis part replaces 9752405FW. Substitute parts can look different from the original.This item is not returnableIn Stock$26.6318% OFF Phone Price : $32.63QtyOven chassis diagram
Drawer Track
Part #9750224
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Infinite Switch
Part #9750644
The manufacturer no longer makes this part, and there's no substitute part
#NI06
All parts diagram
Wire (green)
Part #242823
The manufacturer no longer makes this part, and there's no substitute part

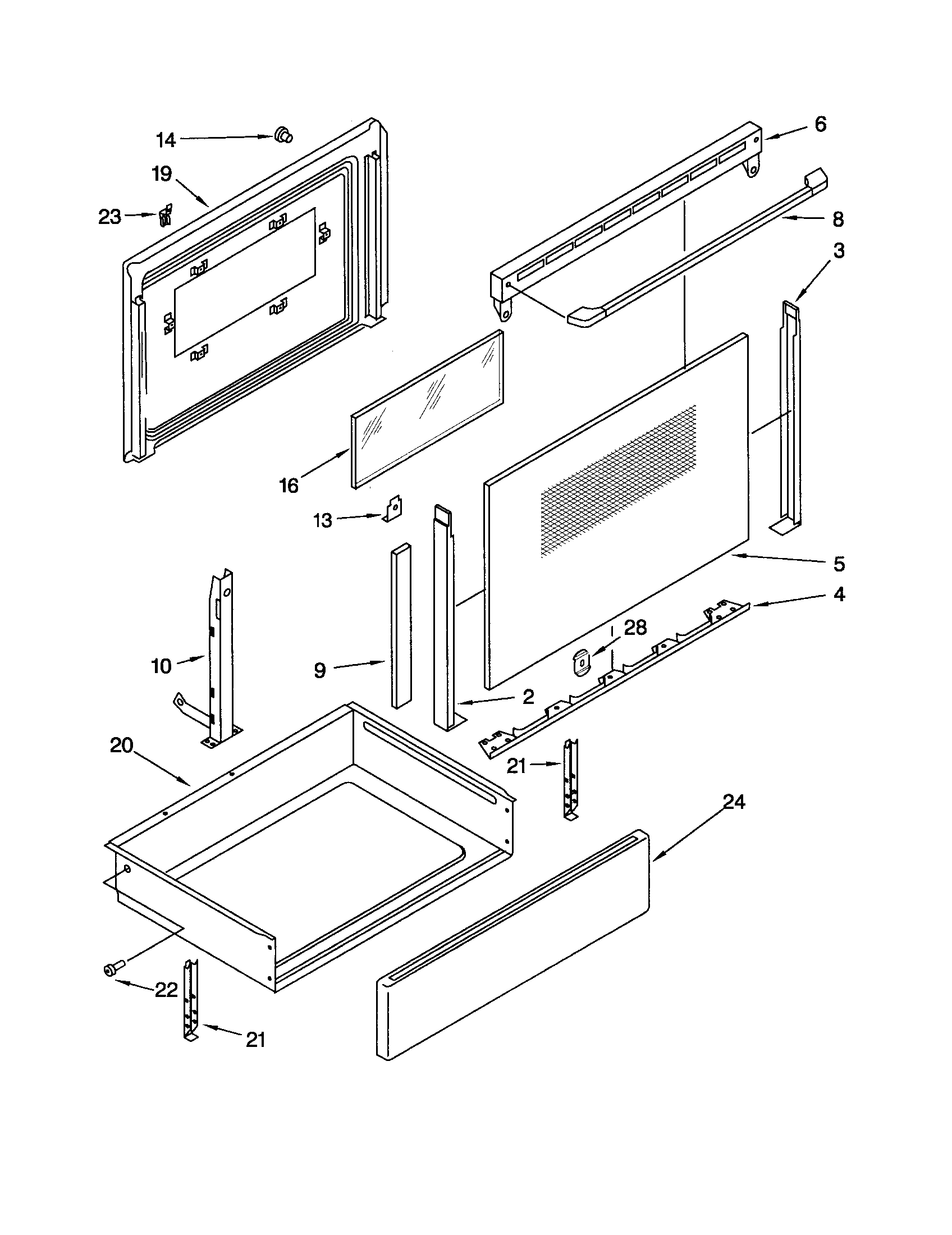

Door and drawer diagram
Door Trim
Part #9781209PW
The manufacturer no longer makes this part, and there's no substitute part
#NI41
All parts diagram
Wire Harness
Part #9781933
The manufacturer no longer makes this part, and there's no substitute part
#NI08
All parts diagram
Wire
Part #242829
The manufacturer no longer makes this part, and there's no substitute part
