KitchenAid KGRS202BWH0 gas range Parts
Here are the diagrams and repair parts for KitchenAid KGRS202BWH0 gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

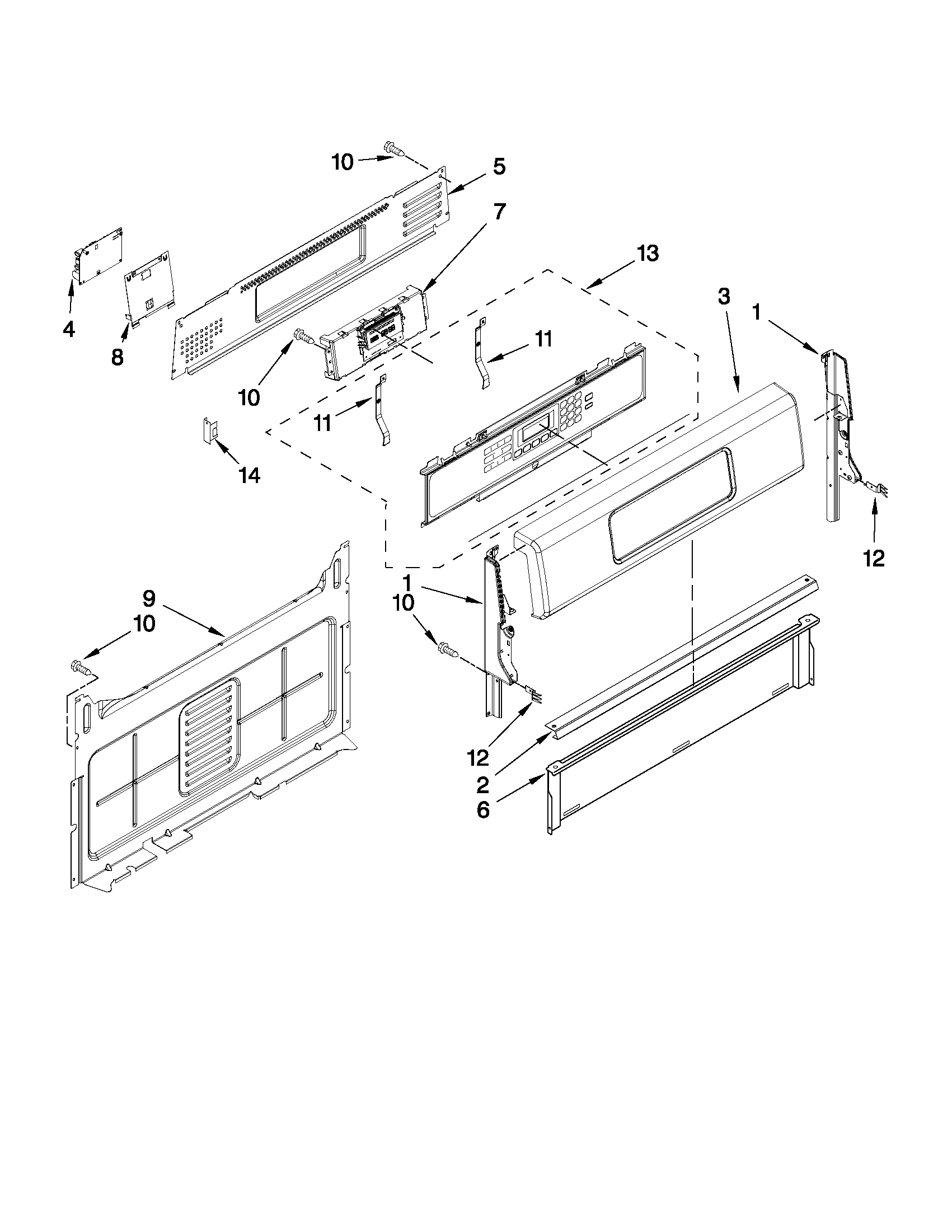

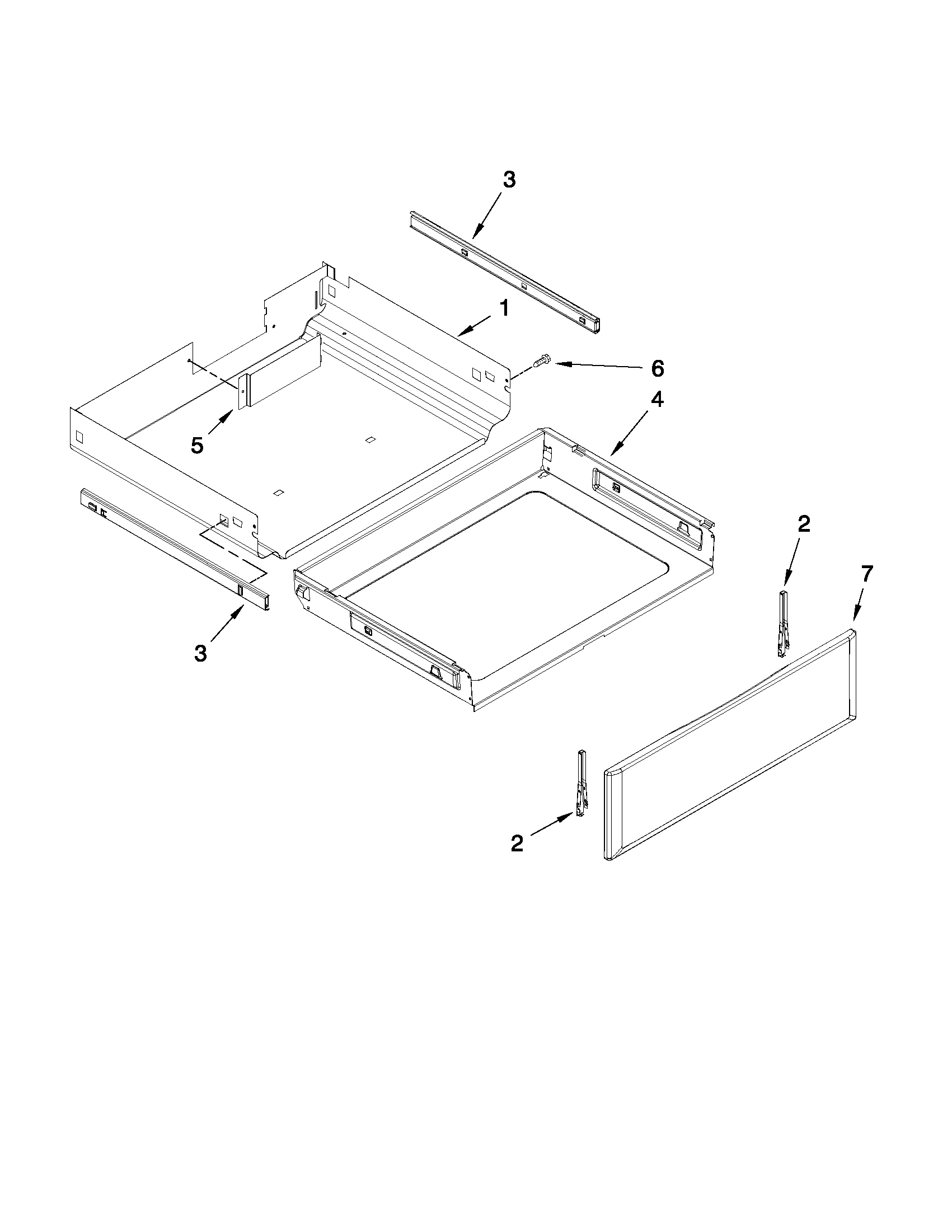

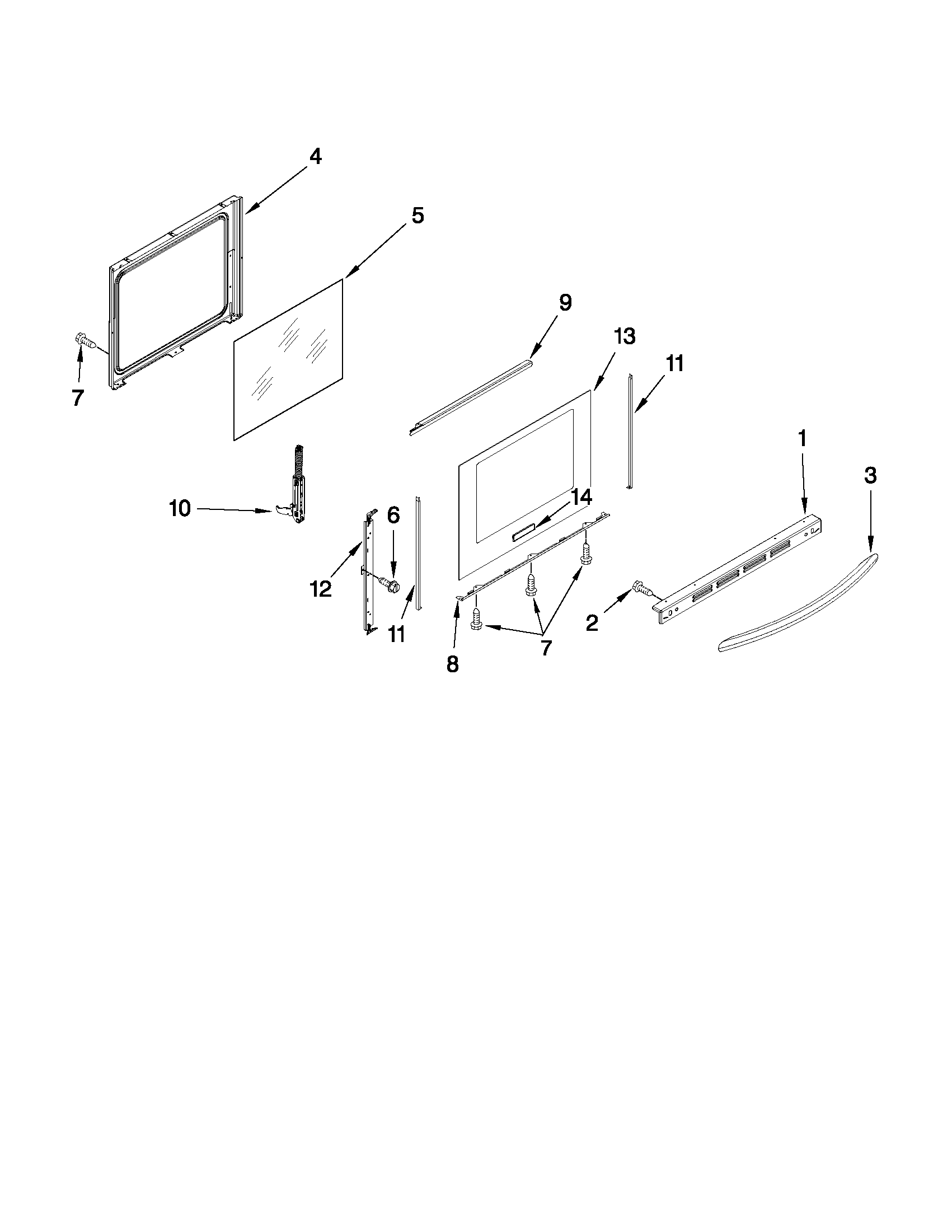

Browse Parts for KGRS202BWH0 Ranges

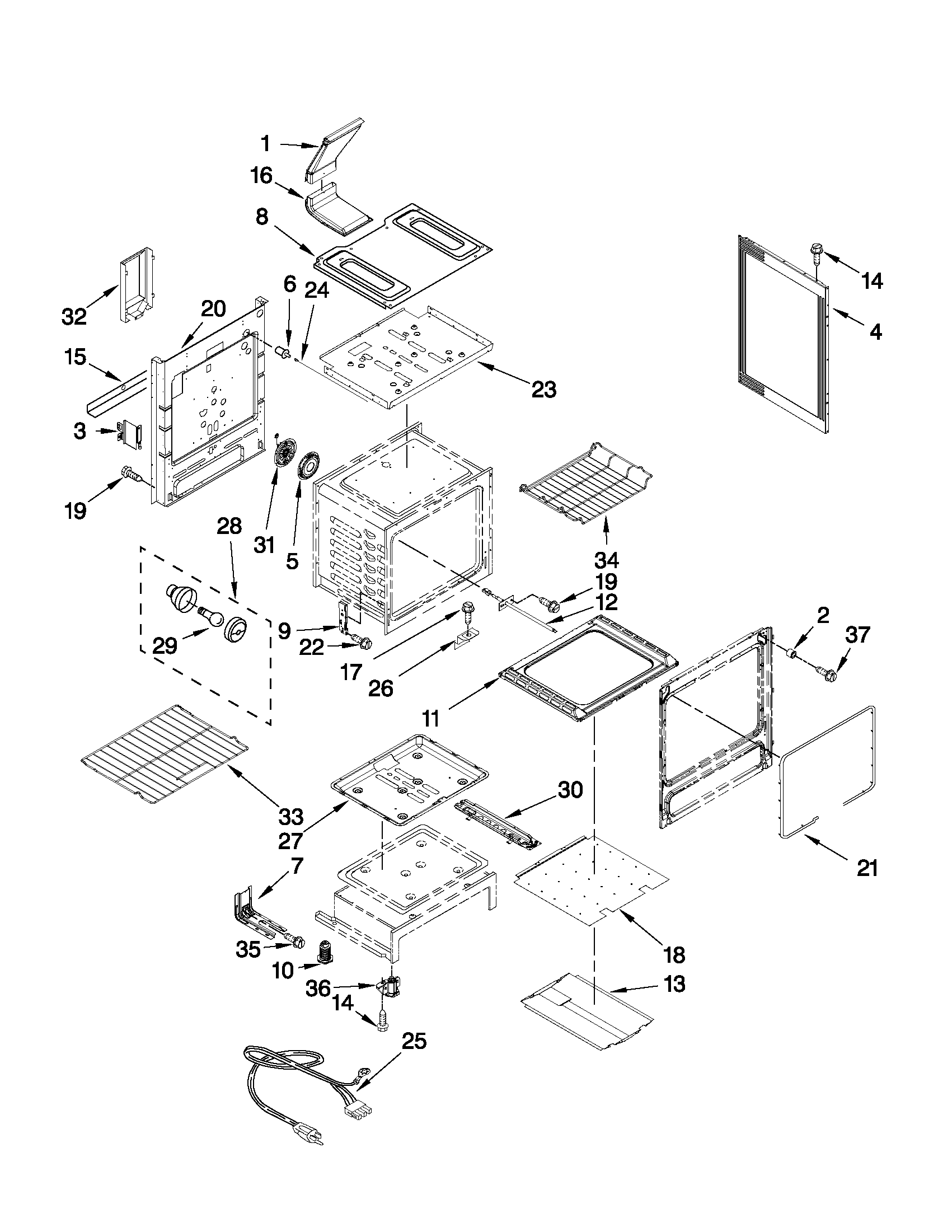

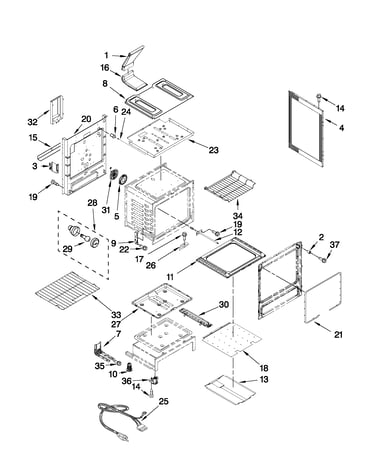

Chassis parts diagram
Range Oven Temperature Sensor
Part #W10181986Replaced by #WPW10181986
Manufacturer substitutionThis part replaces W10181986. Substitute parts can look different from the original.In Stock$72.568% OFF Phone Price : $78.56
Qty
Chassis parts diagram
Light Bulb
Part #311255Replaced by #8009

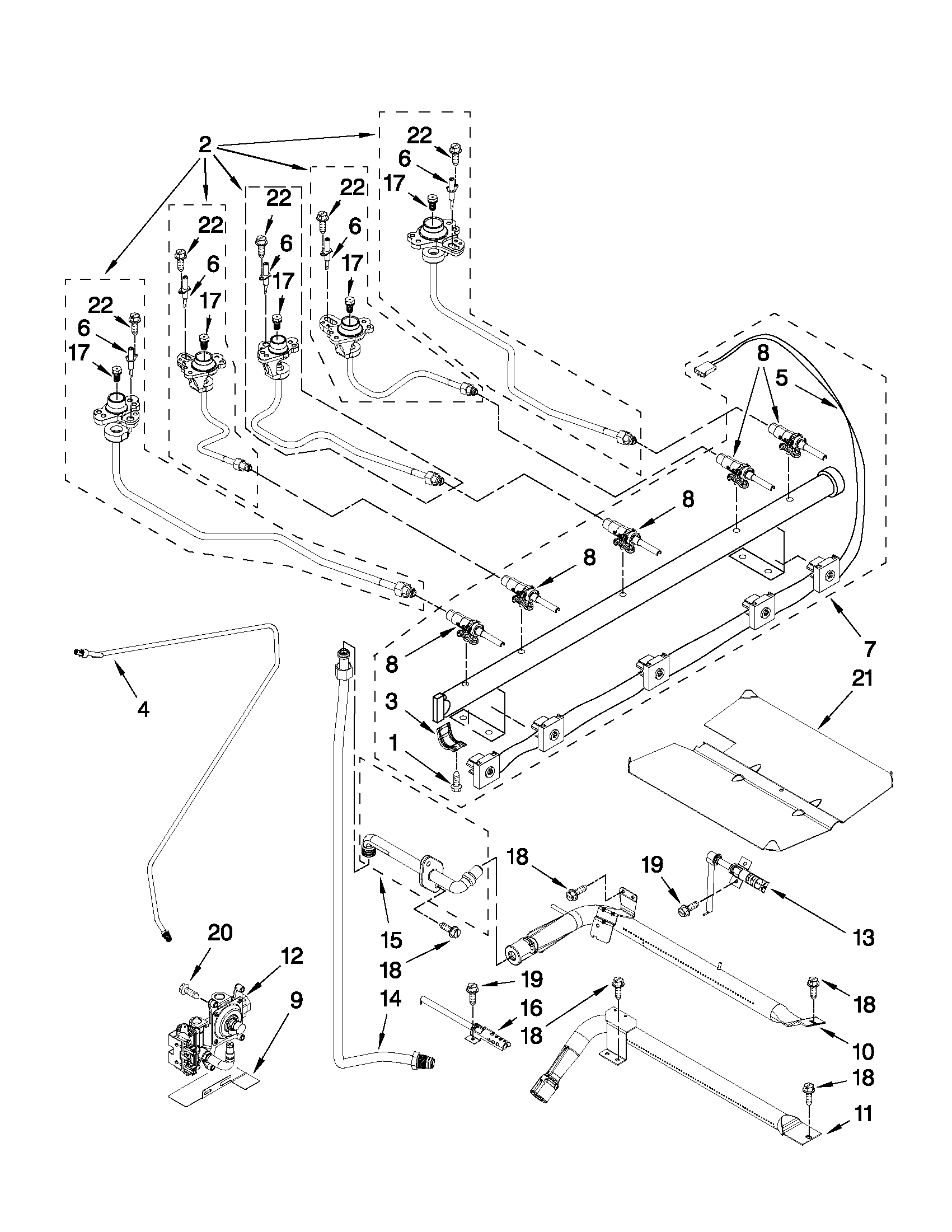

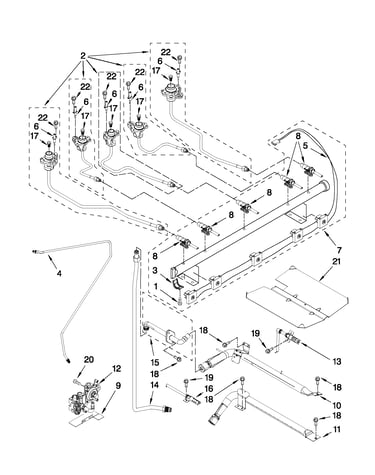

Manufacturer substitutionThis part replaces 311255. Substitute parts can look different from the original.This item is not returnableIn Stock$14.6812% OFF Phone Price : $16.68QtyManifold parts diagram
Range Oven Igniter
Part #W10324262Replaced by #WPW10324262
Manufacturer substitutionThis part replaces W10324262. Substitute parts can look different from the original.In Stock$79.667% OFF Phone Price : $85.66QtyOptional parts (not included) diagram
Spray W
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00QtyManifold parts diagram
Range Oven Burner Igniter
Part #W10333842Replaced by #WPW10333842
Manufacturer substitutionThis part replaces W10333842. Substitute parts can look different from the original.In Stock$83.487% OFF Phone Price : $89.48QtyCooktop parts diagram

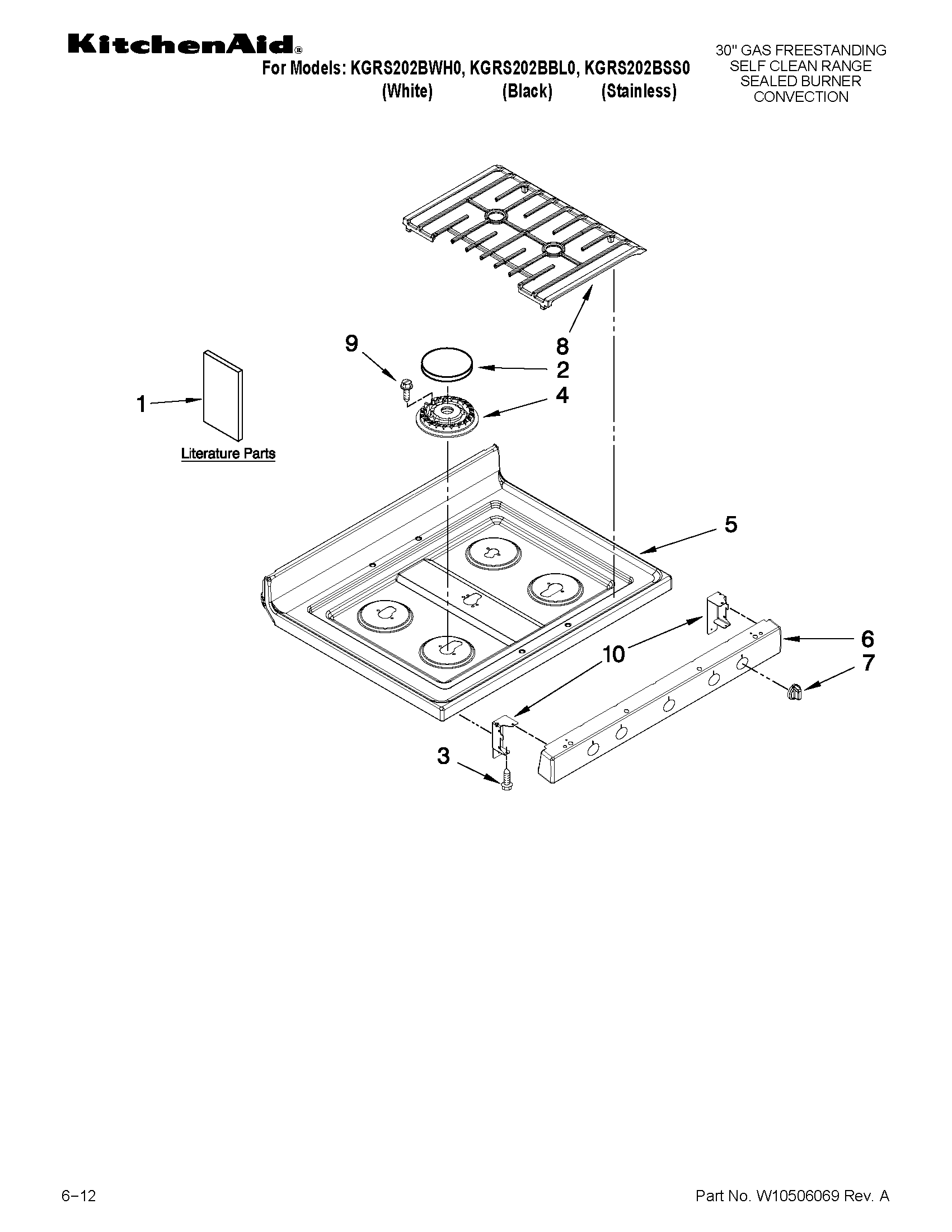

Range Burner Head
Part #W10406243Replaced by #WPW10406243
Manufacturer substitutionThis part replaces W10406243. Substitute parts can look different from the original.This item is not returnableIn Stock$27.6018% OFF Phone Price : $33.60QtyChassis parts diagram
Range Oven Door Gasket
Part #W10162385Replaced by #W11562931
Manufacturer substitutionThis part replaces W10162385. Substitute parts can look different from the original.In Stock$117.42QtyChassis parts diagram
Range Screw
Part #W10031780Replaced by #W10777162
Manufacturer substitutionThis part replaces W10031780. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyOptional parts (not included) diagram
Oven Wire Harness
Part #W10170250Replaced by #WPW10701462
Manufacturer substitutionThis part replaces W10170250. Substitute parts can look different from the original.In Stock$37.2724% OFF Was : $49.26QtyRange Screw
Part #3196165Replaced by #WP3196175
Manufacturer substitutionThis part replaces 3196165. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8117% OFF Phone Price : $5.81Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Appliance Touch-up Paint
Part #72017
This item is not returnable
In Stock
$31.61
Qty
Appliance Spray Paint (black)
Part #285006
This item is not returnable
In Stock
$45.09
12% OFF Phone Price : $51.09
Qty
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
You might be surprised by these 4 tips for using your oven better.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
