Maytag
Chest Freezer

Model #CFC0735ARW Maytag freezer

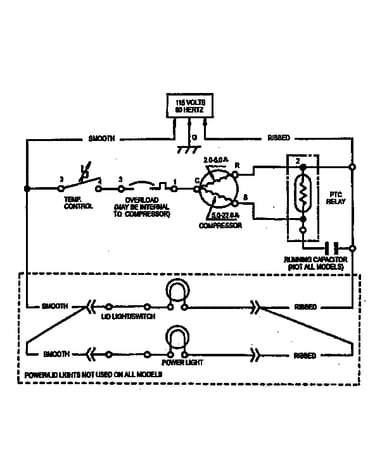

Here are the diagrams and repair parts for Maytag CFC0735ARW freezer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 56 parts

Screw

#6A

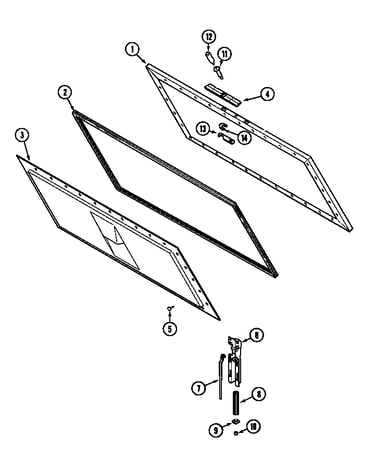

Lid Diagram

Screw

Part #4356491
?
Manufacturer substitution
This part replaces 09100105. Substitute parts can look different from the original.
This part replaces 09100105
$11.59

In Stock

Refrigerator Temperature Control Thermostat

#12

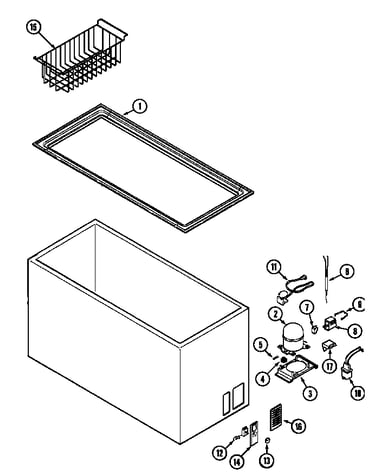

Cabinet Diagram

Refrigerator temperature control thermostat

Part #WP4-35940-001
?
Manufacturer substitution
This part replaces 68001249. Substitute parts can look different from the original.
This part replaces 68001249
$84.73 |
15% OFF MSRP:$100.00

In Stock

Harness

#11A

Cabinet Diagram

Harness

Part #4-35130-004
?
Manufacturer substitution
This part replaces 68001383. Substitute parts can look different from the original.
This part replaces 68001383
$91.93

In Stock

Freezer Door Handle Mounting Bolt

#4A

Lid Diagram

Freezer door handle mounting bolt

Part #3-24059-024
?
Manufacturer substitution
This part replaces 09100002. Substitute parts can look different from the original.
This part replaces 09100002
$10.03

In Stock

Refrigerator Overload

#17

Cabinet Diagram

Refrigerator overload

Part #2-34286-020
?
Manufacturer substitution
This part replaces 68001357. Substitute parts can look different from the original.
This part replaces 68001357
$82.83

In Stock

Freezer Compressor Start Relay

#7A

Cabinet Diagram

Freezer compressor start relay

Part #4356716
?
Manufacturer substitution
This part replaces 68001356. Substitute parts can look different from the original.
This part replaces 68001356
$34.64 |
41% OFF MSRP:$59.00

In Stock

Freezer Basket

#15

Cabinet Diagram

Freezer basket

Part #8210434A
?
Manufacturer substitution
This part replaces 09100065. Substitute parts can look different from the original.
This part replaces 09100065
$36.87

Back Order

Refrigerator Temperature Control Thermostat

#12A

Cabinet Diagram

Refrigerator temperature control thermostat

Part #WP4-35940-001
?
Manufacturer substitution
This part replaces 68001451. Substitute parts can look different from the original.
This part replaces 68001451
$84.73 |
15% OFF MSRP:$100.00

In Stock

Freezer Door Inner Panel Rivet

#5

Lid Diagram

Freezer door inner panel rivet

Part #4356703
?
Manufacturer substitution
This part replaces 68001346. Substitute parts can look different from the original.
This part replaces 68001346
$22.72 |
33% OFF MSRP:$34.00

In Stock

Spacer

#6C

Lid Diagram

Spacer

Part #1-17548-006
?
Manufacturer substitution
This part replaces 68001171. Substitute parts can look different from the original.
This part replaces 68001171
$18.96

In Stock
