Craftsman
Hedge Trimmer

Model # 31585891 Official Craftsman hedge trimmer - 80

Here are the diagrams and repair parts for Official Craftsman 31585891 hedge trimmer - 80, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Screw 1-930993-01
#37

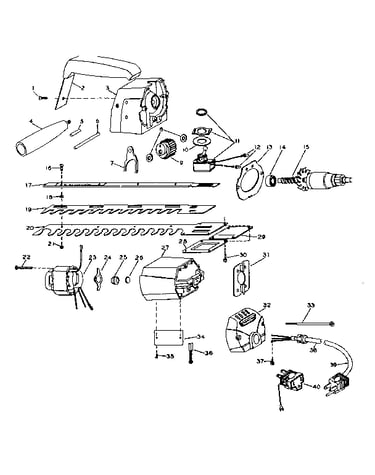

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Collar 1-706522-00
#18

Unit parts diagram

Collar

Part #1-706522-00

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 1-991960-01
#34

Unit parts diagram

Nameplate

Part #1-991960-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-140341-15
#22

Unit parts diagram

Screw

Part #1-140341-15

The manufacturer no longer makes this part, and there's no substitute part

Armature 2-730690-01
#15

Unit parts diagram

Armature

Part #2-730690-01

The manufacturer no longer makes this part, and there's no substitute part

Side Handle 2-713839-00
#4

Unit parts diagram

Side handle

Part #2-713839-00

The manufacturer no longer makes this part, and there's no substitute part

Instruction Sheet EN-5094

#NI

All parts diagram

Instruction sheet

Part #EN-5094

The manufacturer no longer makes this part, and there's no substitute part

Power Cord Strain Relief 1-888493-01
#38

Unit parts diagram

Power cord strain relief

Part #1-888493-01

The manufacturer no longer makes this part, and there's no substitute part

Dowel Pin 1-703907-08
#6

Unit parts diagram

Dowel pin

Part #1-703907-08

The manufacturer no longer makes this part, and there's no substitute part

Holder 1-703461-00
#31

Unit parts diagram

Holder

Part #1-703461-00

The manufacturer no longer makes this part, and there's no substitute part
