Model # 70/20.11 Official Amana commercial microwave

Here are the diagrams and repair parts for Official Amana 70-2011 commercial microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Hinge M8D8
#68A

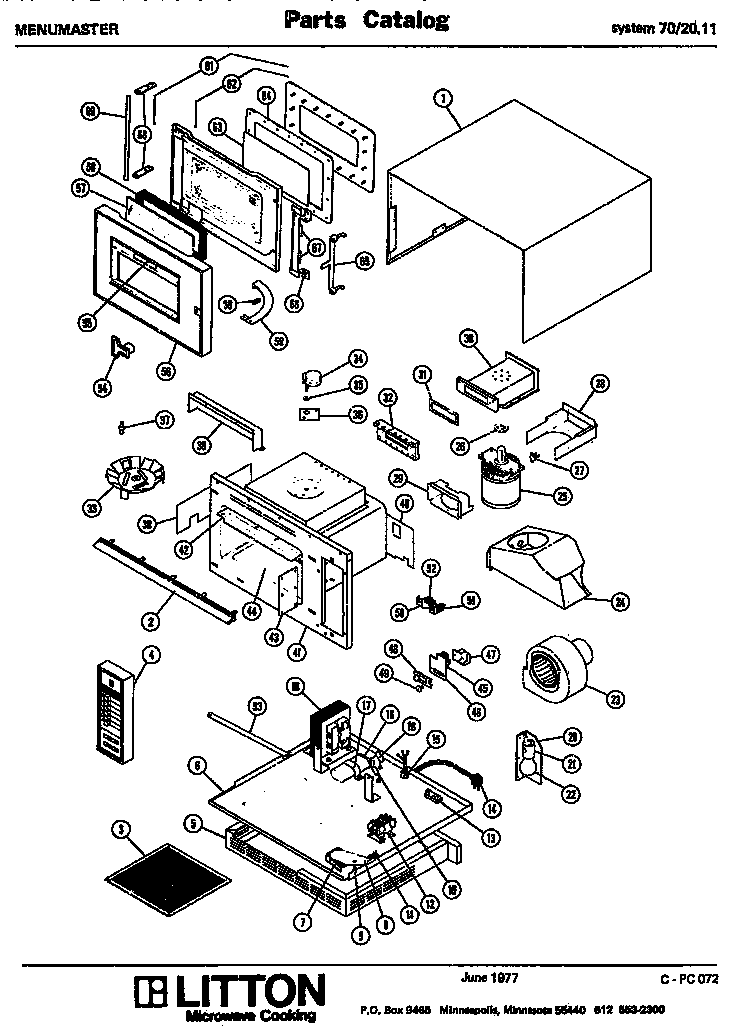

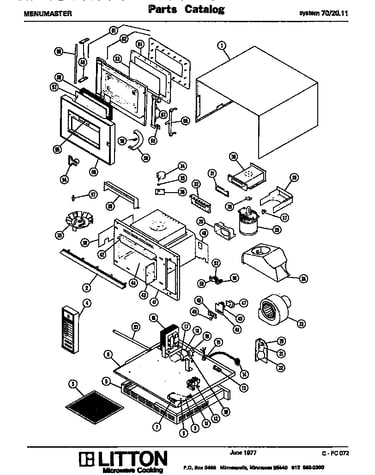

Replacement parts diagram

Hinge

Part #M8D8

The manufacturer no longer makes this part, and there's no substitute part

Waveguide M65D25
#30A

Replacement parts diagram

Waveguide

Part #M65D25

The manufacturer no longer makes this part, and there's no substitute part

Door Switch, Upper (s3) M14D104
#51

Replacement parts diagram

Door switch, upper (s3)

Part #M14D104

The manufacturer no longer makes this part, and there's no substitute part

Nut, Timer Mtg M1D126
#4D

Replacement parts diagram

Nut, timer mtg

Part #M1D126

The manufacturer no longer makes this part, and there's no substitute part

Bracket Lower Door Switch M20D7
#46A

Replacement parts diagram

Bracket lower door switch

Part #M20D7

The manufacturer no longer makes this part, and there's no substitute part

Bushing M2D46
#66C

Replacement parts diagram

Bushing

Part #M2D46

The manufacturer no longer makes this part, and there's no substitute part

Nut, Cavity To Base M1D417
#62C

Replacement parts diagram

Nut, cavity to base

Part #M1D417

The manufacturer no longer makes this part, and there's no substitute part

R. F. Gasket M2D19
#35

Replacement parts diagram

R. f. gasket

Part #M2D19

The manufacturer no longer makes this part, and there's no substitute part

Clip M2D47
#61D

Replacement parts diagram

Clip

Part #M2D47

The manufacturer no longer makes this part, and there's no substitute part

Alignment Bushing M2D195
#62B

Replacement parts diagram

Alignment bushing

Part #M2D195

The manufacturer no longer makes this part, and there's no substitute part
