Model # 21759440 Official Craftsman 7-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21759440 7-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

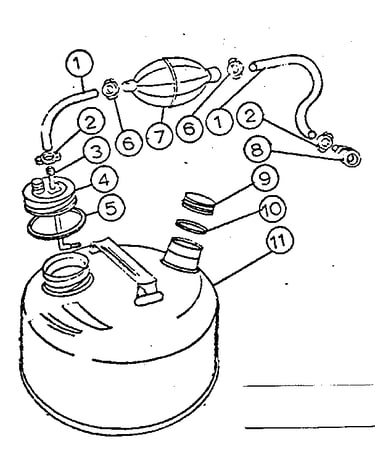

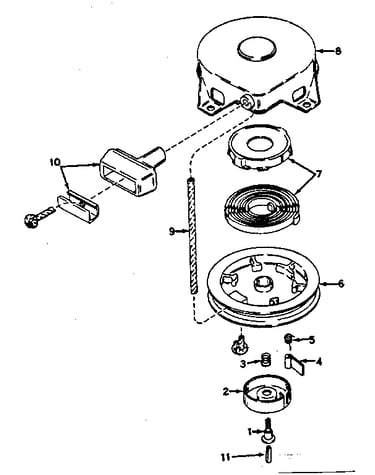

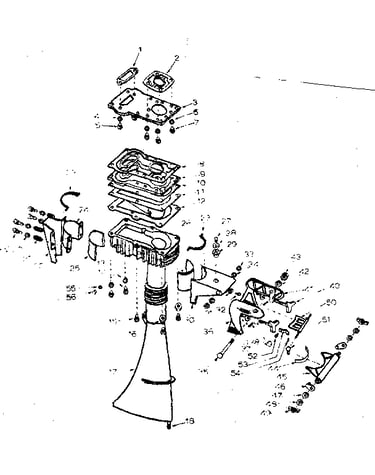

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 311 parts |

#25

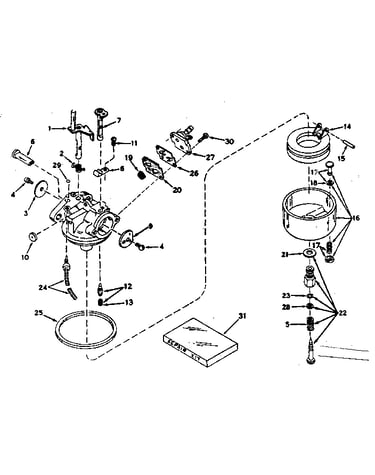

Carburetor diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

#56

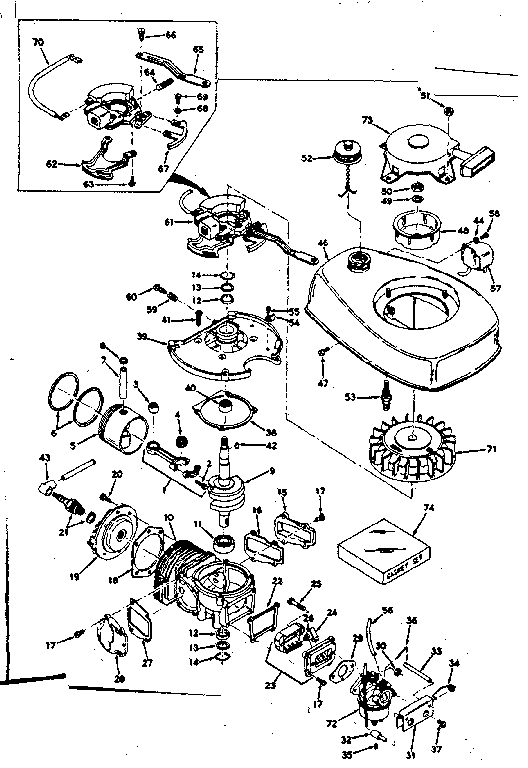

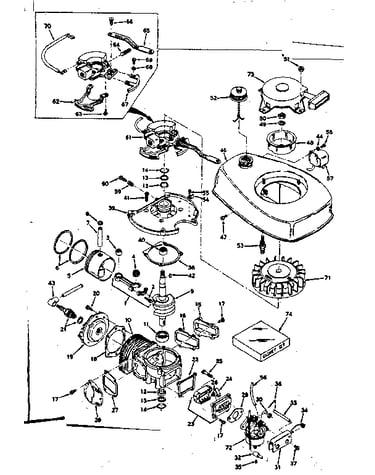

Engine assembly diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

#12

Engine assembly diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

#14

Engine assembly diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

#13

Engine assembly diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

#28

Carburetor diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Carburetor diagram

Spring

Part #630738

The manufacturer no longer makes this part, and there's no substitute part

#18

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

#28

Twist grip assy. & power head diagram

Rod

Part #56016

The manufacturer no longer makes this part, and there's no substitute part

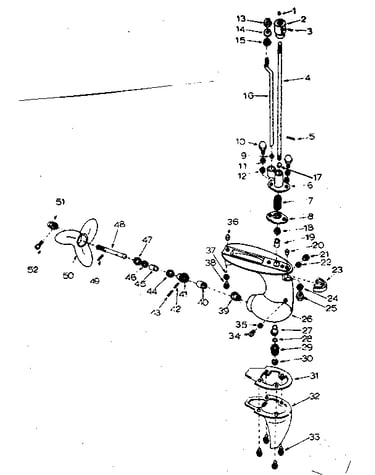

Gear housing assembly diagram

Spiral pin

Part #7069

The manufacturer no longer makes this part, and there's no substitute part
