Model # MCBS585WJ1WW Official GE electric range
Here are the diagrams and repair parts for Official GE MCBS585WJ1WW electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forMCBS585WJ1WW Ranges
- #235

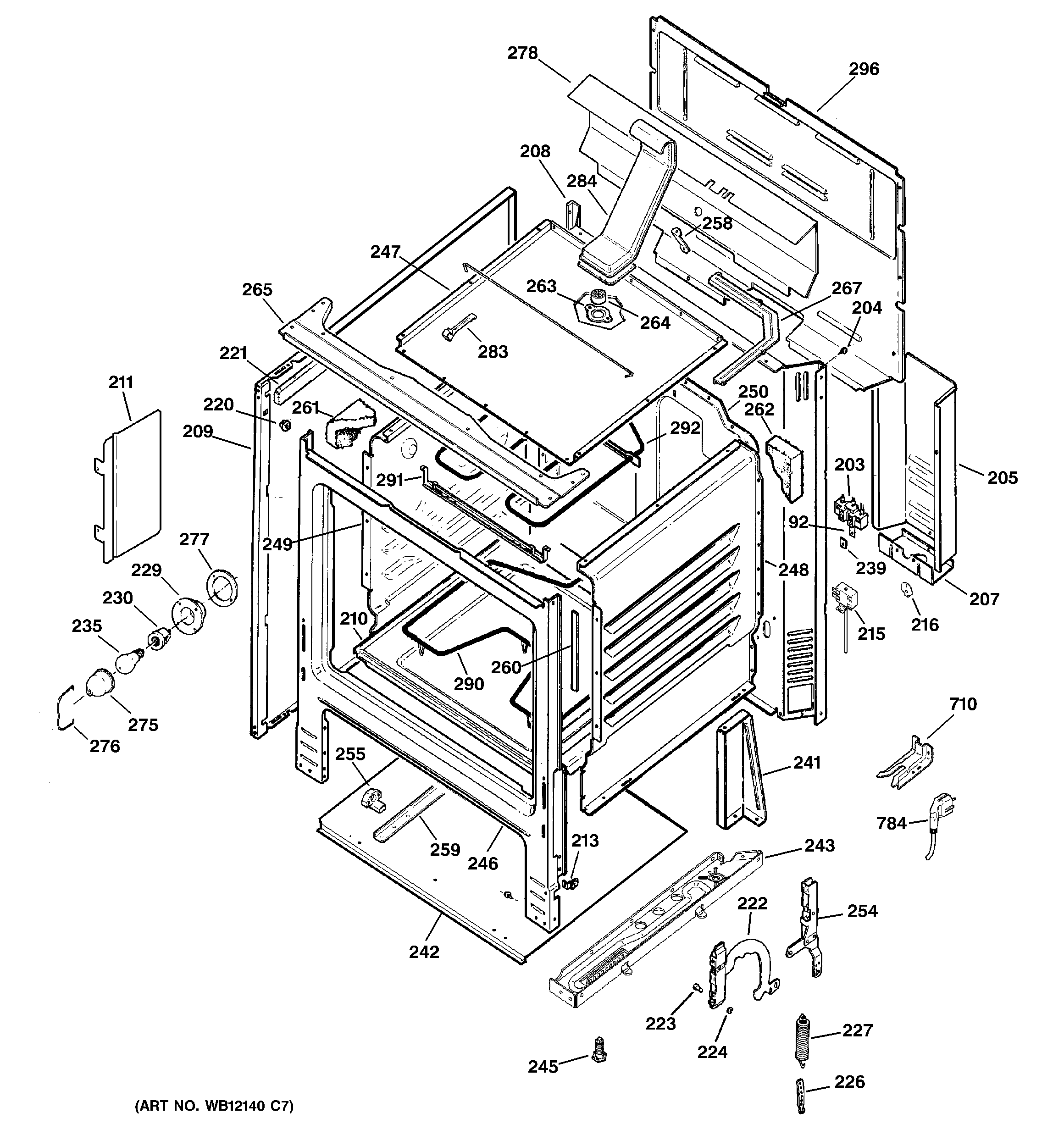

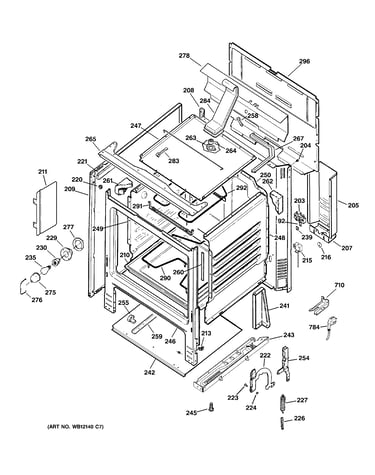

Body parts diagram
40a15bulbPart #STD372401
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.$14.62 |12% OFF Phone Price : $16.62In Stock - #3

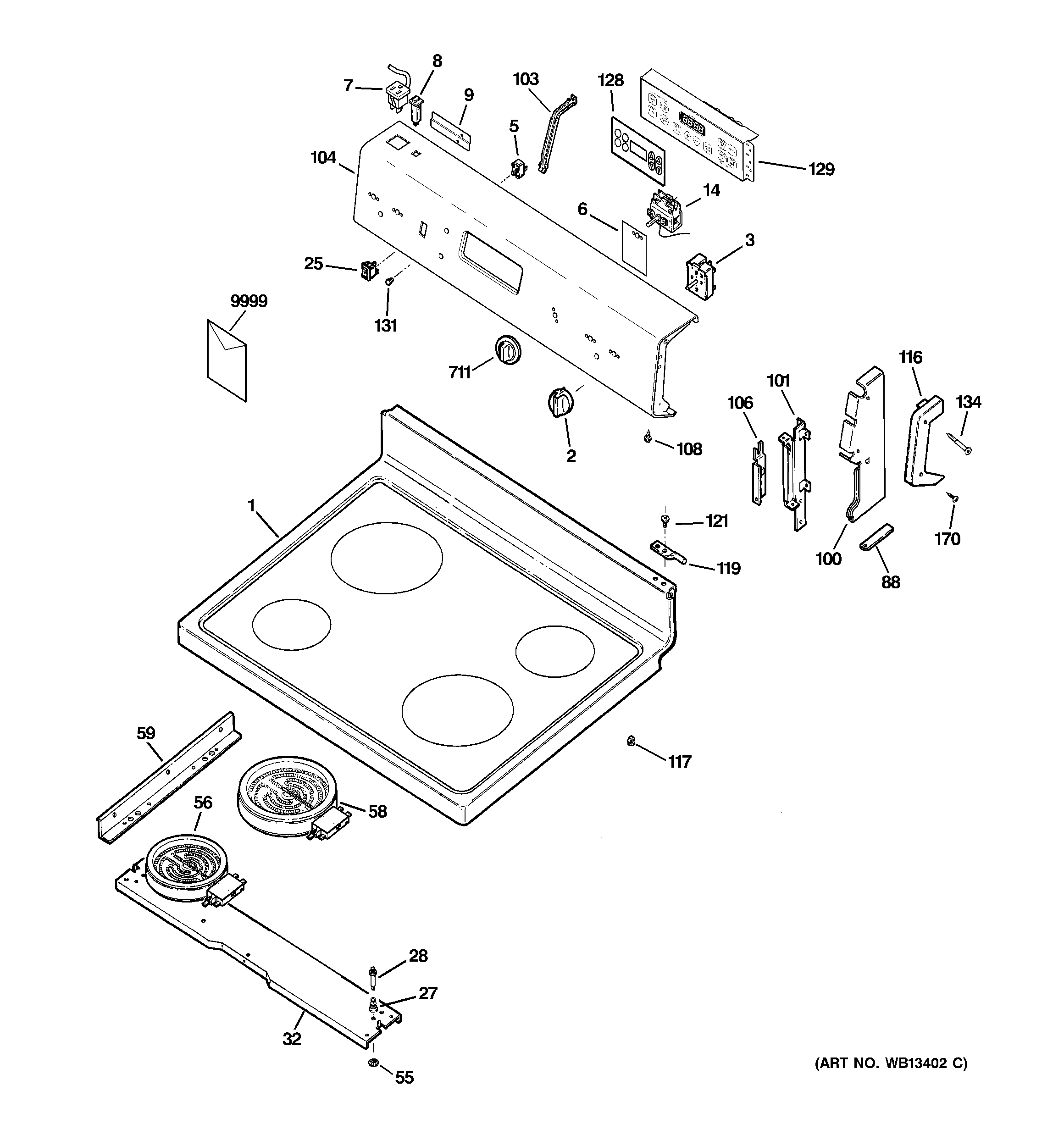

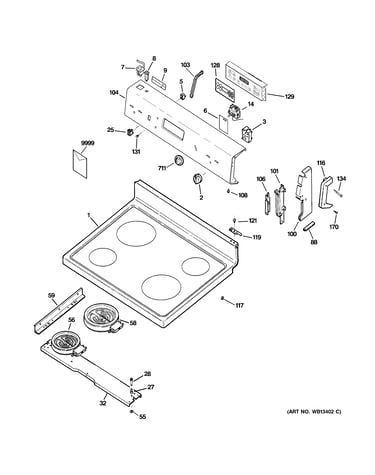

Control panel & cooktop diagram
Range surface element control switch, 1,500-wattPart #WB24T10029
$41.73 |13% OFF Phone Price : $47.73In Stock - #290
Body parts diagram
Range bake elementPart #WB44K10005
Replaced by #WB30X46987
?Manufacturer substitutionThis part replaces WB44K10005. Substitute parts can look different from the original.$162.52 |7% OFF Phone Price : $174.52In Stock - #292
Body parts diagram
Range broil elementPart #WB44K10002
Replaced by #WB30X46986
?Manufacturer substitutionThis part replaces WB44K10002. Substitute parts can look different from the original.$141.04In Stock - #129
Control panel & cooktop diagram
Range oven control boardPart #WB27T10469
$99.87 |11% OFF Phone Price : $111.87In Stock - #5
Control panel & cooktop diagram
Range indicator lightPart #WB25K10002
$14.78 |12% OFF Phone Price : $16.78In Stock - #58
Control panel & cooktop diagram
Range radiant surface element, 8-inPart #WB30T10045
$186.90 |6% OFF Phone Price : $198.90In Stock - #56
Control panel & cooktop diagram
Kenmore elite range halogen surface elementPart #WB30T10047
$116.90 |9% OFF Phone Price : $128.90In Stock - #343

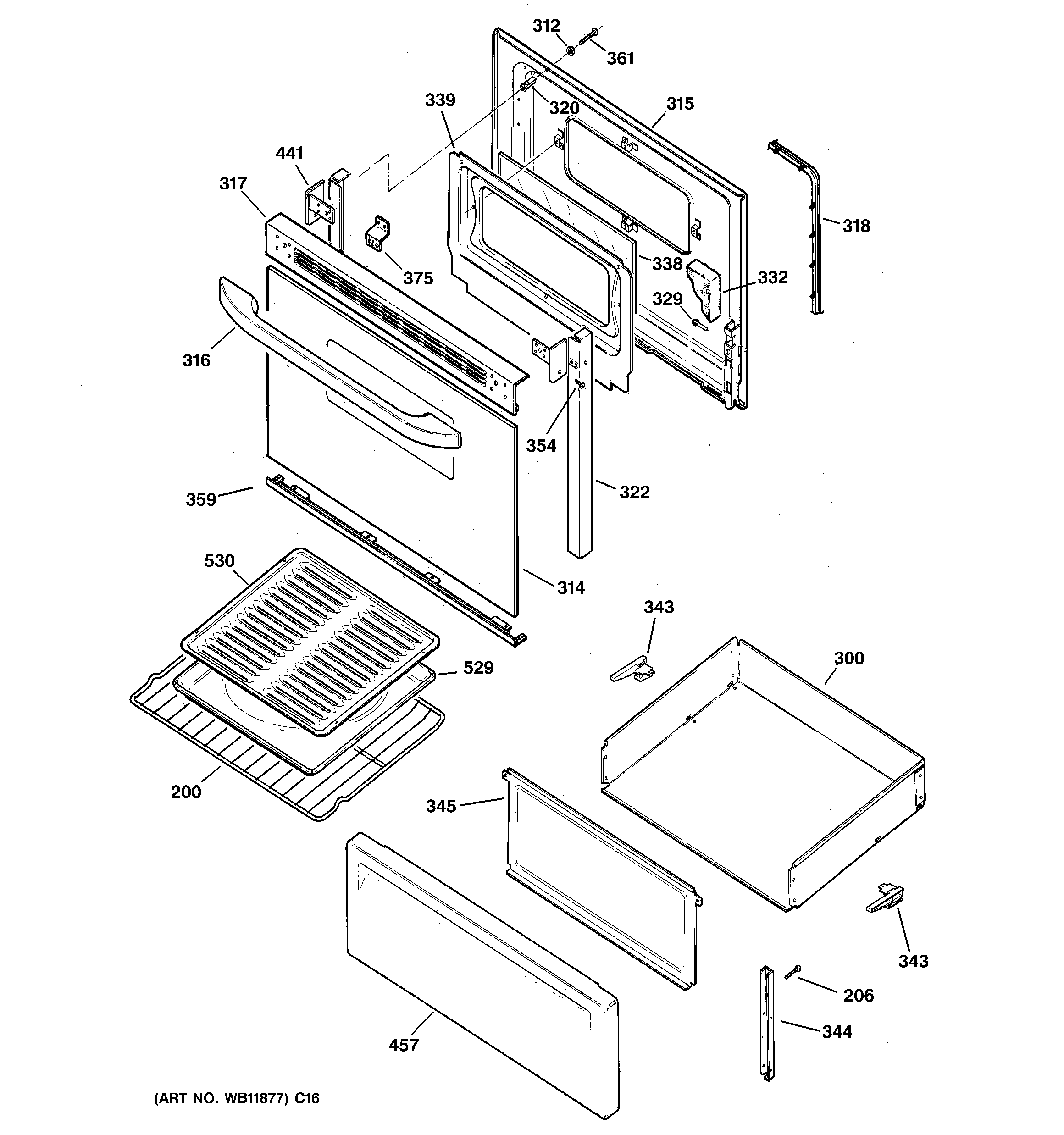

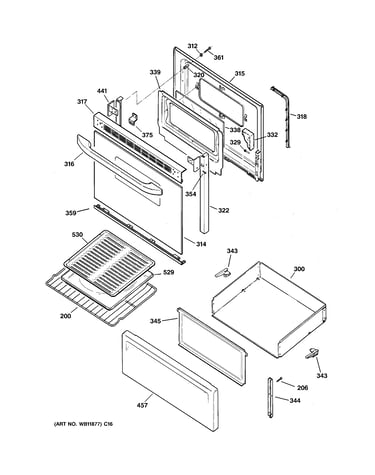

Door & drawer parts diagram
Range drawer glidePart #WB02K10061
$7.95 |11% OFF Phone Price : $8.95In Stock - #343
Door & drawer parts diagram
Range drawer glidePart #WB02K10062
This item is not returnable$7.40 |12% OFF Phone Price : $8.40In Stock
