Craftsman
Radial Arm Saw

Model # 113197802 Official Craftsman 10" radial saw

Here are the diagrams and repair parts for Official Craftsman 113197802 10" radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

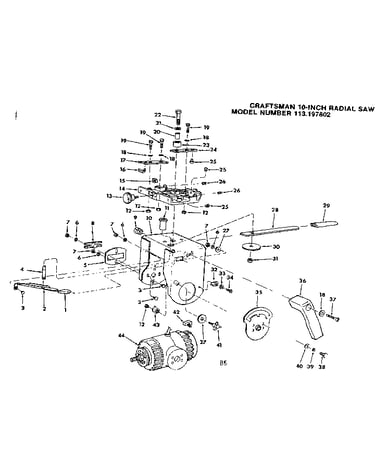

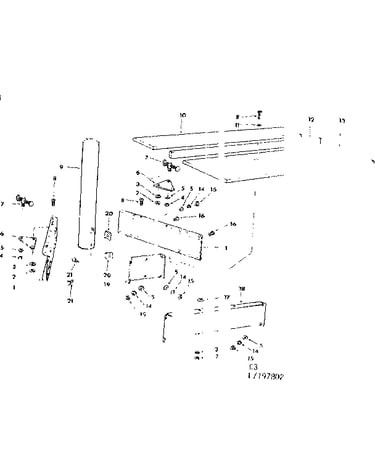

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Nut (silver) 62636
#4

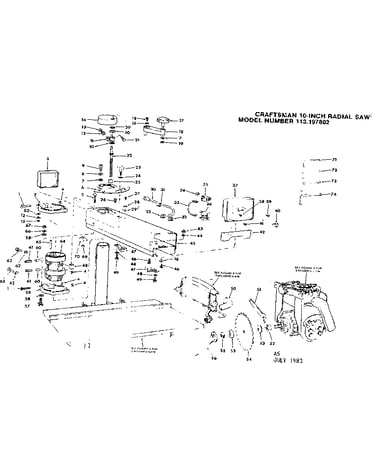

Unit diagram

Nut (silver)

Part #62636

The manufacturer no longer makes this part, and there's no substitute part

Wing Screw 60219
#7

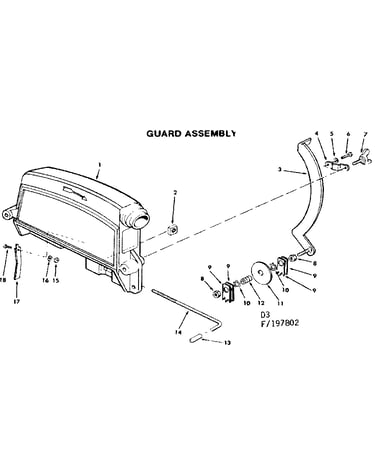

Guard assembly diagram

Wing screw

Part #60219

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Collar 62498
#53

Unit diagram

Radial arm saw arbor collar

Part #62498

The manufacturer no longer makes this part, and there's no substitute part

Screw 273229
#49

Unit diagram

Screw

Part #273229

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Nut 120399
#2

Guard assembly diagram

Radial arm saw hex nut

Part #120399

The manufacturer no longer makes this part, and there's no substitute part

Nylon Screw 60287
#39

Unit diagram

Nylon screw

Part #60287

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#55

Unit diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551025
Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer STD551031
Plain washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part
