To hard reset your Kenmore Elite washer model 11024954300, unplug it (or switch off the breaker) for 2 minutes, then restore power and select a normal cycle to confirm the controls respond. This clears many temporary control glitches without changing your cycle settings in the timer.

Hard reset steps (recommended first)

• Turn the washer OFF.
• Unplug the power cord (or turn the breaker OFF).
• Wait 2 full minutes.
• Restore power.
• Set the Cycle selector (timer) to a regular wash cycle and pull the knob (or start the cycle) to verify operation.
• If the washer still will not run, check the lid is fully closed and the load is balanced.

If a hard reset does not fix it

On many Kenmore top-load washers like the 11024954300, a “reset” does not erase a stored error history the way a modern digital control does; it mainly restores power and clears a stalled state. Use these next checks:

• Confirm the outlet has power (test with a lamp).
• Make sure the lid closes firmly; a failed lid switch can prevent agitation and spin.

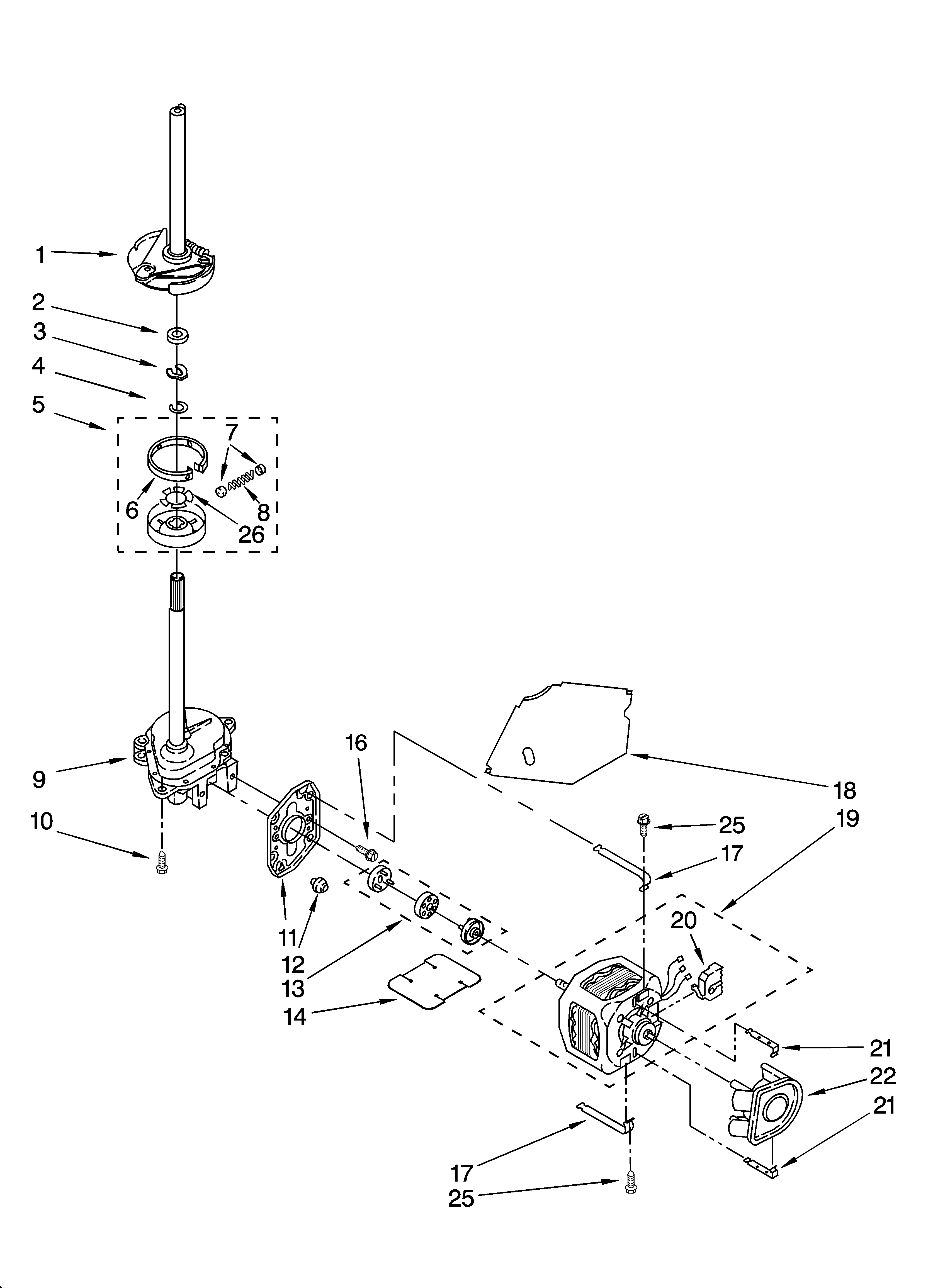

• If the washer drains but will not spin or agitate, inspect the drive system.
• If the washer hums but will not move, check for a jammed pump or coupling.

Common parts related to “won’t run” symptoms

Symptom after reset	Common cause	Example part for this model
No spin/no agitate	Lid safety circuit issue	Washer lid switch WP8054980
Motor runs, tub does not move	Coupling worn/broken	Washer motor coupling 285753A
Won’t drain, may stop mid-cycle	Pump jammed or failed	Washer drain pump WP3363394

Why it matters

A hard reset is a fast way to clear a temporary interruption (power flicker, paused timer position, or a stuck state) before replacing parts. If the same failure returns right after the reset, the problem is usually mechanical (lid switch, coupling, drain pump) rather than the timer setting.

For cycle and feature details (water level, wash/rinse temperature, options, and speed settings), use the 11024954300 owner's manual.

Last updated: January 2026

Yes. Kenmore Elite is Kenmore’s premium line, and the Kenmore Elite washer model 11024954300 is built around higher-end performance and convenience features compared with standard Kenmore models, such as multiple water level and temperature options, extra cycle options, and a larger-capacity design.

What “high end” means for this Kenmore Elite washer

From the feature set shown in the documentation for model 11024954300, “Elite” typically means more control, more cycle flexibility, and more comfort features than entry-level top-load washers.

Common high-end traits you see on this model include:

• Multiple water level selections to better match load size
• Multiple wash/rinse temperature selections (including automatic temperature control)
• Extra options such as 2nd rinse, auto soak, and prewash
• Multiple speed settings for fabric care
• Larger-capacity design (often marketed as “King Size” capacity)

For the exact feature list and how each cycle/option works, use the 11024954300 owner’s manual.

Quick comparison: Kenmore vs Kenmore Elite (typical)

Line	Typical focus	What you usually get
Kenmore (standard)	Value and basic cleaning	Fewer cycles, fewer options, simpler controls
Kenmore Elite	Premium features and performance	More cycles/options, more control over water temp and speeds, upgraded convenience features

Why it matters when buying parts or troubleshooting

Knowing you have an “Elite” model helps because premium features add components that can affect symptoms and repairs (for example, agitation performance, spin behavior, or cycle selection issues).

When performance drops, these are common part areas we check first on top-load Kenmore Elite washers:

• Agitation issues: worn agitator dog 80040
• No spin or weak agitation: motor drive coupling wear
• Not draining: drain pump or drain hose restrictions
• Excess vibration: suspension spring condition

What to do if you are comparing “Elite” models

Use these checks to compare one Kenmore Elite washer to another:

• Confirm the model number (110-series models can vary a lot)
• Compare cycle list and options (2nd rinse, soak, prewash)
• Compare speed and temperature selections
• Check basket size and tub type

Last updated: January 2026

To force-drain a Kenmore Elite washer model 11024954300, we recommend canceling the cycle (or turning the timer to OFF), then restoring power and selecting Spin to run the drain pump. If it still will not drain, manually remove the water and check for a drain restriction before restarting. See the 11024954300 owner's manual for your control steps.

Fast ways to get the water out

• Turn the cycle selector (timer) to OFF and unplug the washer for 1 minute.
• Plug back in and select Spin (or a drain/spin portion of the cycle) to energize the drain pump.
• If the tub is full, bail water into a bucket first so the pump is not overloaded.
• Check the standpipe or laundry sink for a backup (a clogged house drain can look like a washer failure).
• If the washer hums but does not drain, inspect the pump and hoses for a sock, coin, or lint plug.

Check the most common drain-block points

On this style of Kenmore top-load washer, most “won’t drain” problems come from a blockage or a weak pump.

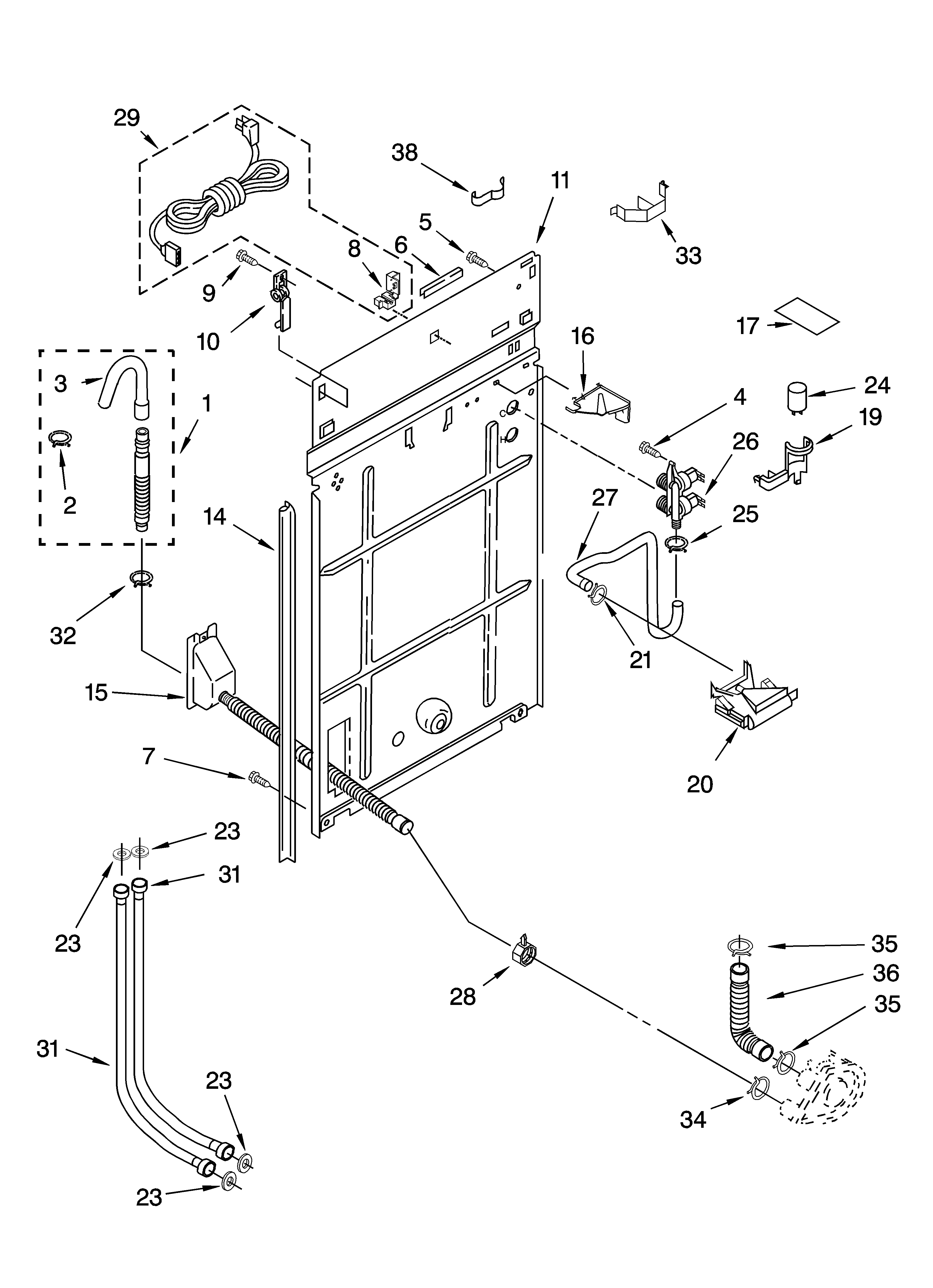

• Drain hose: Look for kinks, pinches behind the washer, or a frozen hose (cold climates).
• Inner drain hose: Check for internal clogs or collapse; replace if soft or split.
• Drain pump: Look for debris in the inlet/outlet ports; a damaged impeller can prevent pumping.

Helpful parts for this model:

• Washer drain pump WP3363394
• Washer inner drain hose WPW10358149

Quick symptom guide

What you notice	Most likely cause	What to do next
Washer drains slowly	Partial clog in hose or pump	Clear hose and pump ports; retry Spin
Hums but no water moves	Jammed pump impeller or blockage	Inspect pump; replace pump if damaged
Won’t spin and won’t drain	Lid switch issue can stop drain/spin	Test lid switch operation and wiring
Drains but water returns	Standpipe/sink backing up	Clear household drain/standpipe

Why it matters

A washer that cannot drain cannot spin properly, so clothes stay soaking wet and the motor, coupling, and clutch can be stressed by repeated restart attempts.

Last updated: January 2026

Kenmore Elite washer model 11024954300 is marketed as KING SIZE capacity, but the capacity for this style is not consistently published as a single cubic-feet spec. For practical planning, most Kenmore direct-drive, agitator top-load washers of this era run about 3.2 to 3.6 cu. ft.; use the measurement method below for a model-specific estimate.

Get a model-specific capacity estimate (best method)

We recommend estimating capacity from the inside basket measurements because it reflects your actual usable tub volume.

• Measure the inside diameter of the basket (in inches)
• Measure the usable depth (bottom to the highest normal fill line or lowest rim)
• Use the cylinder formula to calculate cubic inches
• Convert cubic inches to cubic feet by dividing by 1728
• Compare your result to typical top-load ranges to sanity-check it

Capacity calculation

Step	What to do	Example units
1	Radius = diameter ÷ 2	inches
2	Volume (cu. in.) = 3.1416 × radius² × depth	cubic inches
3	Volume (cu. ft.) = cu. in. ÷ 1728	cubic feet

For operating and feature details (water levels, cycles, options), use the 11024954300 owner's manual.

Typical capacity ranges (for context)

Washer type	Typical capacity
Compact top-load	2.0 to 2.8 cu. ft.
Standard agitator top-load	3.0 to 3.8 cu. ft.
Large-capacity HE top-load (impeller)	4.0 to 5.5 cu. ft.

Why it matters

Capacity affects how much you can wash per load, how well bulky items circulate around the agitator, and how easy it is to avoid overloading parts such as the washer motor coupling 285753A and drive system.
