Model # EI30EF35JSA Official Electrolux electric range

Here are the diagrams and repair parts for Official Electrolux EI30EF35JSA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

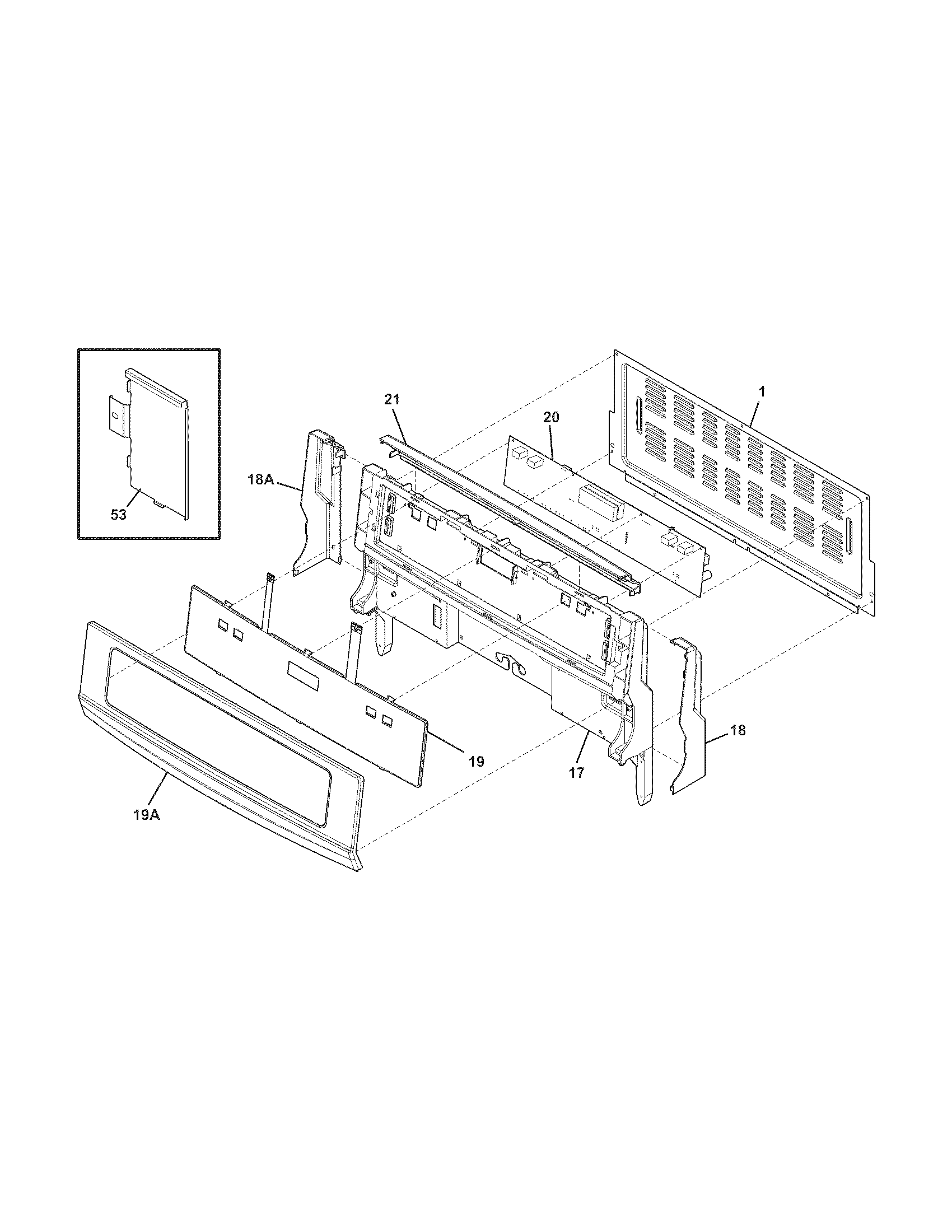

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |

Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

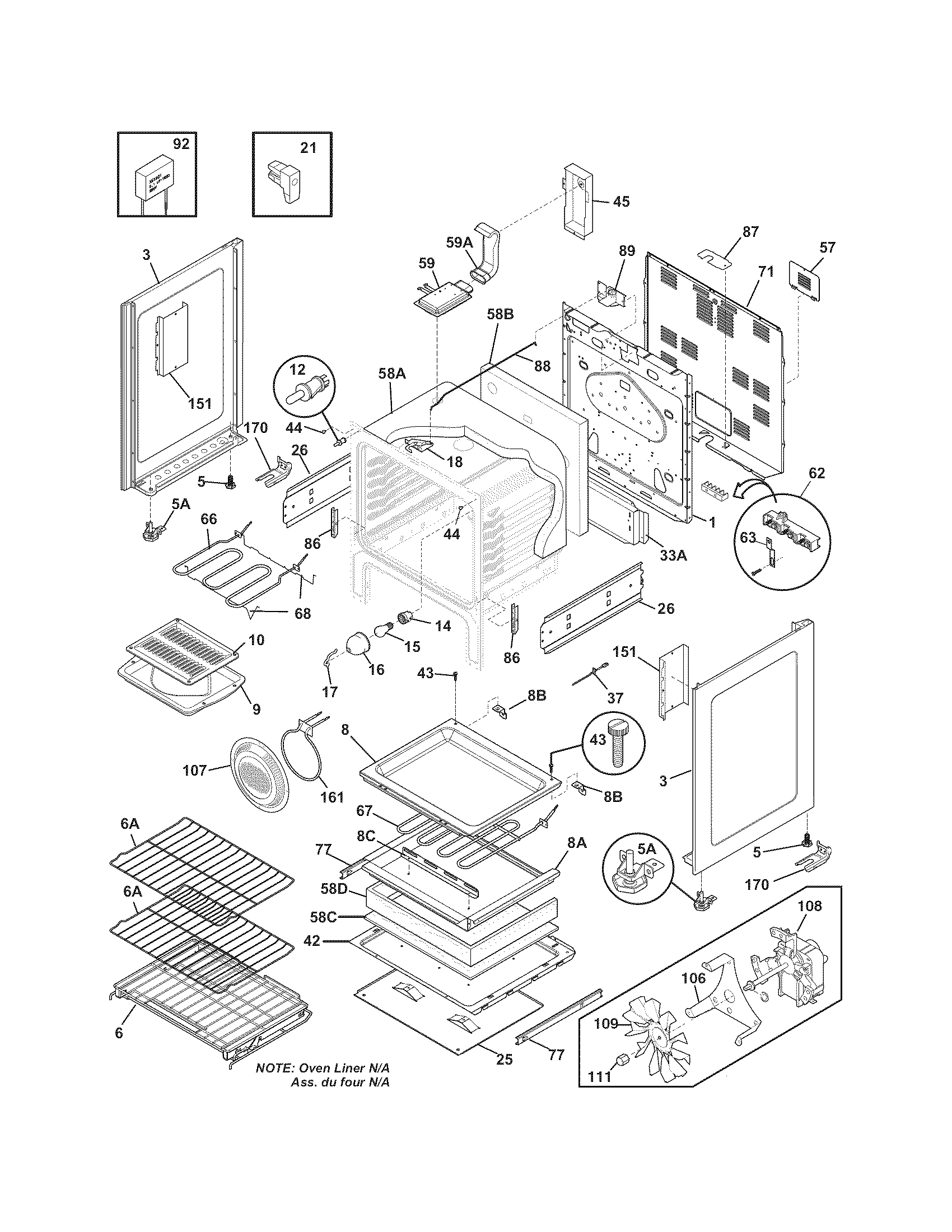

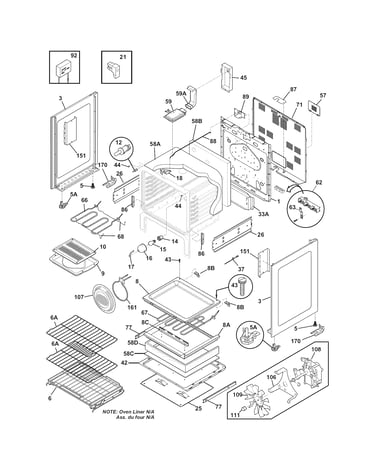

Body diagram

Range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$42.20
23% OFF MSRP : $55.00
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.31
12% OFF Phone Price : $17.31
In Stock
Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

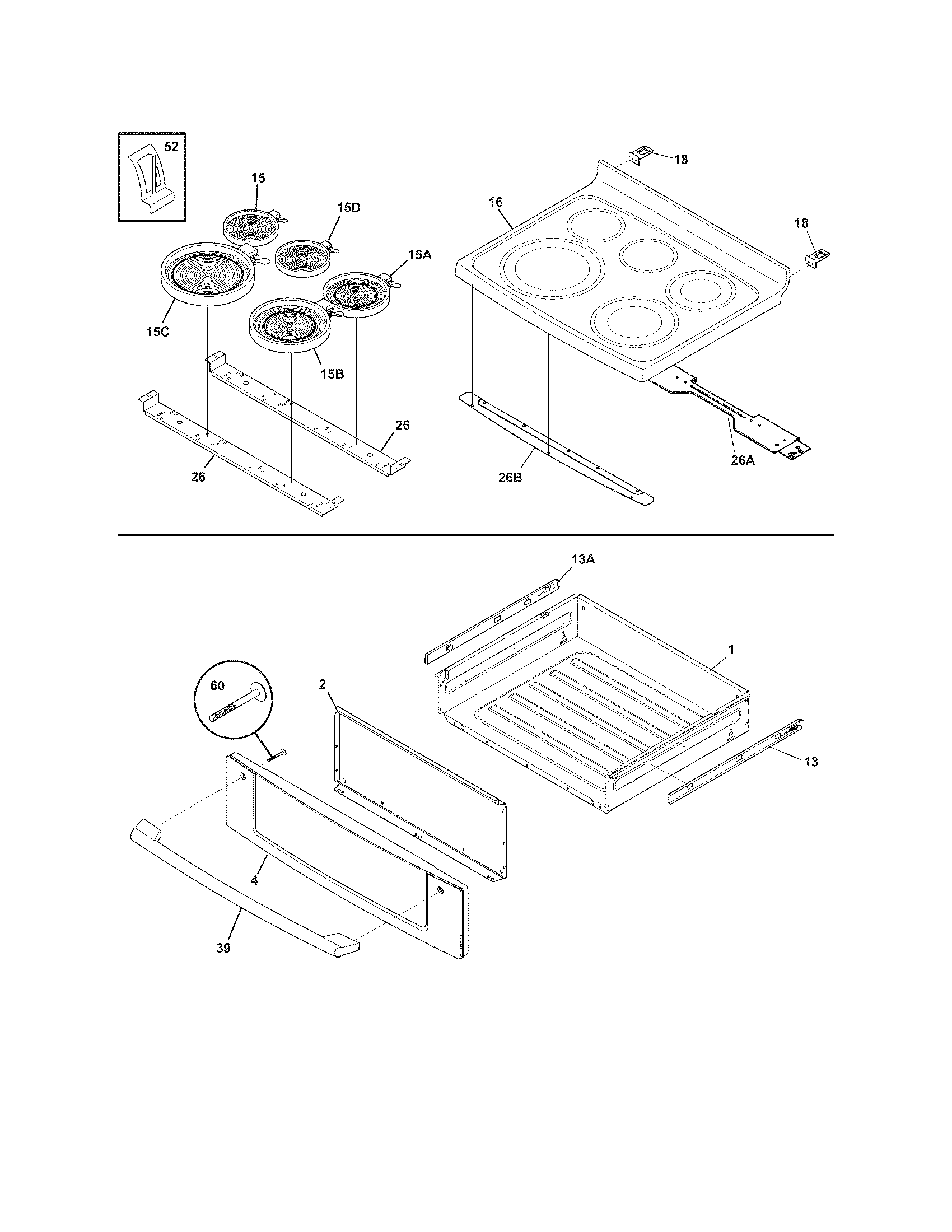

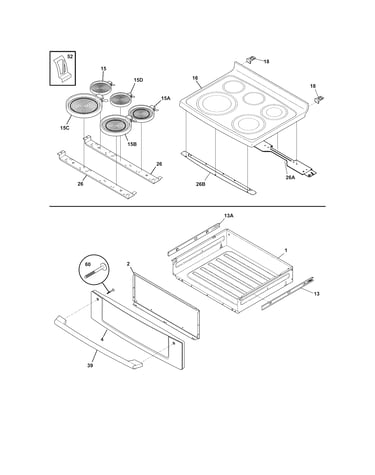

Top/drawer diagram

Range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$147.02
6% OFF Phone Price : $157.02
In Stock
Range Dual Radiant Surface Element (replaces 316465002) 316282000
#15B

Top/drawer diagram

Range dual radiant surface element (replaces 316465002)

Part #316282000

BEST SELLER
$131.28
7% OFF Phone Price : $141.28
In Stock
Range Oven Rack 316496207
#6A

Body diagram

Range oven rack

Part #316496207

Replaced by #316496201

?
Manufacturer substitution
This part replaces 316496207. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$73.73
6% OFF Phone Price : $78.73
In Stock
Range Oven Door Handle Screw 316513301
#60

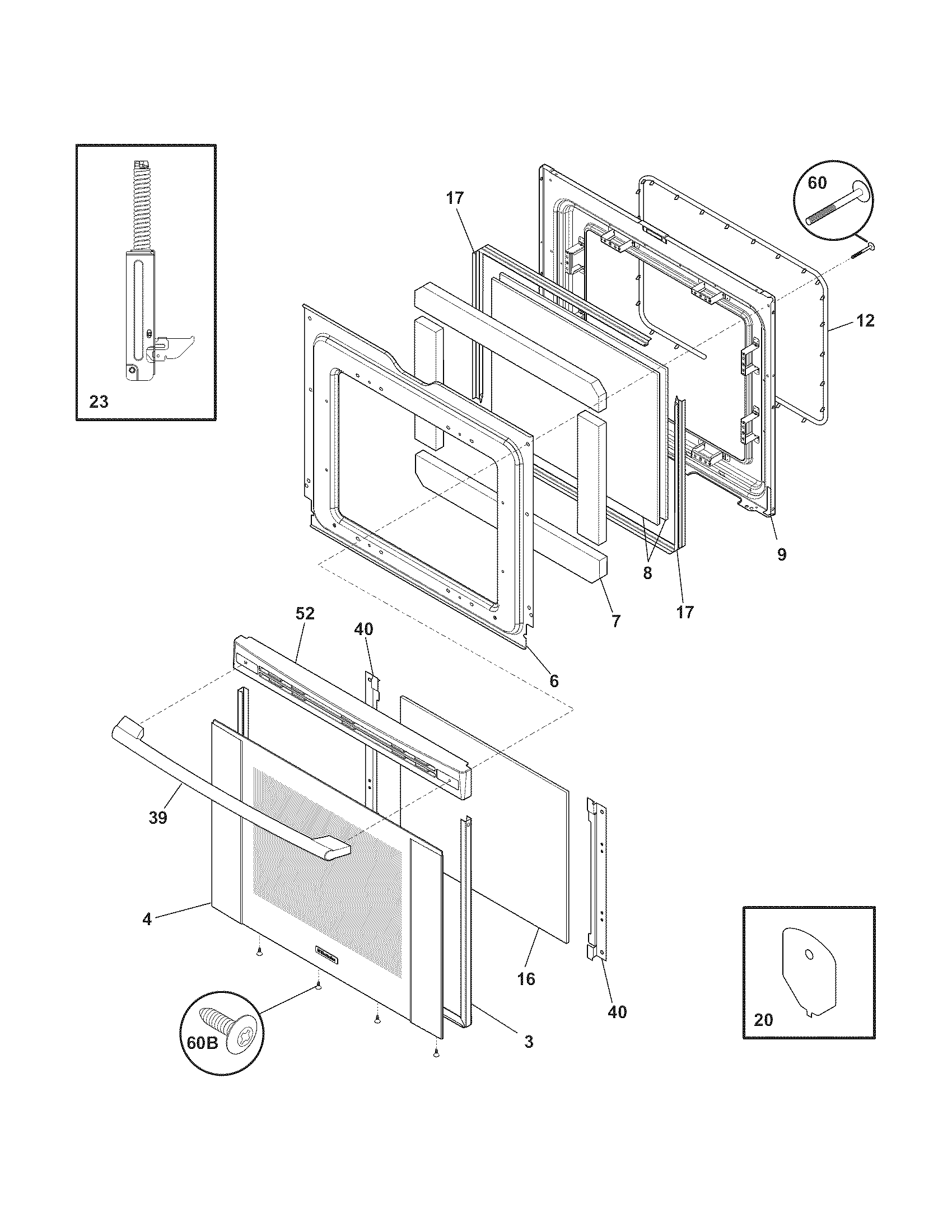

Door diagram

Range oven door handle screw

Part #316513301

Replaced by #5304507924

?
Manufacturer substitution
This part replaces 316513301. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.39
12% OFF Phone Price : $8.39
In Stock
Range Oven Door Seal (replaces 316405001) 316405000
#12

Door diagram

Range oven door seal (replaces 316405001)

Part #316405000

BEST SELLER
$134.03
7% OFF Phone Price : $144.03
In Stock
Range Terminal Block (replaces 75303935271) 5303935271
#62

Body diagram

Range terminal block (replaces 75303935271)

Part #5303935271

BEST SELLER
$46.63
10% OFF Phone Price : $51.63
In Stock
Range Oven Door Lock Motor And Switch Assembly 316464300
#89

Body diagram

Range oven door lock motor and switch assembly

Part #316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
BEST SELLER
$44.59
10% OFF Phone Price : $49.59
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
