Whirlpool
Bottom-Mount Refrigerator

Model #WRF757SDHV03 Official Whirlpool refrigerator

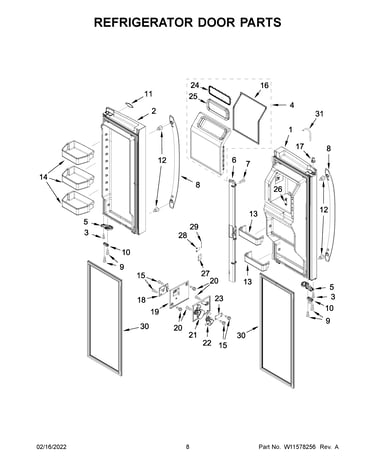

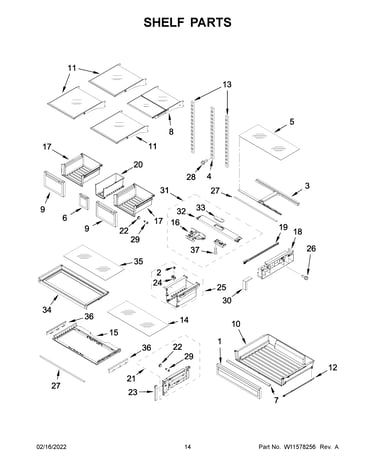

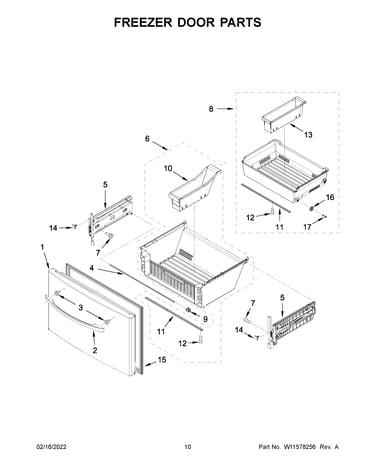

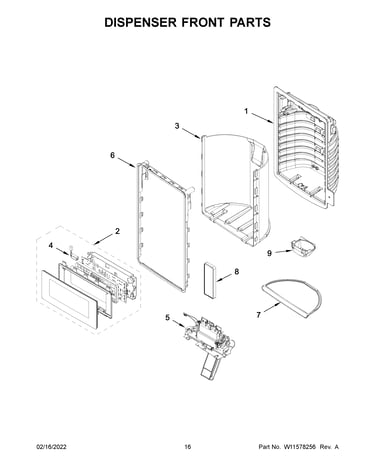

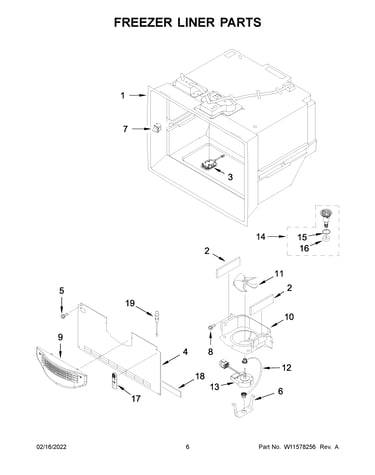

Here are the diagrams and repair parts for Whirlpool WRF757SDHV03 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 281 parts

    Refrigerator Carbon Air Filter#12

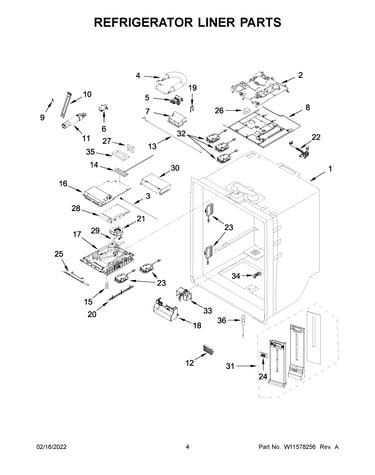

    Refrigerator liner parts Diagram

    Refrigerator air filter

    Part #W10315189
    Replaced by #W10311524
    ?
    Manufacturer substitution
    This part replaces W10315189. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $18.59
    Whirlpool EveryDrop 2 Refrigerator Water Filter#11

    Refrigerator liner parts Diagram

    Refrigerator cartridge wrap assembly

    Part #W10680605
    Replaced by #EDR2RXD1
    ?
    Manufacturer substitution
    This part replaces W10680605. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $59.99
    Refrigerator Door Switch

    See All Related Diagrams

    Switch- rock

    Part #W10847853
    Replaced by #W11384469
    ?
    Manufacturer substitution
    This part replaces W10847853. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.02 |
    19% OFF
    Phone Price: $26.02
    Refrigerator Door Switch#29

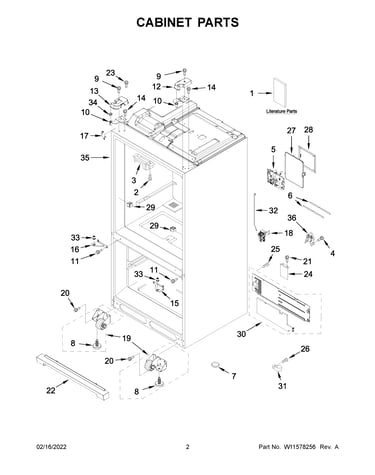

    Cabinet parts Diagram

    Refrigerator door switch

    Part #W10847849
    Replaced by #W11396033
    ?
    Manufacturer substitution
    This part replaces W10847849. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $24.83 |
    17% OFF
    Phone Price: $29.83
    Appliance Touch-Up Paint, 0.6-oz (White)#NI

    Optional parts Diagram

    Refrigerator touch-up paint (white)

    Part #72017
    Replaced by #72017
    ?
    Manufacturer substitution
    This part replaces 72017. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $8.29 |
    11% OFF
    Phone Price: $9.29
    Refrigerator Compressor Start Relay#6

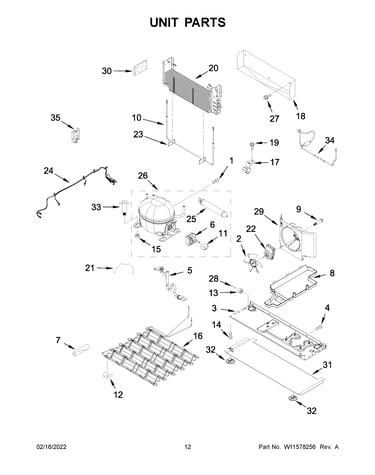

    Unit parts Diagram

    Refrigerator start relay

    Part #W10197428
    Replaced by #WPW10197428
    ?
    Manufacturer substitution
    This part replaces W10197428. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $72.59 |
    6% OFF
    Phone Price: $77.59
    Refrigerator Run Capacitor#11

    Unit parts Diagram

    Refrigerator run capacitor

    Part #W10350564
    Replaced by #WPW10350564
    ?
    Manufacturer substitution
    This part replaces W10350564. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $59.09 |
    8% OFF
    Phone Price: $64.09
    Refrigerator Ice Dispenser Driveshaft Seal#3

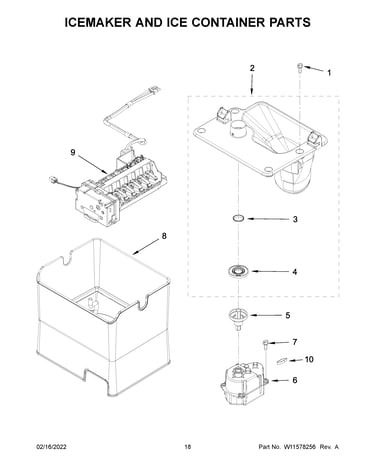

    Icemaker and ice container parts Diagram

    Refrigerator ice dispenser driveshaft seal

    Part #2198628
    Replaced by #WP2198628
    ?
    Manufacturer substitution
    This part replaces 2198628. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $15.69 |
    11% OFF
    Phone Price: $17.69
    Refrigerator Temperature Sensor Kit

    See All Related Diagrams

    Refrigerator thermistor

    Part #W10280385
    Replaced by #W10316760
    ?
    Manufacturer substitution
    This part replaces W10280385. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $47.26 |
    36% OFF
    Was: $73.89
    Appliance Touch-Up Paint, 0.6-oz (Black)#NI

    Optional parts Diagram

    Touch up kit

    Part #72032
    Replaced by #72032
    ?
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $4.89 |
    30% OFF
    MSRP: $7.00

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
