GE WLXR1020T3WB washer Parts
Here are the diagrams and repair parts for GE WLXR1020T3WB washer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

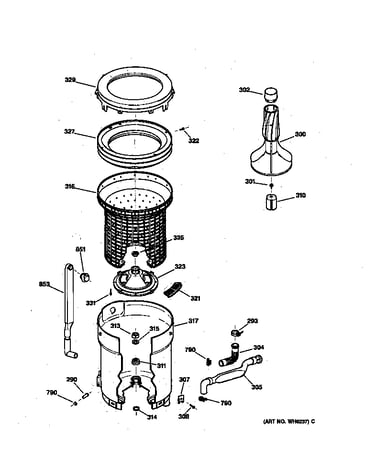

SELECT DIAGRAM
Browse Parts for WLXR1020T3WB Washer

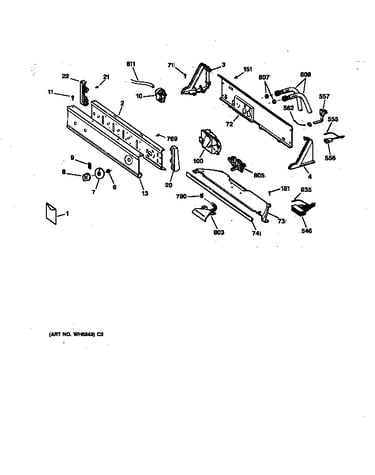

Controls & backsplash diagram
Pressure Switch
Part #WH12X1028
The manufacturer no longer makes this part, and there's no substitute part
Controls & backsplash diagram
Dial
Part #WH11X141
The manufacturer no longer makes this part, and there's no substitute part

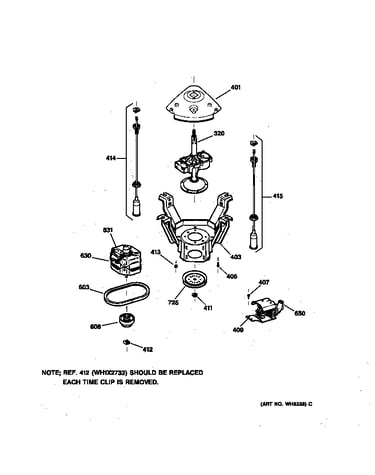

Suspension, pump & drive components diagram
Rod And Spring Assembly
Part #WH16X519
The manufacturer no longer makes this part, and there's no substitute part

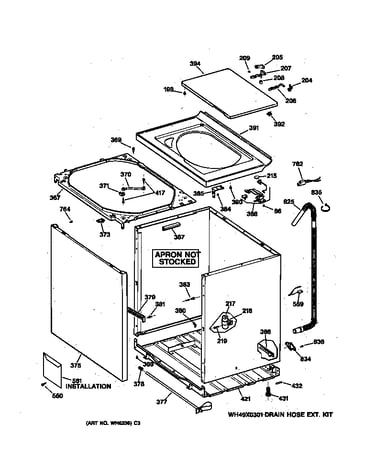

Cabinet, cover & front panel diagram
Base
Part #WH46X346
The manufacturer no longer makes this part, and there's no substitute part
Suspension, pump & drive components diagram
Washer Transmission Pulley
Part #WH7X126
The manufacturer no longer makes this part, and there's no substitute part
Controls & backsplash diagram
Cap Supsw
Part #WE19X983
The manufacturer no longer makes this part, and there's no substitute part
Controls & backsplash diagram
End Cap, Right
Part #WE19X1006
The manufacturer no longer makes this part, and there's no substitute part
Controls & backsplash diagram
Switch Trim
Part #WH42X2428
The manufacturer no longer makes this part, and there's no substitute part
Controls & backsplash diagram
Cord Set
Part #WH19X225
The manufacturer no longer makes this part, and there's no substitute part
Controls & backsplash diagram
Cover
Part #WH46X341
The manufacturer no longer makes this part, and there's no substitute part
