Kenmore Elite
Room Air Conditioner

Model # 25376062312 Official Kenmore Elite room air conditioner

Here are the diagrams and repair parts for Official Kenmore Elite 25376062312 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

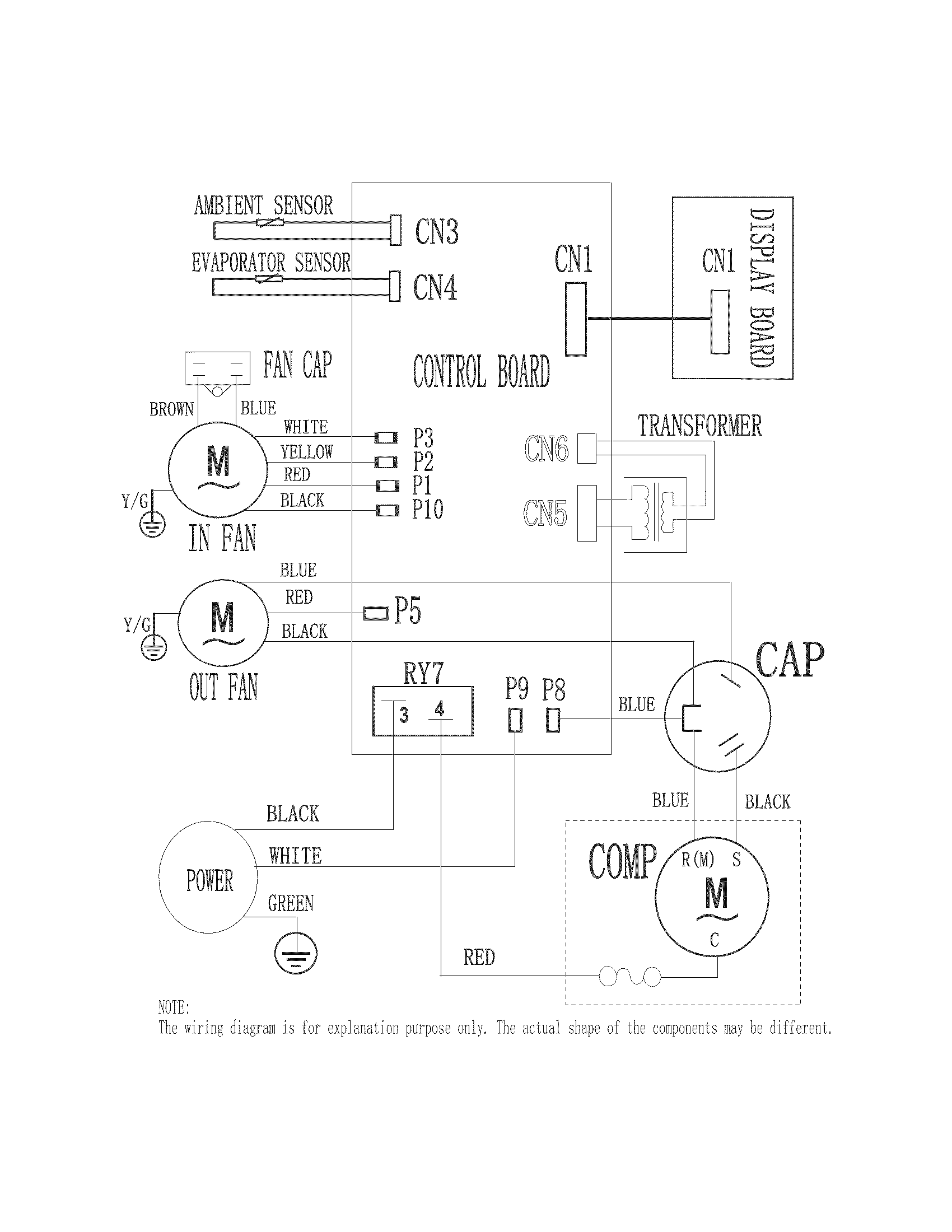

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Room Air Conditioner Ambient Thermistor 5304487548
#15

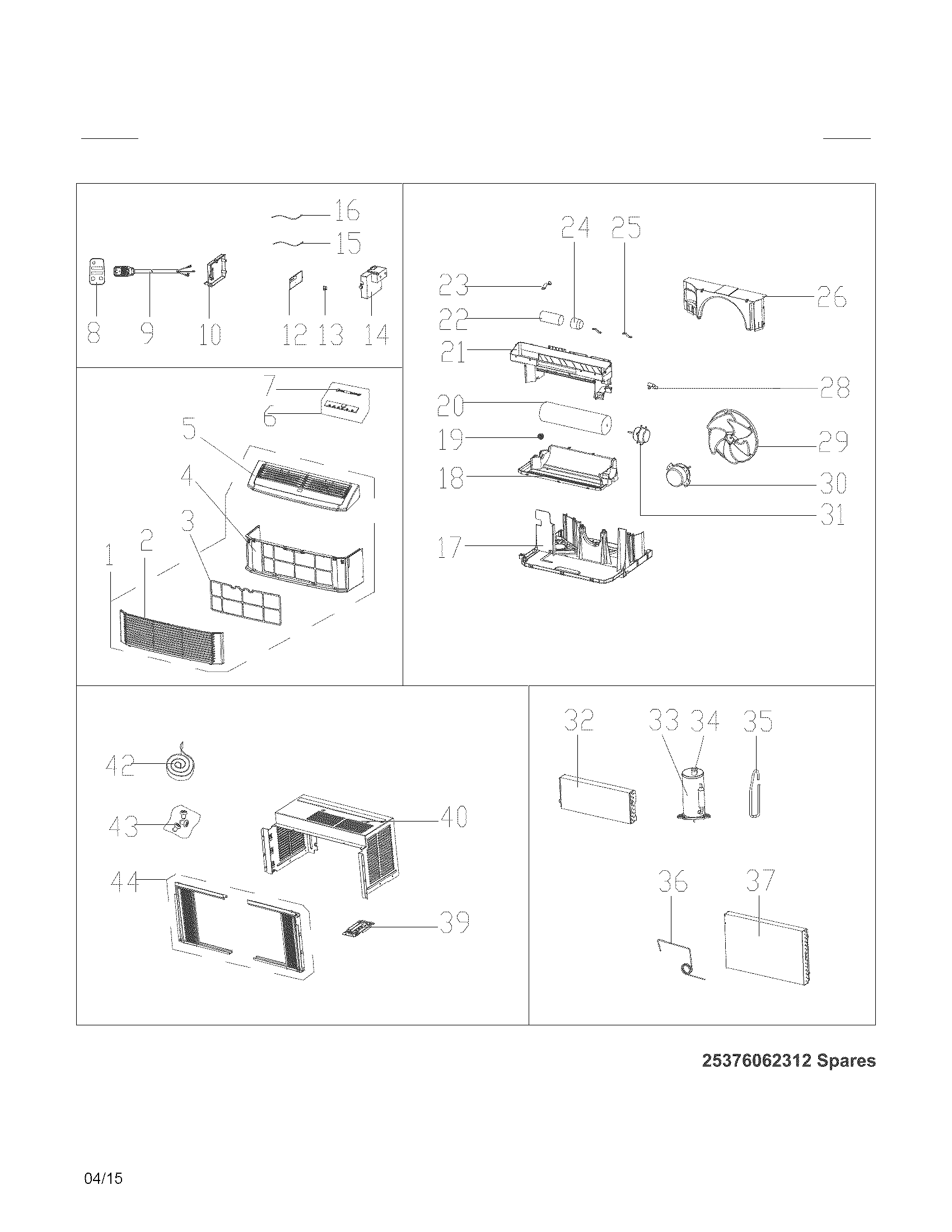

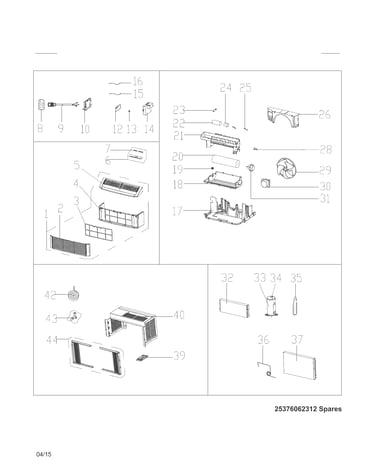

Recommended spare parts diagram

Room air conditioner ambient thermistor

Part #5304487548

This item is not returnable
$21.49
19% OFF Phone Price : $26.49
In Stock
Room Air Conditioner Remote Control 5304495111
#8

Recommended spare parts diagram

Room air conditioner remote control

Part #5304495111

$67.61
7% OFF Phone Price : $72.61
In Stock
Room Air Conditioner Thermistor 5304471275
#16

Recommended spare parts diagram

Room air conditioner thermistor

Part #5304471275

This item is not returnable
$34.13
13% OFF Phone Price : $39.13
In Stock
Fan Blade 5304476078
#29

Recommended spare parts diagram

Fan blade

Part #5304476078

$55.29
11% OFF MSRP : $62.00
In Stock
Evaporator 5304501634
#32

Recommended spare parts diagram

Evaporator

Part #5304501634

In Stock
Room Air Conditioner Transformer 5304470989
#13

Recommended spare parts diagram

Room air conditioner transformer

Part #5304470989

In Stock
Tube 5304495340
#35

Recommended spare parts diagram

Tube

Part #5304495340

In Stock
Installation 5304495345
#NI

Recommended spare parts diagram

Installation

Part #5304495345

This item is not returnable
In Stock
Capacitor 5304476049
#22

Recommended spare parts diagram

Capacitor

Part #5304476049

In Stock
Frame Assembly 5304495332
#5

Recommended spare parts diagram

Frame assembly

Part #5304495332

In Stock
