GE
Countertop Microwave

Model # PEM31RF1SS Official GE microwave

Here are the diagrams and repair parts for Official GE PEM31RF1SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Microwave Door Interlock Switch Bracket WB14X10049
#24

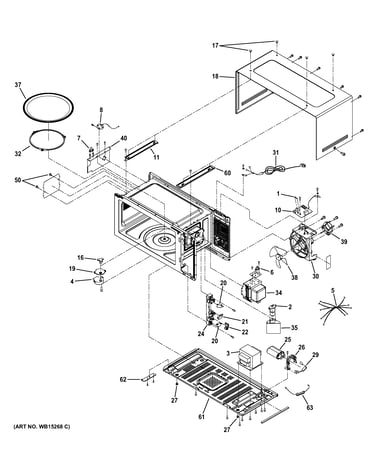

Oven cavity parts diagram

Microwave door interlock switch bracket

Part #WB14X10049

BEST SELLER
$39.59 |
11% OFF Phone Price : $44.59
In Stock
Microwave High-voltage Diode WB27X10849
#29

Oven cavity parts diagram

Microwave high-voltage diode

Part #WB27X10849

Replaced by #WB26X28935

?
Manufacturer substitution
This part replaces WB27X10849. Substitute parts can look different from the original.
BEST SELLER
$50.11 |
9% OFF Phone Price : $55.11
In Stock
Foot WB02X21302
#27

Oven cavity parts diagram

Foot

Part #WB02X21302

$12.00
In Stock
Door Gasket WB35X21300
#46

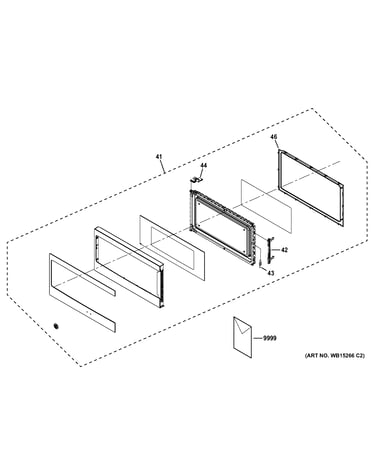

Door parts diagram

Door gasket

Part #WB35X21300

$28.71
In Stock
Mounting Plate WB34X21316
#11

Oven cavity parts diagram

Mounting plate

Part #WB34X21316

$63.71
In Stock
Harness WB18X21306
#5

Oven cavity parts diagram

Harness

Part #WB18X21306

$117.18
In Stock
Overlay WB07X21323
#52

Control parts diagram

Overlay

Part #WB07X21323

$93.99
In Stock
Tray WB48X21336
#37

Oven cavity parts diagram

Tray

Part #WB48X21336

$200.07
In Stock
Outer Case WB56X21319
#18

Oven cavity parts diagram

Outer case

Part #WB56X21319

$111.94
In Stock
Microwave Capacitor Support Bracket WB06X10933
#26

Oven cavity parts diagram

Microwave capacitor support bracket

Part #WB06X10933

$80.51
In Stock
