Craftsman
Snowblower Attachment

Model # 842240561 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 842240561 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |

Nut 4119
#57

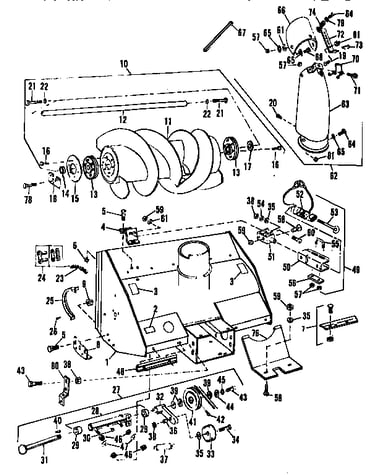

Auger assembly diagram

Nut

Part #4119

The manufacturer no longer makes this part, and there's no substitute part

Pulley 11496
Pulley

Part #11496

The manufacturer no longer makes this part, and there's no substitute part

Handle Grip 3339
#73

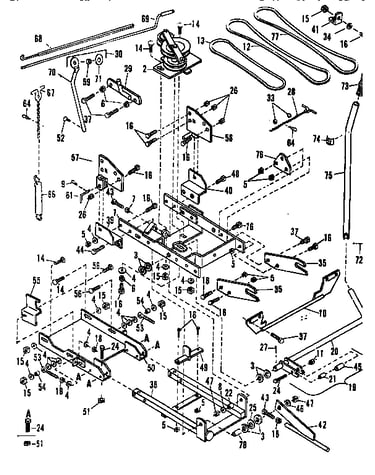

Main frame diagram

Handle grip

Part #3339

The manufacturer no longer makes this part, and there's no substitute part

Snowblower Chain Guard 3036
#25

Auger assembly diagram

Snowblower chain guard

Part #3036

The manufacturer no longer makes this part, and there's no substitute part

Thumb Screw 21797
#52

Main frame diagram

Thumb screw

Part #21797

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer, 3/8-in, 8-pack STD551037
Flat washer, 3/8-in, 8-pack

Part #STD551037

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM-271190
Nut washer

Part #GM-271190

The manufacturer no longer makes this part, and there's no substitute part

Washer 4143
#17

Auger assembly diagram

Washer

Part #4143

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM-271184
Nut washer

Part #GM-271184

The manufacturer no longer makes this part, and there's no substitute part

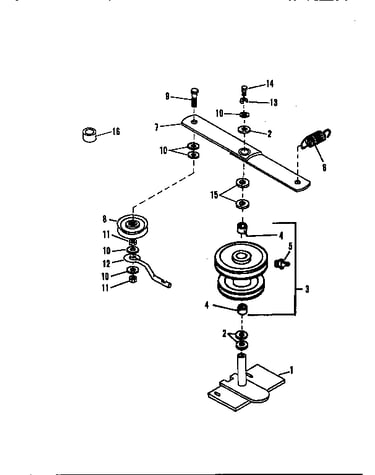

Lawn Tractor Snowblower Attachment Idler And Drive Pulley Assembly 21772
#2

Main frame diagram

Lawn tractor snowblower attachment idler and drive pulley assembly

Part #21772

The manufacturer no longer makes this part, and there's no substitute part
