Craftsman 539819501 20" snow blower Parts
Here are the diagrams and repair parts for Craftsman 539819501 20" snow blower, as well as links to manuals and error code tables, if available.

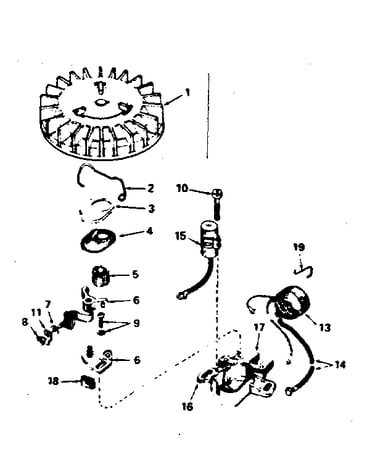

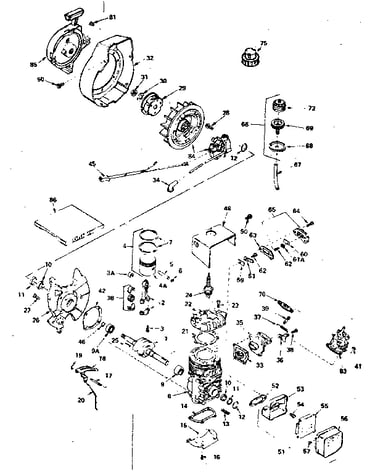

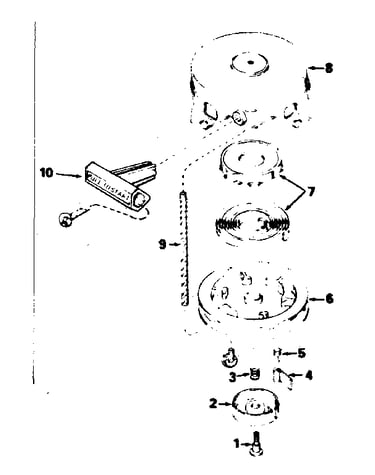

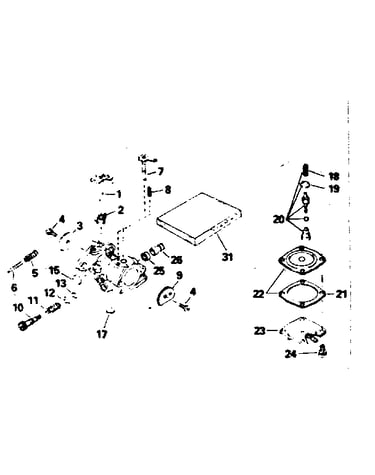

View engine
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for539819501 Snowblowers

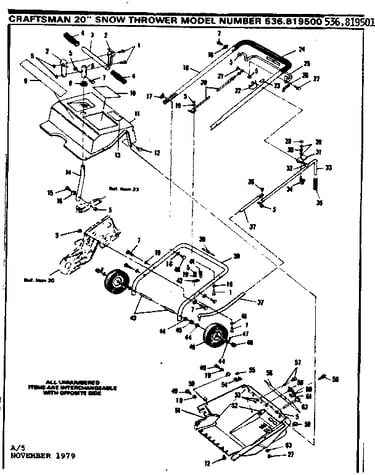

Main frame diagram
Lock Nut
Part #997319
The manufacturer no longer makes this part, and there's no substitute part

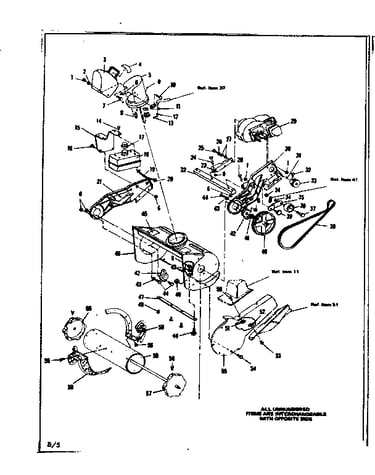

Auger housing and engine assembly diagram
Screw
Part #50659
The manufacturer no longer makes this part, and there's no substitute part
Auger housing and engine assembly diagram
Auger Housing Assembly
Part #49667
The manufacturer no longer makes this part, and there's no substitute part
Auger housing and engine assembly diagram
Chute Defl T
Part #49694
The manufacturer no longer makes this part, and there's no substitute part
Auger housing and engine assembly diagram
Warning Decal
Part #68425
The manufacturer no longer makes this part, and there's no substitute part
Auger housing and engine assembly diagram
Bracket
Part #40597
The manufacturer no longer makes this part, and there's no substitute part
Main frame diagram
Handle
Part #49431
The manufacturer no longer makes this part, and there's no substitute part
Main frame diagram
C Cont Rod L
Part #50596
The manufacturer no longer makes this part, and there's no substitute part
Main frame diagram
Lift Hand Extension
Part #50652
The manufacturer no longer makes this part, and there's no substitute part
Main frame diagram
Caution Decal
Part #68444
The manufacturer no longer makes this part, and there's no substitute part
