Model #WKXR2100T5WW GE washer

Here are the diagrams and repair parts for GE WKXR2100T5WW washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

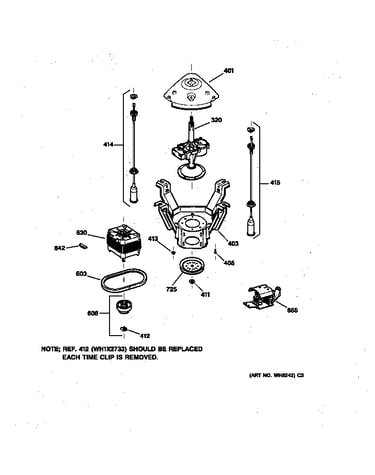

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 144 parts

|

Washer Control Knob

#19

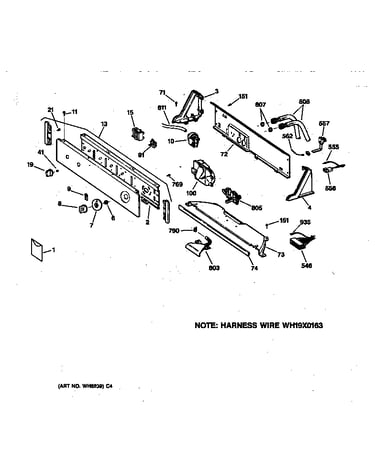

Controls & backsplash Diagram

Washer control knob

Part #WH1X2721
$11.51

In Stock

Washer Dampening Strap

#370

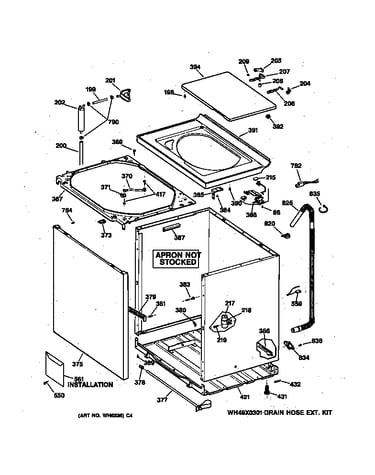

Cabinet, cover & front panel Diagram

Washer dampening strap

Part #WH1X2727
This item is not returnable
$5.50

In Stock

Washer Tub Bearing Washer

#314

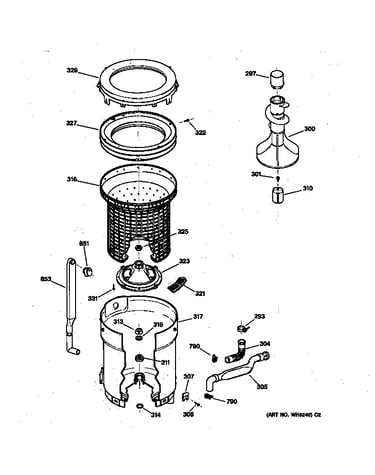

Tub, basket & agitator Diagram

Washer tub bearing washer

Part #WH2X1197
This item is not returnable
$4.05

In Stock

Washer Hub Nut

#325

Tub, basket & agitator Diagram

Washer hub nut

Part #WH2X1193
$11.98

In Stock

Washer Tub Mounting Hub Washer

#315

Tub, basket & agitator Diagram

Washer tub mounting hub washer

Part #WH2X1199
This item is not returnable
$4.04

In Stock

Washer Water-Level Pressure Switch Hose

#811

Controls & backsplash Diagram

$9.04

In Stock

Washer Screw

#322

Tub, basket & agitator Diagram

Washer screw

Part #WH2X1194
This item is not returnable
$3.80

In Stock

Washer Timer Dial Compression Ring

#6

Controls & backsplash Diagram

$13.36

In Stock

Washer Lid Hinge Bumper

#208

Cabinet, cover & front panel Diagram

Washer lid hinge bumper

Part #WH1X2742
This item is not returnable
$2.80

In Stock

Washer Hinge Screw

#209

Cabinet, cover & front panel Diagram

Washer hinge screw

Part #WH2X1211
This item is not returnable
$2.88

In Stock

Showing 10 of 144 parts

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
