Kenmore 89961339320 top-mount refrigerator Parts

Your Kenmore refrigerator model number is printed on a rating label inside the fresh food section or freezer. On Kenmore model 89961339320 top-mount refrigerators, the label is typically on an interior side wall, along the door frame, or behind the lower crisper area; use that exact model number when ordering parts or checking fit.

Where to look for the model number label

Check these common spots first (use a flashlight and look for a white or silver sticker/plate):

• Inside the refrigerator compartment on the left or right interior wall
• Along the door frame (near the gasket) when the door is open
• Behind or just above the lower crisper drawers
• Inside the freezer compartment on a side wall
• Near the front base area behind the toe grille or kick plate

What the model number looks like (and what to write down)

We recommend copying the full model number exactly as shown, including any extra digits.

What to record	Example	Why it matters
Model number	89961339320	Ensures parts and diagrams match your exact refrigerator
Serial number	(varies)	Helps identify production run for correct revisions
Brand	Kenmore	Confirms the correct parts catalog family

Why it matters for parts and troubleshooting

Using the exact model number prevents ordering the wrong door hinge, control panel, or fan parts. Even similar-looking Kenmore top-mount refrigerators can use different shelves, hinges, and temperature control components.

Tips if the label is hard to find or read

• Pull out the crispers and look on the wall behind them
• Wipe the label gently with a damp cloth, then dry it
• Take a clear photo and zoom in to confirm every digit
• If you are reversing doors or leveling the cabinet, follow the steps in the installation guide

Last updated: February 2026

For Kenmore model 89961339320, the installation guide groups it with the 899.6133# series, which lists a total capacity of about 20.5 cu. ft. (freezer about 4.9 cu. ft. and fresh food about 15.6 cu. ft.). For the exact spec for your unit, confirm the model on the rating label and compare it to the installation guide.

Capacity for the 899.6133# series (what you should expect)

The specifications table in the installation guide shows these capacities for the 899.6133# family:

Compartment	Typical capacity listed	What it means
Freezer	4.9 cu. ft.	Space in the top freezer section
Refrigerator	15.6 cu. ft.	Space in the fresh food section
Total	20.5 cu. ft.	Combined usable storage volume

How to confirm you have the right capacity

Use these quick checks so you match the correct spec to your exact refrigerator:

• Find the rating label inside the refrigerator compartment (often on a side wall).
• Verify the model number reads 89961339320.
• Match it to the 899.6133# line in the specifications section of the installation guide.
• If your label shows a closely related series (for example 899.6231# or 899.7133#), use that line’s capacity instead.
• If you are measuring for fit, also compare the listed width, depth, and height in the same specs table.

Why it matters

Cubic feet helps you compare storage space across refrigerators, but it also affects expectations for cooling recovery, freezer organization, and whether accessories like door bins and racks feel “right-sized” for your model.

Last updated: February 2026

Kenmore model numbers tell us which product family you have and which parts fit. For Kenmore refrigerators like model 89961339320, the full model number on the ID label is what we use to match the correct shelves, hinges, controls, and other replacement parts; use it exactly as printed.

Where to find the model number on a Kenmore refrigerator

On most Kenmore top-mount refrigerators, the model and serial label is typically located in one of these spots:

• Inside the fresh food (refrigerator) compartment on a side wall
• Along the ceiling of the fresh food compartment near the light
• On the cabinet frame near the door opening (hinge side)
• On the back of the refrigerator near the lower area

How to interpret a Kenmore model number (what the sections mean)

Kenmore model numbers are usually structured so the beginning identifies the manufacturing source, followed by the base model and then a suffix that indicates variations (finish, feature package, or production revision). When we look up parts, the most important rule is to use the entire model number, including any digits after a dash.

Quick breakdown (typical Kenmore format)

Model number section	What it usually indicates	Why it matters
First 3 digits (prefix)	Manufacturing source code	Helps group similar designs
Middle digits	Base model/platform	Drives most part compatibility
Ending digits/suffix	Version/variation	Prevents ordering the wrong revision

Tips to avoid ordering the wrong part

Even one digit off can point to a different door style, hinge set, or control layout. Before ordering, we recommend:

• Copy the model number directly from the label (do not guess from the front badge)
• Match every digit exactly (including leading zeros)
• If your label shows a series (example: 899.6133# in documentation), still use the full printed model number on your unit for parts lookup

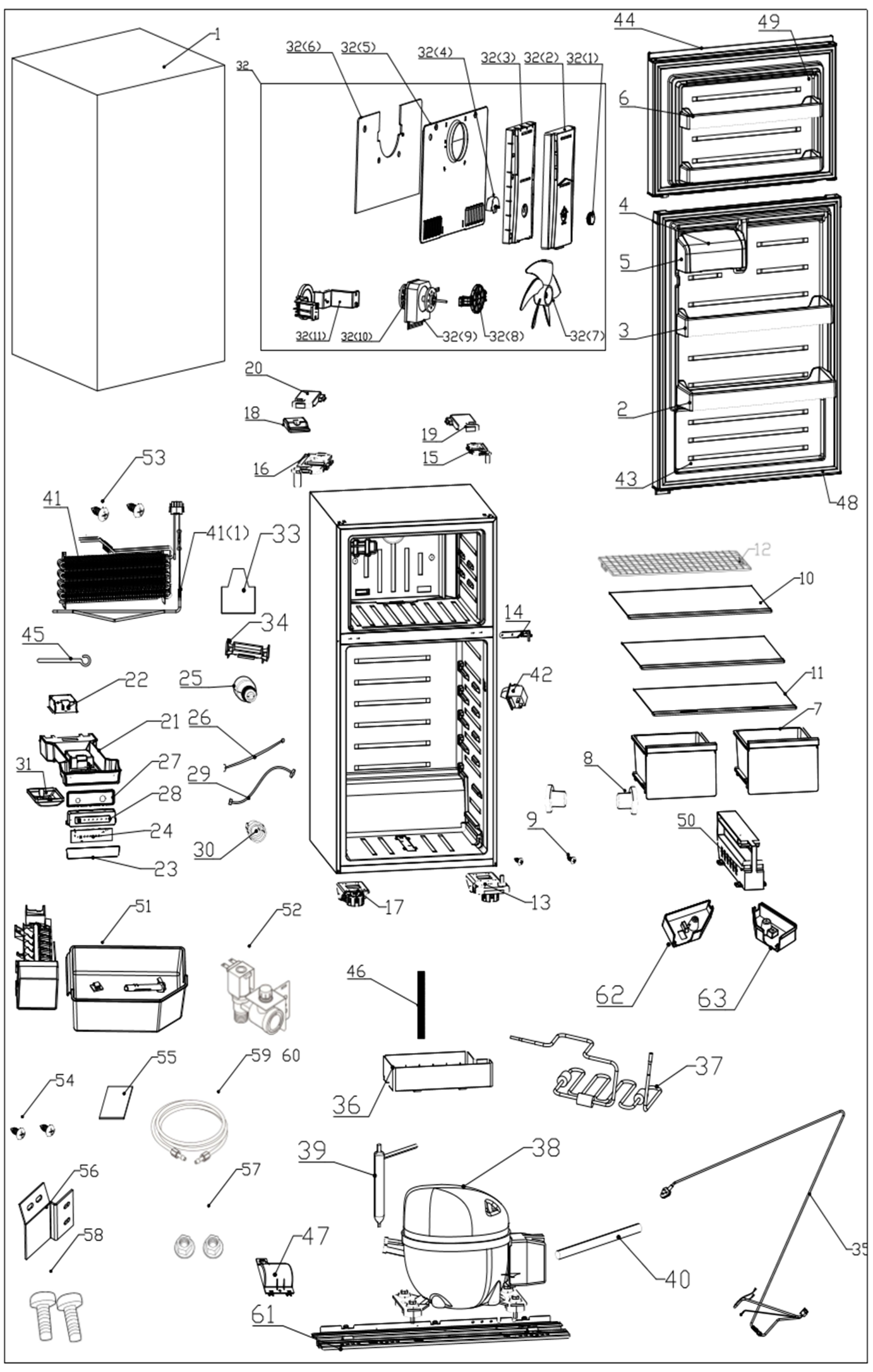

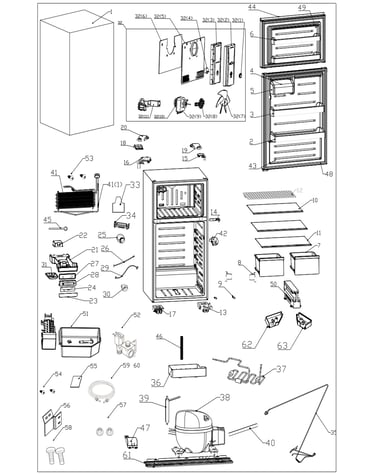

• Use the documentation diagrams for orientation when identifying door and hinge parts

If you are swapping door swing direction or working around hinges and leveling, follow the steps and tool list in the installation guide.

Why it matters

Using the correct Kenmore model number ensures the parts you choose fit your exact cabinet dimensions and configuration (door bins, hinges, controls, and optional ice maker setup). It also reduces returns and repeat repairs.

Last updated: February 2026

Most Kenmore refrigerators last 10 to 15 years. For your Kenmore 89961339320 top-mount refrigerator, lifespan depends most on airflow (clean coils and vents), tight door sealing, and keeping the unit level and correctly installed per the installation guide.

Typical lifespan and what changes it

A refrigerator’s life is usually determined by compressor run time, heat removal, and how hard the sealed system has to work.

• 10 to 15 years is the normal range for household refrigerators
• Longer life comes from clean condenser area, stable temperatures, and good door sealing
• Shorter life is common with poor ventilation, dirty coils, frequent overloading, or doors not closing fully

Maintenance that adds years (high impact)

We recommend these habits for Kenmore top-mount units like model 89961339320:

• Keep the refrigerator level so doors self-close and seals seat evenly
• Leave proper clearance around the cabinet for heat to escape
• Clean spills and keep airflow paths open so the compressor does not run excessively
• Check door gaskets for gaps, tears, or stiffness; warm air leaks drive longer run times
• Avoid overloading; heavy loads force longer compressor cycles

Quick “health check” table

What you notice	What it usually means	What to do first
Runs almost constantly	Heat not leaving cabinet or warm air leaking in	Improve ventilation, check door seal, reduce overloading
Temps swing a lot	Control setting or airflow issue	Verify control setting, unblock vents
Frost buildup or moisture	Door not sealing or frequent door openings	Inspect gasket, confirm doors close squarely

Why it matters

A refrigerator that runs longer than necessary wears the compressor and fans faster, increases energy use, and can lead to temperature problems that shorten food storage life.

Last updated: February 2026
