KitchenAid KGCR025BAL1 create-a-cooktop Parts
Here are the diagrams and repair parts for KitchenAid KGCR025BAL1 create-a-cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

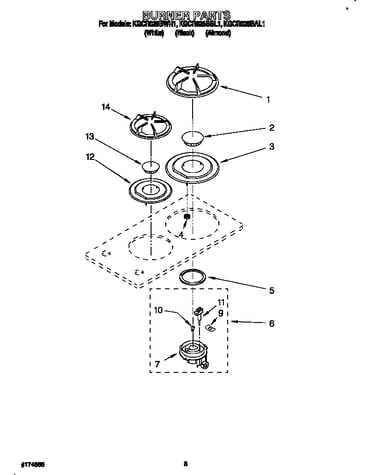

Browse Parts for KGCR025BAL1 Cooktops

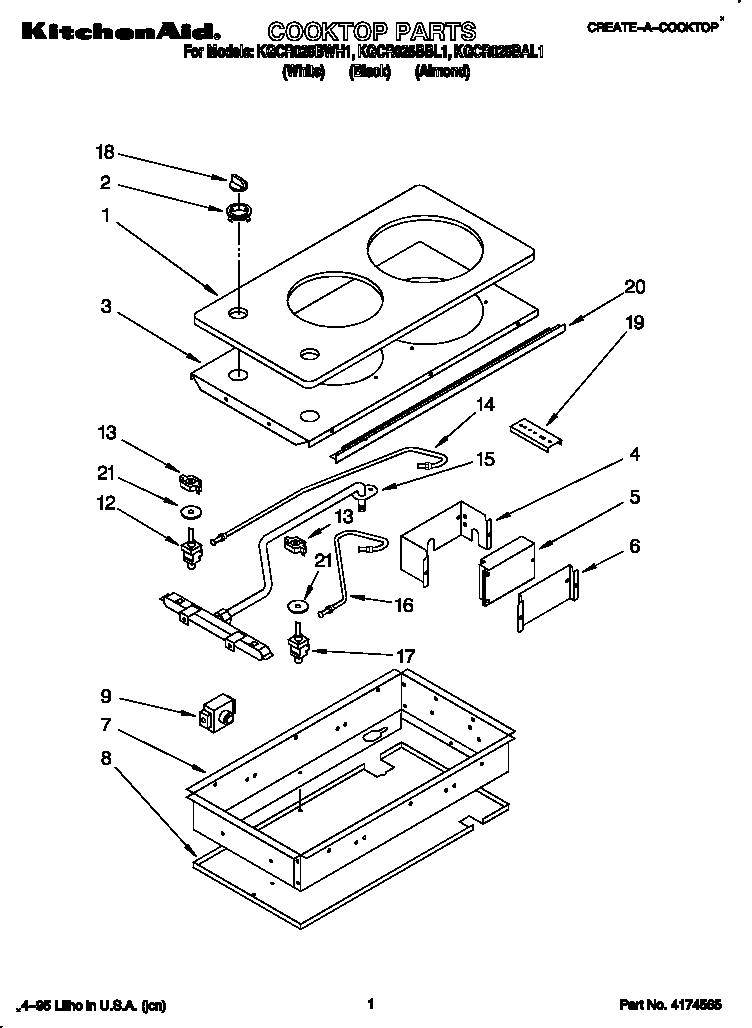

Cooktop diagram
Grommet-bl
Part #3180079Replaced by #W10854242
Manufacturer substitutionThis part replaces 3180079. Substitute parts can look different from the original.This item is not returnableIn Stock$7.9411% OFF Phone Price : $8.94
Qty

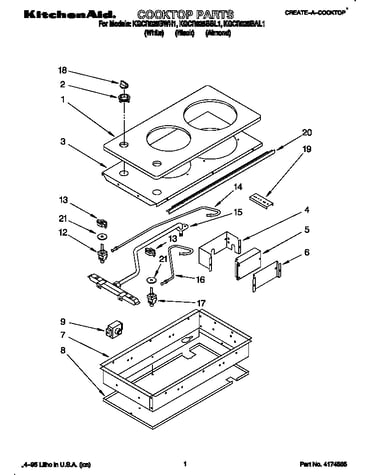

Cooktop diagram
Gasket Switch
Part #3185430Replaced by #WP3188425

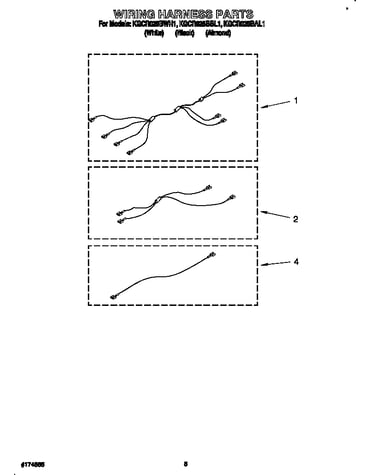

Manufacturer substitutionThis part replaces 3185430. Substitute parts can look different from the original.In Stock$45.9112% OFF Phone Price : $51.91QtyWiring harness diagram
Bushing
In Stock$9.1410% OFF Phone Price : $10.14QtyCooktop diagram
Grommet-wh
Part #3180081Replaced by #WP3180081
Manufacturer substitutionThis part replaces 3180081. Substitute parts can look different from the original.This item is not returnableIn Stock$7.8711% OFF Phone Price : $8.87QtyScrew
Part #4159450Replaced by #W11233072
Manufacturer substitutionThis part replaces 4159450. Substitute parts can look different from the original.In Stock$17.63QtyCooktop diagram
Cooktop Burner Control Knob
Part #3182567Replaced by #WP3182567
Manufacturer substitutionThis part replaces 3182567. Substitute parts can look different from the original.This item is not returnableIn Stock$32.8715% OFF Phone Price : $38.87QtyCooktop diagram
Range Burner Control Knob
Part #3182569Replaced by #WP3182569
Manufacturer substitutionThis part replaces 3182569. Substitute parts can look different from the original.This item is not returnableIn Stock$27.9518% OFF Phone Price : $33.95QtyCooktop diagram
Range Burner Control Knob
Part #3182568Replaced by #WP3182568
Manufacturer substitutionThis part replaces 3182568. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0319% OFF Phone Price : $32.03QtyScrew
Part #3148107Replaced by #WP488729
Manufacturer substitutionThis part replaces 3148107. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93QtyCooktop diagram
Nut
Part #4167077Replaced by #WP4167077
Manufacturer substitutionThis part replaces 4167077. Substitute parts can look different from the original.In Stock$27.28Qty
