Model # KDL-50R550A Official Sony led television

Here are the diagrams and repair parts for Official Sony KDL-50R550A led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Ac Cover 429952801
#66

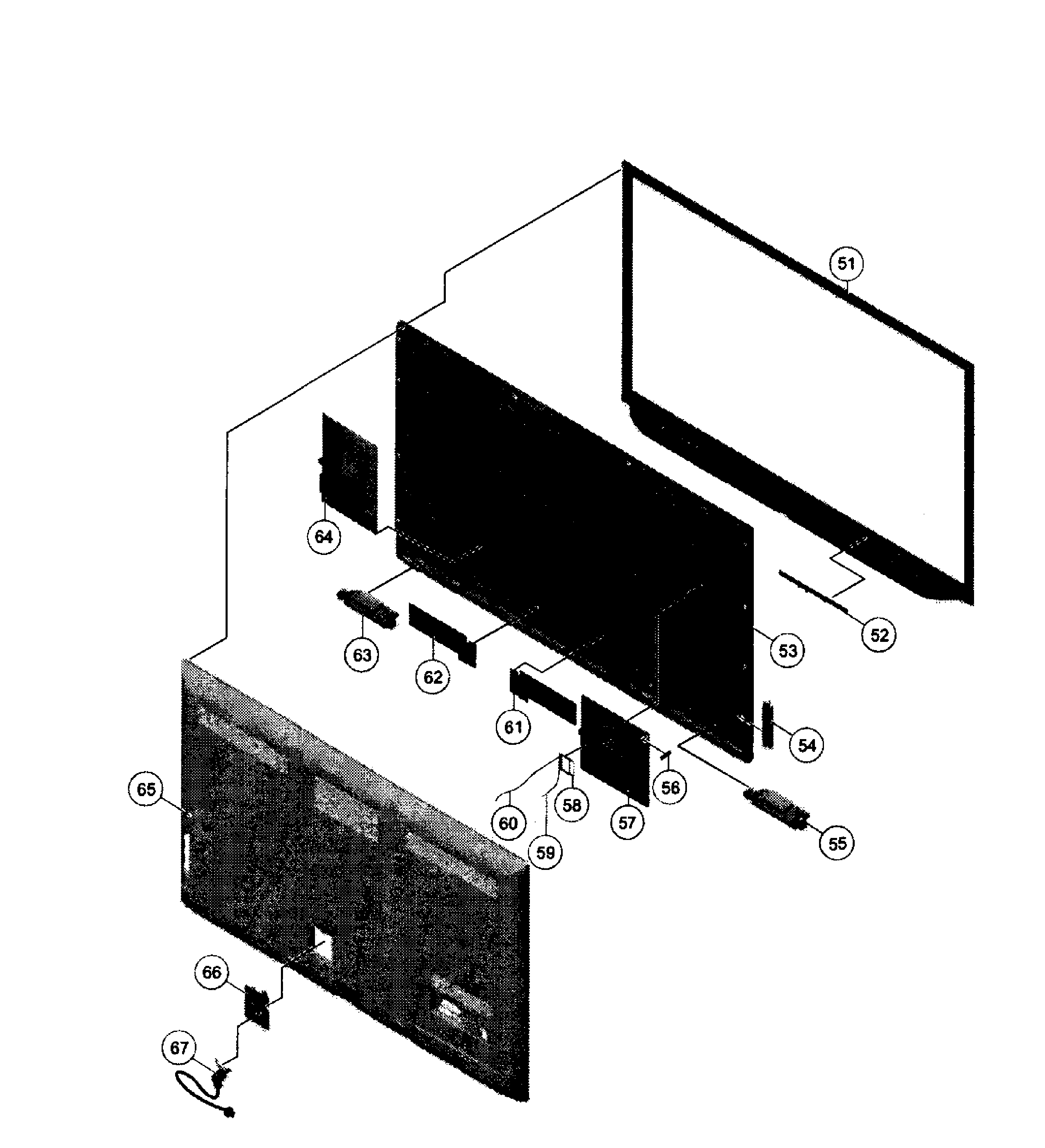

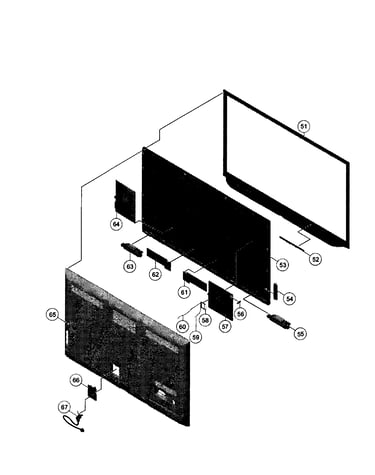

Cabinet assy diagram

Ac cover

Part #429952801

The manufacturer no longer makes this part, and there's no substitute part

Connector 191010825
#201

Connectors diagram

Connector

Part #191010825

Replaced by #191010825

?
Manufacturer substitution
This part replaces 191010825. Substitute parts can look different from the original.
$8.74
In Stock
Frame 445159001
#61

Cabinet assy diagram

Frame

Part #445159001

Replaced by #445159001

?
Manufacturer substitution
This part replaces 445159001. Substitute parts can look different from the original.
$11.76
In Stock
Speaker, Right 185889021
#63

Cabinet assy diagram

Speaker, right

Part #185889021

The manufacturer no longer makes this part, and there's no substitute part

Lcd Panel 181183211
#53

Cabinet assy diagram

Lcd panel

Part #181183211

The manufacturer no longer makes this part, and there's no substitute part

Neck R L3 444662501
#2

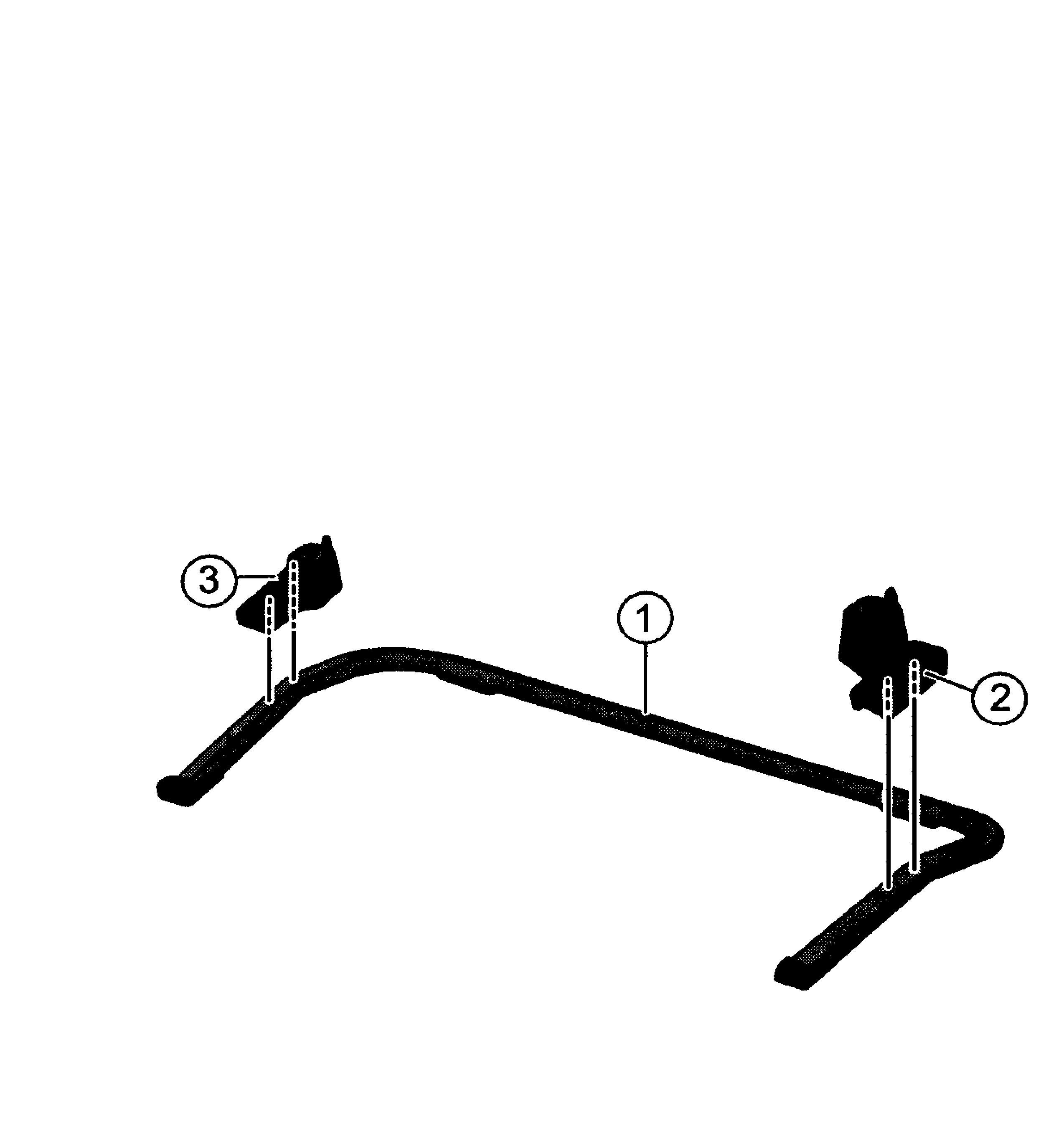

Stand assy diagram

Neck r l3

Part #444662501

The manufacturer no longer makes this part, and there's no substitute part

Cover 446482001
#65

Cabinet assy diagram

Cover

Part #446482001

Replaced by #446482001

?
Manufacturer substitution
This part replaces 446482001. Substitute parts can look different from the original.
$101.53
In Stock
Supply Belt 441447001
#NI

Stand assy diagram

Supply belt

Part #441447001

The manufacturer no longer makes this part, and there's no substitute part

Cable Mb-t 191010829
#205

Connectors diagram

Cable mb-t

Part #191010829

Replaced by #191010829

?
Manufacturer substitution
This part replaces 191010829. Substitute parts can look different from the original.
$28.13
In Stock
Cable Mb-k 191010831
#202

Connectors diagram

Cable mb-k

Part #191010831

Replaced by #191010831

?
Manufacturer substitution
This part replaces 191010831. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
