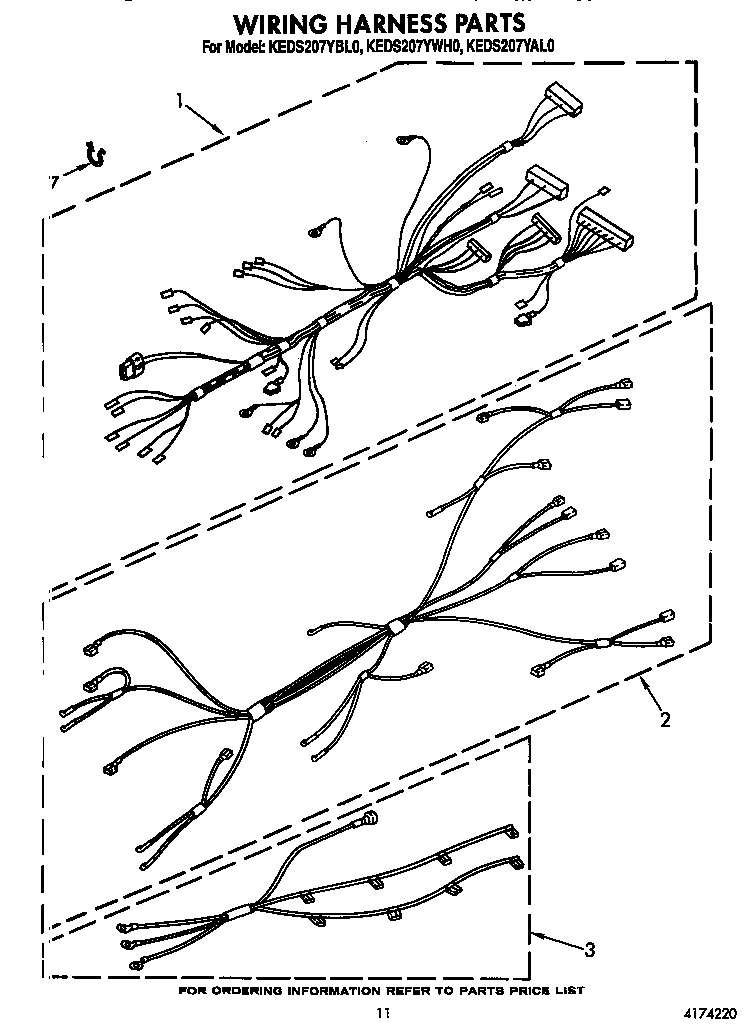

KitchenAid KEDS207YBL0 30" electric drop-in range with self-cleaning oven Parts
Here are the diagrams and repair parts for KitchenAid KEDS207YBL0 30" electric drop-in range with self-cleaning oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

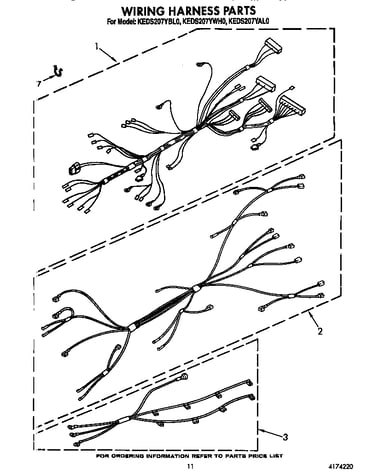

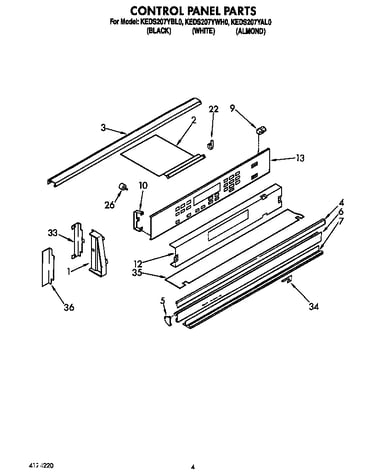

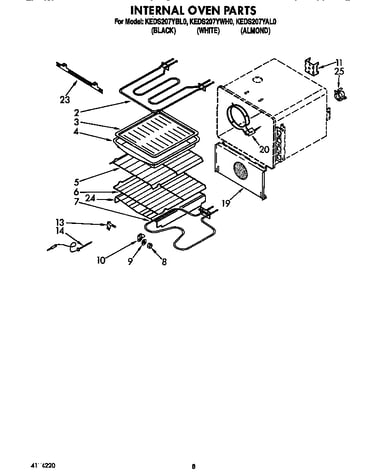

SELECT DIAGRAM
Browse Parts for KEDS207YBL0 Ranges

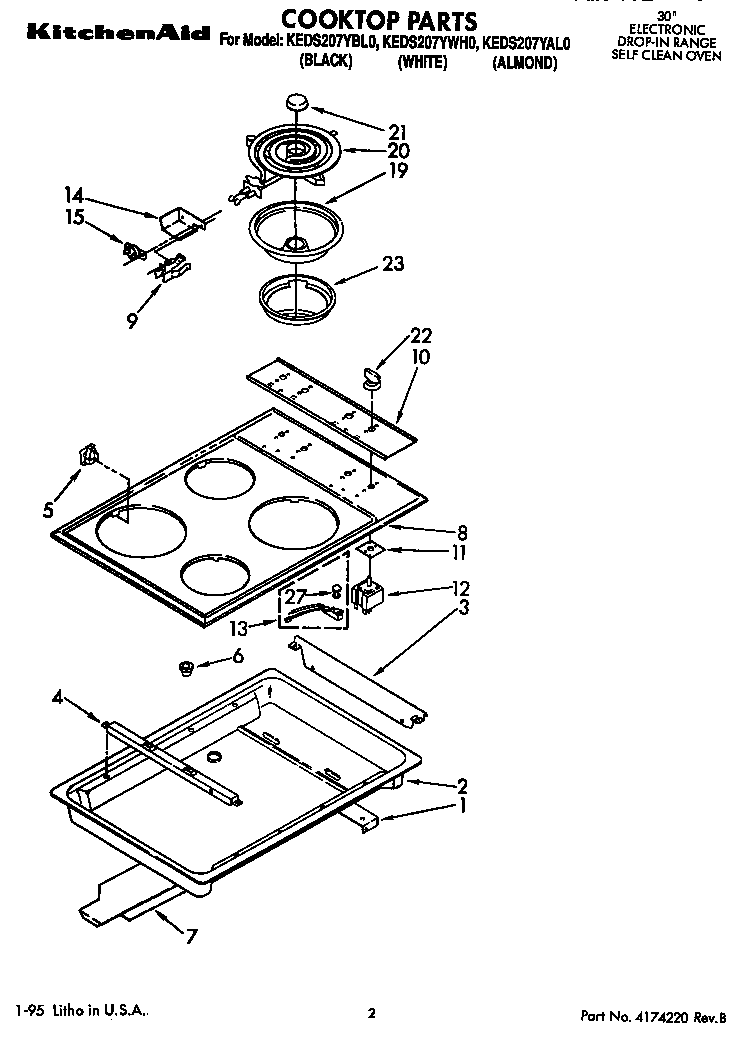

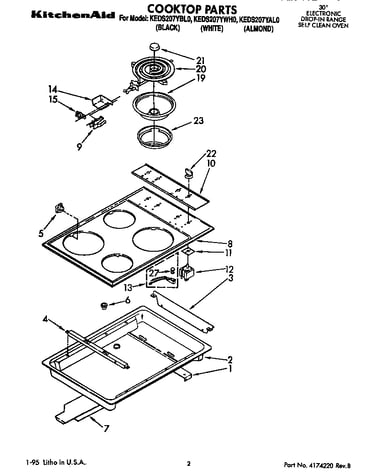

Cooktop diagram
Clip
Part #3147829Replaced by #330031
Manufacturer substitutionThis part replaces 3147829. Substitute parts can look different from the original.In Stock$9.719% OFF Phone Price : $10.71
Qty
#NI
All parts diagram
Spray W
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.7818% OFF Phone Price : $32.78QtyCooktop diagram
Range Coil Surface Element, 8-in
Part #660533Replaced by #WP660533

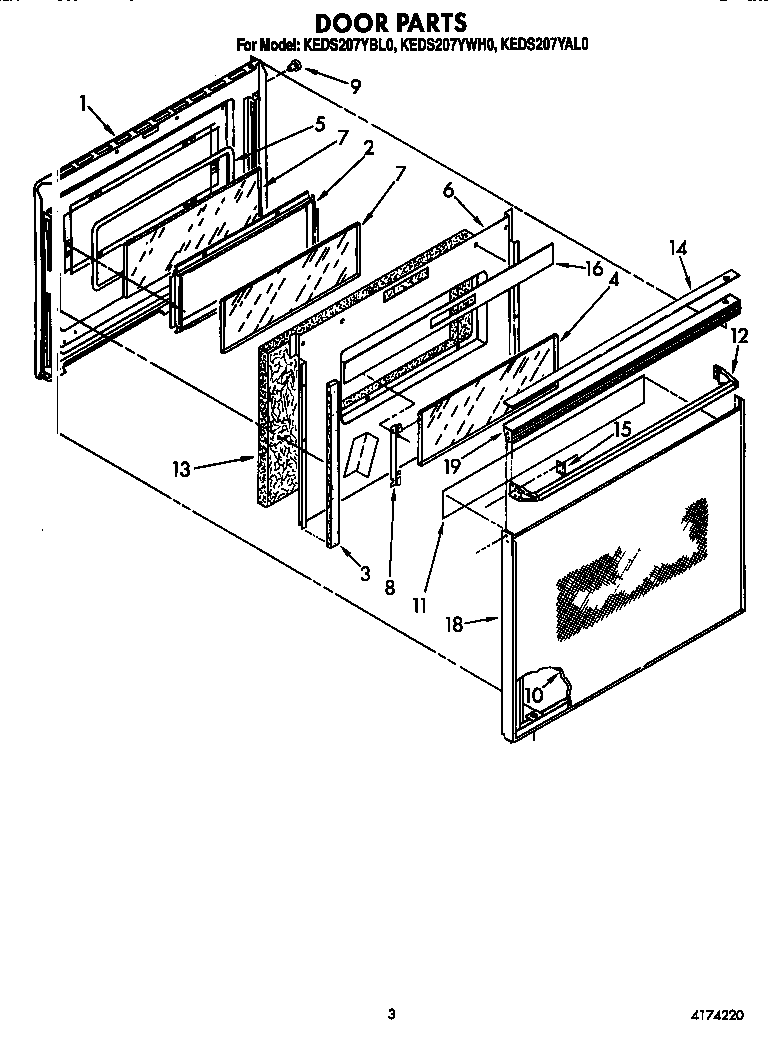

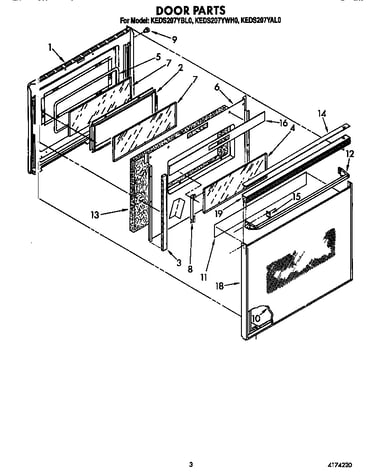

Manufacturer substitutionThis part replaces 660533. Substitute parts can look different from the original.In Stock$17.2310% OFF Phone Price : $19.23QtyDoor diagram
Screw
Part #3182346Replaced by #WP308685
Manufacturer substitutionThis part replaces 3182346. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09QtyCooktop diagram
Range Coil Surface Element, 6-in
Part #660532Replaced by #WP660532
Manufacturer substitutionThis part replaces 660532. Substitute parts can look different from the original.In Stock$30.4116% OFF Phone Price : $36.41QtyScrew
Part #343641Replaced by #WP681414
Manufacturer substitutionThis part replaces 343641. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91Qty#NI
All parts diagram
Touchup Al
Part #72107Replaced by #WP72107

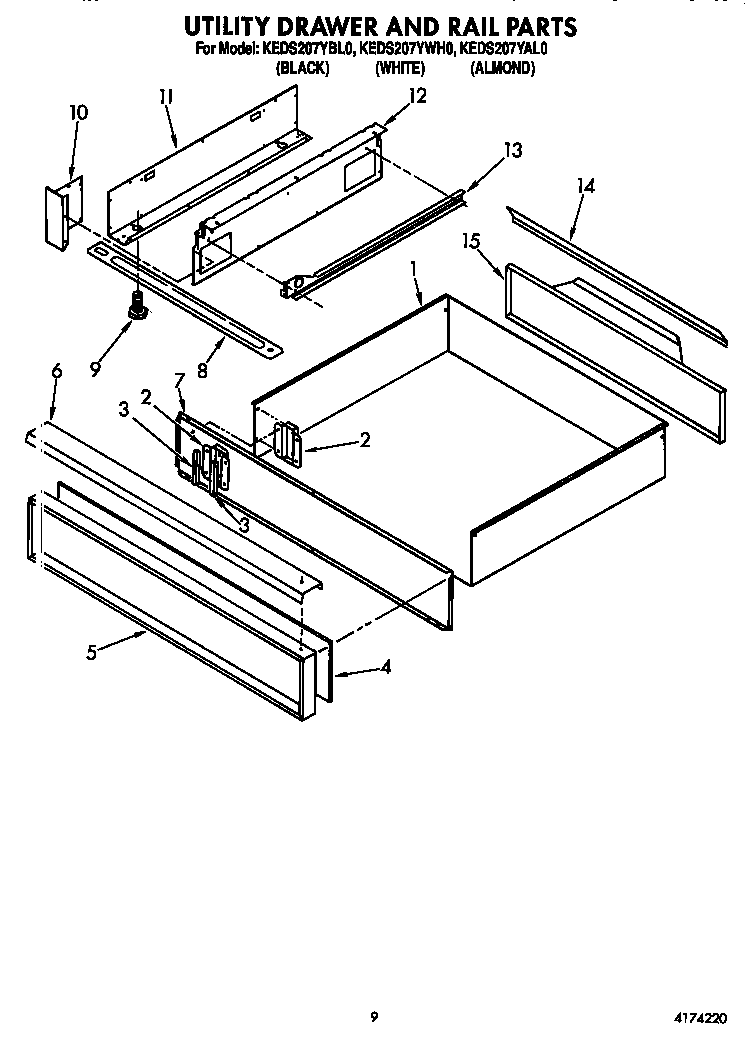

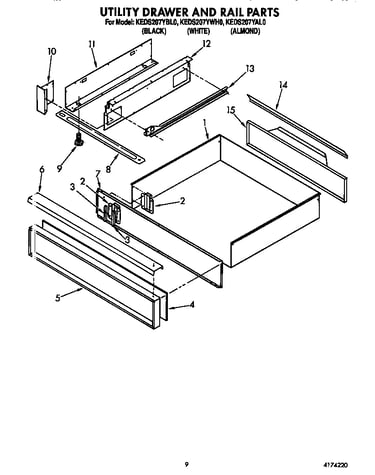

Manufacturer substitutionThis part replaces 72107. Substitute parts can look different from the original.This item is not returnableIn Stock$9.899% OFF Phone Price : $10.89QtyUtility drawer and rail diagram
Level Foot
Part #3150150Replaced by #WPW10058460

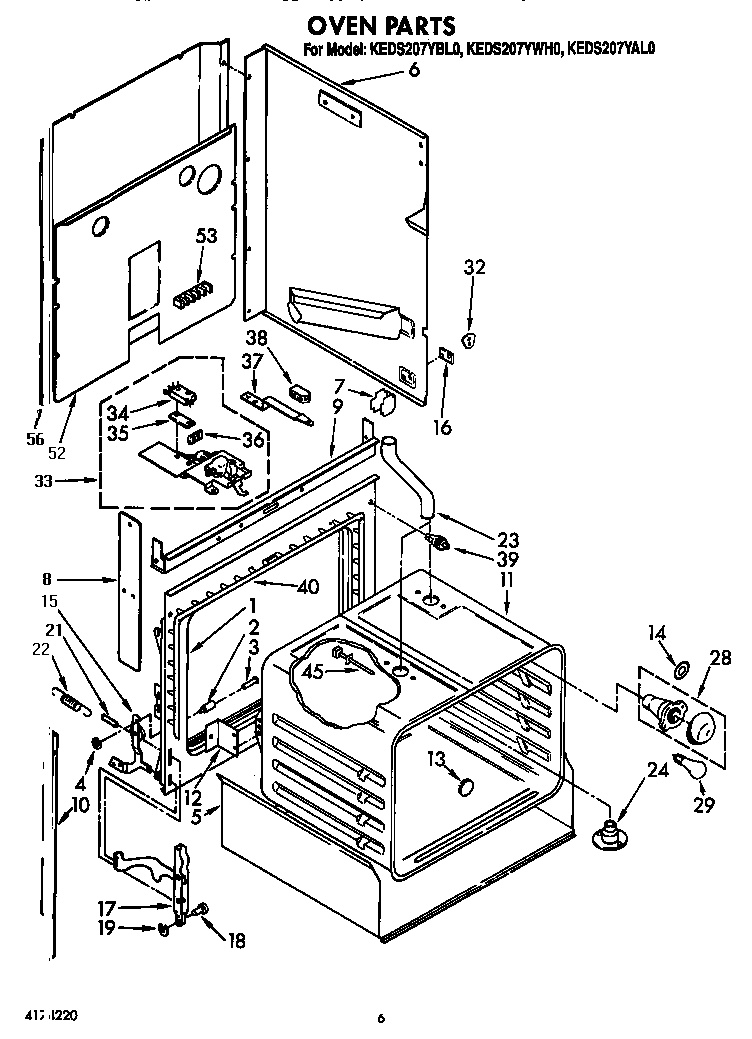

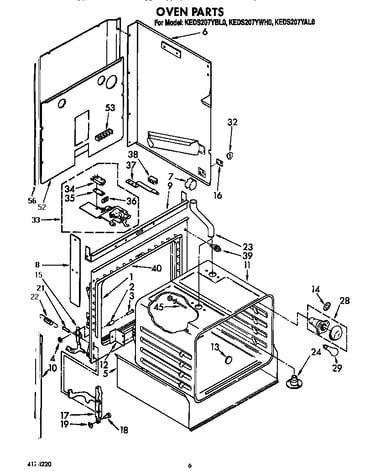

Manufacturer substitutionThis part replaces 3150150. Substitute parts can look different from the original.This item is not returnableIn Stock$6.9513% OFF Phone Price : $7.95QtyOven diagram
Light Socket
Part #3150505Replaced by #W11594027
Manufacturer substitutionThis part replaces 3150505. Substitute parts can look different from the original.In Stock$73.858% OFF Phone Price : $79.85Qty#NI
All parts diagram
Touch-up Paint (black)
Part #72032Replaced by #72032
Manufacturer substitutionThis part replaces 72032. Substitute parts can look different from the original.This item is not returnableIn Stock$11.0815% OFF Phone Price : $13.08Qty
