Model # ZIDS240HASS Official GE double drawer refrigerator

Here are the diagrams and repair parts for Official GE ZIDS240HASS double drawer refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Refrigeration Appliance Evaporator Fan Motor And Blade WR60X10165
#601

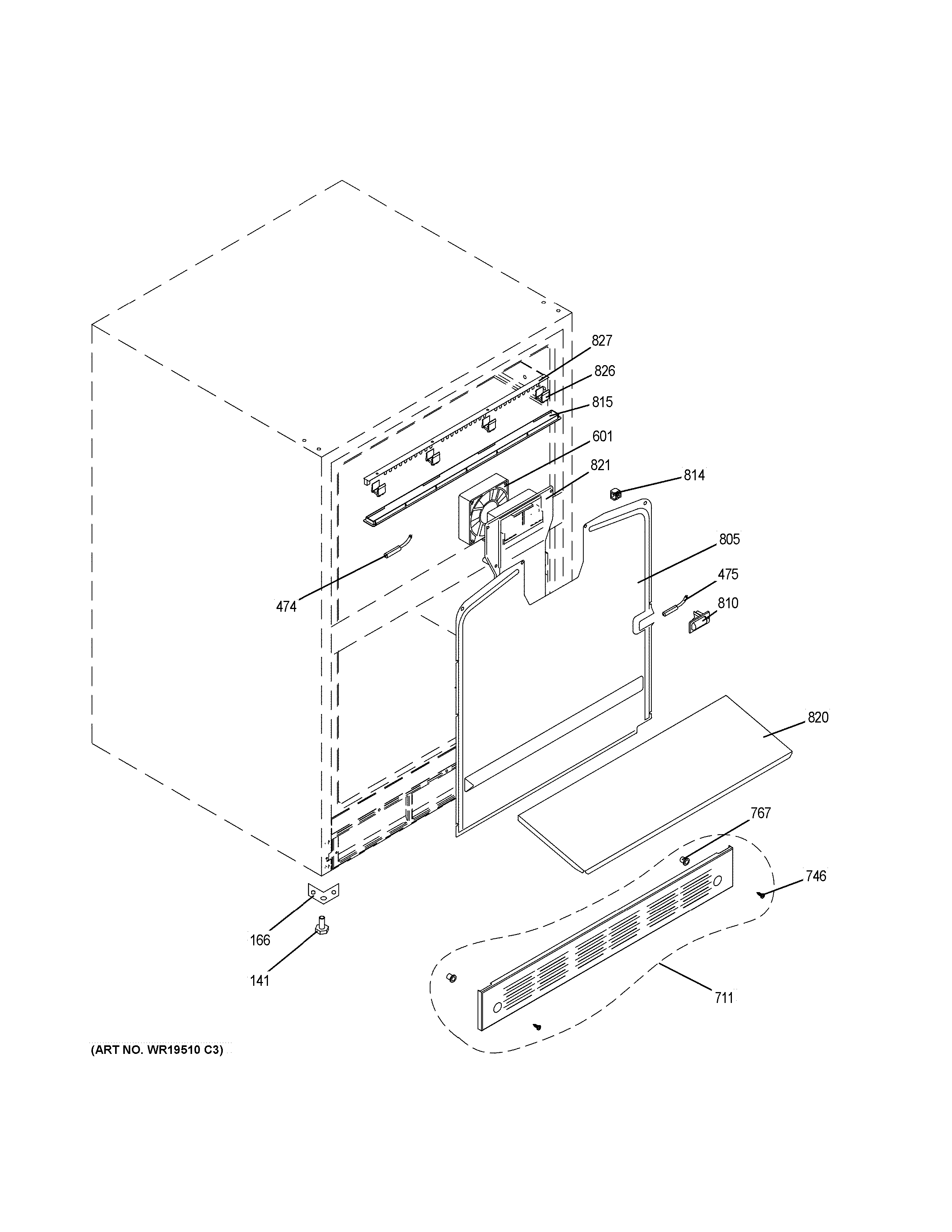

Cabinet diagram

Refrigeration appliance evaporator fan motor and blade

Part #WR60X10165

$226.00 |
$10.00 OFF Phone Price : $236.00
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#31

Machine compartment diagram

Wine cooler compressor start relay

Part #WR07X10072

$96.54 |
9% OFF Phone Price : $106.54
In Stock
Refrigerator Compressor WR87X10112
#210

Machine compartment diagram

Refrigerator compressor

Part #WR87X10112

$672.35
In Stock
Beverage Cooler Power Control Board (replaces Wr17x11680, Wr55x10407, Wr55x10507, Wr55x10508, Wr55x10509, Wr55x10510, Wr55x10511, Wr55x10512) WR55X10430
#828

Machine compartment diagram

Beverage cooler power control board (replaces wr17x11680, wr55x10407, wr55x10507, wr55x10508, wr55x10509, wr55x10510, wr55x10511, wr55x10512)

Part #WR55X10430

$494.08 |
$10.00 OFF Phone Price : $504.08
In Stock
Evaporator WR02X11824
#814

Cabinet diagram

Evaporator

Part #WR02X11824

$22.00
In Stock
Led Lens Module WR02X11829
#826

Cabinet diagram

Led lens module

Part #WR02X11829

$24.51
In Stock
Monogram Log WR02X25123
#759

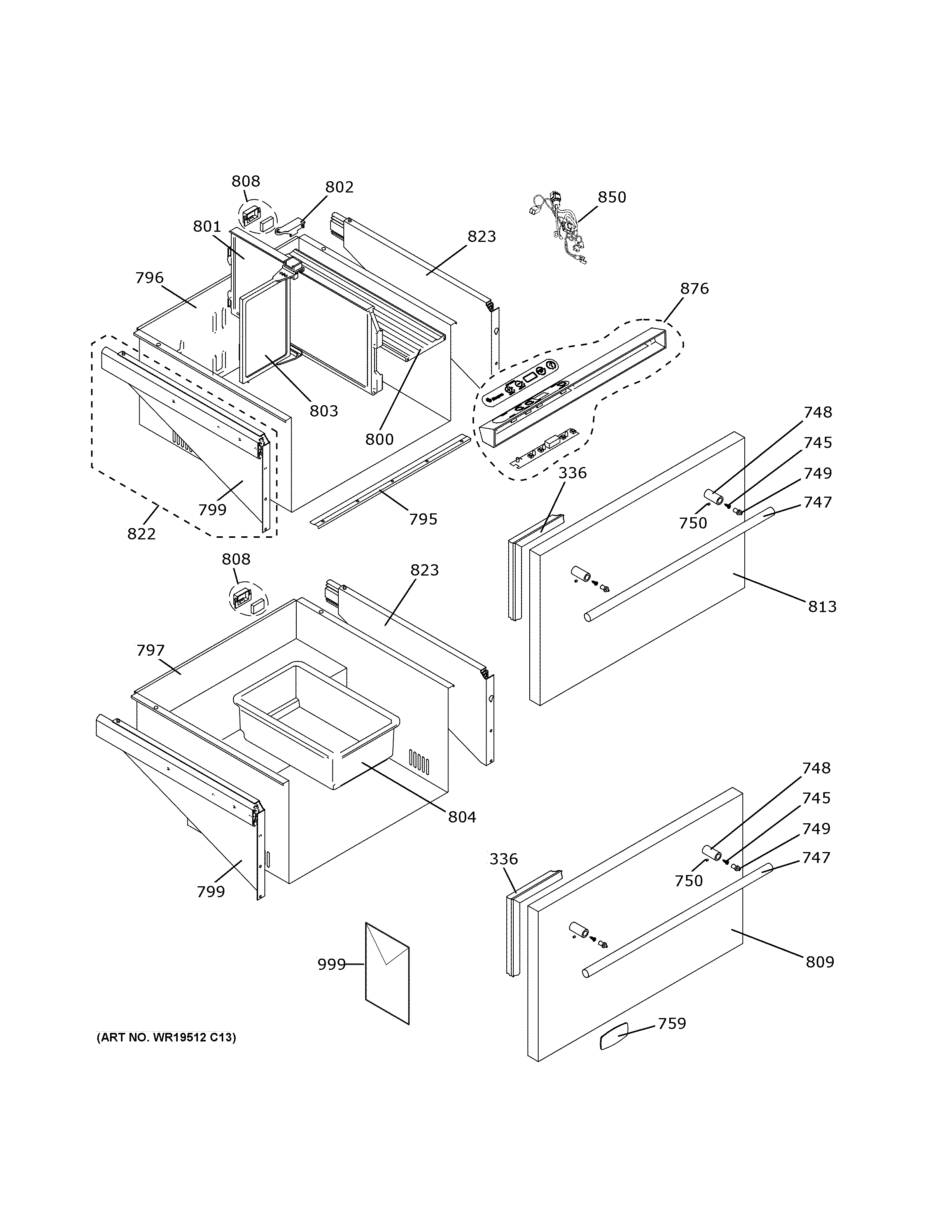

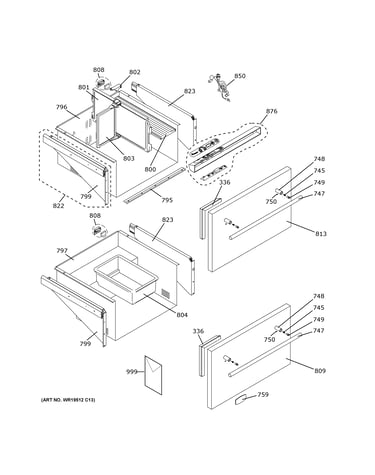

Doors diagram

Monogram log

Part #WR02X25123

$54.38
In Stock
Veg Bin Draw WR71X10590
#804

Doors diagram

Veg bin draw

Part #WR71X10590

$84.62
In Stock
Wine Cooler Switch Holder WR02X11823
#810

Cabinet diagram

Wine cooler switch holder

Part #WR02X11823

$26.32
In Stock
Access Cover, Rear WR82X10096
#819

Machine compartment diagram

Access cover, rear

Part #WR82X10096

$85.97
In Stock
