Kenmore 2538711332 air conditioner

Kenmore 2538711332 air conditioner Parts

Here are the diagrams and repair parts for Kenmore 2538711332 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 2538711332 Air Conditioner

  • Instruction Sheet for Kenmore 2538711332 - Part 5300512264

    #NI

    All parts diagram

    Instructions

    Part #512264

    Replaced by #5300512264

    Info Icon
    Manufacturer substitution
    This part replaces 512264. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.29
    Minus Item
    Qty
    Plus Item
  • Dial Plate for Kenmore 2538711332 - Part 5303206762

    Electrical system & air handling parts diagram

    Panel

    Part #514725

    Replaced by #5303206762

    Info Icon
    Manufacturer substitution
    This part replaces 514725. Substitute parts can look different from the original.
    In Stock
    $67.62
    Minus Item
    Qty
    Plus Item
  • Capacitor for Kenmore 2538711332 - Part 5352000917

    Electrical system & air handling parts diagram

    Capacitor

    Part #508412-06

    Replaced by #5352000917

    Info Icon
    Manufacturer substitution
    This part replaces 508412-06. Substitute parts can look different from the original.
    In Stock
    $196.36
    Minus Item
    Qty
    Plus Item
  • Tube for Kenmore 2538711332 - Part 5314404427

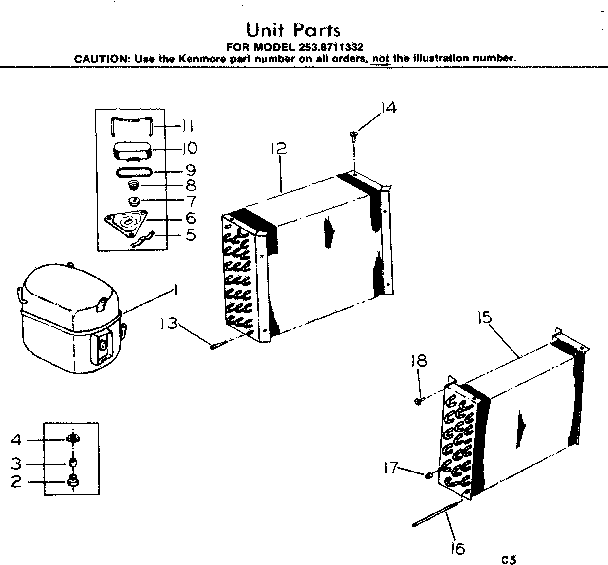

    Unit parts diagram

    Capillary Tube

    Part #144044-23

    Replaced by #5314404427

    Info Icon
    Manufacturer substitution
    This part replaces 144044-23. Substitute parts can look different from the original.
    In Stock
    $36.14
    Minus Item
    Qty
    Plus Item
  • Thermostat for Kenmore 2538711332 - Part 5300161362

    Electrical system & air handling parts diagram

    Thermostat

    Part #120133

    Replaced by #5300161362

    Info Icon
    Manufacturer substitution
    This part replaces 120133. Substitute parts can look different from the original.
    In Stock
    $102.70
    Minus Item
    Qty
    Plus Item
  • Spring for Kenmore 2538711332 - Part 5308002986

    Unit parts diagram

    Spring

    Part #145190

    Replaced by #5308002986

    Info Icon
    Manufacturer substitution
    This part replaces 145190. Substitute parts can look different from the original.
    In Stock
    $31.66
    Minus Item
    Qty
    Plus Item
  • Room Air Conditioner Compressor Start Relay Kit for Kenmore 2538711332 - Part 5304413630

    #NI

    All parts diagram

    Start Kit

    Part #501725

    Replaced by #5304413630

    Info Icon
    Manufacturer substitution
    This part replaces 501725. Substitute parts can look different from the original.
    In Stock
    $212.58
    Minus Item
    Qty
    Plus Item
  • Panel for Kenmore 2538711332 - Part 5300100078

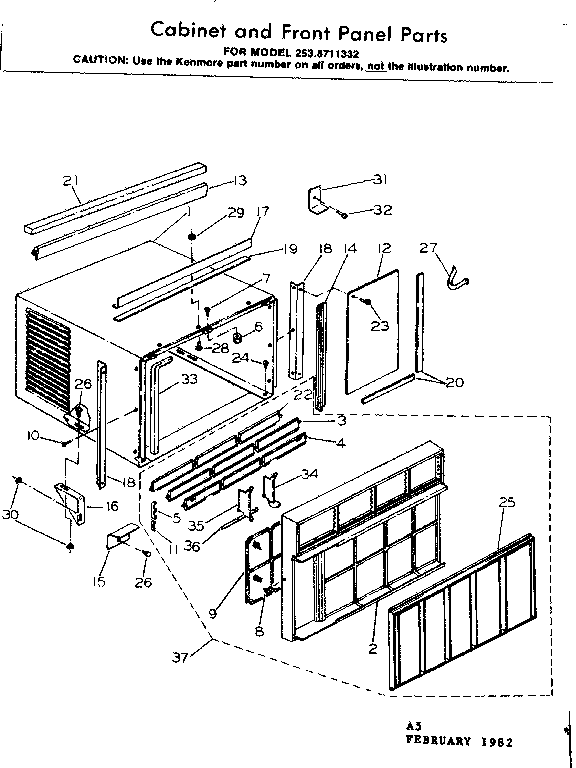

    Cabinet & front panel parts diagram

    Window Panel

    Part #149202-03

    Replaced by #5300100078

    Info Icon
    Manufacturer substitution
    This part replaces 149202-03. Substitute parts can look different from the original.
    In Stock
    $54.32
    Minus Item
    Qty
    Plus Item
  • Dehumidifier Screw for Kenmore 2538711332 - Part 5303007620

    Electrical system & air handling parts diagram

    Screw

    Part #500739

    Replaced by #5303007620

    Info Icon
    Manufacturer substitution
    This part replaces 500739. Substitute parts can look different from the original.
    In Stock
    $33.21
    Minus Item
    Qty
    Plus Item
  • Room Air Conditioner Window Stop Bracket for Kenmore 2538711332 - Part 5303211056

    Cabinet & front panel parts diagram

    Bracket

    Part #500741

    Replaced by #5303211056

    Info Icon
    Manufacturer substitution
    This part replaces 500741. Substitute parts can look different from the original.
    In Stock
    $47.66
    Minus Item
    Qty
    Plus Item
