Craftsman
Gas Line Trimmer

Model #316795060 Official Craftsman brushcutter line trimmer

Here are the diagrams and repair parts for Craftsman 316795060 brushcutter line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 115 parts

    Line Trimmer Spool Spring#33

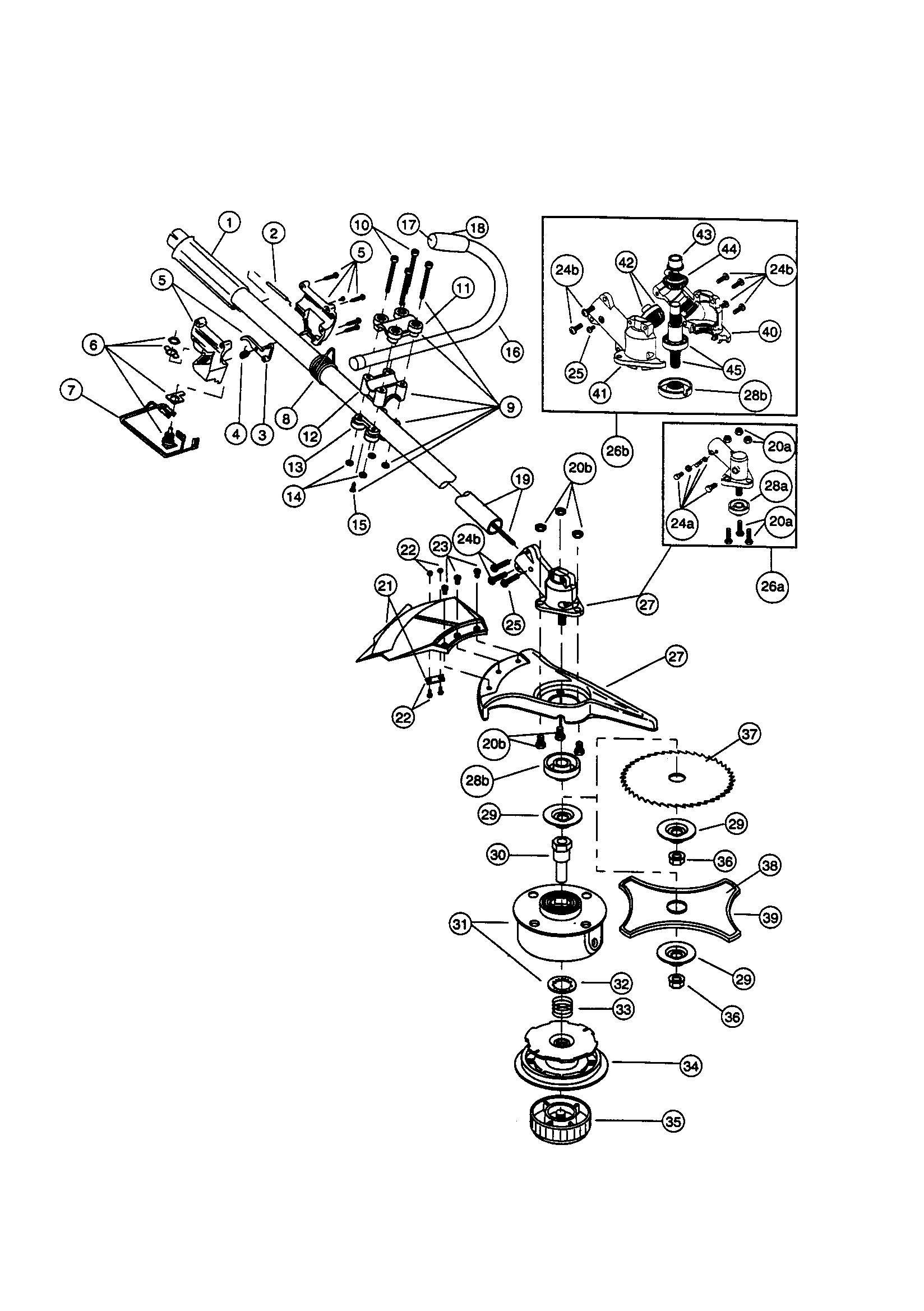

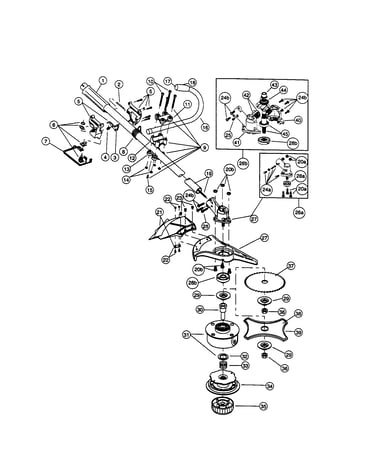

    Boom Diagram

    Spring

    Part #610636
    Replaced by #791-610636B
    ?
    Manufacturer substitution
    This part replaces 610636. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $12.79 |
    14% OFF
    Phone Price: $14.79
    Line Trimmer Primer Bulb and Hose Assembly#11

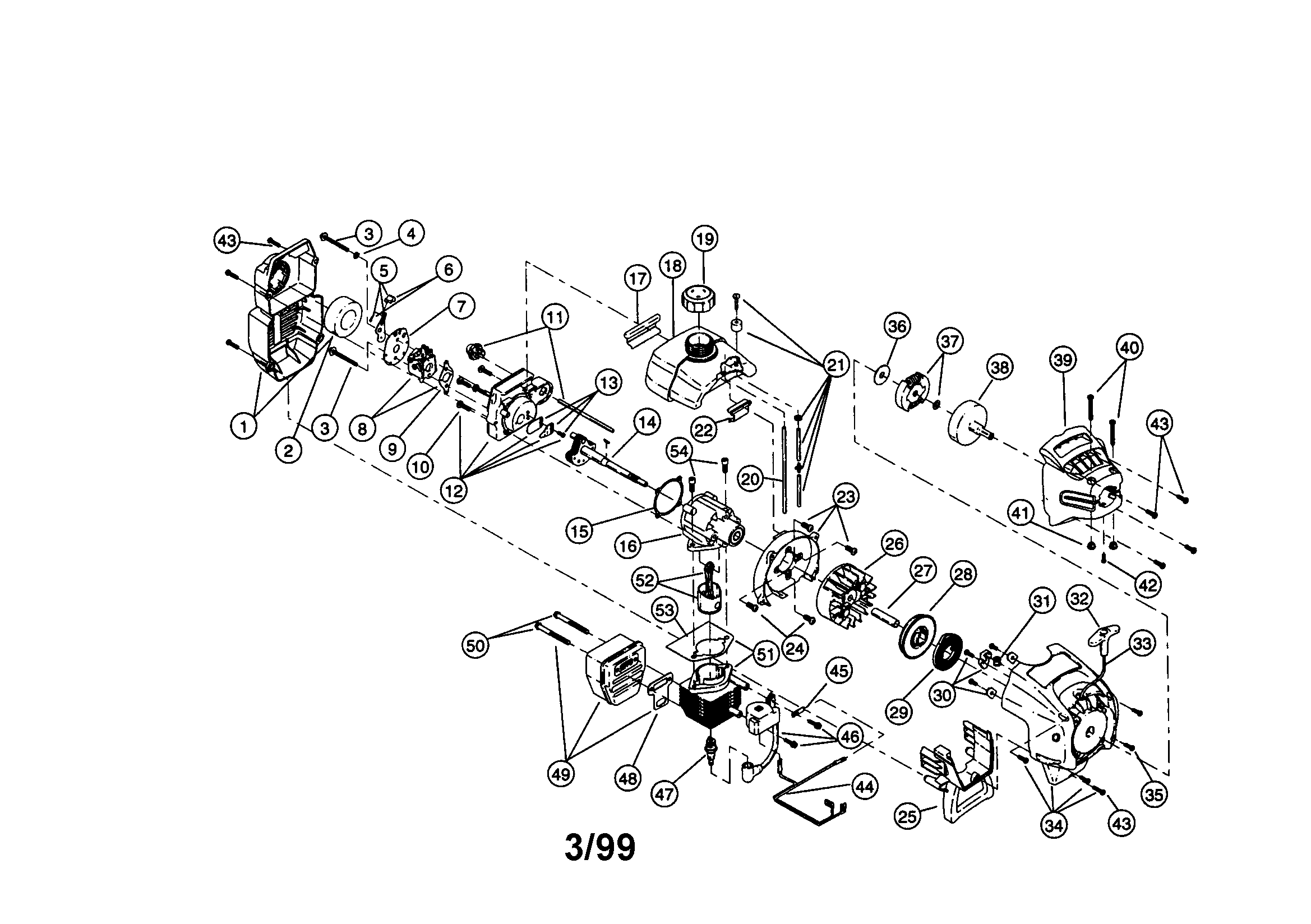

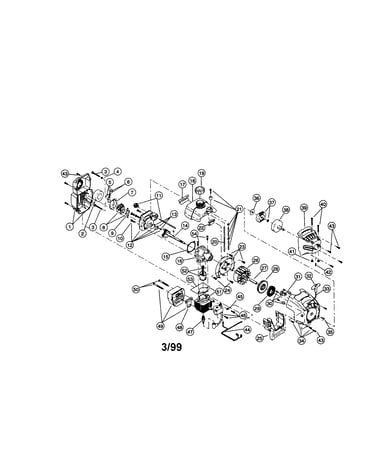

    Engine Diagram

    Prm/hose asy

    Part #181801
    Replaced by #791-683974B
    ?
    Manufacturer substitution
    This part replaces 181801. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $14.23 |
    35% OFF
    MSRP: $22.00
    Line Trimmer Fuel Line#20

    Engine Diagram

    Return fuel

    Part #181168
    Replaced by #791-181086
    ?
    Manufacturer substitution
    This part replaces 181168. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $4.55 |
    38% OFF
    MSRP: $7.30
    Line Trimmer Fuel Line Assembly#21

    Engine Diagram

    Fuel line

    Part #682039
    Replaced by #791-682039
    ?
    Manufacturer substitution
    This part replaces 682039. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $13.49 |
    16% OFF
    MSRP: $16.00
    Lawn & Garden Equipment Engine Air Filter#2

    Engine Diagram

    Filter

    Part #180350
    Replaced by #791-180350B
    ?
    Manufacturer substitution
    This part replaces 180350. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.69 |
    14% OFF
    Phone Price: $14.69
    Lawn & Garden Equipment 2-Cycle Engine Oil, 6-pack

    #NI

    All parts Diagram

    2 cycle oil

    Part #71-36549
    Replaced by #21603
    ?
    Manufacturer substitution
    This part replaces 71-36549. Substitute parts can look different from the original.

    Get free shipping with Automatic Reorder

    In Stock
    $9.99 |
    9% OFF
    Phone Price: $10.99
    Lawn & Garden Equipment Screw#35

    Engine Diagram

    Screw

    Part #181862
    Replaced by #791-181862
    ?
    Manufacturer substitution
    This part replaces 181862. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.59 |
    13% OFF
    Phone Price: $7.59
    Line Trimmer Blade Nut#36

    Boom Diagram

    Lock nut

    Part #181699
    Replaced by #712-04105
    ?
    Manufacturer substitution
    This part replaces 181699. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.69 |
    13% OFF
    Phone Price: $15.69
    Lawn & Garden Equipment Engine Recoil Starter Rope#33

    Engine Diagram

    Rope

    Part #613103
    Replaced by #791-613103
    ?
    Manufacturer substitution
    This part replaces 613103. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $15.39 |
    12% OFF
    Phone Price: $17.39
    Tiller Clutch Cover Screw#43

    Engine Diagram

    Screw

    Part #181345
    Replaced by #791-181345
    ?
    Manufacturer substitution
    This part replaces 181345. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.59 |
    22% OFF
    Phone Price: $4.59
