Tappan TDB210RFS7A dishwasher Parts

In a Tappan TDB210RFS7A dishwasher, the most commonly replaced parts are the ones that control water flow, heating, sealing, and draining, plus rack hardware that wears from daily use. These parts typically fail from normal wear, clogs, leaks, or mineral buildup; routine cleaning and correct detergent use helps reduce repeat failures.

Commonly replaced dishwasher parts (and what they do)

• Door sealing parts: stop leaks around the door opening (example: dishwasher door seal 809006501).
• Water fill parts: let the unit fill to the correct level (example: dishwasher water inlet valve 154637401).
• Drain parts: move used water out of the tub (example: drain hose, drain pump).
• Heating and drying parts: heat wash water and support drying (example: heating element).

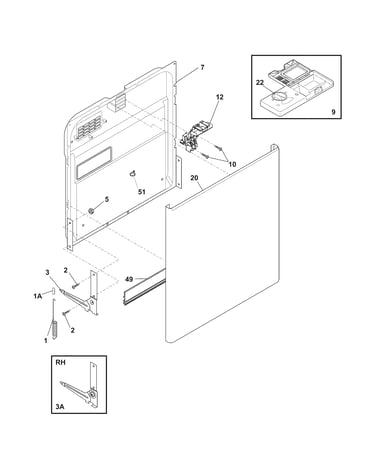

• Door closing parts: keep the door latched so the cycle can run (door latch assembly).

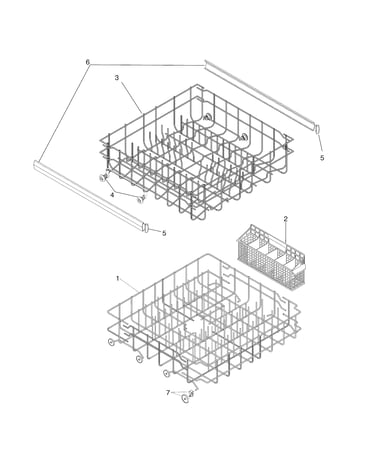

• Rack and roller parts: keep racks sliding smoothly and prevent rust-related damage (upper rack, lower rollers).

Quick symptom-to-part guide

Symptom	Most likely part area	What to check first
Water on floor at the front	Door seal, door alignment	Leveling and seal condition
Not filling or fills slowly	Water inlet valve, supply line	Supply valve fully open, no kinks
Water left in bottom of tub	Drain hose, drain pump	Hose routing, clogs, sink/disposer connection
Poor cleaning	Spray path, water temp/pressure, loading	Loading, 120°F incoming water, spray arm blockage
Detergent left in cup	Dispenser blocked, weak water action	Dishes not blocking dispenser door

Why it matters

Replacing the right part the first time prevents repeat leaks, poor cleaning, and drain problems. The manual also calls out performance basics like incoming water temperature of at least 120°F and home water pressure of 20 to 120 psi, which can look like a “bad part” when the dishwasher is actually under-supplied.

Tips to reduce repeat failures

• Use fresh automatic dishwasher detergent (avoid hand-wash soap to prevent oversudsing).
• Load so items do not block the spray arm or detergent dispenser.
• Keep the dishwasher level to help prevent leaks.
• Check hoses for kinks and make sure connections do not leak.
• If you replace a door panel or adjust springs, follow the TDB210RFS7A installation guide steps so the door closes and seals correctly.

Last updated: February 2026

Your Tappan TDB210RFS7A dishwasher is built from a few main systems: the door and racks you load, the wash system that sprays and heats water, and the fill and drain system that brings water in and pumps it out. For diagrams and part locations, use the TDB210RFS7A owner's manual.

Main parts you will see and use

• Upper rack (dishrack)
• Lower rack and rack rollers
• Detergent dispenser
• Door latch and door seal
• Control panel and selector/timer controls

Key internal parts that make it wash

These parts do the work behind the scenes and are common service items on this model:

• Water inlet valve (fills the tub)
• Heating element (heats water and helps drying)

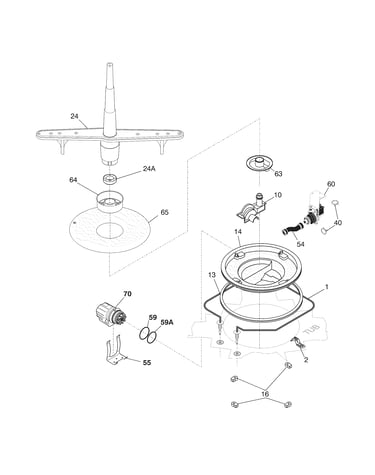

• Pump and motor (circulates wash water)
• Drain pump and drain hose (removes dirty water)
• Float switch (helps prevent overfilling)

System	What it does	Example part on TDB210RFS7A
Fill	Brings hot water into the tub	Dishwasher water inlet valve 154637401
Heat/dry	Heats water, boosts drying	Dishwasher heating element 154665201
Drain	Pumps water out to the sink/disposer	Drain hose 807117001
Door sealing	Keeps water inside the tub	Dishwasher door seal 809006501

Why it matters

Knowing which system a symptom belongs to speeds up troubleshooting. For example, poor filling points to the inlet valve or supply, while standing water points to the drain hose, drain pump, or a kinked hose.

Quick tips when identifying parts

• Match parts by model number TDB210RFS7A, not just by brand.
• Check for simple issues first: kinked drain hose, loose door latch, or a worn door seal.
• Use the exploded-view diagrams in the TDB210RFS7A installation guide to confirm where connections and components sit.

Last updated: February 2026

Yes, for the Tappan TDB210RFS7A dishwasher, we can usually replace many common parts ourselves (like seals, hoses, and some switches) as long as we shut off power and water first and follow the steps in the TDB210RFS7A installation guide. For wiring, leak-related repairs, or anything involving the junction box, we use extra caution.

Good DIY repairs vs. better left to a technician

Typically DIY-friendly

• Door sealing issues (replace the dishwasher door seal, lower 809006501)
• Drain hose replacement (replace the drain hose 807117001)
• Rack and roller fixes (replace the dishwasher dishrack roller, lower 5304532229)
• Detergent door problems (replace the dishwasher detergent dispenser assembly 154574401)

Usually more advanced

• Water fill problems (testing or replacing the dishwasher water inlet valve 154637401)
• No-drain conditions that require pump access (replacing the dishwasher drain pump A00126501)
• Heating and drying issues (replacing the dishwasher heating element 154665201)

Safety steps we follow first

The manual and install instructions emphasize electrical grounding and safe routing of water, drain, and electrical lines. Before any repair:

• Turn off power at the breaker (not just the control panel)
• Shut off the dishwasher water supply
• Confirm the unit is stable and level before pulling it out
• Keep water, drain, and electrical lines routed away from the motor/frame area
• Wear gloves when handling sharp metal panels

Quick “is this a DIY job?” checklist

If you’re doing this task	DIY difficulty	What usually makes it harder
Replace door seal or hose	Low	Tight access under the tub
Replace rack rollers	Low	Broken rack tabs or rusted hardware
Replace inlet valve	Medium	Water line fittings, leak testing
Replace drain pump or heater	Medium to high	Pulling the unit, wiring, clamps

Why it matters

Doing the right repair yourself can stop leaks, restore draining, and improve cleaning performance, but skipping power shutoff or misrouting lines can damage wiring or cause leaks. Using the correct part for TDB210RFS7A helps the repair last.

Last updated: February 2026
