Model # KSB560ACS0 Official KitchenAid 5-speed architect blender

Here are the diagrams and repair parts for Official KitchenAid KSB560ACS0 5-speed architect blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |

Jar 9708904
#2

Attachment parts diagram

Jar

Part #9708904

Replaced by #WPW10555711

?
Manufacturer substitution
This part replaces 9708904. Substitute parts can look different from the original.
BEST SELLER
$97.27
9% OFF Phone Price : $107.27
In Stock
Blender Lid Assembly 9709363
#1

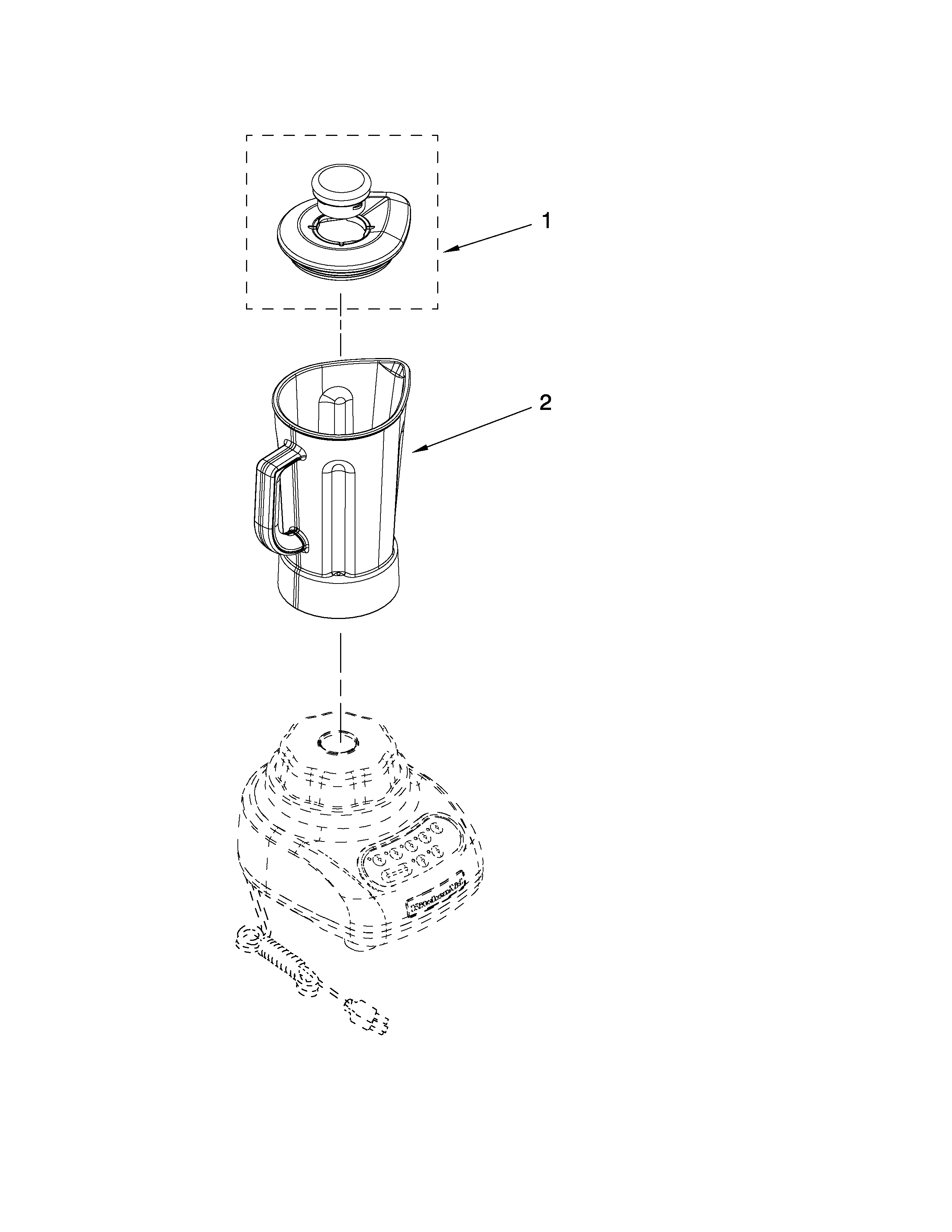

Attachment parts diagram

Blender lid assembly

Part #9709363

Replaced by #WP9709363

?
Manufacturer substitution
This part replaces 9709363. Substitute parts can look different from the original.
$24.84
17% OFF Phone Price : $29.84
In Stock
Screw W10068250
#3

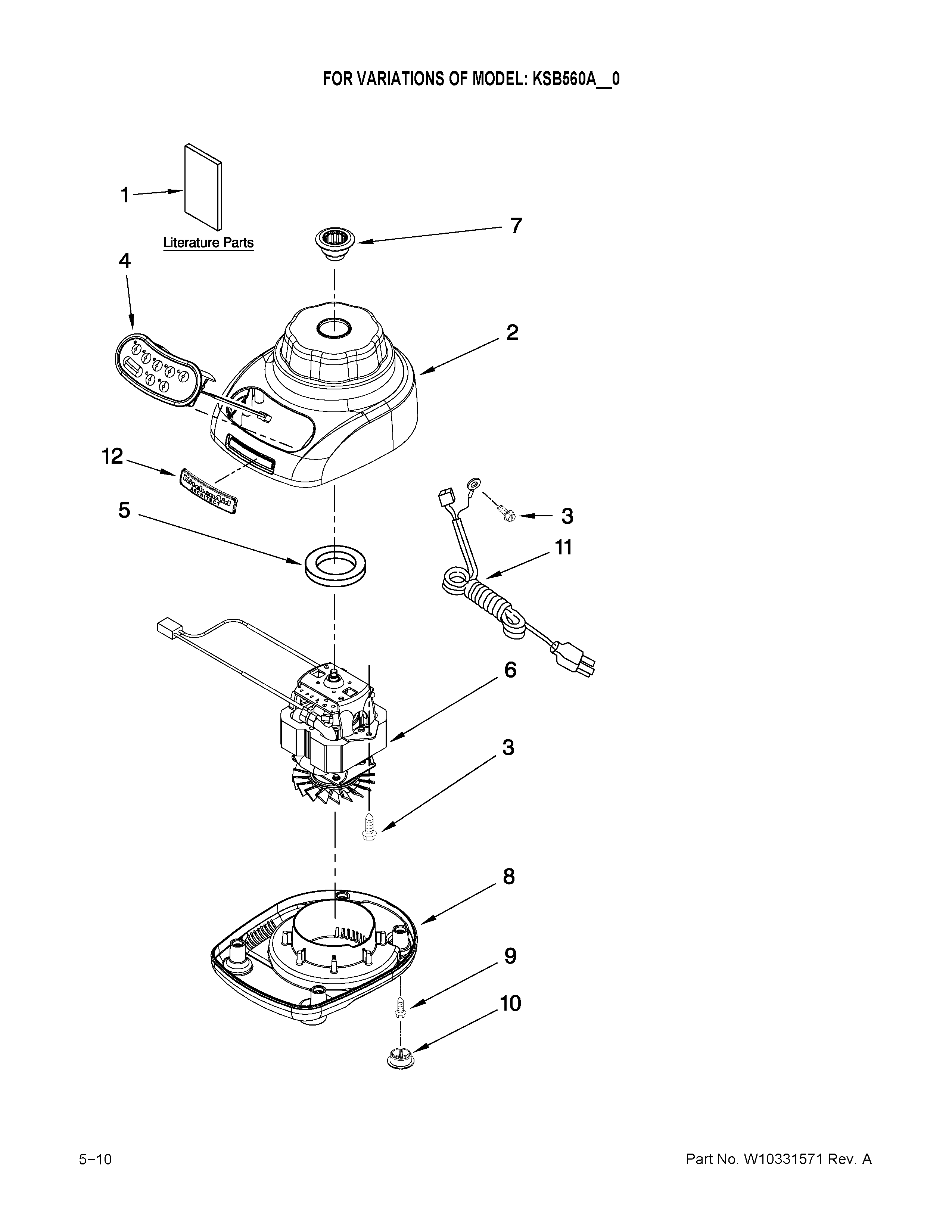

Unit parts diagram

Screw

Part #W10068250

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces W10068250. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Base W10309250
#8

Unit parts diagram

Base

Part #W10309250

In Stock
Power Cord 9708928
#11

Unit parts diagram

Power cord

Part #9708928

In Stock
Blender Screw W10001200
#9

Unit parts diagram

Blender screw

Part #W10001200

Replaced by #W11164114

?
Manufacturer substitution
This part replaces W10001200. Substitute parts can look different from the original.
This item is not returnable
In Stock
Housing W10169968
#2

Unit parts diagram

Housing

Part #W10169968

Replaced by #W10439008

?
Manufacturer substitution
This part replaces W10169968. Substitute parts can look different from the original.
In Stock
Foot 9708927
#10

Unit parts diagram

Foot

Part #9708927

Replaced by #WPW10524701

?
Manufacturer substitution
This part replaces 9708927. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Motor W10225872
#6

Unit parts diagram

Motor

Part #W10225872

Replaced by #WPW10225872

?
Manufacturer substitution
This part replaces W10225872. Substitute parts can look different from the original.
$64.89
7% OFF Phone Price : $69.89
In Stock
Seal 9709366
#5

Unit parts diagram

Seal

Part #9709366

Replaced by #WP9709366

?
Manufacturer substitution
This part replaces 9709366. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
