Jenn-Air JDRP848HL00 dual fuel range Parts
Here are the diagrams and repair parts for Jenn-Air JDRP848HL00 dual fuel range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JDRP848HL00 Dual Fuel Range

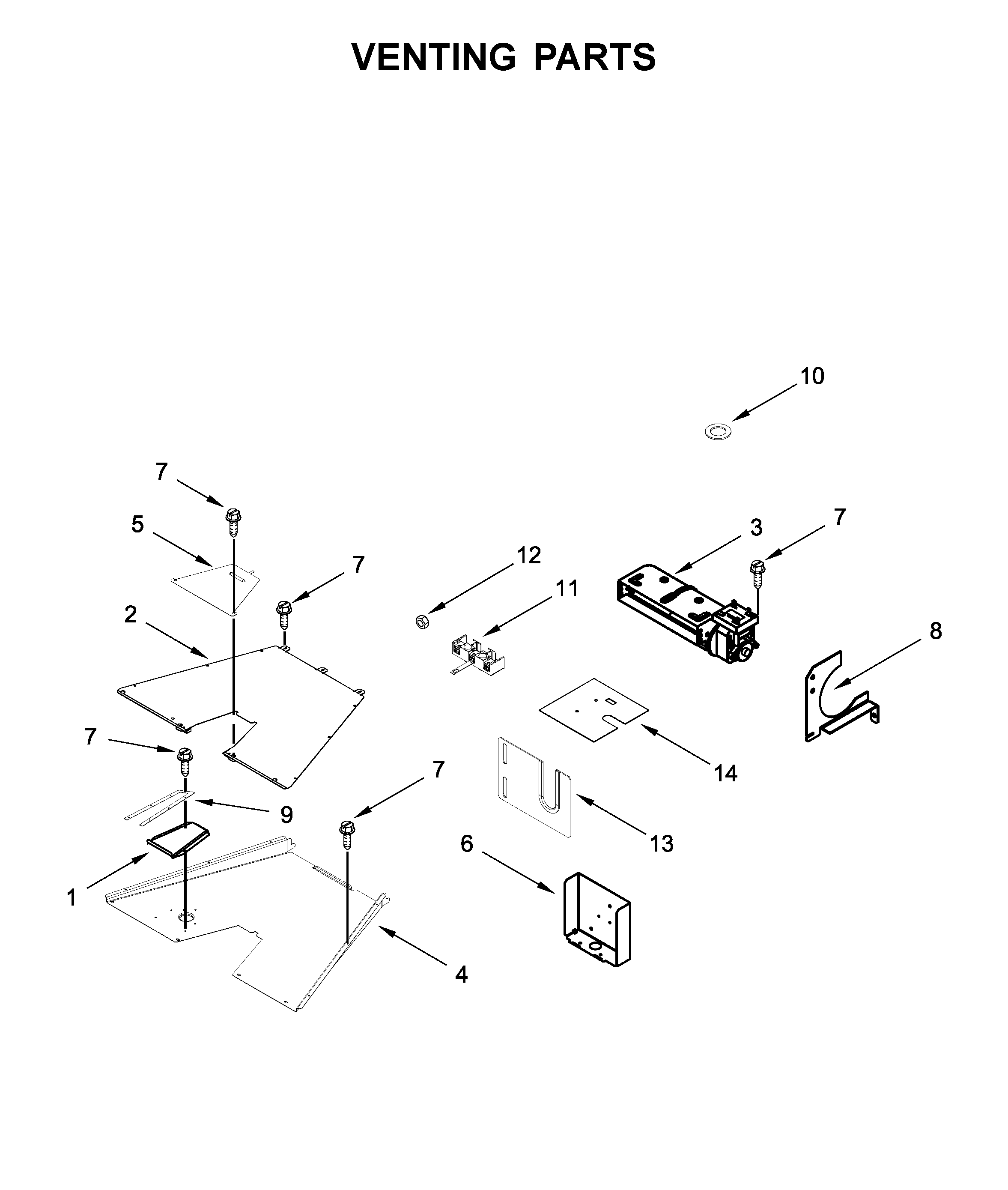

Venting parts diagram
Range Terminal Block
Part #9761958Replaced by #WP9761958
Manufacturer substitutionThis part replaces 9761958. Substitute parts can look different from the original.In Stock$31.3816% OFF Phone Price : $37.38
Qty
Venting parts diagram
Blower, Mine
Part #W11200129Replaced by #W11248652

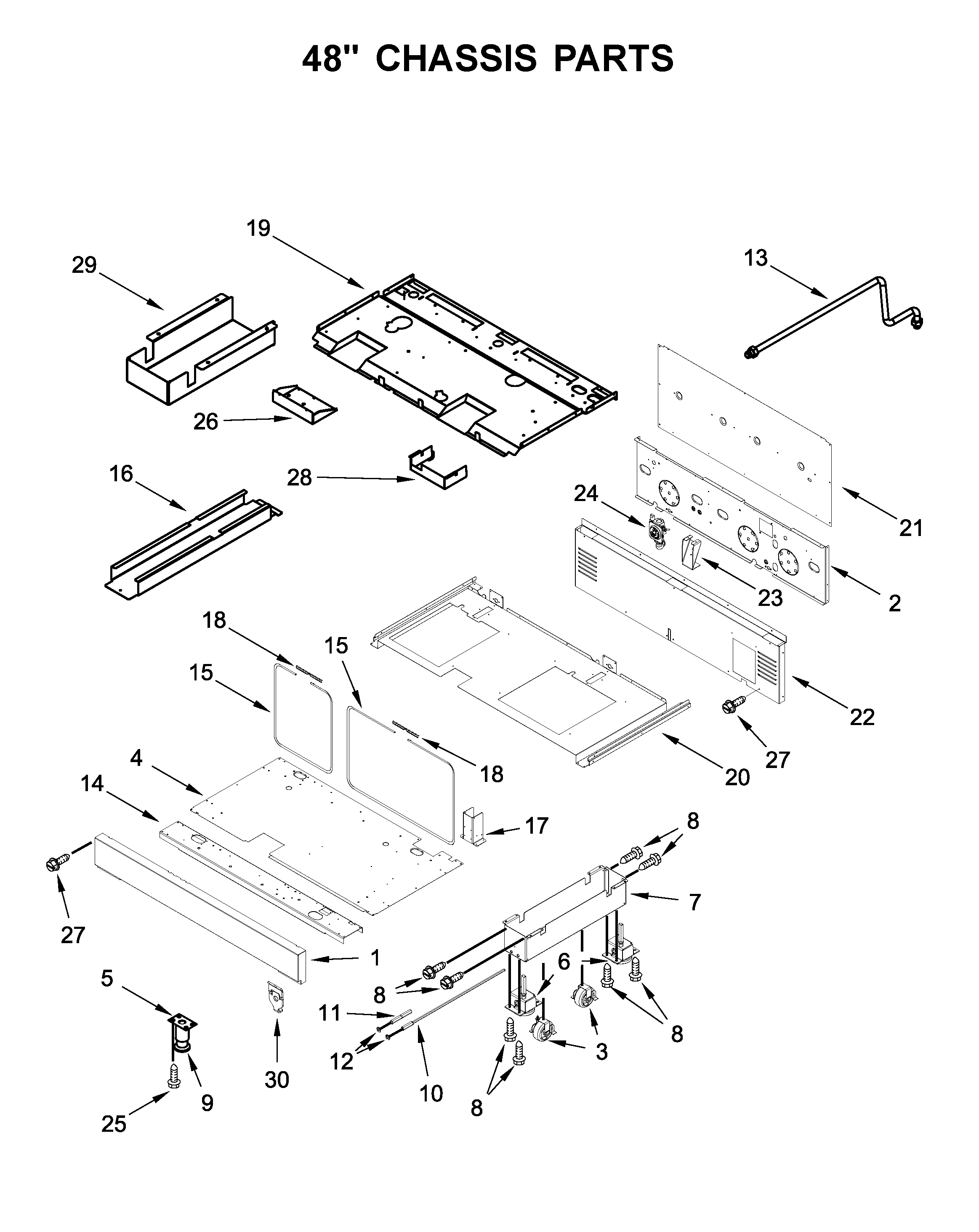

Manufacturer substitutionThis part replaces W11200129. Substitute parts can look different from the original.In Stock$199.876% OFF Phone Price : $211.87Qty48" chassis parts diagram
Range Oven Door Seal
Part #W11115328Replaced by #W11675844

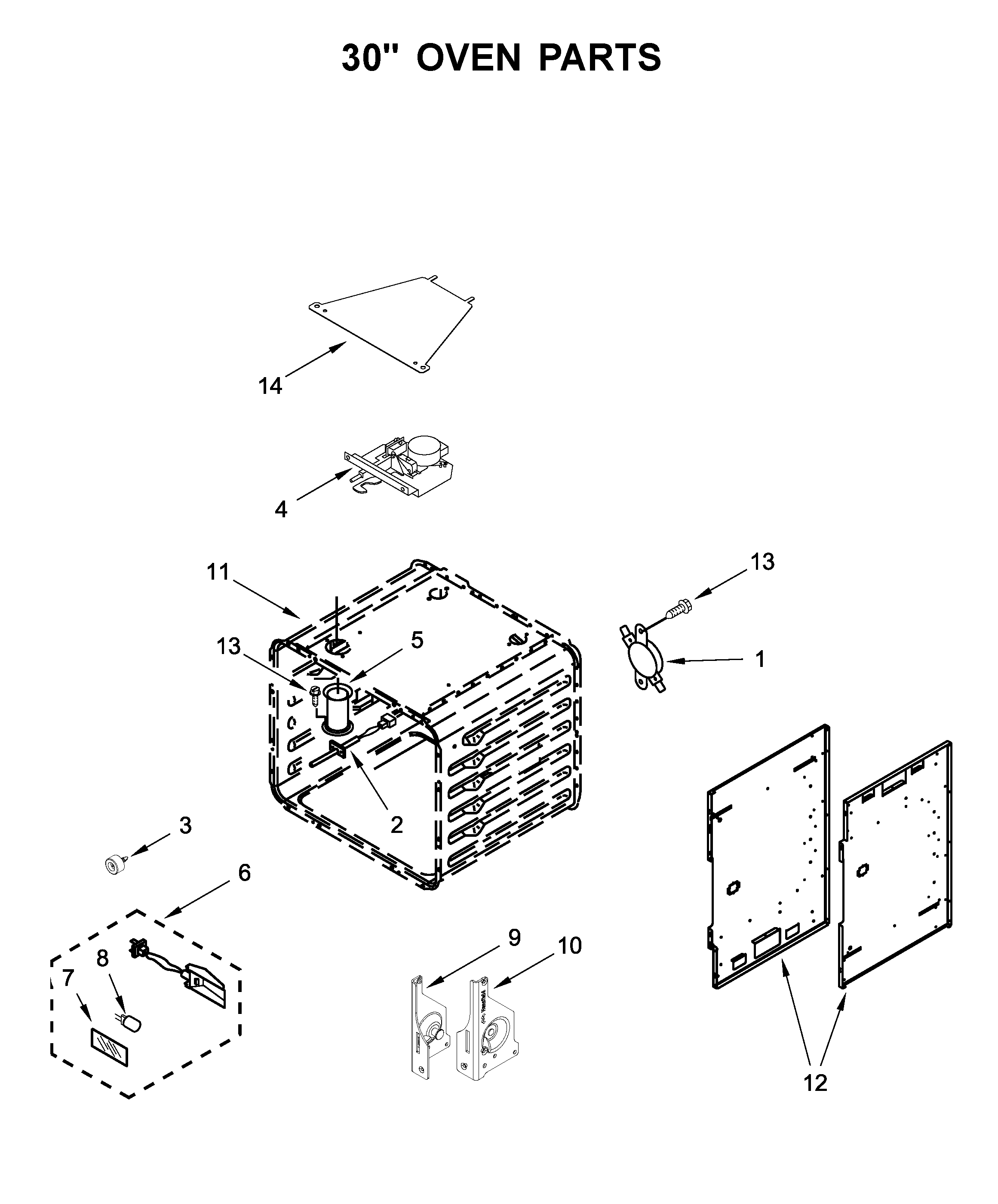

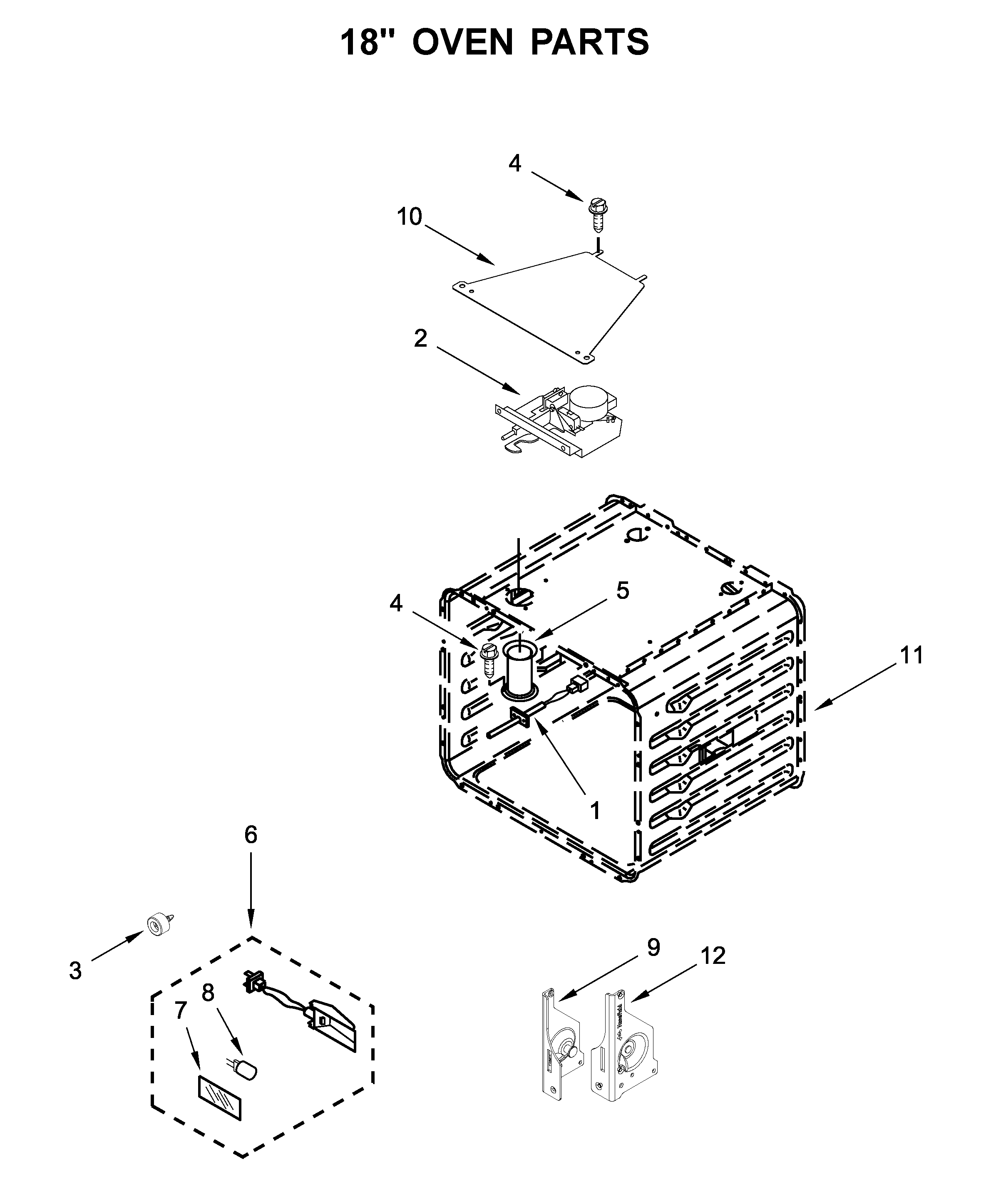

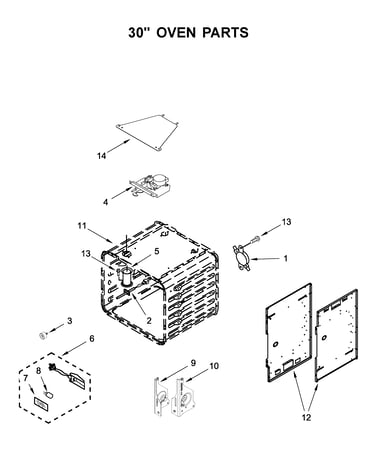

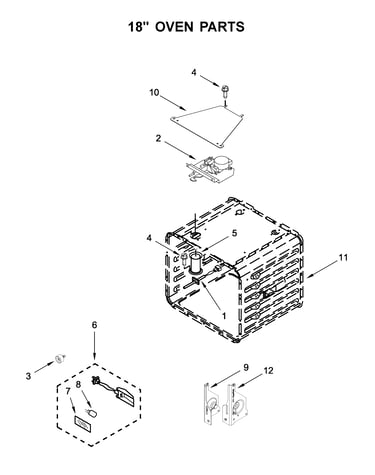

Manufacturer substitutionThis part replaces W11115328. Substitute parts can look different from the original.In Stock$26.2637% OFF Was : $41.95QtyWall Oven Light Bulb
Part #W10169757Replaced by #WPW10169757

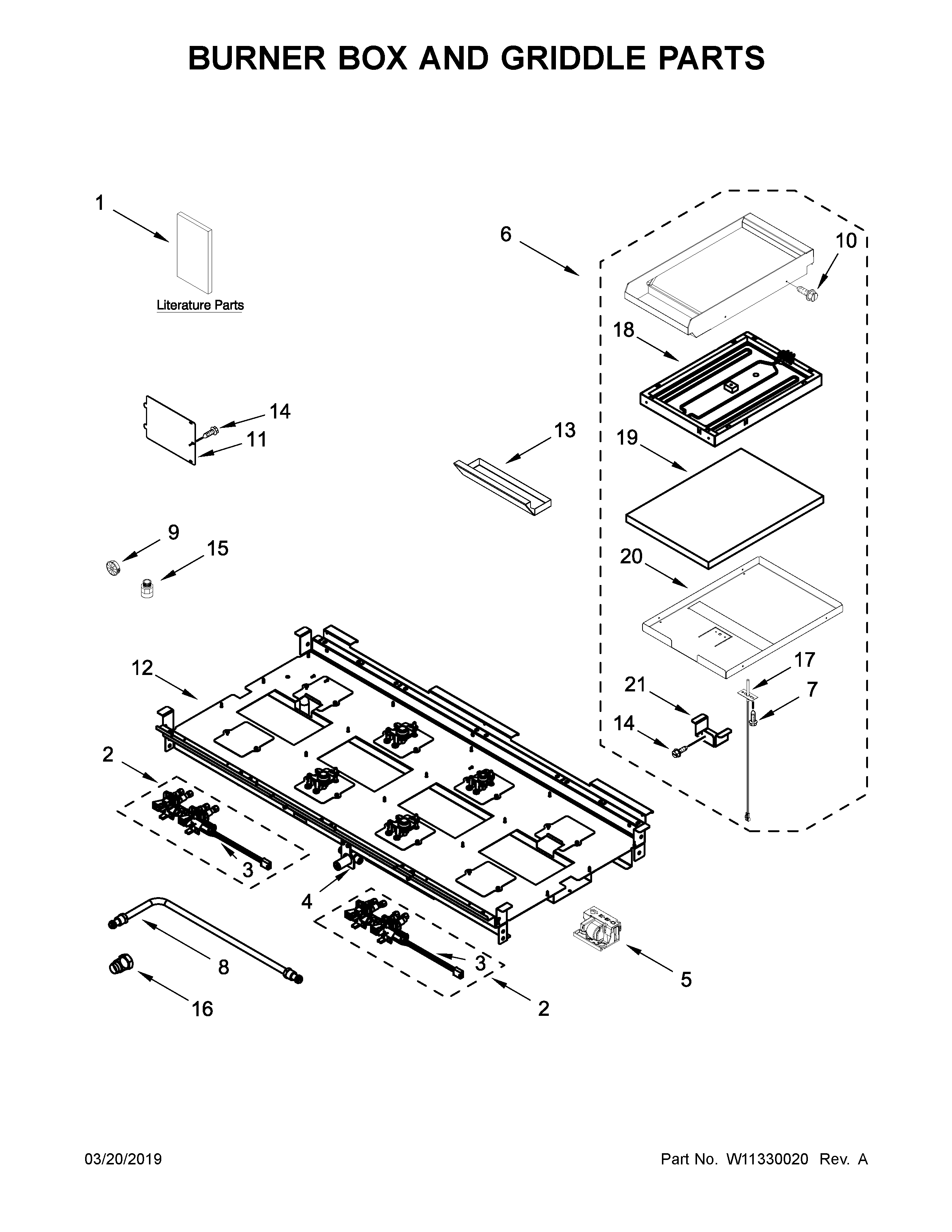

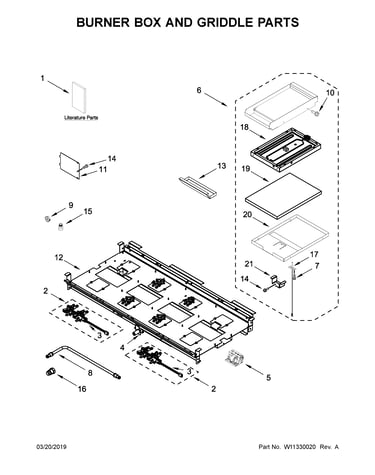

Manufacturer substitutionThis part replaces W10169757. Substitute parts can look different from the original.This item is not returnableIn Stock$46.0812% OFF Phone Price : $52.08QtyBurner box and griddle parts diagram
Range Lp Conversion Kit
Part #W11238041Replaced by #W11428599

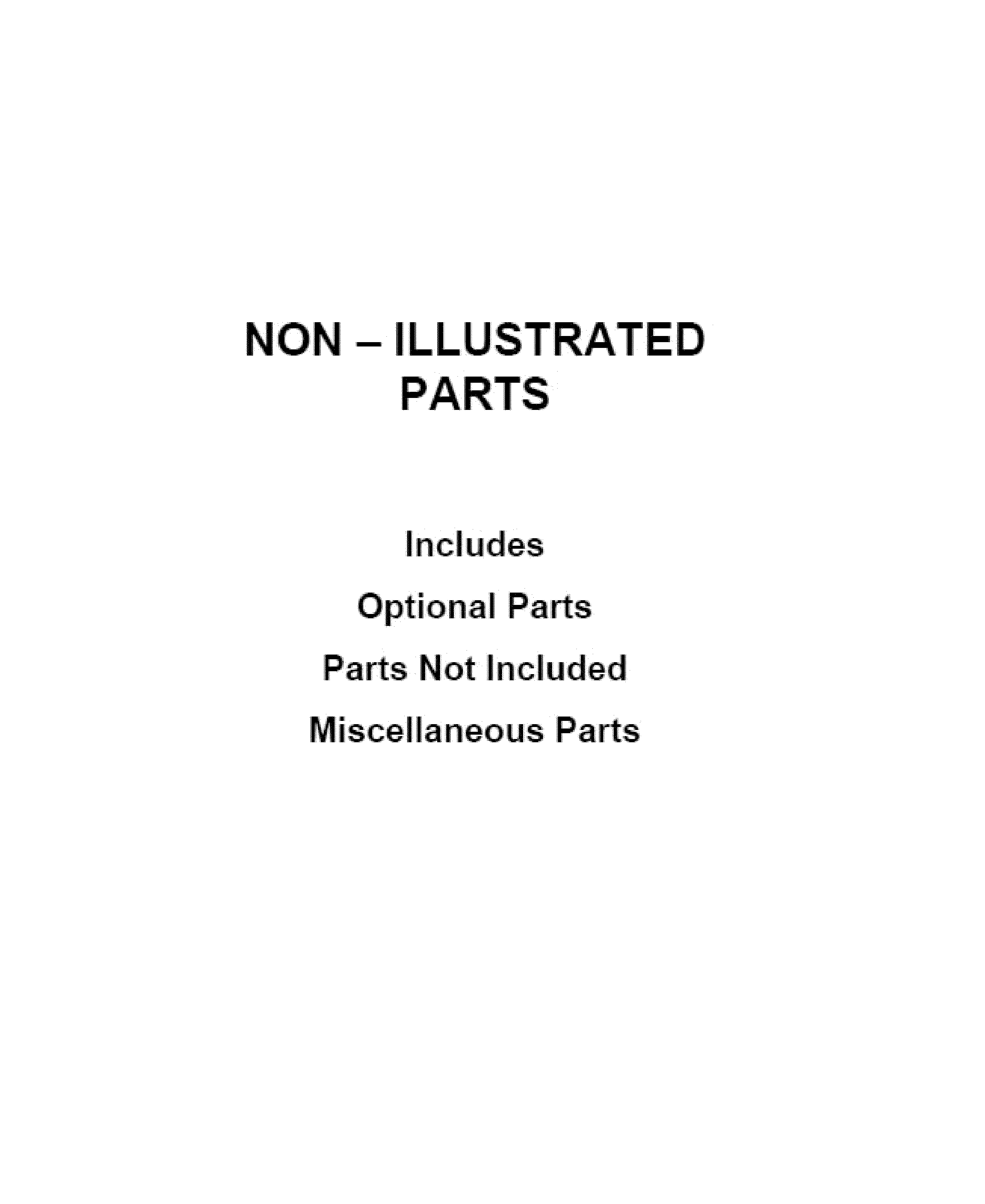

Manufacturer substitutionThis part replaces W11238041. Substitute parts can look different from the original.In Stock$31.1416% OFF Phone Price : $37.14QtyOptional parts (not included) diagram
Whirlpool Range Backsplash Kit (stainless)
In Stock$737.20$12.00 OFF Phone Price : $749.20QtyRange Screw
Part #W10292297Replaced by #WPW10292297

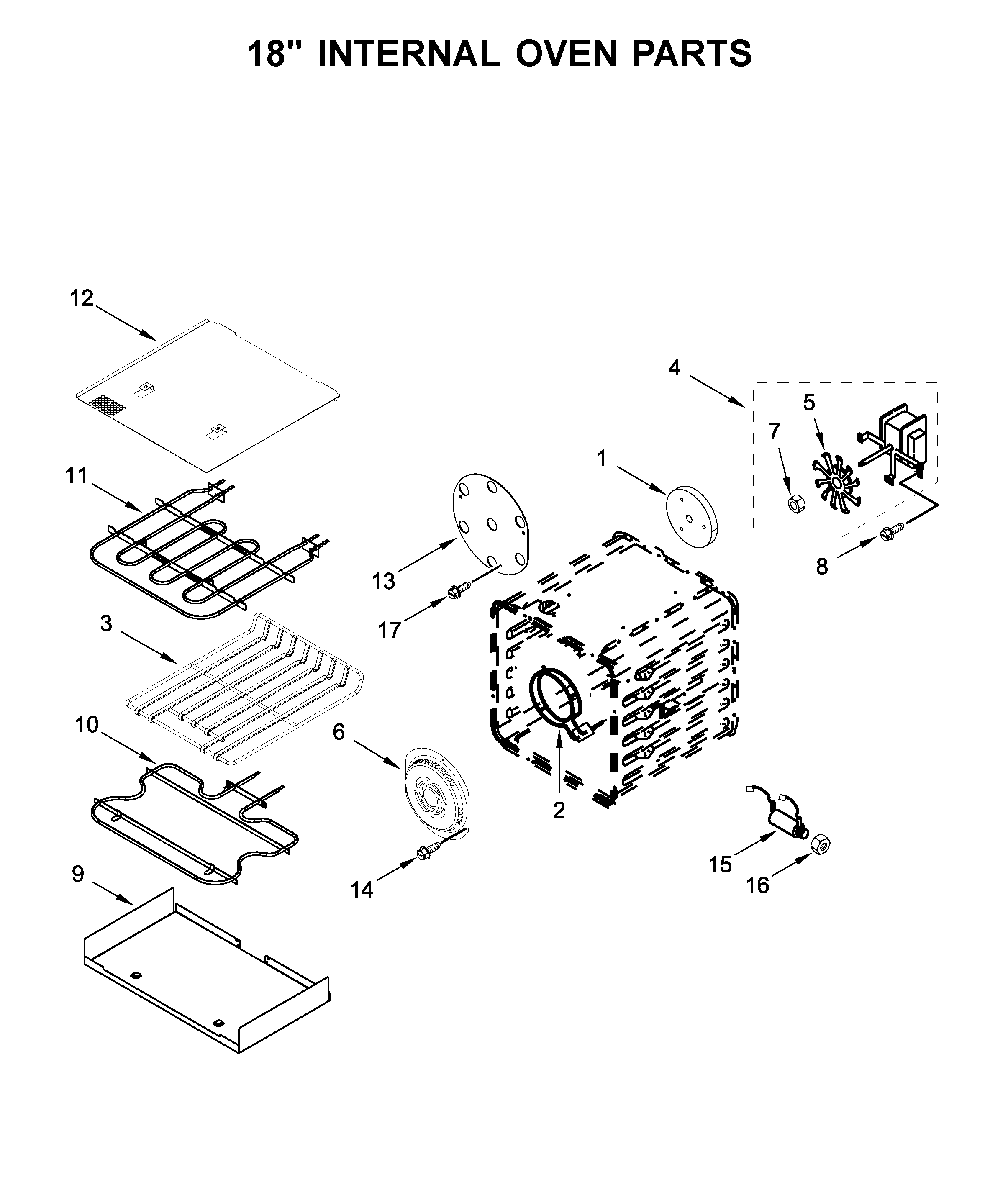

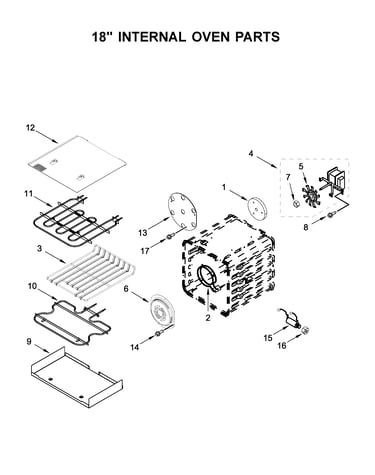

Manufacturer substitutionThis part replaces W10292297. Substitute parts can look different from the original.This item is not returnableIn Stock$4.4118% OFF Phone Price : $5.41Qty18" internal oven parts diagram

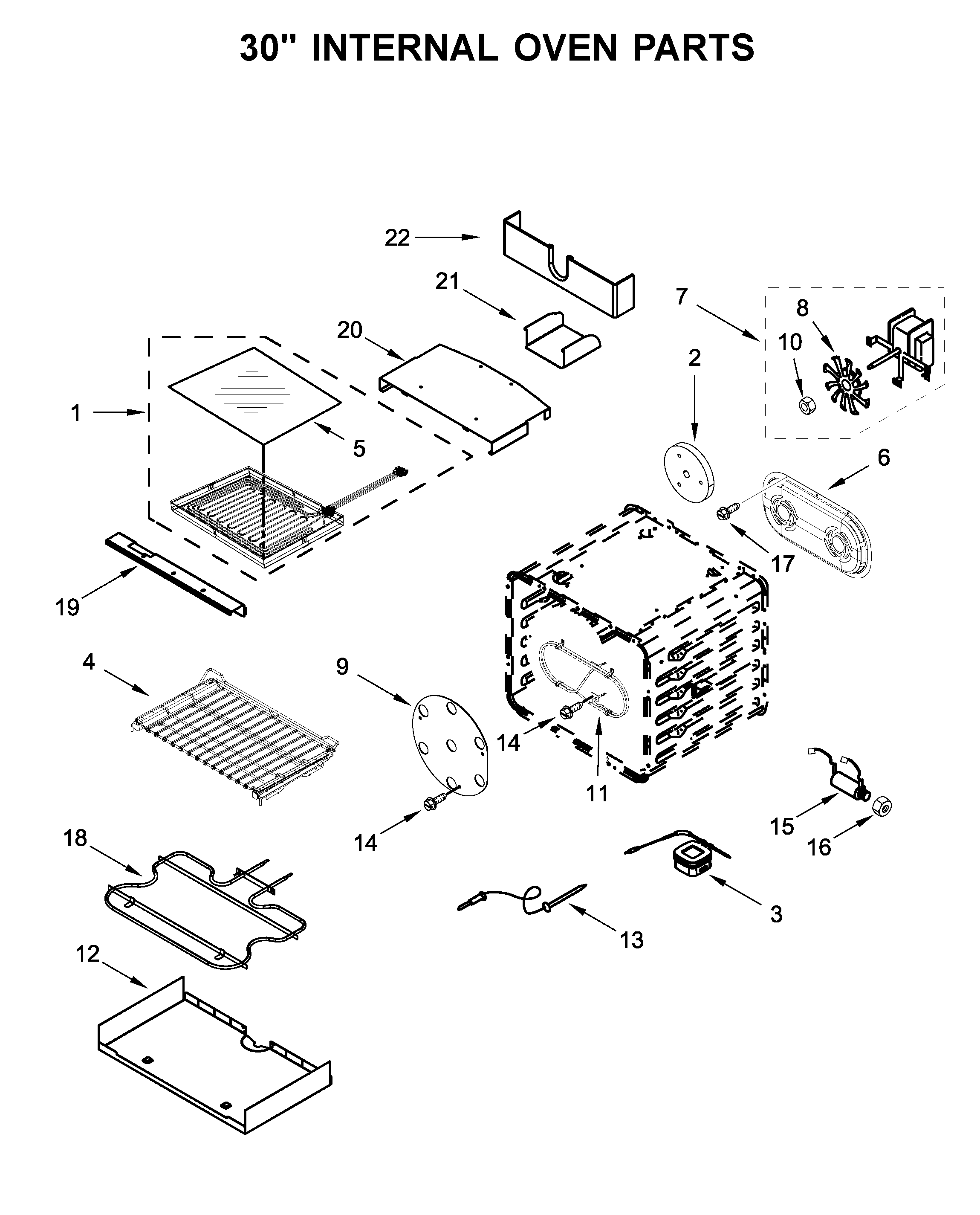

Element
Part #9762242Replaced by #W11643125

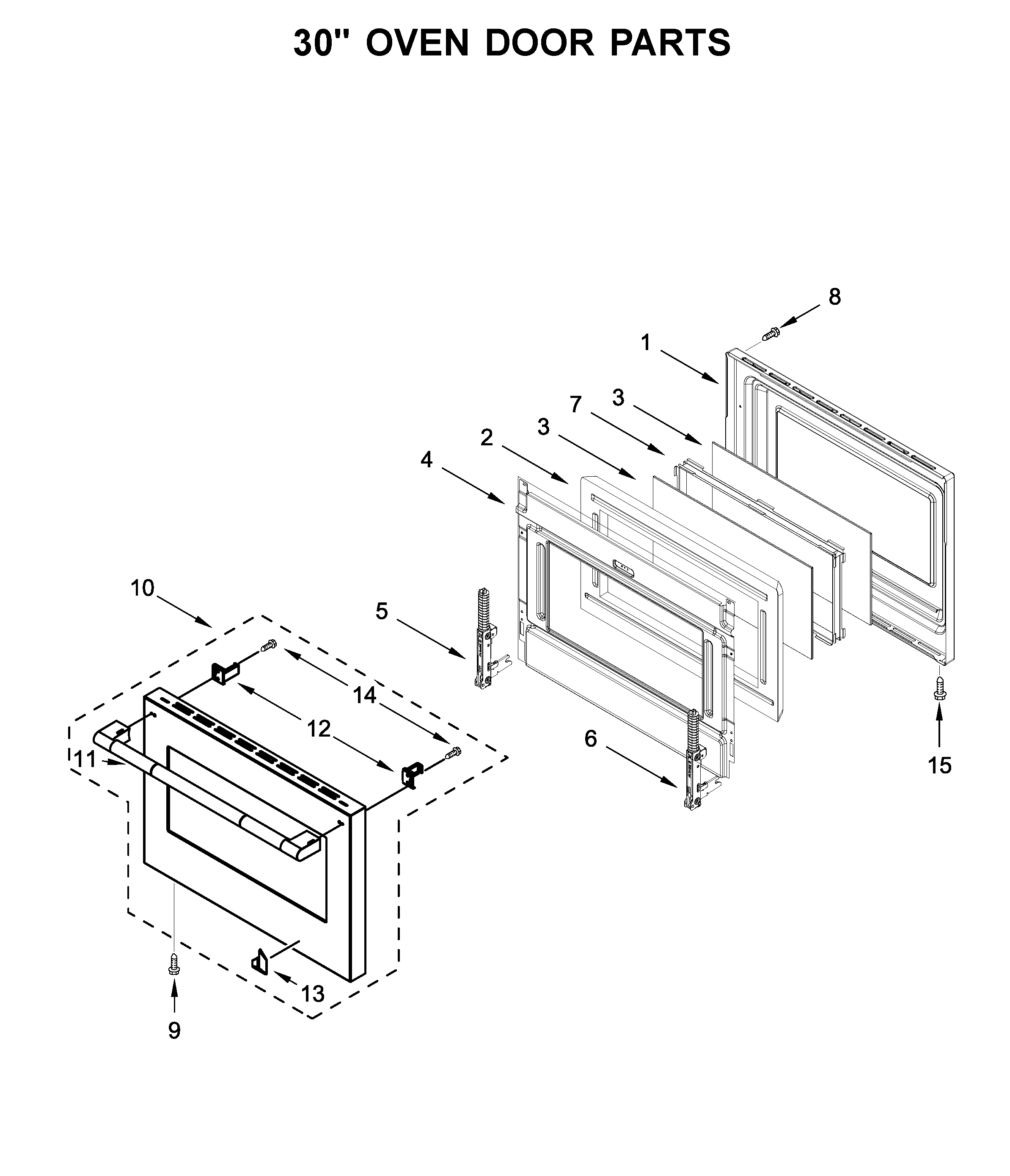

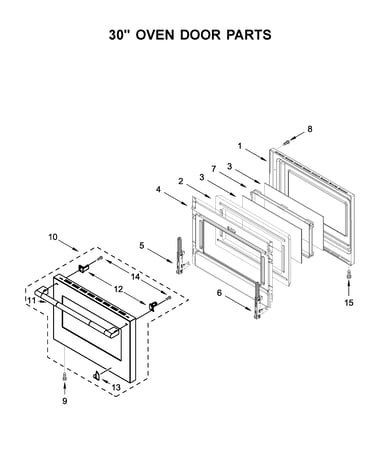

Manufacturer substitutionThis part replaces 9762242. Substitute parts can look different from the original.In Stock$116.50Qty30" oven door parts diagram

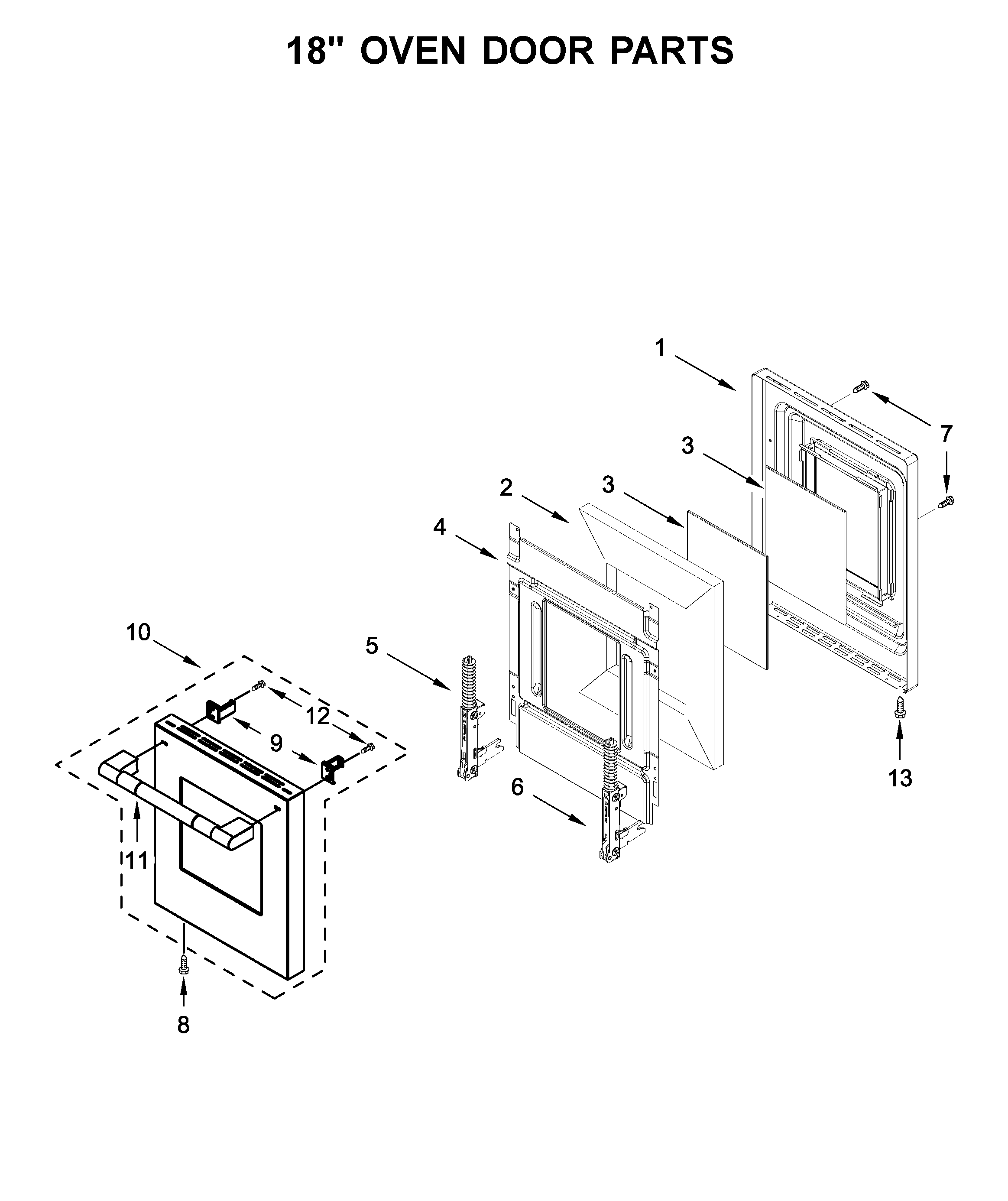

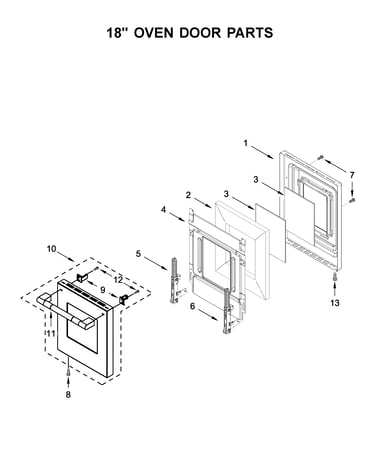

Glass-door,i
Part #W11184409Replaced by #W11318823

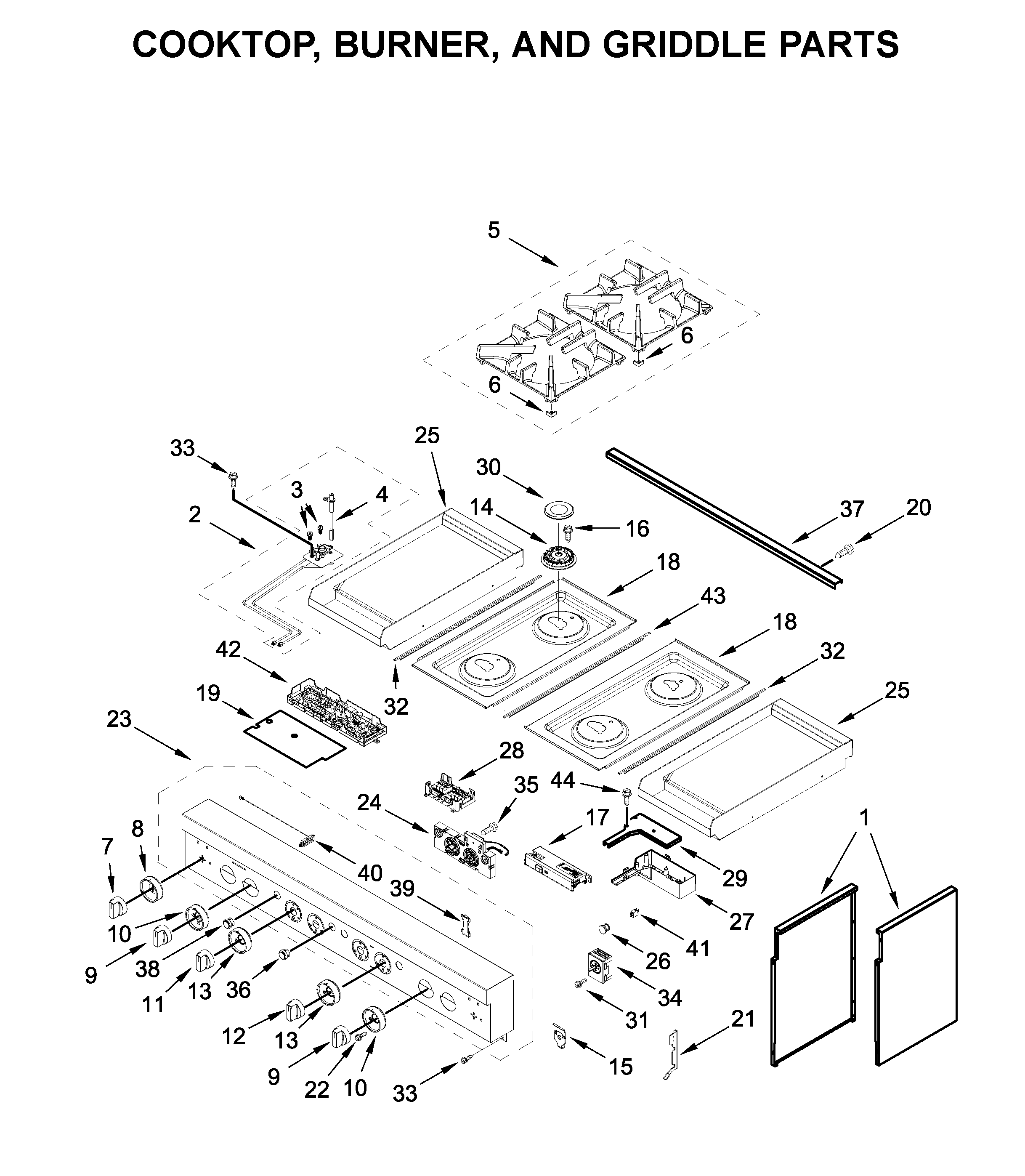

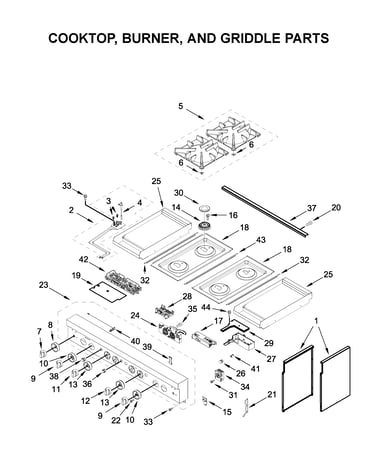

Manufacturer substitutionThis part replaces W11184409. Substitute parts can look different from the original.In Stock$88.156% OFF Phone Price : $94.15QtyCooktop, burner, and griddle parts diagram
Assembly, Grate (black (set Of 2))
Part #W11179862Replaced by #W11515370
Manufacturer substitutionThis part replaces W11179862. Substitute parts can look different from the original.In Stock$262.36$12.00 OFF Phone Price : $274.36Qty
