Bosch HBL752AUC/01 wall oven Parts
Here are the diagrams and repair parts for Bosch HBL752AUC/01 wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

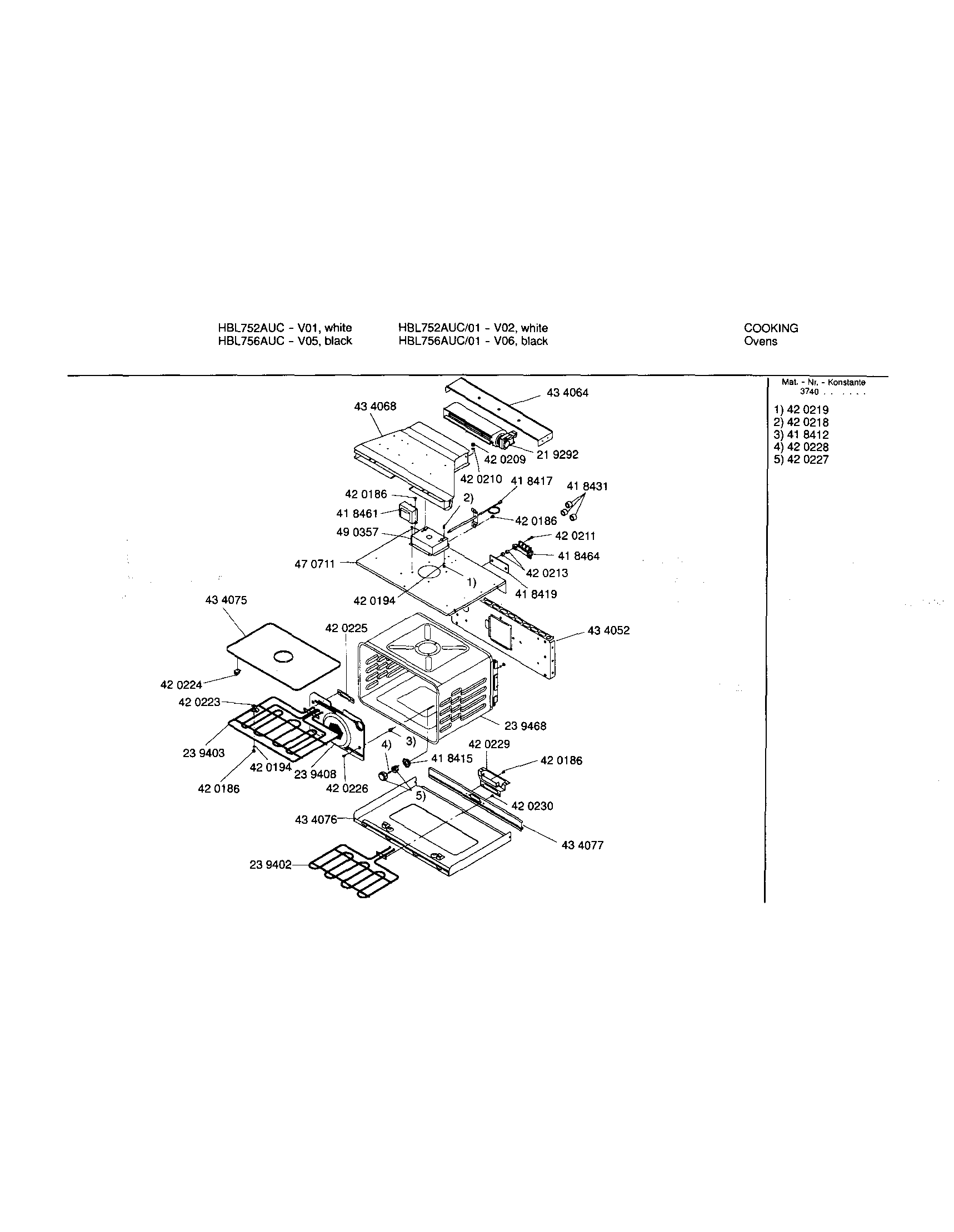

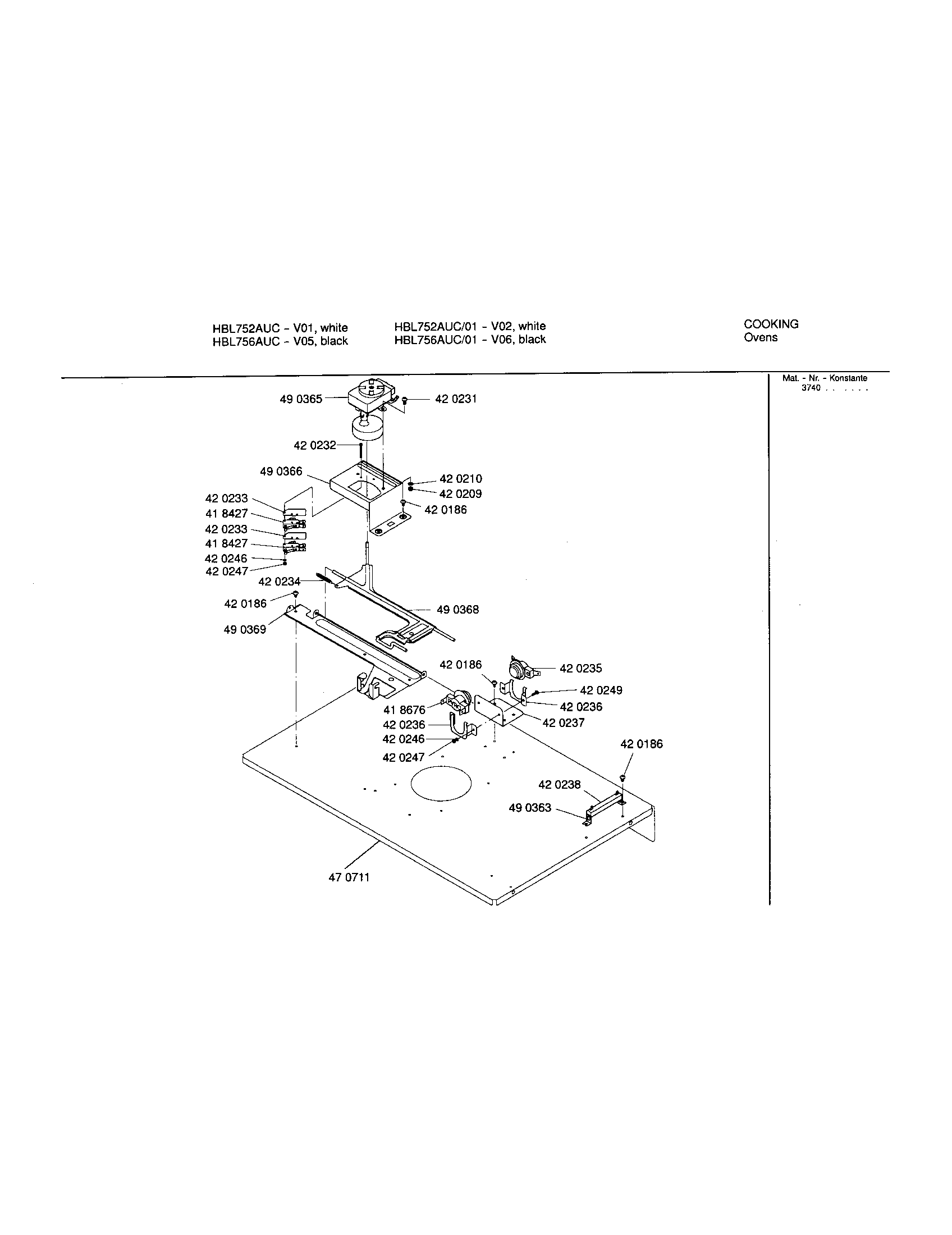

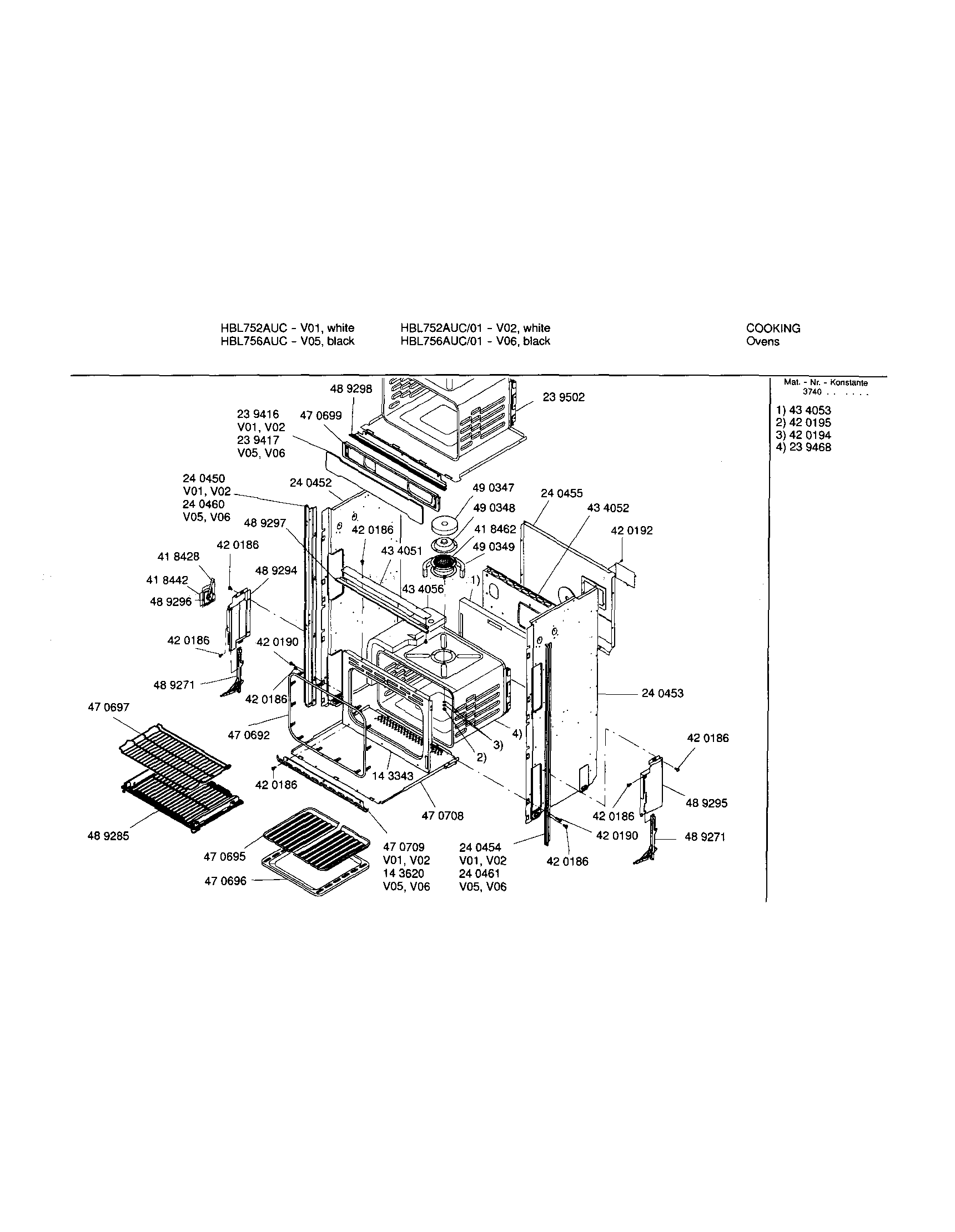

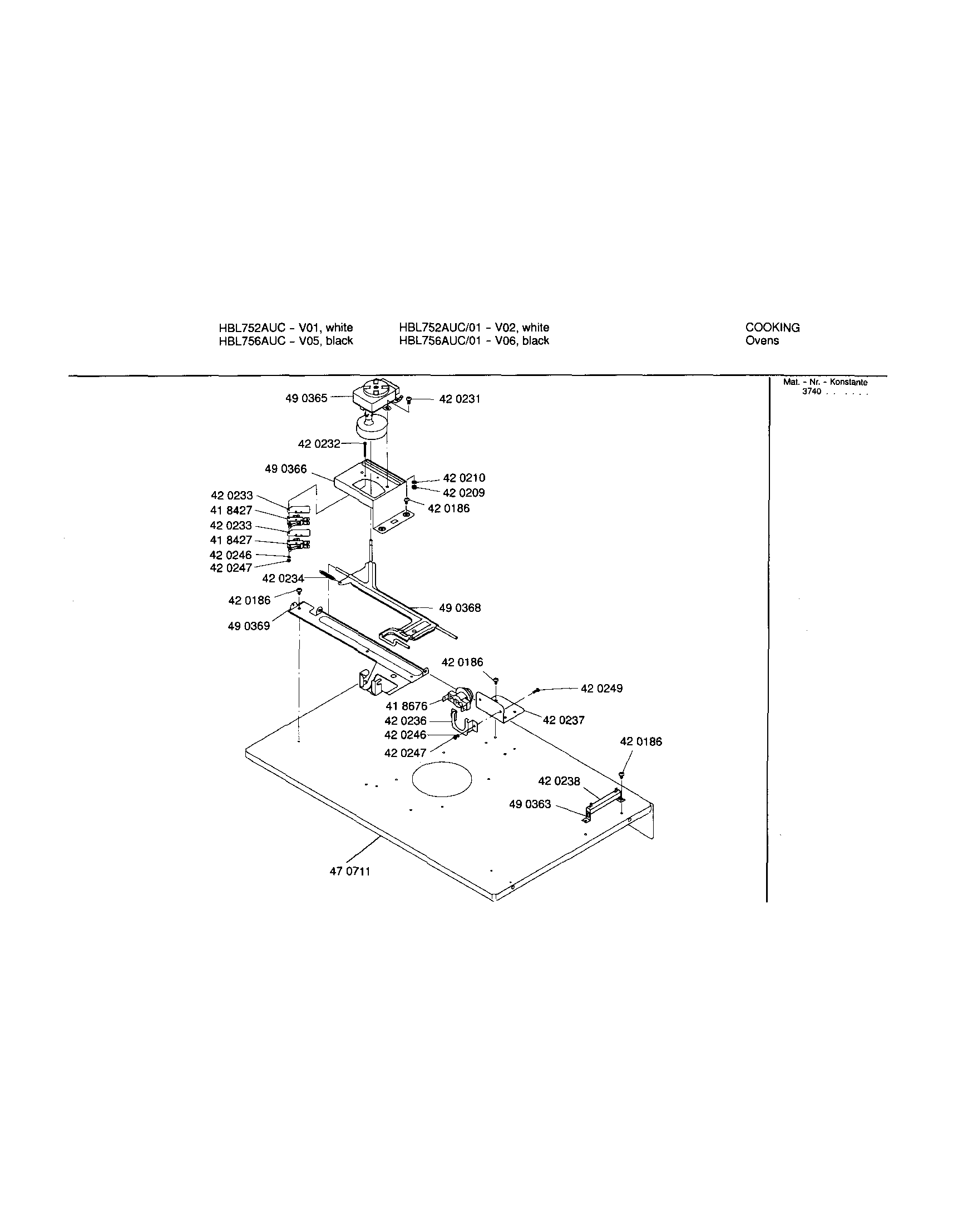

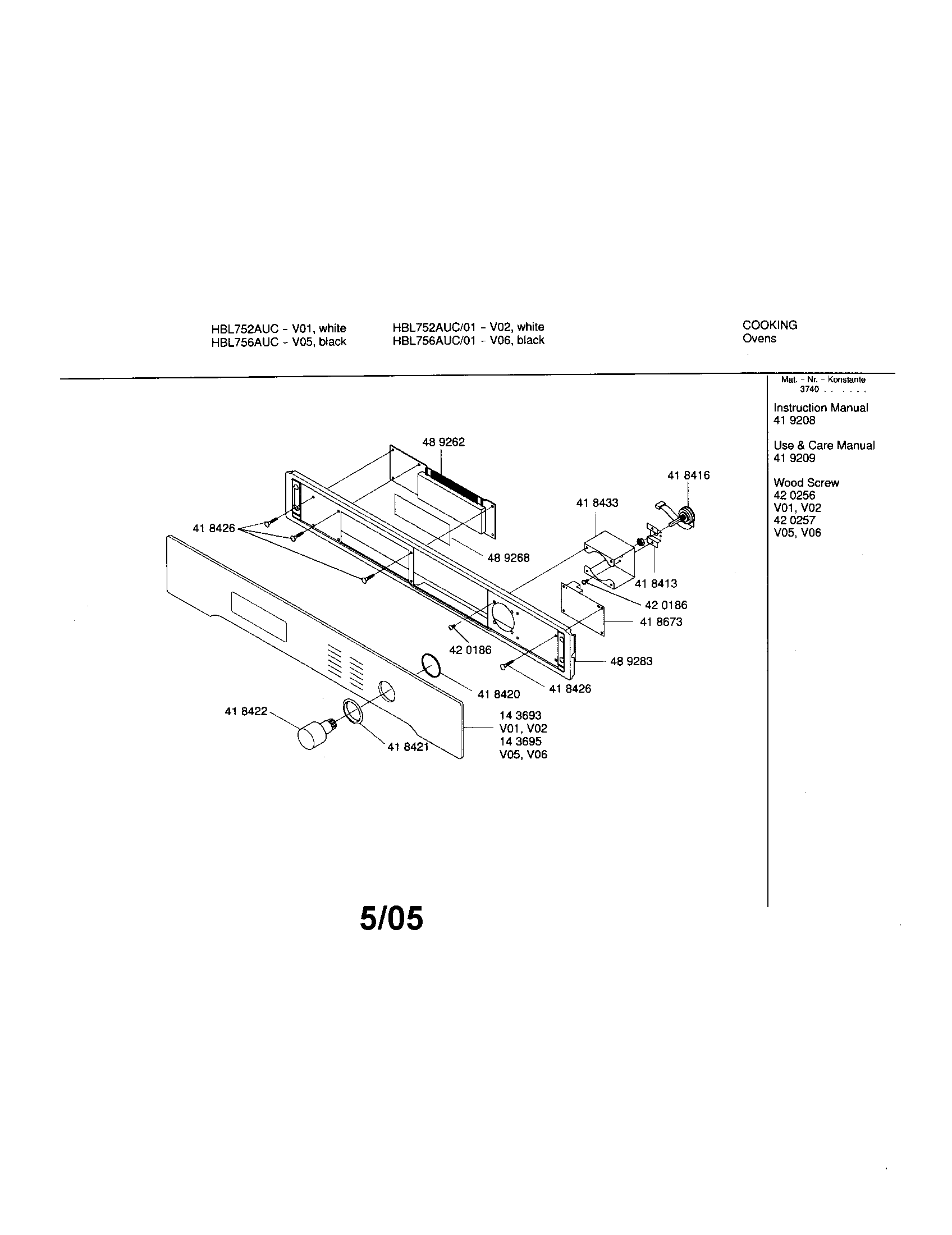

Browse Parts for HBL752AUC/01 Wall Ovens

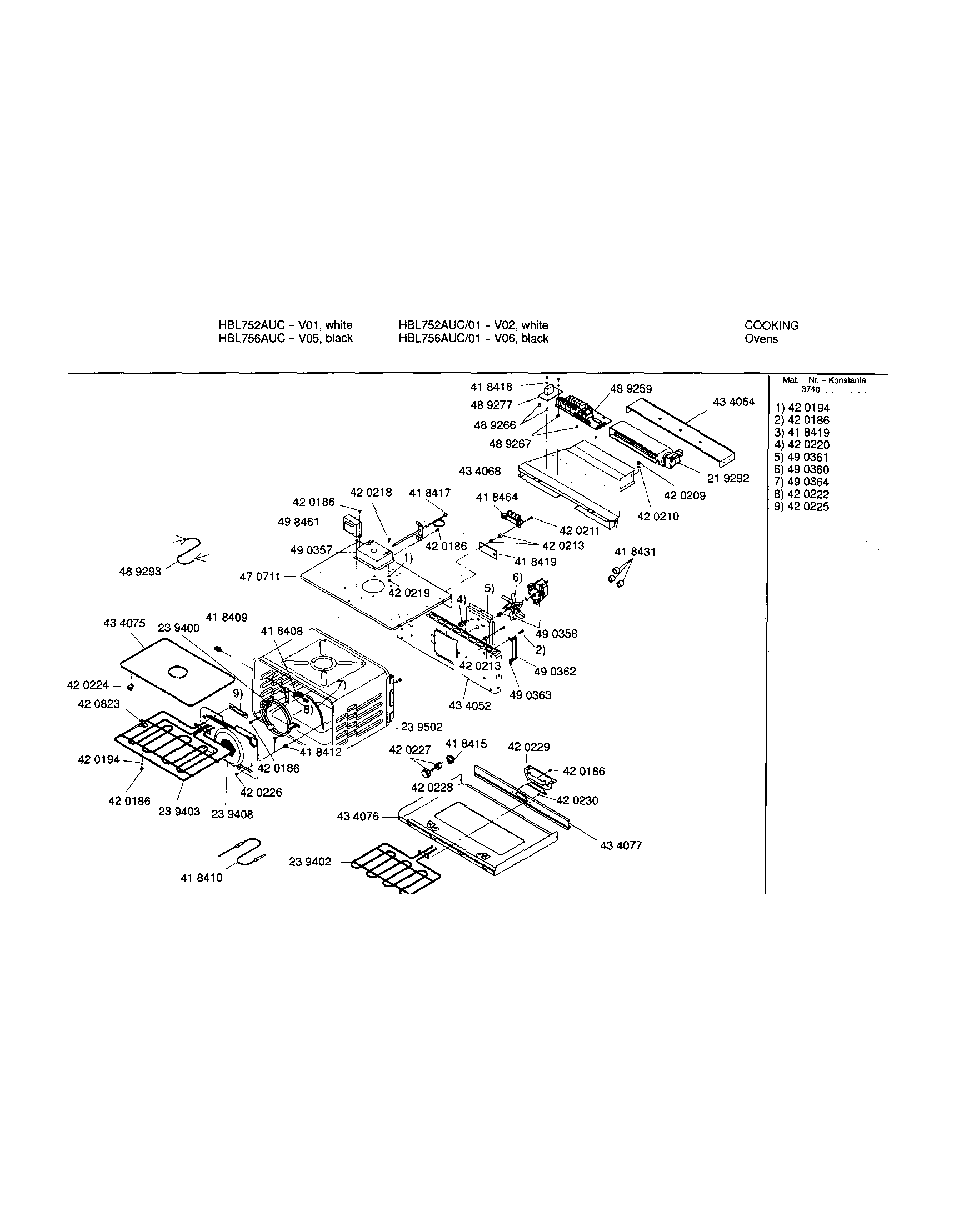

Upper cavity diagram
Cable Harness
Part #489293
The manufacturer no longer makes this part, and there's no substitute part
Support
Part #489298
The manufacturer no longer makes this part, and there's no substitute part

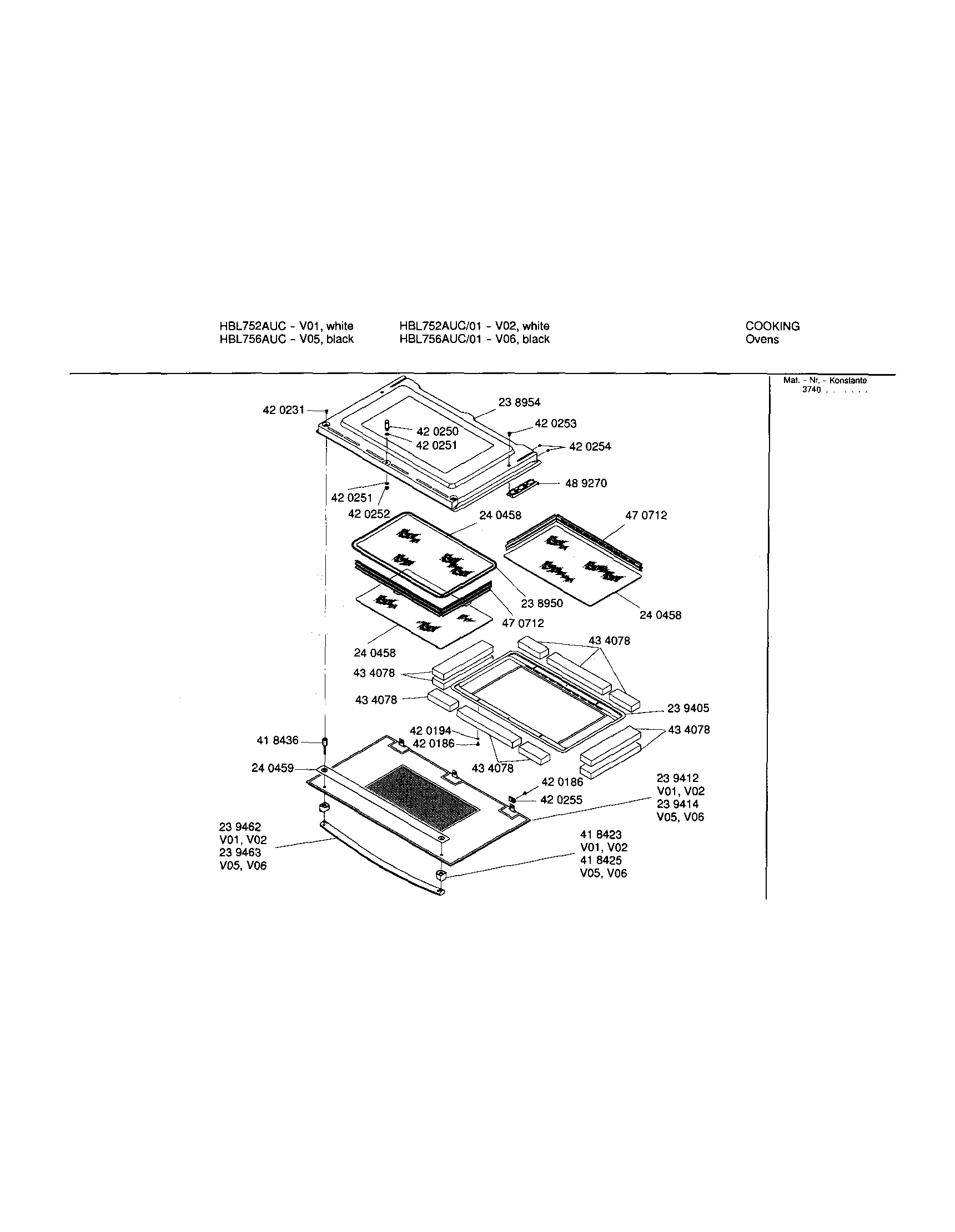

Upper lower door diagram
Seal
Part #238950
The manufacturer no longer makes this part, and there's no substitute part
Spacer
Part #418412
The manufacturer no longer makes this part, and there's no substitute part
Upper cavity diagram
Fan Blade
Part #490360
The manufacturer no longer makes this part, and there's no substitute part
Insulation
Part #490349
The manufacturer no longer makes this part, and there's no substitute part
Fan
Part #219292
The manufacturer no longer makes this part, and there's no substitute part
Resistor
Part #420238
The manufacturer no longer makes this part, and there's no substitute part
Upper cavity diagram
Fan Motor
Part #490358
The manufacturer no longer makes this part, and there's no substitute part
Upper body diagram
Conduit
Part #490346
The manufacturer no longer makes this part, and there's no substitute part
