Jenn-Air
Electric Cooktop

Model # JIC4715GS0 Official Jenn-Air electric counter unit

Here are the diagrams and repair parts for Official Jenn-Air JIC4715GS0 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

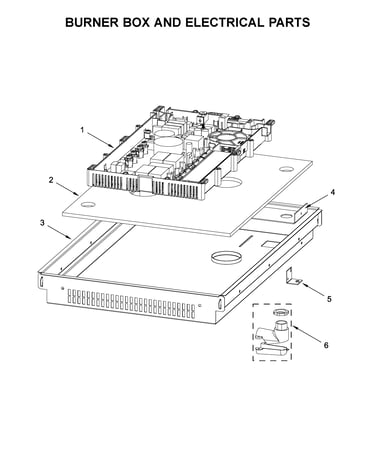

Burner box and electrical parts diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Cooktop Scraper WA906B
#NI

Burner box and electrical parts diagram

Cooktop scraper

Part #WA906B

This item is not returnable

Get free shipping with Automatic Reorder

$6.29 |
14% OFF Phone Price : $7.29
In Stock
Mounting Bracket W11093293
#4

Burner box and electrical parts diagram

Mounting bracket

Part #W11093293

$114.78
In Stock
Wire Harness W11195178
#NI

Burner box and electrical parts diagram

Wire harness

Part #W11195178

$90.87
In Stock
Insulation, Induction W11195473
#2

Burner box and electrical parts diagram

Insulation, induction

Part #W11195473

$153.62
In Stock
Mounting Bracket 8190978
#5

Burner box and electrical parts diagram

Mounting bracket

Part #8190978

$32.87
In Stock
Plate W11195428
#7

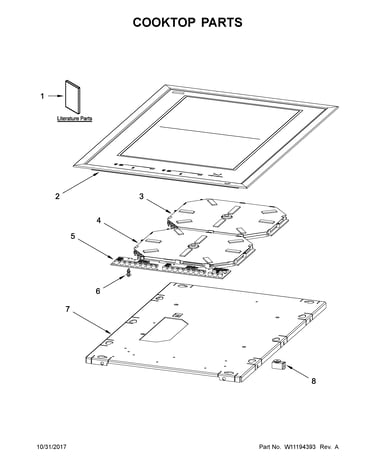

Cooktop parts diagram

Plate

Part #W11195428

$258.43
In Stock
Support W11195162
#6

Cooktop parts diagram

Support

Part #W11195162

$46.71
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1B

Cooktop parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
Bracket W11195464
#8

Cooktop parts diagram

Bracket

Part #W11195464

$46.71
In Stock
