JVC GZ-HD500BUS camcorder Parts

Here are the diagrams and repair parts for JVC GZ-HD500BUS camcorder, as well as links to manuals and error code tables, if available.

JVC GZ-HD500BUS camcorder
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GZ-HD500BUS Camcorders

  • Jvc Wire for JVC GZ-HD500BUS - Part WJN0285-001A-E

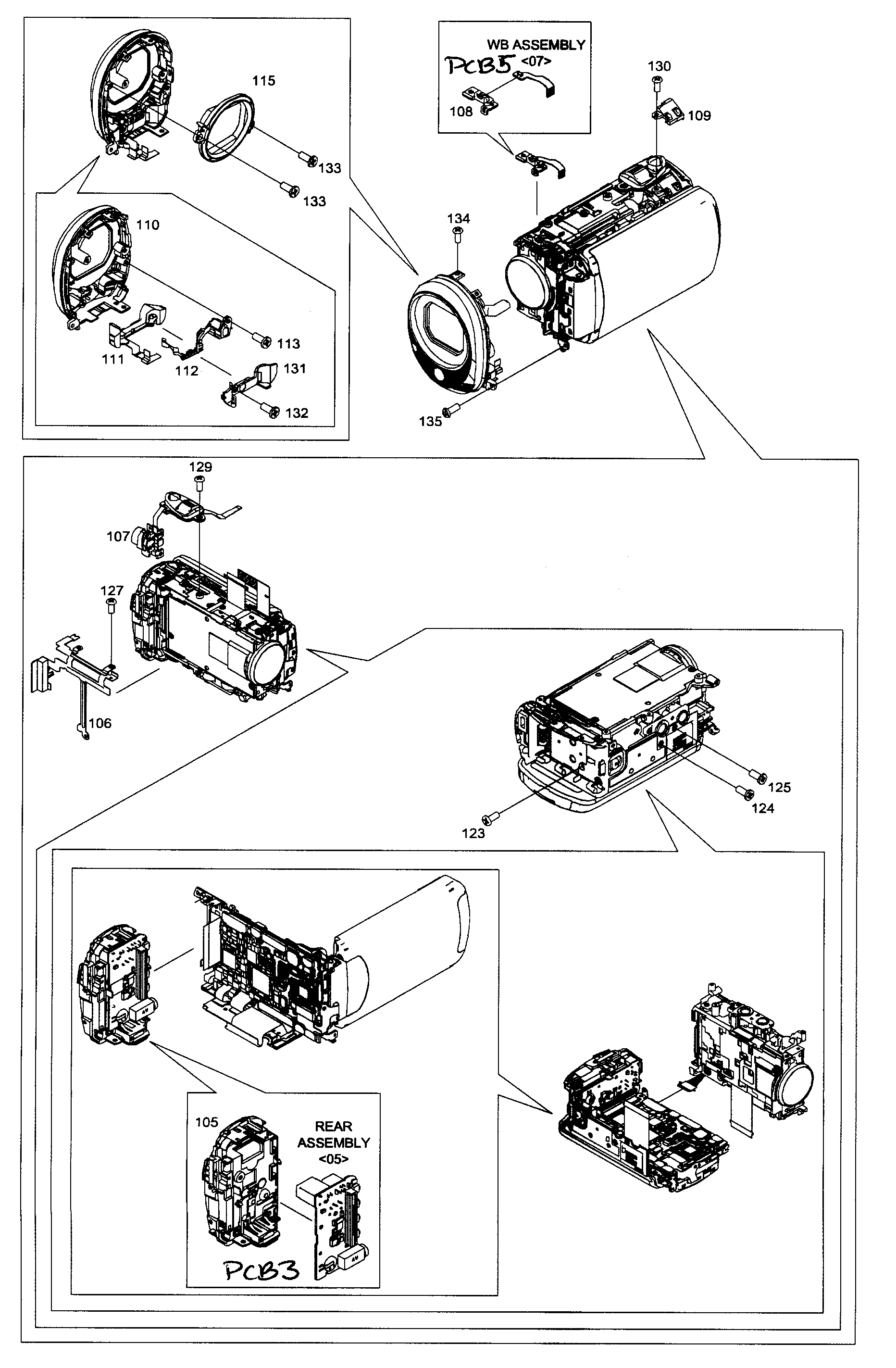

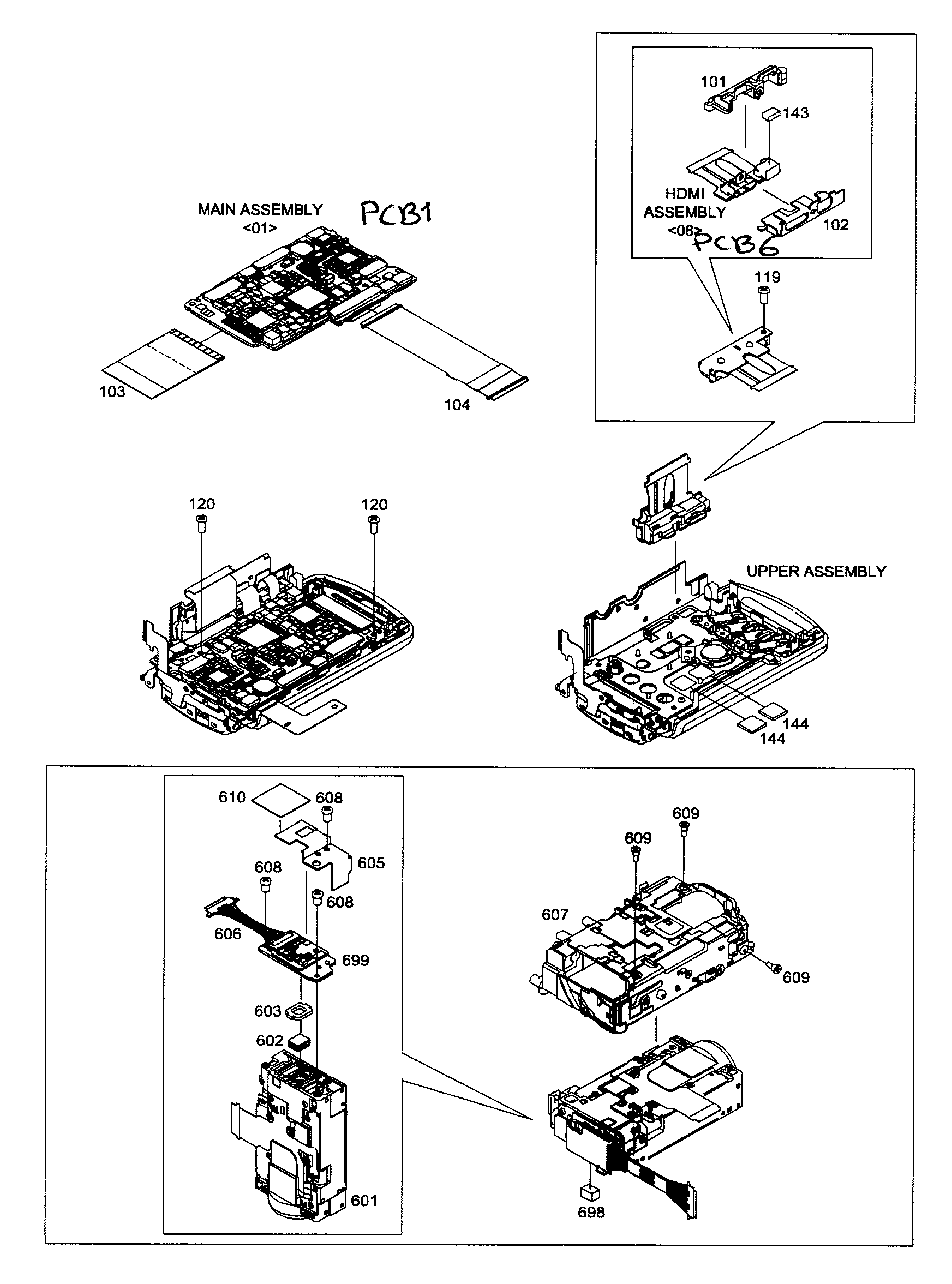

    Cabinet parts3 diagram

    Jvc Wire

    Part #WJN0285-001A-E

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part R5G05001N311N-X

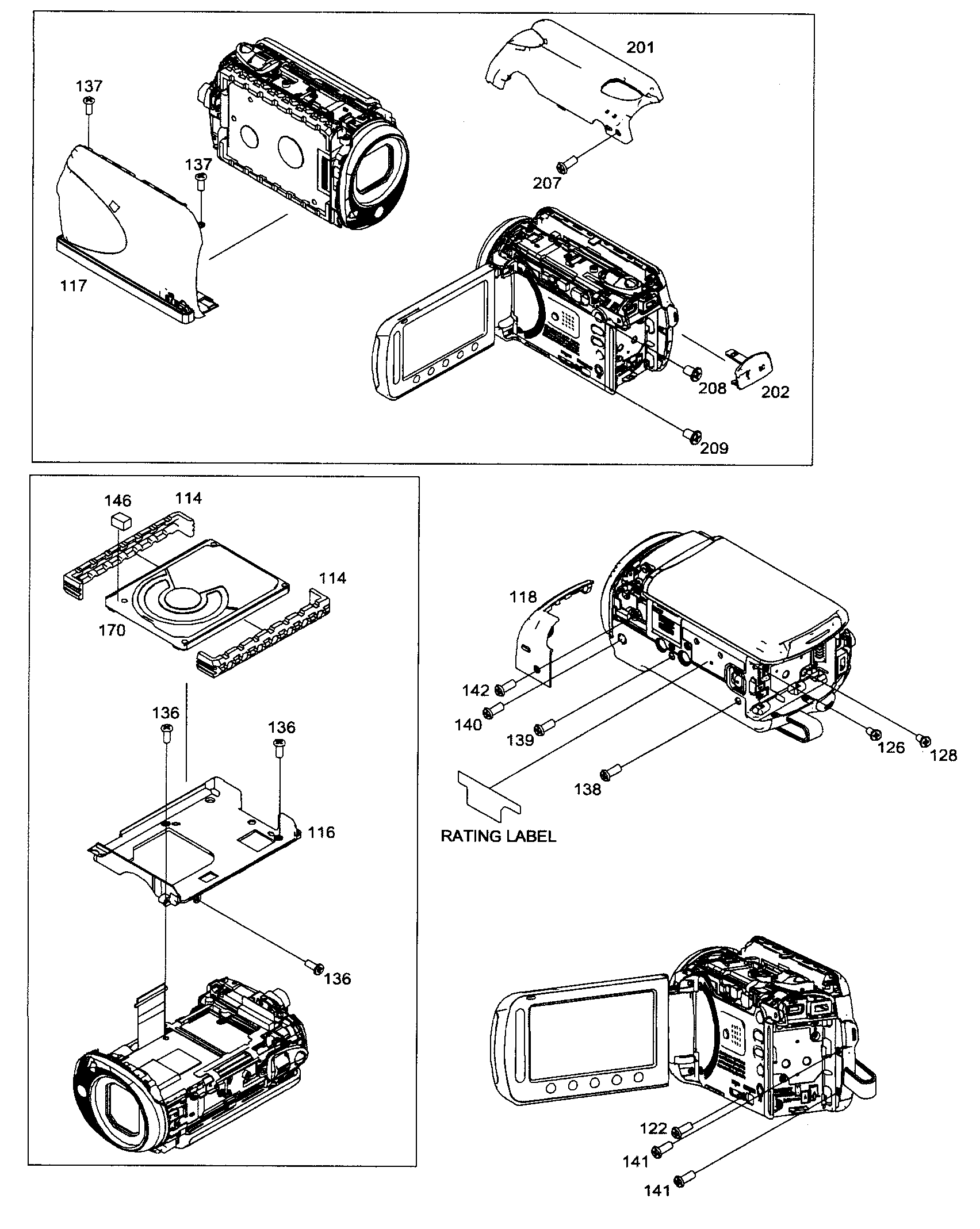

    Cabinet parts1 diagram

    Integrated Circuit

    Part #R5G05001N311N-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Pcb,sensor for JVC GZ-HD500BUS - Part LYA10205-01G2

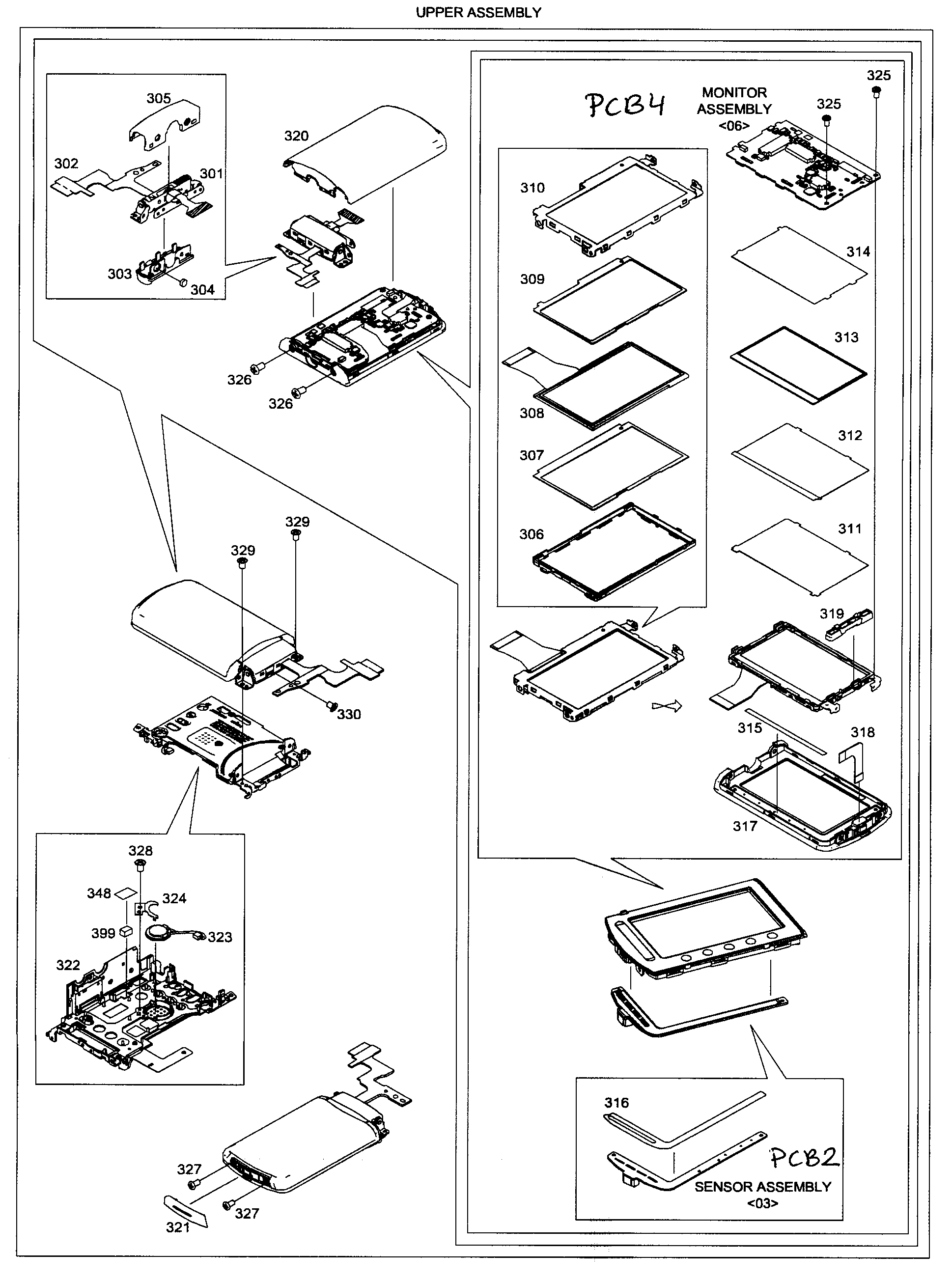

    Lcd assy diagram

    Jvc Pcb,sensor

    Part #LYA10205-01G2

    The manufacturer no longer makes this part, and there's no substitute part

  • Lcd Module for JVC GZ-HD500BUS - Part QLD0538-001

    Lcd assy diagram

    Lcd Module

    Part #QLD0538-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part AN41905A-X

    Cabinet parts1 diagram

    Integrated Circuit

    Part #AN41905A-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part H5MS5122DFRJ3MN

    Cabinet parts1 diagram

    Integrated Circuit

    Part #H5MS5122DFRJ3MN

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw,spec for JVC GZ-HD500BUS - Part LY30031-0N5A

    Lcd assy diagram

    Screw,spec

    Part #LY30031-0N5A

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part JCY0245

    Cabinet parts1 diagram

    Integrated Circuit

    Part #JCY0245

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Cover Assembly for JVC GZ-HD500BUS - Part LY37280-002A

    Lcd assy diagram

    Jvc Cover Assembly

    Part #LY37280-002A

    The manufacturer no longer makes this part, and there's no substitute part

  • Barrier for JVC GZ-HD500BUS - Part LY37437-001B

    Cabinet parts2 diagram

    Barrier

    Part #LY37437-001B

    The manufacturer no longer makes this part, and there's no substitute part
