JVC GZ-HD500BUS camcorder

JVC GZ-HD500BUS camcorder Parts

Here are the diagrams and repair parts for JVC GZ-HD500BUS camcorder, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

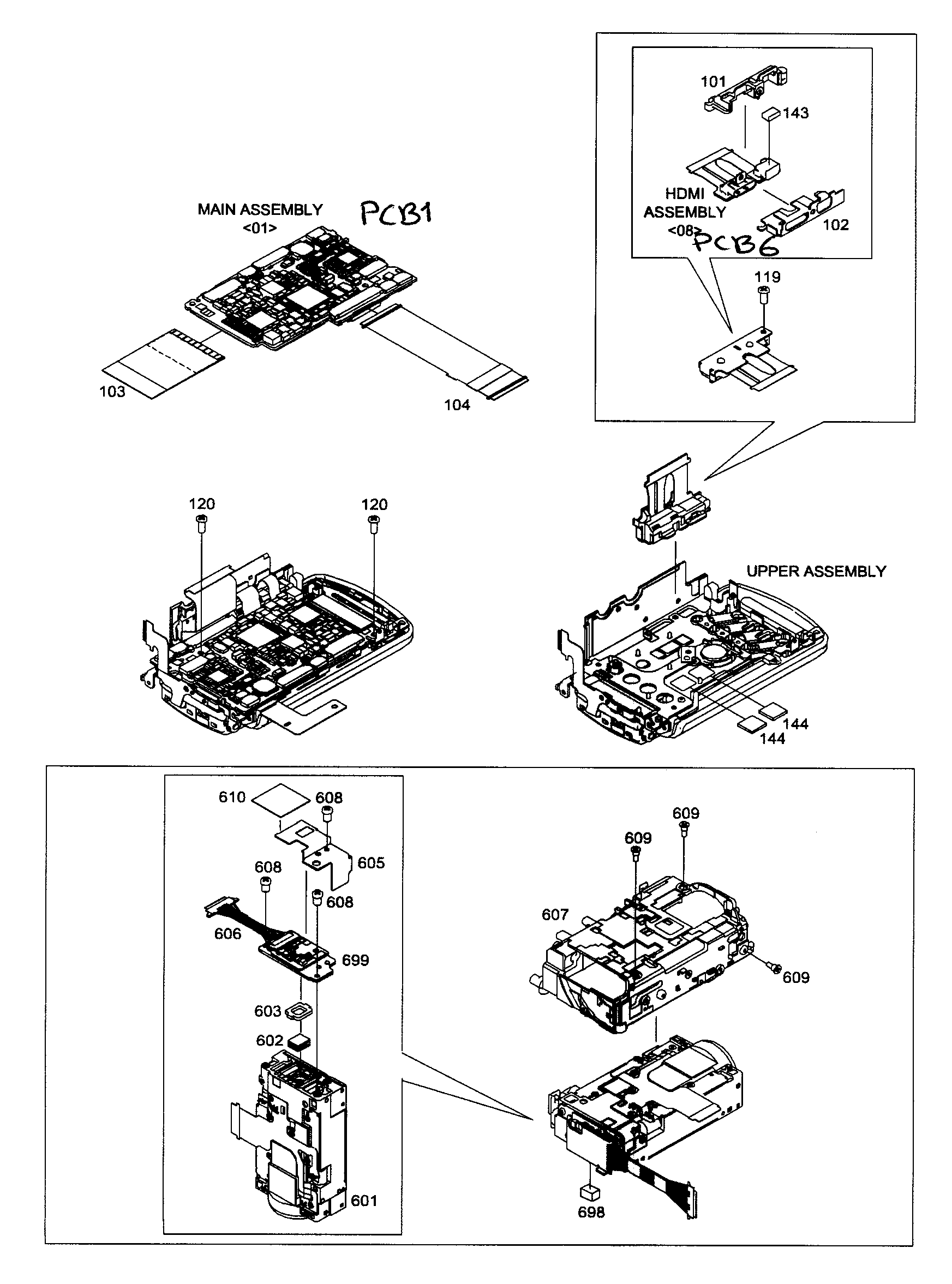

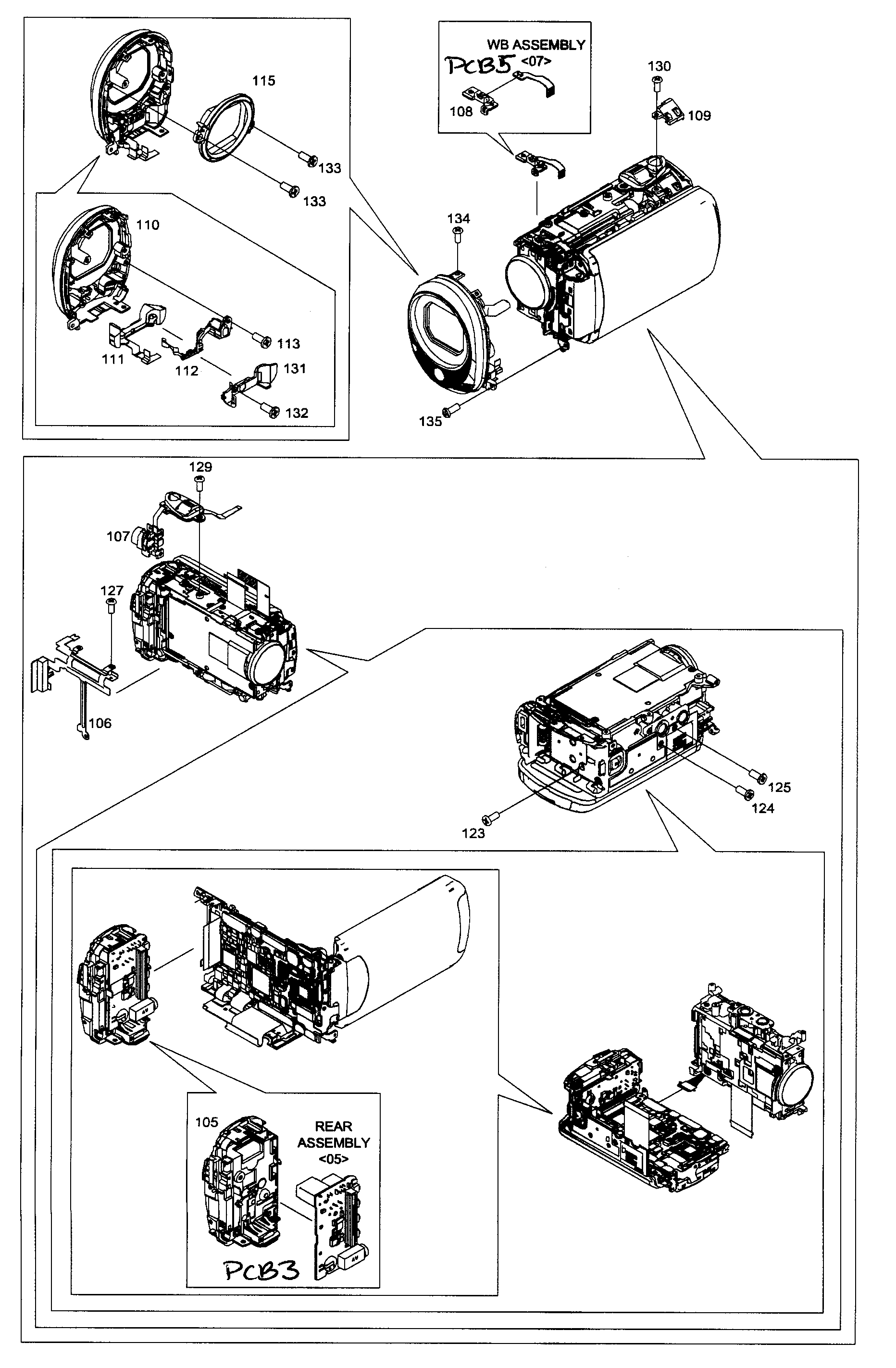

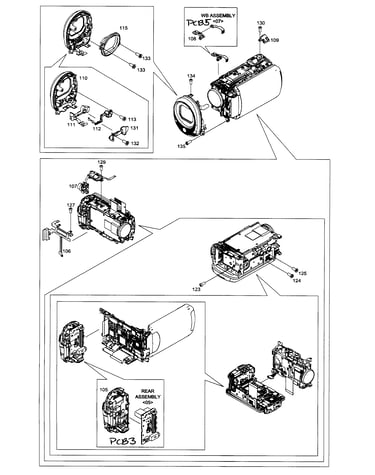

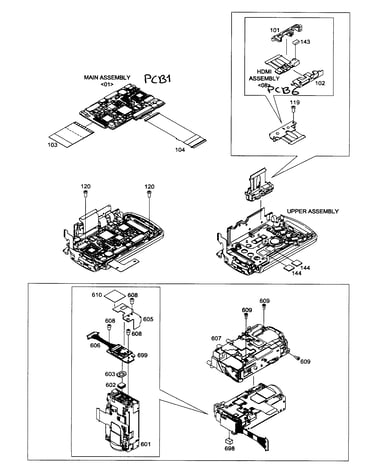

Browse Parts for GZ-HD500BUS Camcorders

  • Filter,emi for JVC GZ-HD500BUS - Part NQR0640-001X

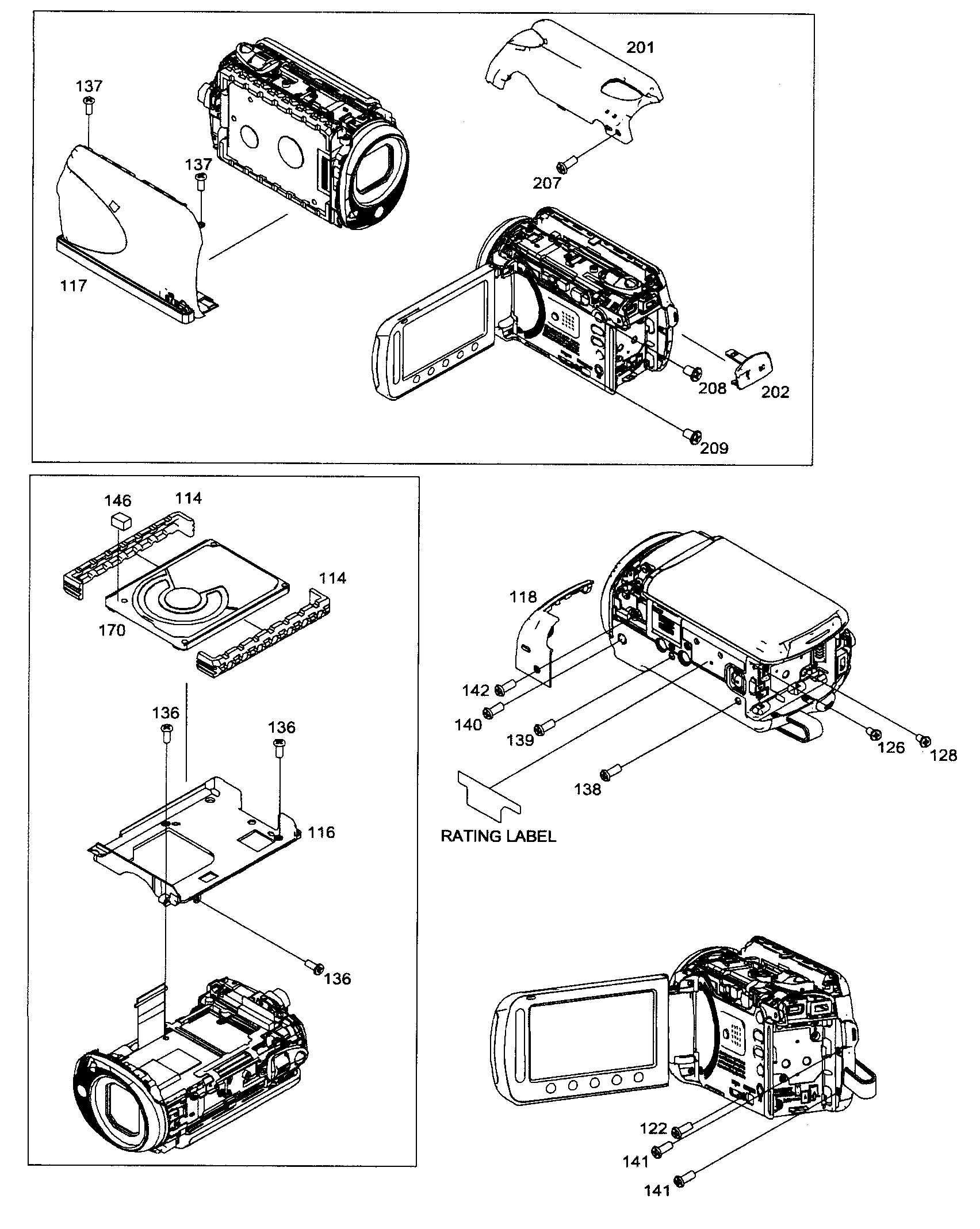

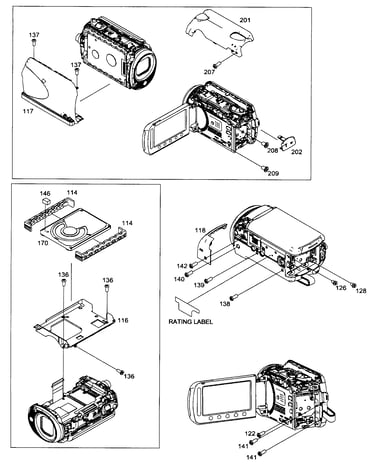

    Cabinet parts1 diagram

    Filter,emi

    Part #NQR0640-001X

    The manufacturer no longer makes this part, and there's no substitute part

  • Fpc Conn.m for JVC GZ-HD500BUS - Part QAL1245-001

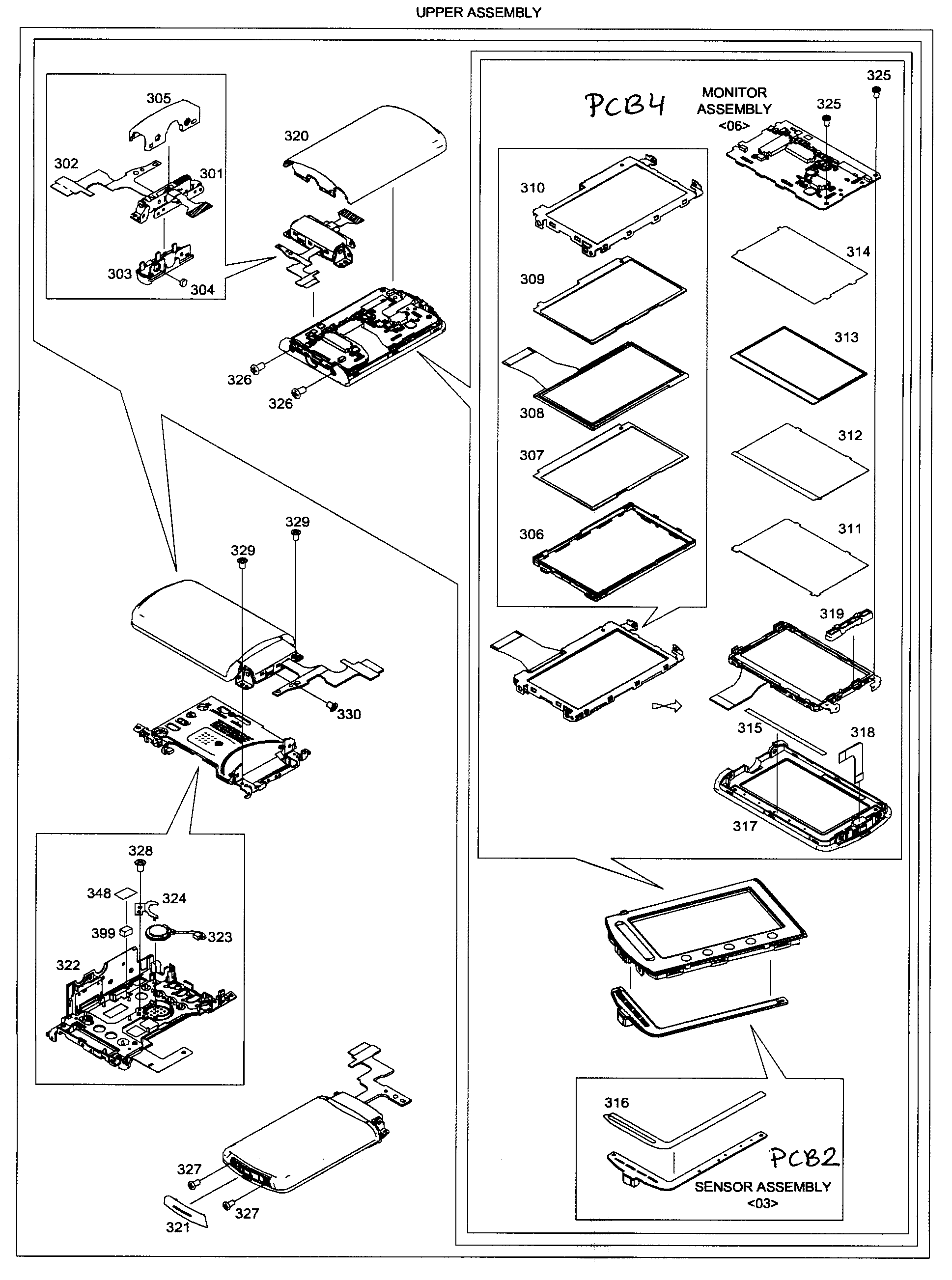

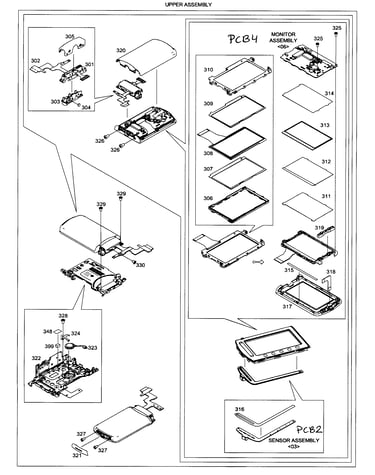

    Lcd assy diagram

    Fpc Conn.m

    Part #QAL1245-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part LE25LB1282TT-X

    Cabinet parts1 diagram

    Integrated Circuit

    Part #LE25LB1282TT-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part HGDESN031A-X

    Cabinet parts1 diagram

    Integrated Circuit

    Part #HGDESN031A-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part R1172N271D-X

    Cabinet parts1 diagram

    Integrated Circuit

    Part #R1172N271D-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Regis.card for JVC GZ-HD500BUS - Part BT-51044-1

    Cabinet parts1 diagram

    Regis.card

    Part #BT-51044-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part H5MS5122DFRJ3MN

    Cabinet parts1 diagram

    Integrated Circuit

    Part #H5MS5122DFRJ3MN

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part JCY0245

    Cabinet parts1 diagram

    Integrated Circuit

    Part #JCY0245

    The manufacturer no longer makes this part, and there's no substitute part

  • Jvc Pcb,mon.bd for JVC GZ-HD500BUS - Part LYA10205-01G1

    Lcd assy diagram

    Jvc Pcb,mon.bd

    Part #LYA10205-01G1

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HD500BUS - Part AN41905A-X

    Cabinet parts1 diagram

    Integrated Circuit

    Part #AN41905A-X

    The manufacturer no longer makes this part, and there's no substitute part
