Sony
Digital Camcorder

Model # DCR-HC21 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-HC21 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

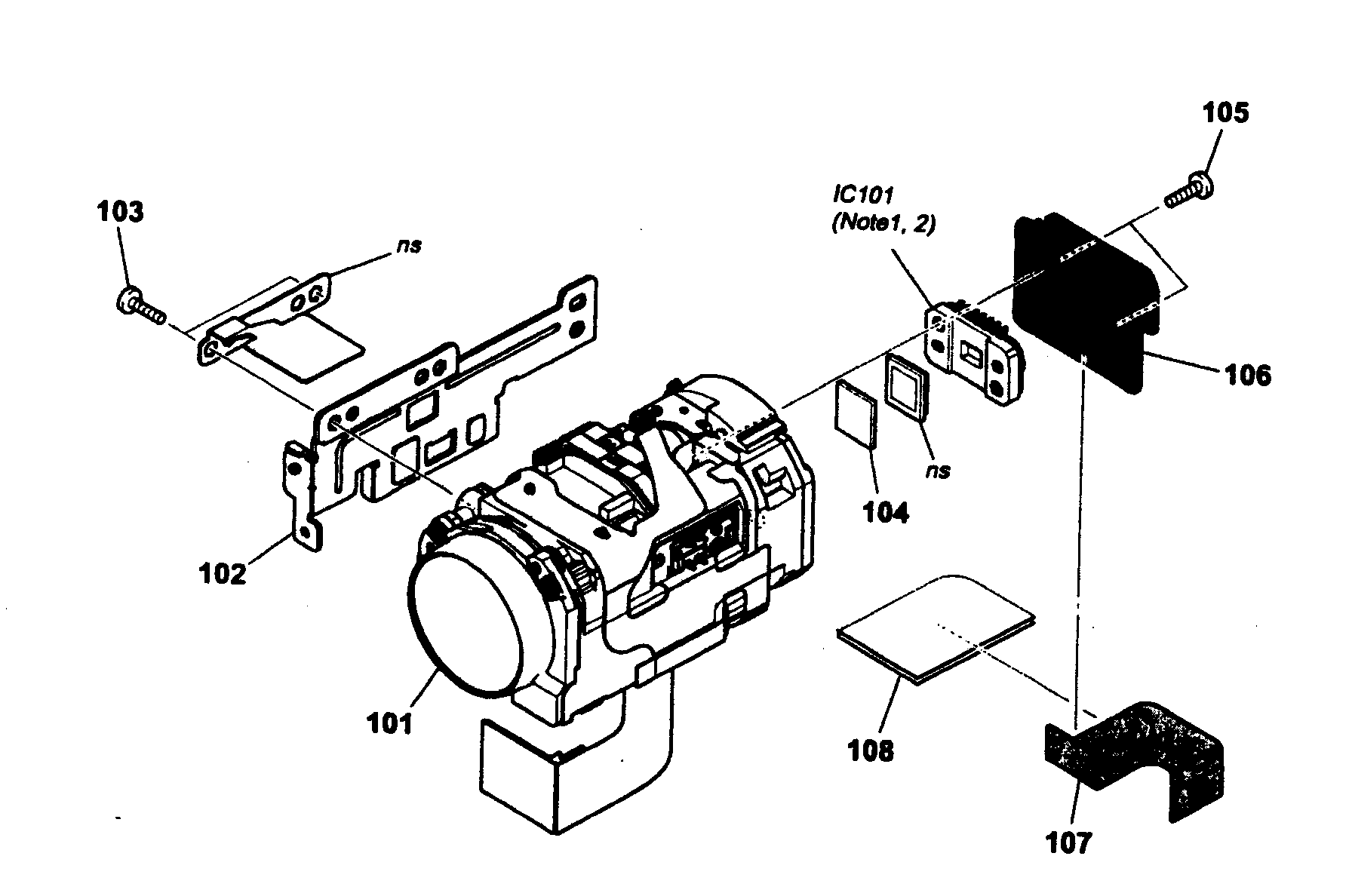

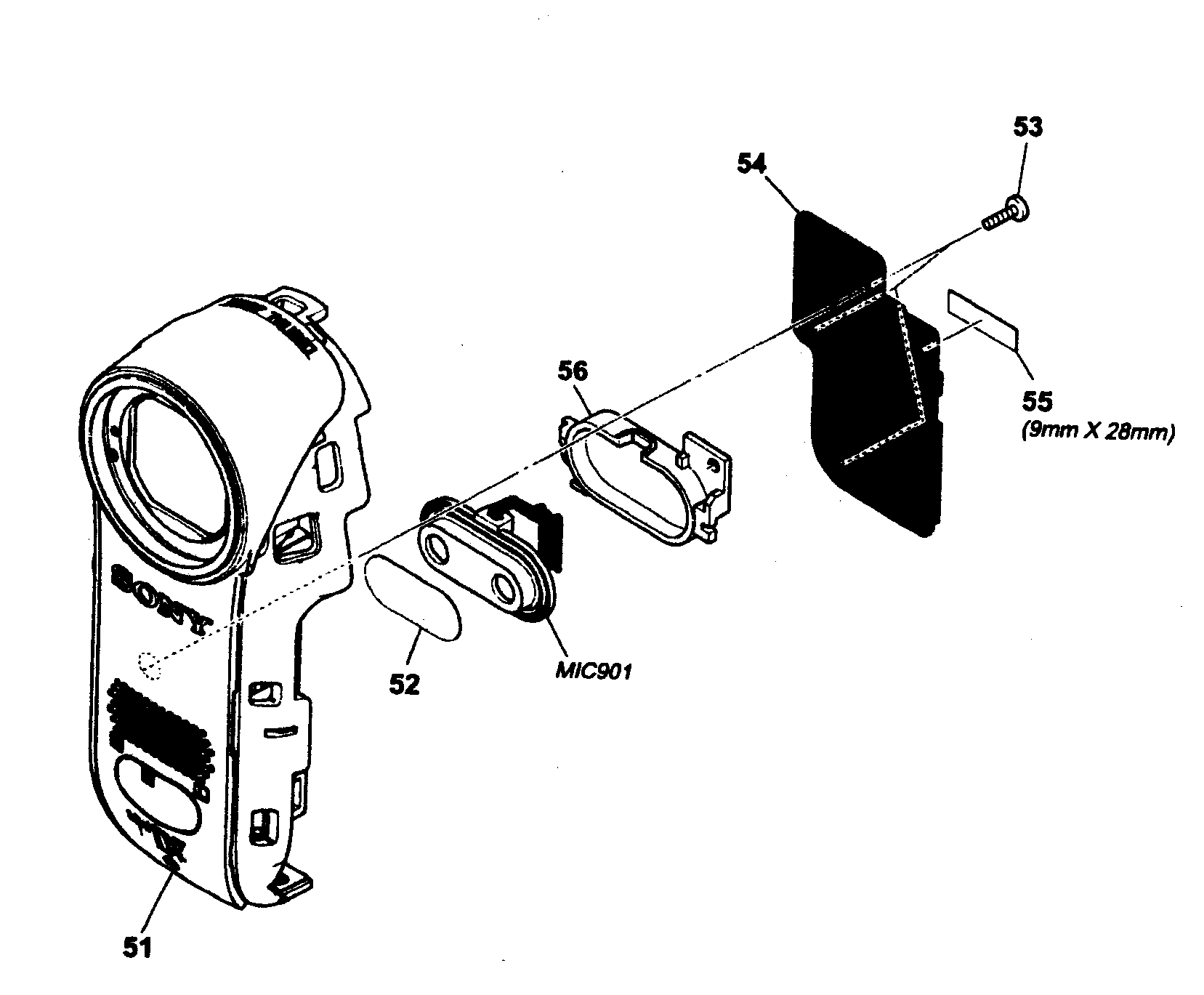

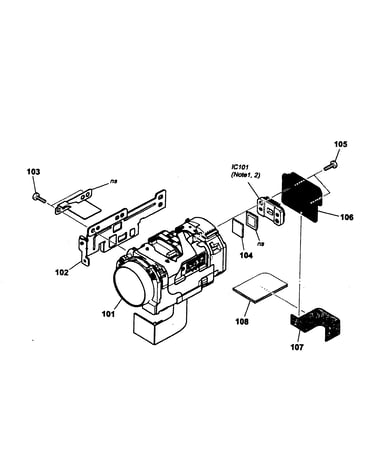

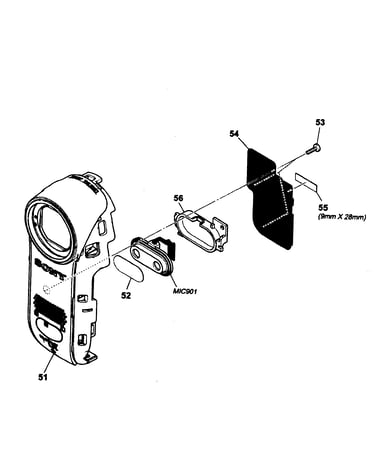

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Hinge X20237711
#156

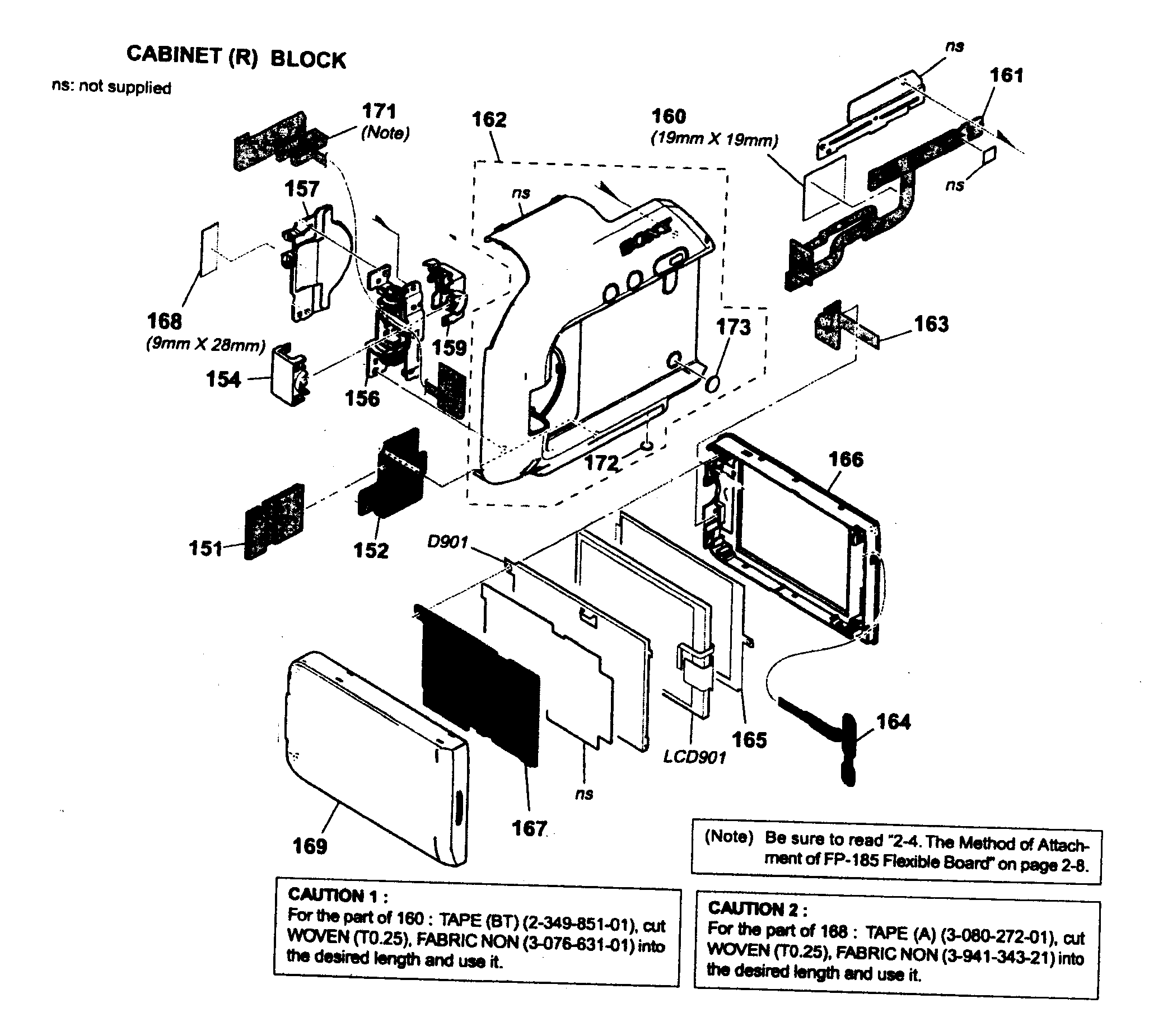

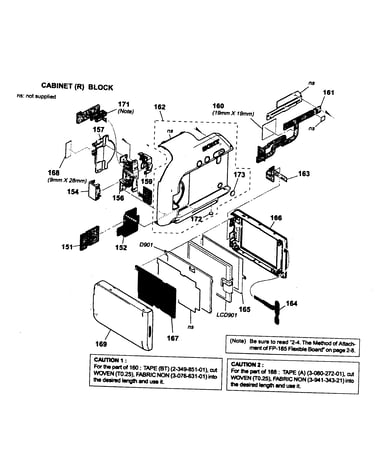

Cabinet r block diagram

Hinge

Part #X20237711

The manufacturer no longer makes this part, and there's no substitute part

Encoder 147767911
#NI

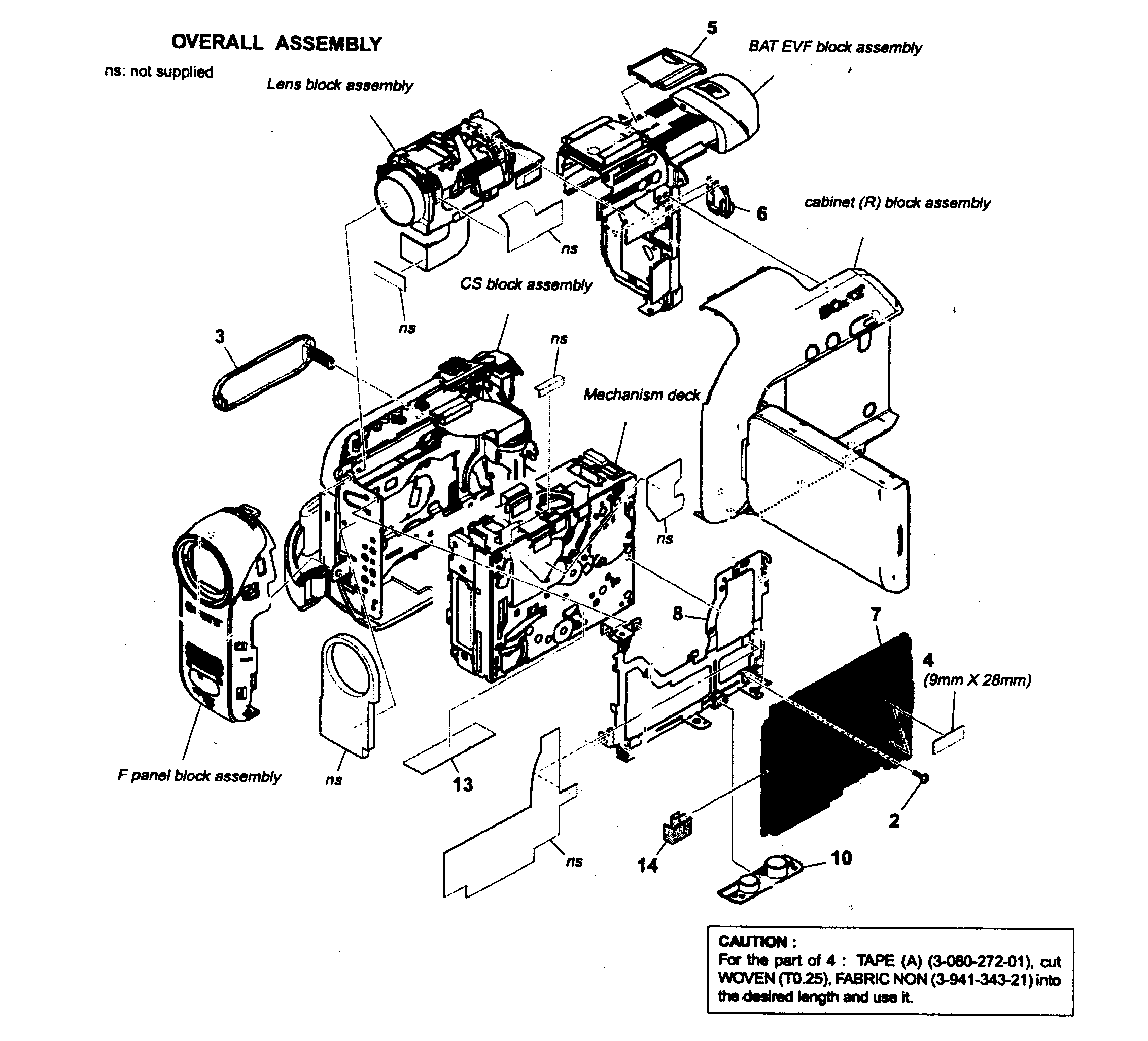

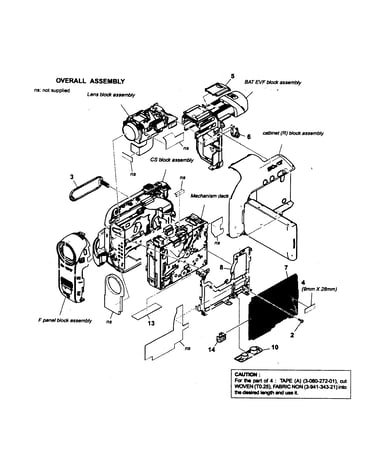

Cabinet parts diagram

Encoder

Part #147767911

The manufacturer no longer makes this part, and there's no substitute part

Coil 875320884
#NI

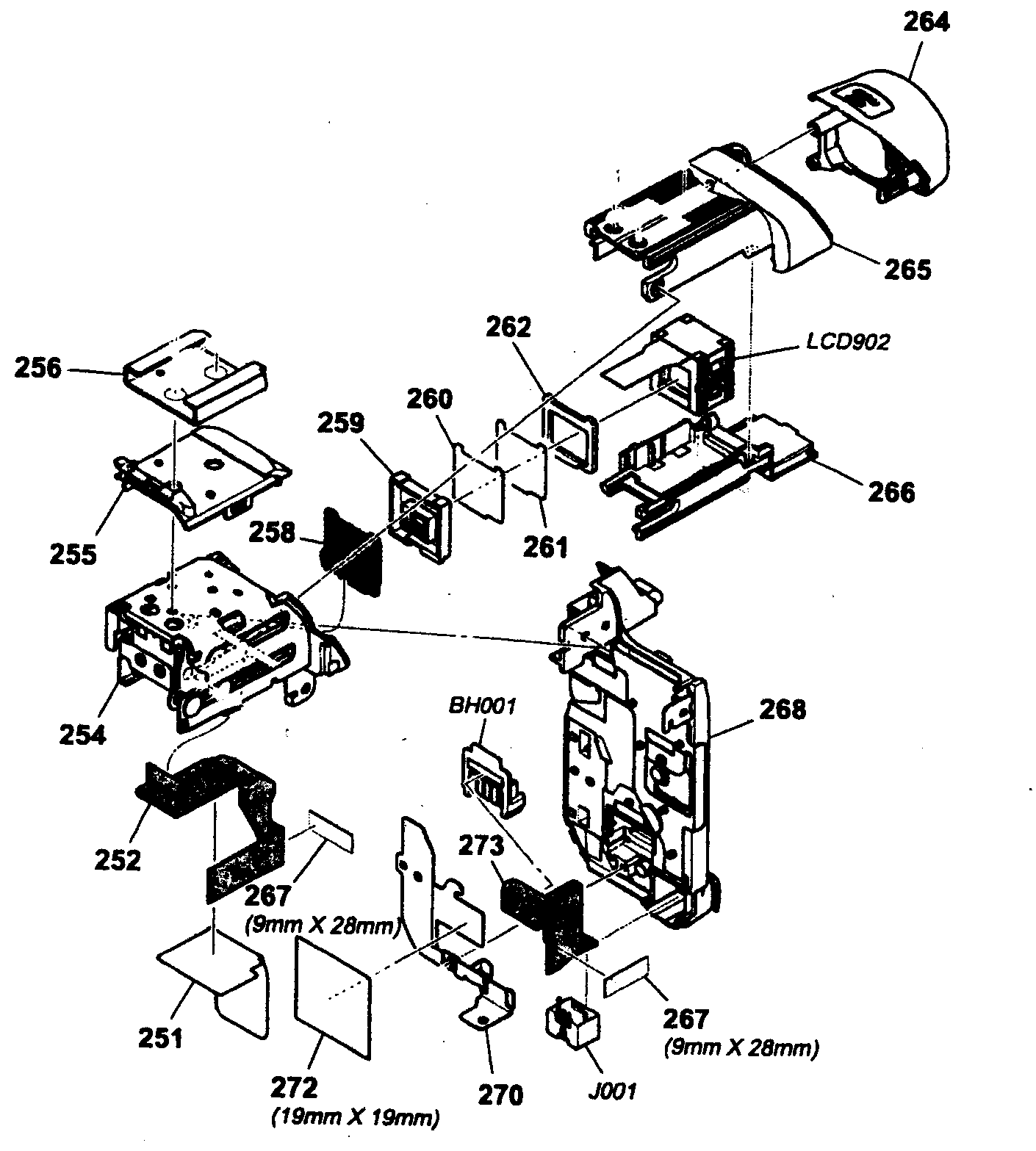

Battery evf block diagram

Coil

Part #875320884

The manufacturer no longer makes this part, and there's no substitute part

Shoe,acc 306746911
#255

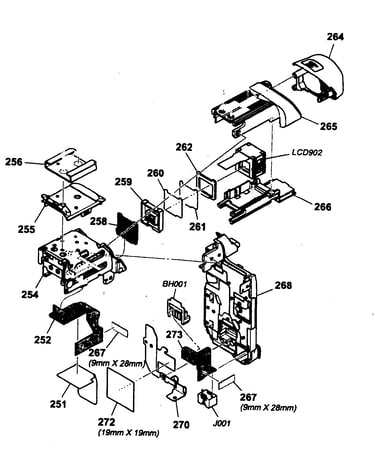

Battery evf block diagram

Shoe,acc

Part #306746911

The manufacturer no longer makes this part, and there's no substitute part

Software 251535001
#NI

Cabinet parts diagram

Software

Part #251535001

The manufacturer no longer makes this part, and there's no substitute part

Key Block 147898221
#204

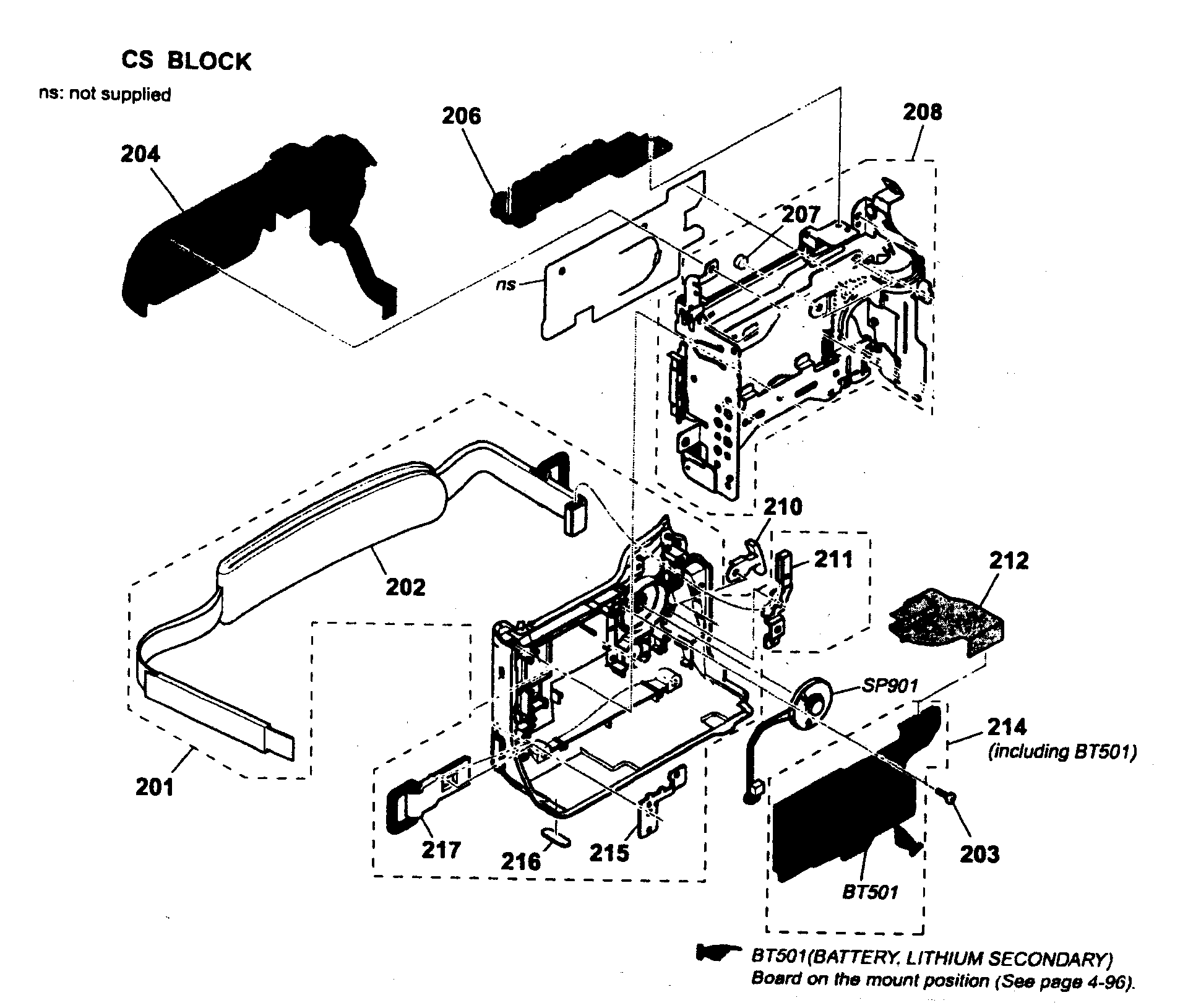

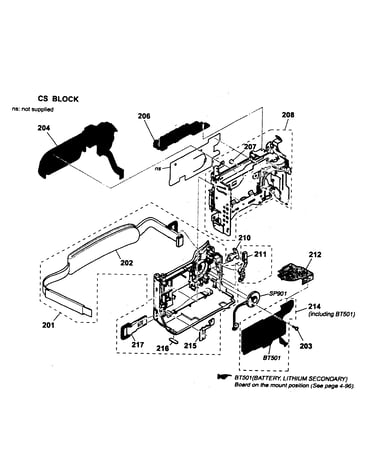

Cs block diagram

Key block

Part #147898221

The manufacturer no longer makes this part, and there's no substitute part

Cable Audio Video 182315651
#NI

Cabinet parts diagram

Cable audio video

Part #182315651

The manufacturer no longer makes this part, and there's no substitute part

Motor Block A7095396A
#NI

Cabinet parts diagram

Motor block

Part #A7095396A

The manufacturer no longer makes this part, and there's no substitute part

Gear Cam 307931901
#NI

Cabinet parts diagram

Gear cam

Part #307931901

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 218851101
#266

Battery evf block diagram

Cabinet

Part #218851101

The manufacturer no longer makes this part, and there's no substitute part
