ICP N2A330AKA200 split-system air conditioner Parts

A 2.5-ton (30,000 BTU/hr) central AC can cool about 2,000 sq ft in many homes, but it is only “big enough” when the home’s heat gain matches that capacity. For an Icp N2A330AKA200 split-system air conditioner, we recommend sizing by a Manual J load calculation and then matching the indoor coil and TXV setup shown in the owner's manual.

Quick sizing rule of thumb (and why it varies)

A common starting point is about 500 to 800 sq ft per ton, which puts 2,000 sq ft in the 2.5 to 4 ton range depending on conditions.

Key factors that push you up or down:

• Climate and design temperature (hotter areas usually need more capacity)
• Insulation and air sealing (attic, walls, duct leakage)
• Window size, orientation, and shading
• Ceiling height and open floor plans
• Internal loads (people, cooking, electronics)

What happens if the system is undersized vs oversized?

Sizing affects comfort, humidity, and run time.

If the AC is...	Common symptoms	What you notice most
Undersized	Long run times, struggles on hottest days	Higher indoor temps late afternoon/evening
Oversized	Short cycling, uneven temps	Poor humidity control, clammy feel

Model-specific installation details that affect performance

Even with the right tonnage, installation details can make a correctly sized system perform like the wrong size. For the N2A330AKA200, these items matter:

• Clearances: keep about 48 in. above for discharge air and 18 in. on coil sides for intake air (one side can be reduced to 6 in. in some layouts)
• Line set length: total refrigerant line set should not exceed 200 ft
• Long lines: use a crankcase heater when line length exceeds 80 ft
• Charging: outdoor units are typically charged for a matched indoor coil and 15 ft of line; adjust charge by 0.6 oz per foot difference, then finalize using subcooling with an indoor TXV

Why it matters

A Manual J-based size selection helps you avoid comfort problems and efficiency losses. It also helps ensure the outdoor unit, indoor coil, refrigerant charge, and airflow are all working together as designed.

Last updated: February 2026

On an Icp split-system air conditioner like model N2A330AKA200, the most expensive single component to replace is typically the compressor because it is the sealed-system “pump” that drives refrigerant flow and often requires refrigerant recovery, evacuation, and precise recharging. In many cases, compressor replacement also triggers additional parts and labor.

What usually makes compressor repairs cost the most

• It is part of the sealed refrigeration system (refrigerant handling and leak checks add labor)
• Diagnosis often involves electrical and pressure testing
• A failure can be related to airflow, charge, or electrical issues that must be corrected
• The repair may include replacing additional components to protect the new compressor
• Downtime is higher because the system must be evacuated and recharged correctly

Other high-cost repairs to know about

While the compressor is usually the top-cost item, these can also be expensive depending on the failure:

Component	Why it can get expensive	Common symptom examples
Compressor	Sealed-system labor plus refrigerant work	Won’t start, trips breaker, locked rotor
Outdoor fan motor or fan blade	Parts plus labor; airflow issues can cascade	Overheating, pressure trips, loud noise
Electrical controls (contactor, wiring)	Diagnosis time; heat damage can spread	No outdoor start, intermittent cooling
Refrigerant metering device (TXV at indoor coil)	Requires correct matching and setup	Poor cooling, coil freeze-up

For this model, we commonly see service calls tied to electrical controls and airflow. The owner's manual includes troubleshooting guidance such as pressure trips, long run time, and short cycling, which are often related to airflow, refrigerant charge, or control issues.

Quick checks before you assume “compressor failure”

Turn off power at the disconnect before inspecting anything.

• Confirm the thermostat is calling for cooling and the indoor blower runs
• Check for a dirty or blocked condenser coil and poor outdoor airflow
• Listen for the contactor pulling in; a failed contactor can mimic a bad compressor
• Look for obvious wiring damage or loose connections
• If the unit has a crankcase heater, follow the 24-hour energize step before start-up (noted in the manual)

If you need a common electrical replacement for this unit, the central air conditioner contactor 1172472 is one of the model-specific parts we list for N2A330AKA200.

Why it matters

Misdiagnosing a compressor can lead to unnecessary high-cost repairs. Verifying airflow, electrical controls, and charge-related symptoms first helps you fix the real cause and protect major components.

Last updated: February 2026

To find the right parts for your Icp N2A330AKA200 central air conditioner, match parts by the exact model number on the unit data plate, then use the parts list for that model to select the correct component. For diagrams and model-specific details, use the owner's manual.

Step-by-step: how we recommend finding the correct part

• Confirm the model number is N2A330AKA200 (match every character).
• Identify the system area: electrical (contactor, wiring), fan section (fan blade), or refrigerant service (service valve).
• Use the symptom to narrow the part category (no cooling, fan not running, won’t start, intermittent operation).
• Compare the part name and ID to what you need before ordering.
• Follow electrical safety basics: turn off the main (remote) disconnect and lock out/tag out before inspecting wiring or controls.

Common parts customers replace on this model

If your symptoms point to one of these areas, these are model-matched parts available for N2A330AKA200:

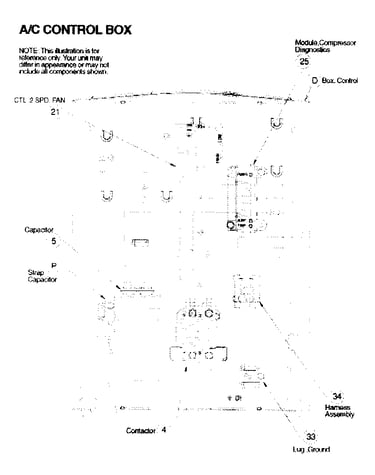

• Electrical switching: central air conditioner contactor 1172472

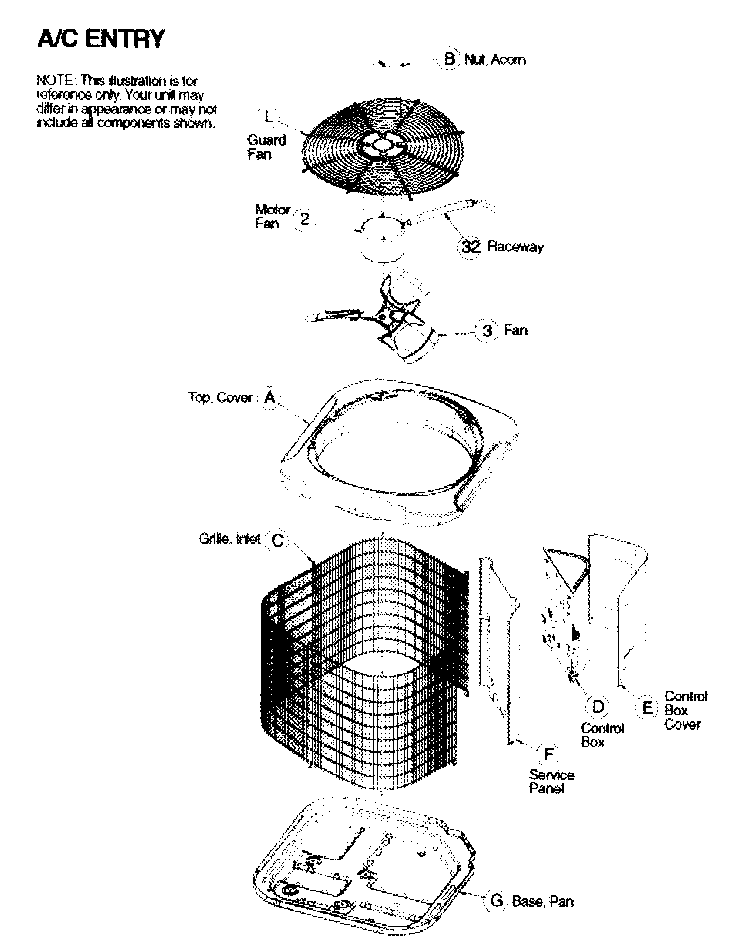

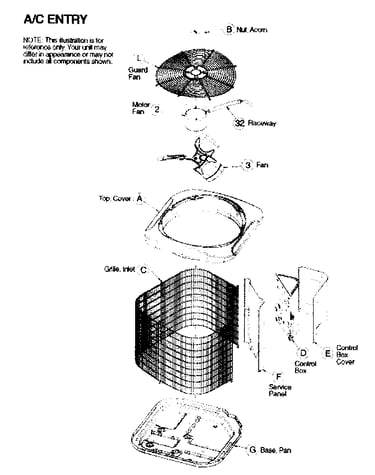

• Outdoor fan airflow: Icp central air conditioner condenser fan blade 1173853
• Grounding connection: lug ground 1172300

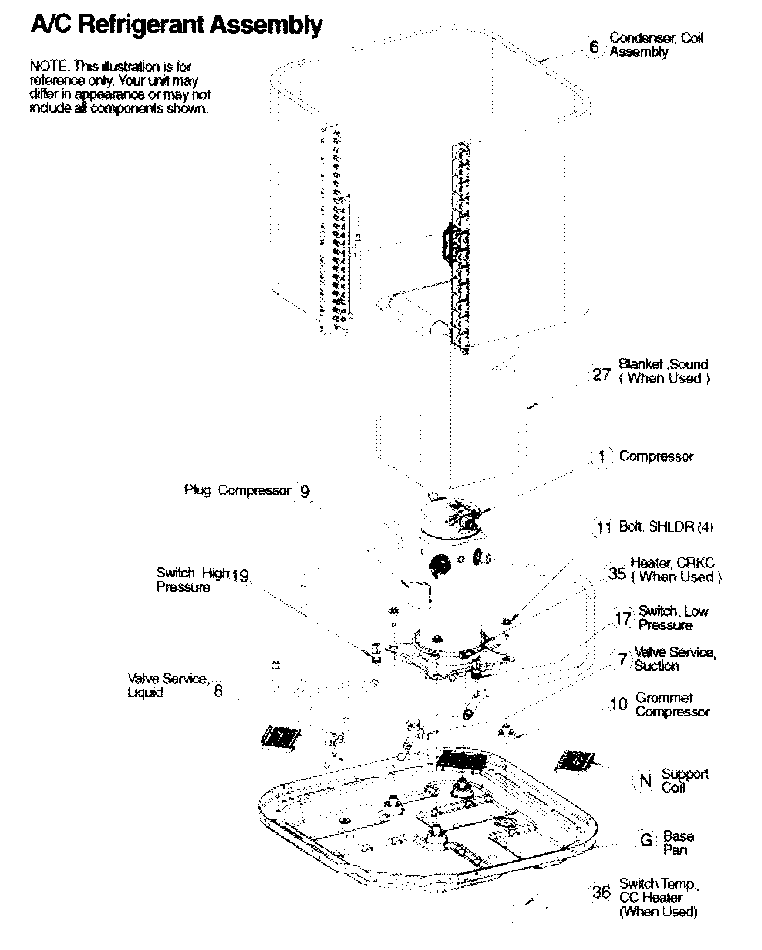

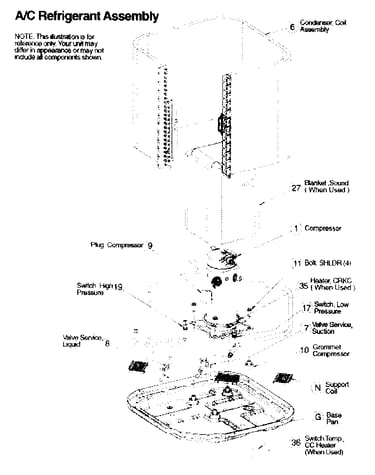

• Refrigerant service connection: service valve 1185864

Quick “symptom to part” guide

What you notice	Common area to check	Example part on this model
Outdoor unit will not start	Control power and switching	Contactor
Outdoor fan runs poorly or is noisy	Fan blade and fan motor area	Condenser fan blade
Intermittent cooling call	Low-voltage wiring, contactor coil	Contactor
Service work on refrigerant lines	Service valves (keep factory charge protected)	Service valve

Why it matters

Central air conditioner parts are highly model-specific. Using the exact N2A330AKA200 model match helps ensure correct fit, correct electrical ratings, and proper system operation after repair.

Last updated: February 2026

Yes, you can replace some parts on your Icp N2A330AKA200 split-system air conditioner yourself, but only if the job is strictly electrical or mechanical and you can safely shut off and lock out power. Any repair involving refrigerant lines, brazing, or charge adjustment should be handled by a qualified technician per the safety guidance in the owner's manual.

What you can usually replace yourself (DIY-friendly)

These tasks stay on the low-voltage or basic component side and do not open the sealed refrigeration system.

• Replace a worn or damaged electrical contactor (after verifying the correct match)
• Replace a condenser fan blade if it is bent, cracked, or wobbling
• Tighten or replace a damaged ground lug or corroded ground connection
• Inspect and re-seat thermostat/control wiring connections (if you can identify terminals correctly)
• Clean debris from the outdoor unit and straighten lightly bent coil fins (carefully)

Model-matched parts we list for N2A330AKA200 include:

Symptom you might see	Common DIY suspect	Example part on this model
Outdoor unit clicks but fan will not run	Fan blade damage or obstruction	Icp central air conditioner condenser fan blade 1173853
Outdoor unit will not pull in/engage	Contactor not closing	Central air conditioner contactor 1172472
Intermittent operation, visible corrosion at ground	Poor ground connection	Lug ground 1172300

What you should not do yourself

These repairs create serious shock, fire, and refrigerant risks and commonly require specialized tools.

• Open the refrigerant circuit (service valves, line set, coil connections)
• Braze/solder refrigerant tubing
• Adjust refrigerant charge (the manual notes charge changes when line length or coil differs)
• Bypass safety controls or modify wiring beyond like-for-like replacement

Safety steps we recommend before any DIY work

The manual emphasizes turning off the main (remote) electrical disconnect and notes there may be more than one disconnect.

• Set the thermostat to OFF before starting
• Turn OFF the main disconnect(s) to the outdoor unit and indoor equipment
• Lock out and tag out the disconnect if possible
• Use a multimeter to confirm power is actually off before touching wiring
• Take a photo of all wire positions before removing anything

Why it matters

Central air conditioners combine high-voltage power, moving parts, and (in many repairs) refrigerant handling. Staying within safe, like-for-like component replacement helps prevent equipment damage, nuisance trips, and personal injury.

Last updated: February 2026

If the suction (large copper) line on your Icp N2A330AKA200 is not cold or sweating while the thermostat is calling for cooling, the system is not moving heat correctly. The most common causes are the outdoor unit not running, low airflow causing coil freeze-up, or a low refrigerant charge.

Quick checks we recommend (safe, homeowner-level)

• Set thermostat to COOL; setpoint below room temperature.
• Replace a dirty return-air filter; confirm supply vents are open.
• Check the outdoor unit: condenser fan should run during a cooling call.
• Check for ice on the suction line or indoor coil; if iced, turn COOL off and run FAN to thaw.
• Check the breaker/disconnect; reset a tripped breaker once.

Common causes and what you’ll notice

Likely cause	What you may observe	Next step
Outdoor unit not running	No fan, no compressor sound	Check power, wiring, and controls
Failed control component	Outdoor unit stays off during a call	A tech can test the central air conditioner contactor 1172472
Low airflow and coil freeze-up	Ice, weak airflow, poor cooling	Filter, blower operation, duct restrictions
Low refrigerant charge or restriction	Weak cooling, possible icing, long run times	Technician checks charge and restrictions

Why the manual guidance matters

The N2A330AKA200 documentation stresses insulating the entire suction line and avoiding kinks in refrigeration tubing; damaged or poorly routed lines change pressures and temperatures and can lead to poor cooling. Use the refrigerant line and service valve cautions in the owner's manual.

When to stop and get service

• Breaker trips again after reset.
• Outdoor fan runs but the compressor will not start.
• You suspect a refrigerant leak, restriction, or electrical burning smell.

Why it matters

A warm suction line usually means the indoor coil is not absorbing heat; continued operation can lead to icing and compressor stress.

Last updated: February 2026
