Amana IC4N-P1110801W add-on ice maker - ic3n ic4n

Amana IC4N-P1110801W add-on ice maker - ic3n ic4n Parts

Here are the diagrams and repair parts for Amana IC4N-P1110801W add-on ice maker - ic3n ic4n, as well as links to manuals and error code tables, if available.

By Schematic
By Part

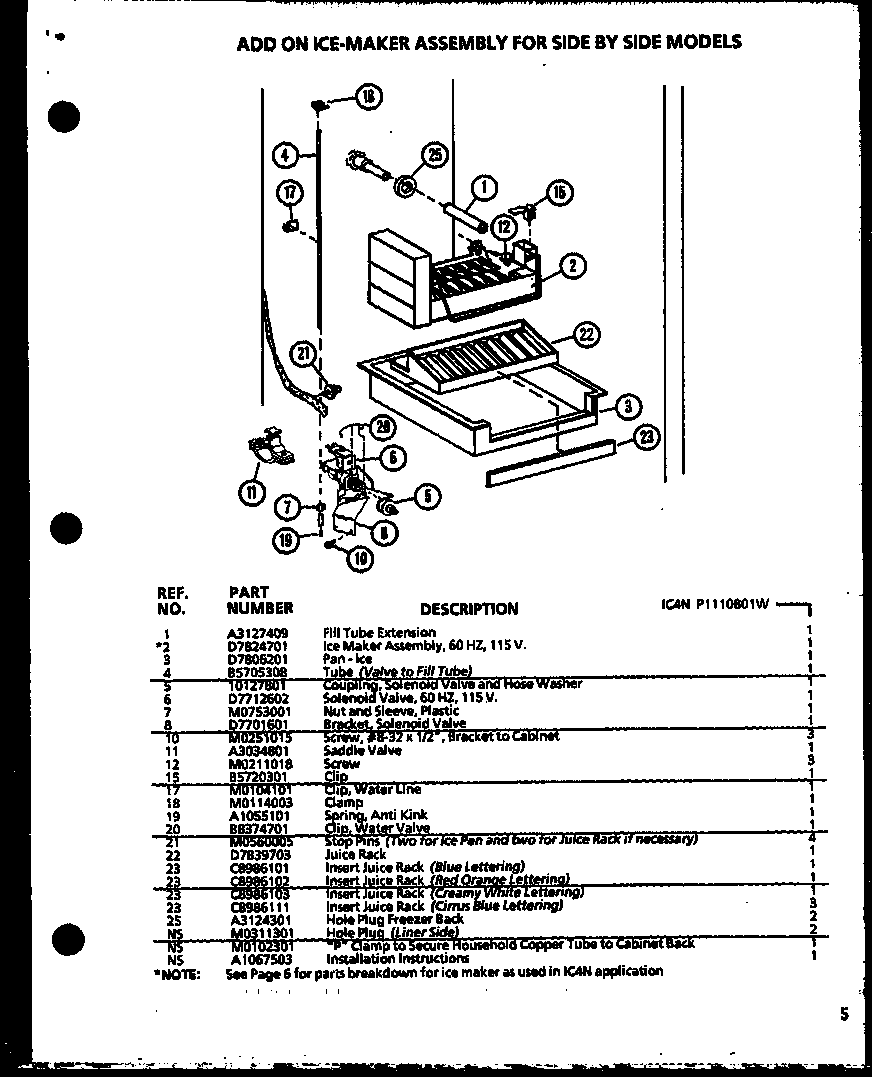

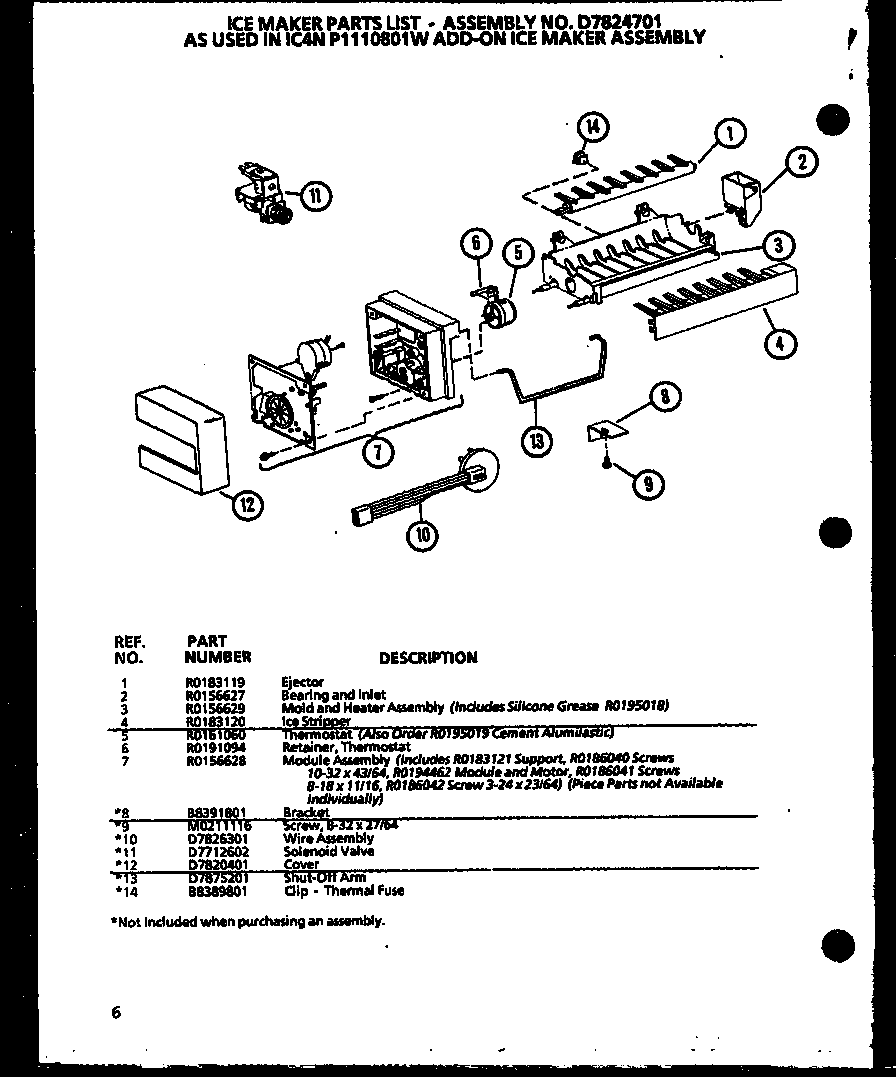

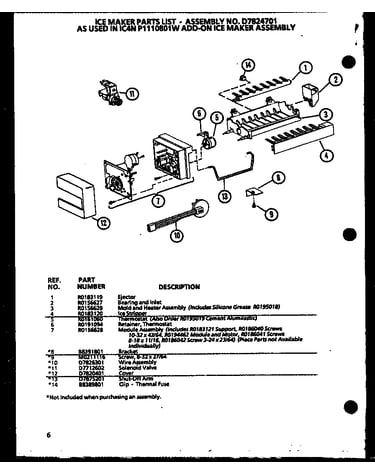

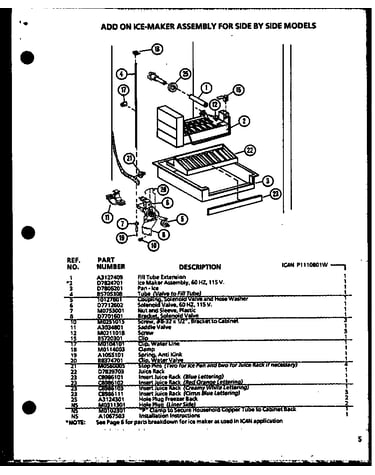

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for IC4N-P1110801W Refrigerators

  • Refrigerator Ice Maker Fill Cup for Amana IC4N-P1110801W - Part WP628356

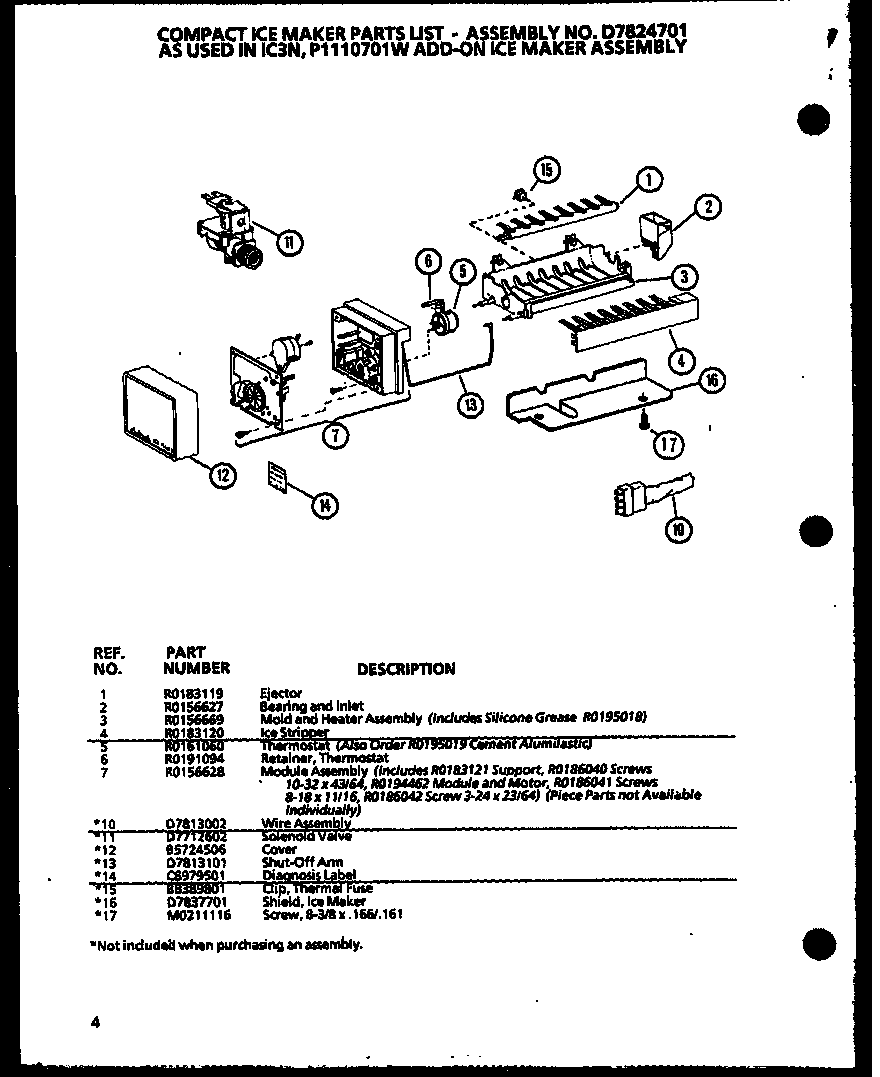

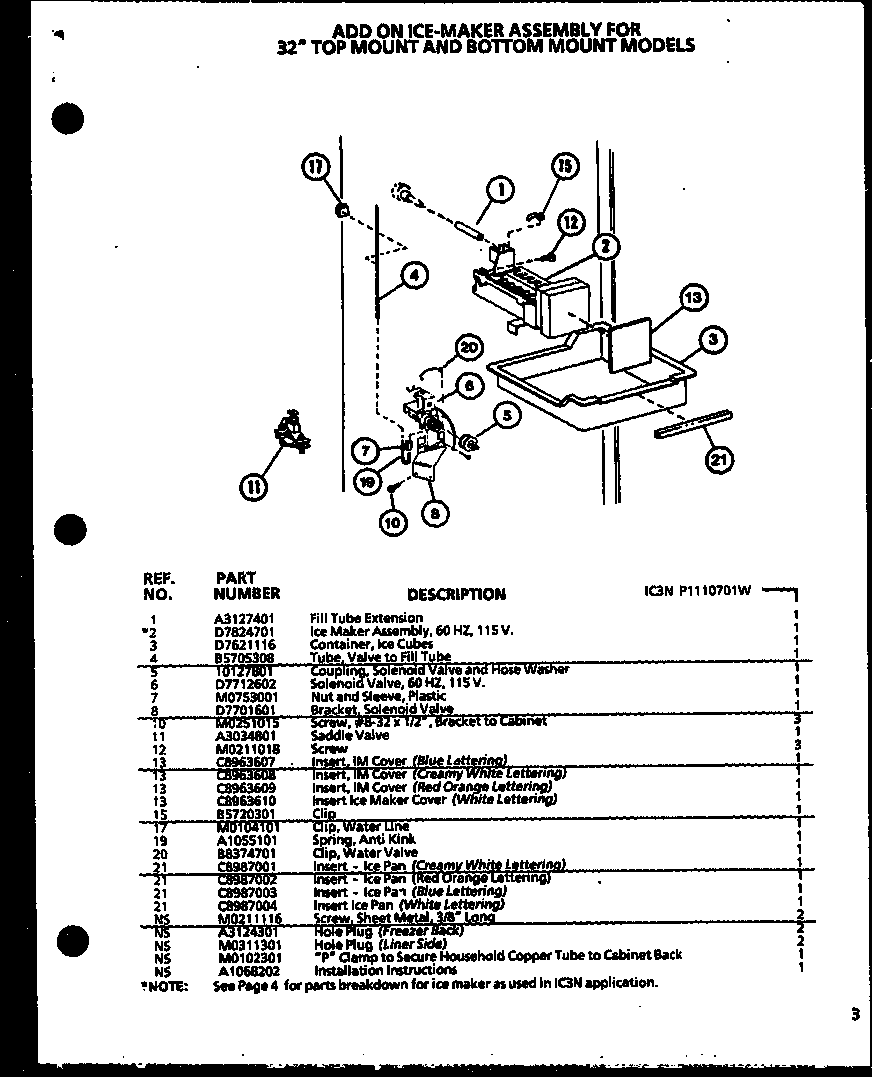

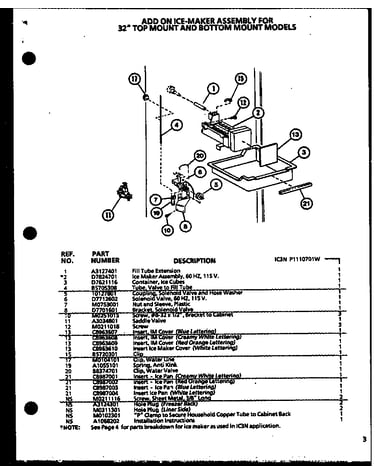

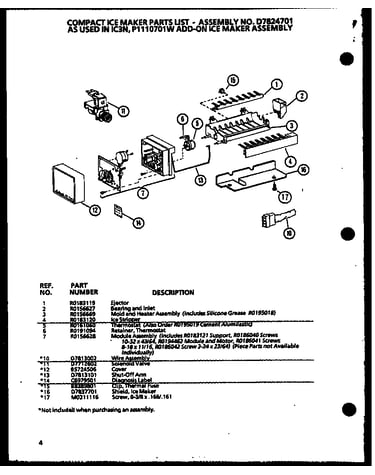

    32" top mount and bottom mount models (ic3n/p1110701w) diagram

    Baring Inlet

    Part #R0156627

    Replaced by #WP628356

    Info Icon
    Manufacturer substitution
    This part replaces R0156627. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.74
    18% OFF Phone Price : $32.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Shut-off Arm for Amana IC4N-P1110801W - Part WP67004028

    32" top mount and bottom mount models (ic3n/p1110701w) diagram

    Refrigerator Shut-off Arm

    Part #D7813101

    Replaced by #WP67004028

    Info Icon
    Manufacturer substitution
    This part replaces D7813101. Substitute parts can look different from the original.
    In Stock
    $32.44
    31% OFF Was : $46.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Cube Ejector for Amana IC4N-P1110801W - Part WP627843

    32" top mount and bottom mount models (ic3n/p1110701w) diagram

    Refrigerator Ejector

    Part #R0183119

    Replaced by #WP627843

    Info Icon
    Manufacturer substitution
    This part replaces R0183119. Substitute parts can look different from the original.
    In Stock
    $46.48
    11% OFF Phone Price : $52.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing Clip for Amana IC4N-P1110801W - Part WPM0114003

    32" top mount and bottom mount models (ic3n/p1110701w) diagram

    Refrigerator Clamp

    Part #M0114003

    Replaced by #WPM0114003

    Info Icon
    Manufacturer substitution
    This part replaces M0114003. Substitute parts can look different from the original.
    In Stock
    $8.98
    10% OFF Phone Price : $9.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw Sm/hex for Amana IC4N-P1110801W - Part WP98165

    32" top mount and bottom mount models (ic3n/p1110701w) diagram

    Screw

    Part #M0211018

    Replaced by #WP98165

    Info Icon
    Manufacturer substitution
    This part replaces M0211018. Substitute parts can look different from the original.
    In Stock
    $28.38
    Minus Item
    Qty
    Plus Item
  • Screw Sm/hex for Amana IC4N-P1110801W - Part WP98165

    Refrigerator Screw

    Part #M0211116

    Replaced by #WP98165

    Info Icon
    Manufacturer substitution
    This part replaces M0211116. Substitute parts can look different from the original.
    In Stock
    $28.38
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve for Amana IC4N-P1110801W - Part WPD7712603

    Water Val K

    Part #D7712602

    Replaced by #WPD7712603

    Info Icon
    Manufacturer substitution
    This part replaces D7712602. Substitute parts can look different from the original.
    In Stock
    $199.42
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Ice Maker (d7824706q) for Amana IC4N-P1110801W - Part D7824706Q

    32" top mount and bottom mount models (ic3n/p1110701w) diagram

    Refrigerator Module Assembly

    Part #R0156628

    Replaced by #D7824706Q

    Info Icon
    Manufacturer substitution
    This part replaces R0156628. Substitute parts can look different from the original.
    In Stock
    $98.89
    11% OFF Phone Price : $110.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Fitting for Amana IC4N-P1110801W - Part M0753001

    32" top mount and bottom mount models (ic3n/p1110701w) diagram

    Fitting

    Part #M0753001

    The manufacturer no longer makes this part, and there's no substitute part

  • Whirlpool Refrigerator Ice Maker (d7824706q) for Amana IC4N-P1110801W - Part D7824706Q

    32" top mount and bottom mount models (ic3n/p1110701w) diagram

    Refrigerator Ice Maker

    Part #D7824701

    Replaced by #D7824706Q

    Info Icon
    Manufacturer substitution
    This part replaces D7824701. Substitute parts can look different from the original.
    In Stock
    $98.89
    11% OFF Phone Price : $110.89Info Icon
    Minus Item
    Qty
    Plus Item
